Default ICM pin E? desperate!

Hello,
I've spent 5 hours Googling different ways of expressing it, but I can't find what pin E of the '96 L36 ICM is supposed to go to.
The car must drive under its own power by Saturday morning or my career is over! I'm not exaggerating.
PLEASE help!
cosmick is offline   Reply With Quote
Old 07-02-2015, 05:54 AM   #2
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

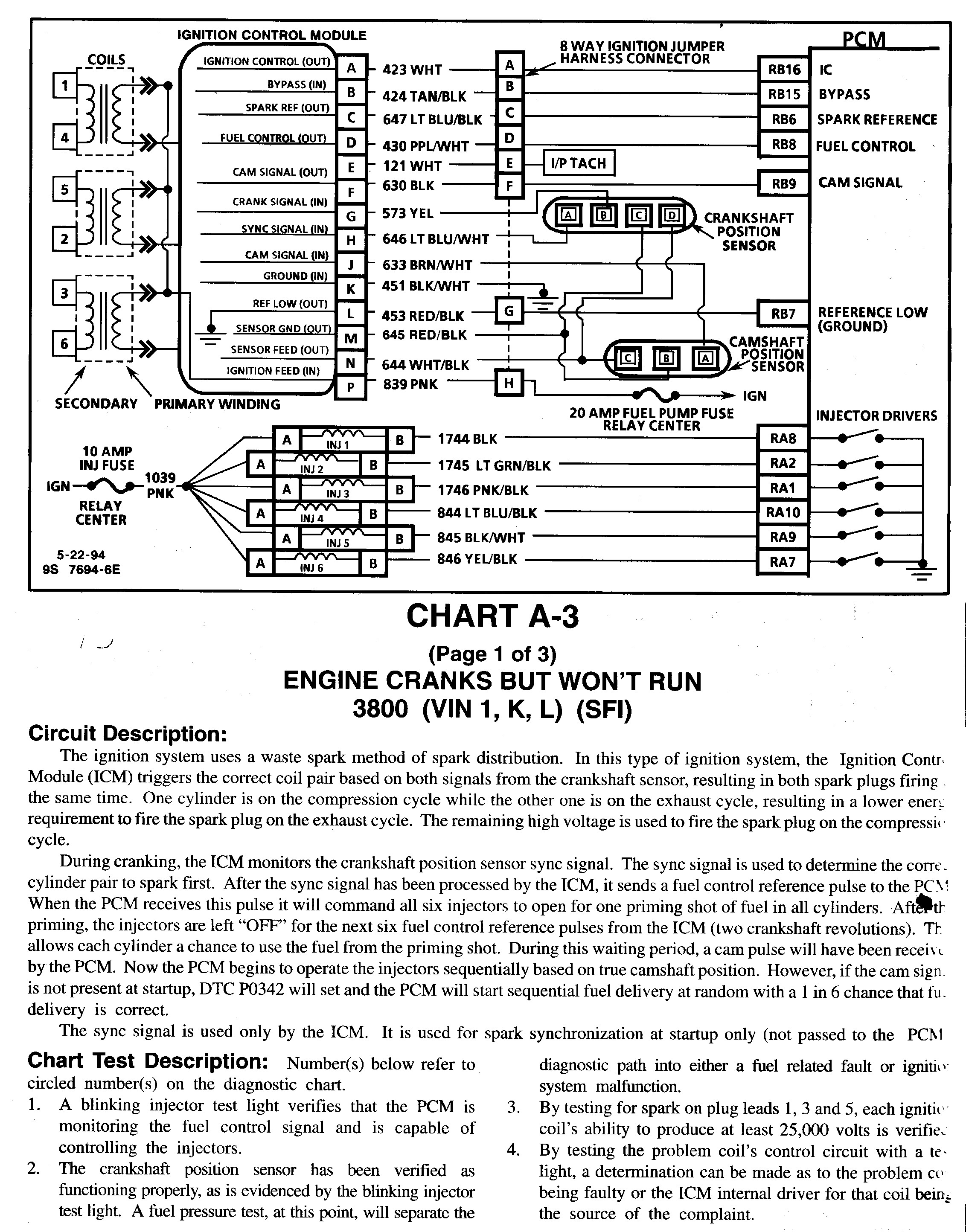

Worst case scenario, don't connect anything to it. It goes directly to the I/P as a TACH signal.

Attached Thumbnails
ICM pin E? desperate!-6e3-34.jpg
Mike is offline   Reply With Quote
Old 07-02-2015, 09:22 AM   #3
Junior Member
Thread Starter

Join Date: Jul 2015
Posts: 2
Thanks: 0
Thanked 0 Times in 0 Posts
cosmick is on a distinguished road
Default

Thank you! Extremely much.
Here'* what it'* for: '83 for 50 MPG, big brakes,and more - RX7Club.com
cosmick is offline   Reply With Quote
