Well I am sure me and Tom will be posting ALOT in this thread, but to start with, what is the best way to log misfires? I am currently logging something I found called Total Misfires but it doesn't seem to actually log anything? Should I try to make a user defined PID that adds all the individual cylinder misfires?

Tuning is going good on the other hand


imma' start getting the MAF dialed in in the morning.
Rockstar04 is offline   Reply With Quote
Old 03-22-2010, 11:55 PM   #2
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I've actually never got misfires to log either. not sure why, I just gave up.

Your LTFTs look real good. how long did it take to dial in the VE tune?
Danthurs is offline   Reply With Quote
Old 03-23-2010, 12:17 AM   #3
Senior Member
Posts like a Northstar
Thread Starter

Rockstar04's Avatar

Join Date: Feb 2009
Location: Northern Illinois
Posts: 789
Thanks: 0
Thanked 0 Times in 0 Posts
Rockstar04 is on a distinguished road
Default

Quote:
Originally Posted by Danthurs View Post
I've actually never got misfires to log either. not sure why, I just gave up.

Your LTFTs look real good. how long did it take to dial in the VE tune?
Thats about 3 tunes and maybe 150 miles. I will have to post on the HPtuners site to try and get misfires figured out. . . .

0o0000o and does anyone know how to log load?
Rockstar04 is offline   Reply With Quote
Old 03-23-2010, 01:11 AM   #4
-- SITE DONATOR --
True Car Nut

ymmot04's Avatar

Join Date: May 2009
Posts: 4,638
Thanked 5 Times in 4 Posts
ymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of light
Default

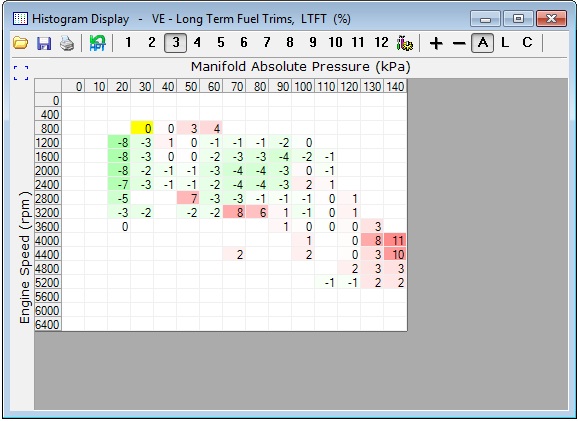

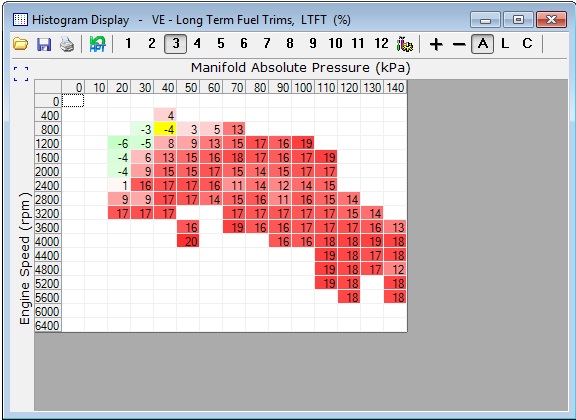

Here'* what happens when you go to long without a tune....


Looking a little better.
Attached Thumbnails
Help With HPTuners-dekalb-leg.jpg   Help With HPTuners-meadows-leg.jpg
ymmot04 is offline   Reply With Quote
Old 03-23-2010, 07:34 AM   #5
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

It'* cake. Pull down the pids for all the cylinders. If you can't get misfires then you have to turn P0300 back on and tell it to not report. Some shelf pcms have it to never report or show and you'll never get misfires.

It'* best if you use a fairly standard config for scanning. There'* certain parameters everyone uses and looks for. Then I have another config for misfires and other goodies. If you want.. I can toss them at you later tonight.
BillBoost37 is offline   Reply With Quote
Old 03-23-2010, 08:10 AM   #6
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Post up that info, I would like misfires as well.
Danthurs is offline   Reply With Quote
Old 03-24-2010, 12:51 AM   #7
Senior Member
Posts like a Northstar
Thread Starter

Rockstar04's Avatar

Join Date: Feb 2009
Location: Northern Illinois
Posts: 789
Thanks: 0
Thanked 0 Times in 0 Posts
Rockstar04 is on a distinguished road
Default

I finally started getting the MAF calibrated. I'm getting closer to where I want to be, compared to what I started with



I got misfires to log too! Now all I need to get figured out is load. . . .
Rockstar04 is offline   Reply With Quote
Old 03-24-2010, 12:58 AM   #8
-- SITE DONATOR --
True Car Nut

ymmot04's Avatar

Join Date: May 2009
Posts: 4,638
Thanked 5 Times in 4 Posts
ymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of light
Default

Just throwing this out in case anyone has had a similar experience. I was getting no misfires before the process began, after 2 rounds of VE tuning and getting those tables quite a bit closer to where they need to be, it'* misfiring under high load again (atleast that is what it felt like and Trent noticed a timing dip but no KR). I'm hoping this will go away as I finish up the VE tuning and move onto getting the MAF calibrated, but looking for some consolation it'* not my coils again..
ymmot04 is offline   Reply With Quote
Old 03-24-2010, 08:58 AM   #9
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

No one reminded me for the files..and I'm brain dead. Sorry guys.

You guys didn't maf tune then VE tune did you? it'* the other way around. And you shouldn't be seeing misfires at all. That indicates a problem wtih something like plug wires etc etc. Or the tune is totally off and it'* lean etc.

What does the scan show is out of whack? Which cylinders etc.
BillBoost37 is offline   Reply With Quote
Old 03-24-2010, 09:13 AM   #10
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Doing a VE tune will not add nor fix misfire. Misfire is a physical problem, plugs, wires, or coils. Find out which cylinder and deal with it. What plugs do you have? And what are you gapped at? With a stage2 IC and the pulley your running. You should be 1 or 2 ranges colder and gapped at .055-.050 You still running stock coils? Does it stutter at WOT, but runs good at cruise? If so, the coils are likely the problem. Deal with this, and then move back to tuning.
Danthurs is offline   Reply With Quote
