Default Fuel pump Question??

Does anybody have a picture or easy to read diagram of which wires on a 2000 Grand Prix GTP that I would need to run test wires straight to the battery? I want to run a switch to run the pump and bypass the relays and whatever else is associated with it. I know which jarness to use just not the wires. Thanks much
sexSSEi is offline   Reply With Quote
Old 07-24-2012, 11:49 PM   #2
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,647
Thanked 998 Times in 774 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Disconnect the connector, attach the negative multimeter lead to chassis ground, connect the positive to one of the four wires. Have someone turn power on. Repeat this until you see 12 volts. You may see one with about 5v, this may be for your fuel level gauge. I am only basing this off of the Bonneville 4 wire system. 2 grounds, 1 5V and 1 12v positive. Trial and error really. Once you determine which pin is 12v positive, look at the other connector and verify the pin, and then connect a wire to that pin and connect to battery.
Mike is offline   Reply With Quote
Old 07-25-2012, 12:04 AM   #3
Senior Member
Posts like a 4 Banger
Thread Starter

sexSSEi's Avatar

Join Date: Jan 2011
Location: Niles, OH (youngstown area)
Posts: 118
Thanks: 0
Thanked 0 Times in 0 Posts
sexSSEi is on a distinguished road
Default

I know that much, I was just trying to get around this without any tools. Theyre at my other house.
sexSSEi is offline   Reply With Quote
Old 07-25-2012, 07:29 AM   #4
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

the one for the pump will be bigger that the level sender
jwfirebird is offline   Reply With Quote
Old 07-25-2012, 08:43 AM   #5
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

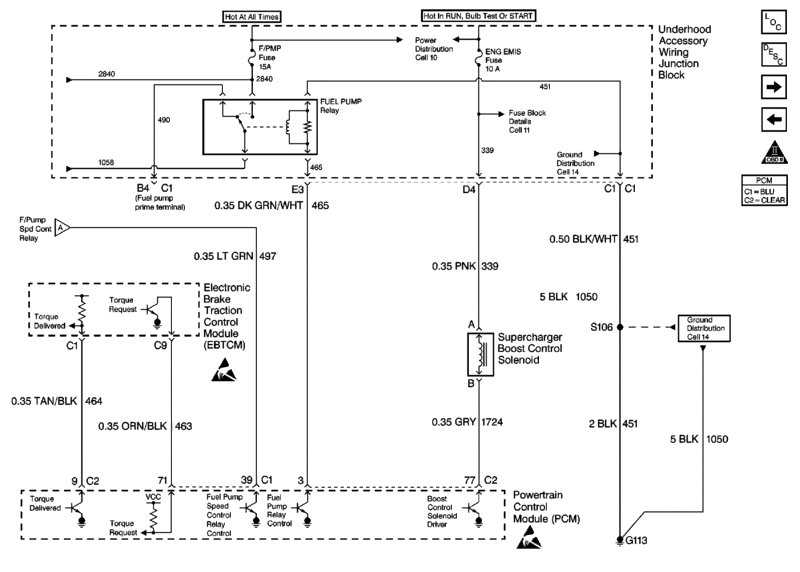

Technically a 99 Regal, but the diagram should work for what you need
