As you already know, my car was hit. Had a lot of free time today so decided to get started.

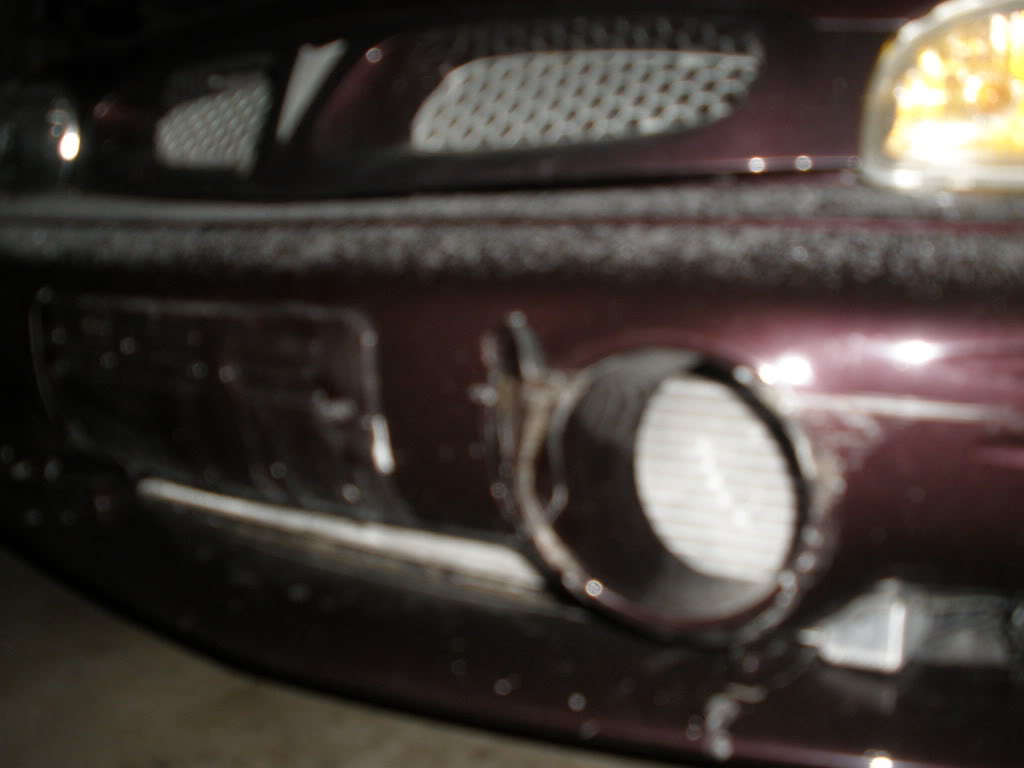

Here'* what I started with.
Name:  PC110271.jpg
Views: 86
Size:  69.5 KB

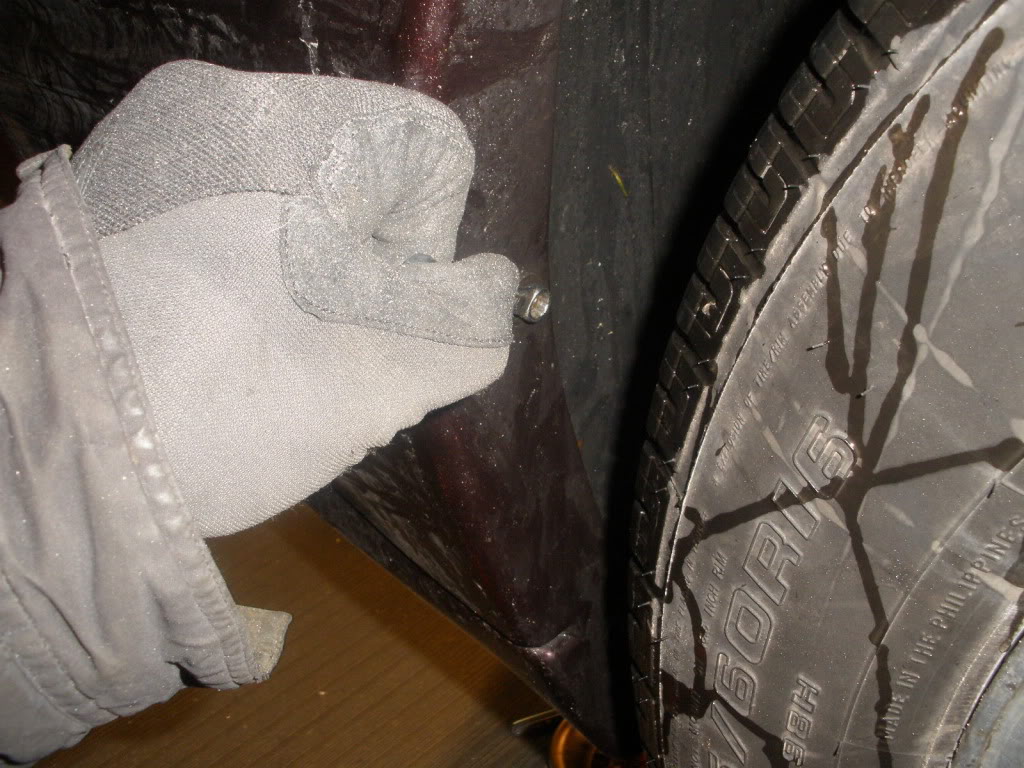

Started by removing the front bumper. Removed the screws from the splash guards.
Name:  PC250310.jpg
Views: 73
Size:  172.9 KB

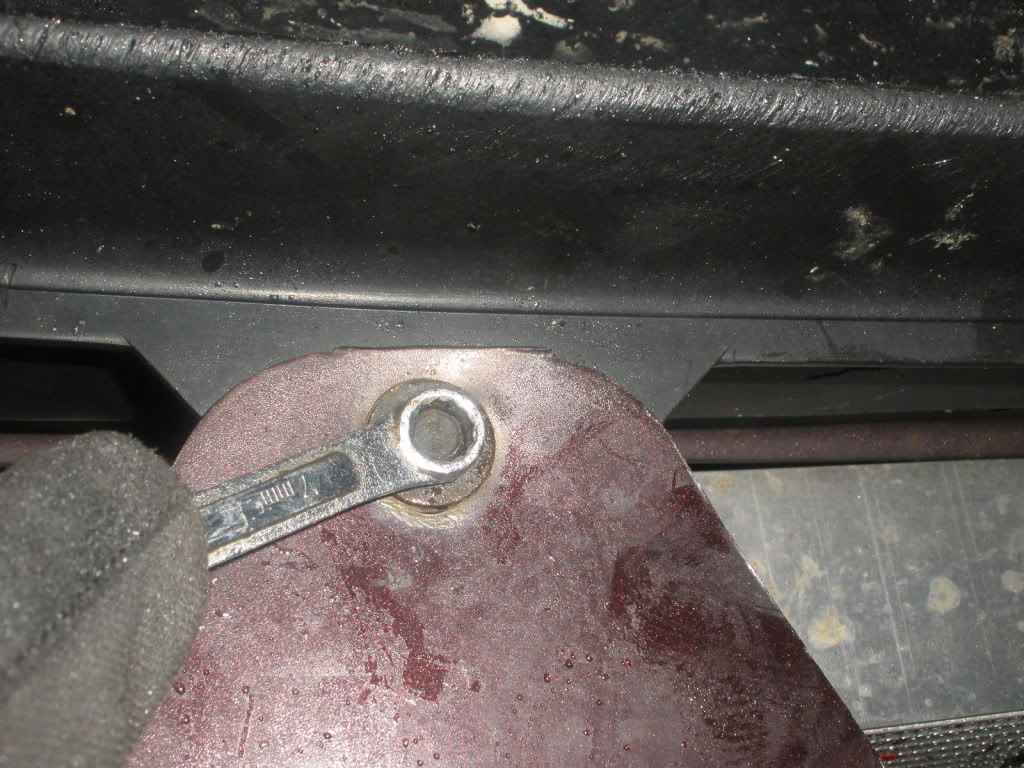

A few bolts underneath
Name:  PC250311.jpg
Views: 81
Size:  196.4 KB

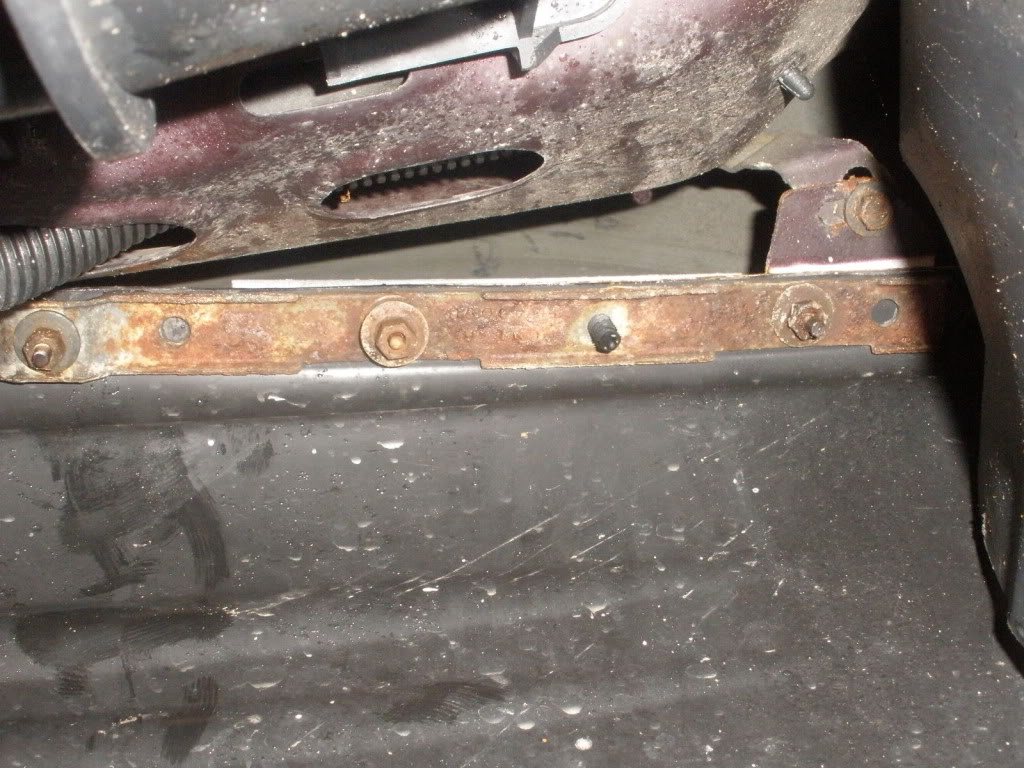

These were a pain. Had to go under the car. had car on ramps, removing the wheels would have made it a bit easier.
Name:  PC250312.jpg
Views: 83
Size:  173.1 KB

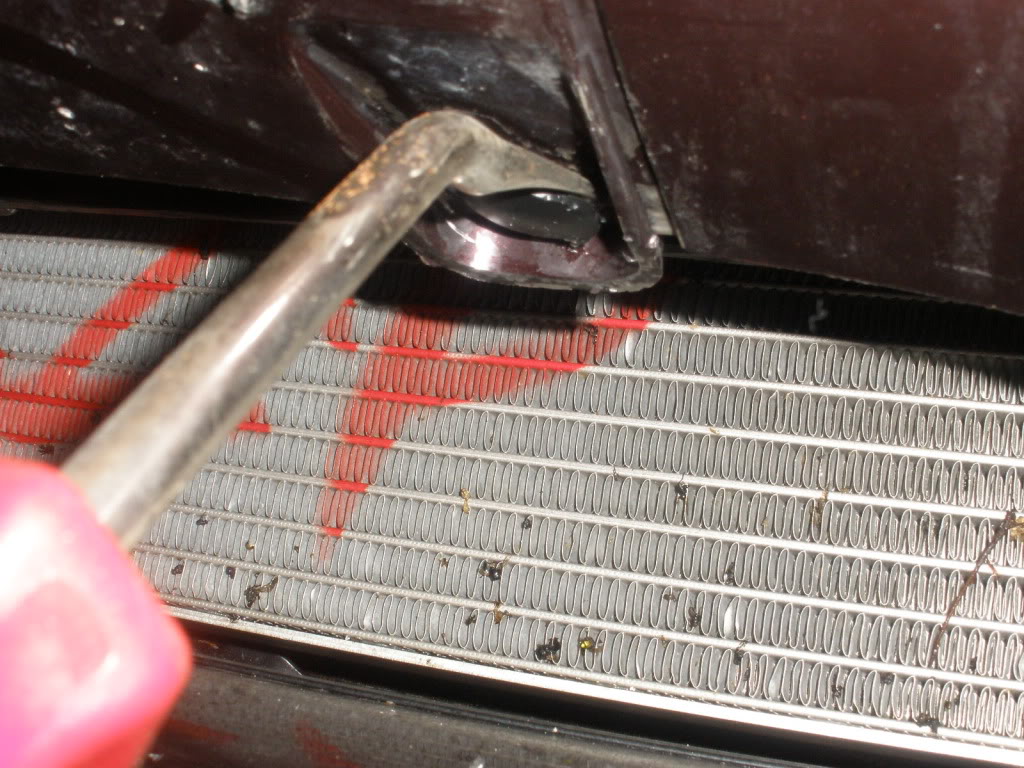

And 2 clips under where the license plate would be.
Name:  PC250314.jpg
Views: 87
Size:  182.6 KB

And it pops right off.


I sanded the surface good
Name:  PC250317.jpg
Views: 95
Size:  135.8 KB

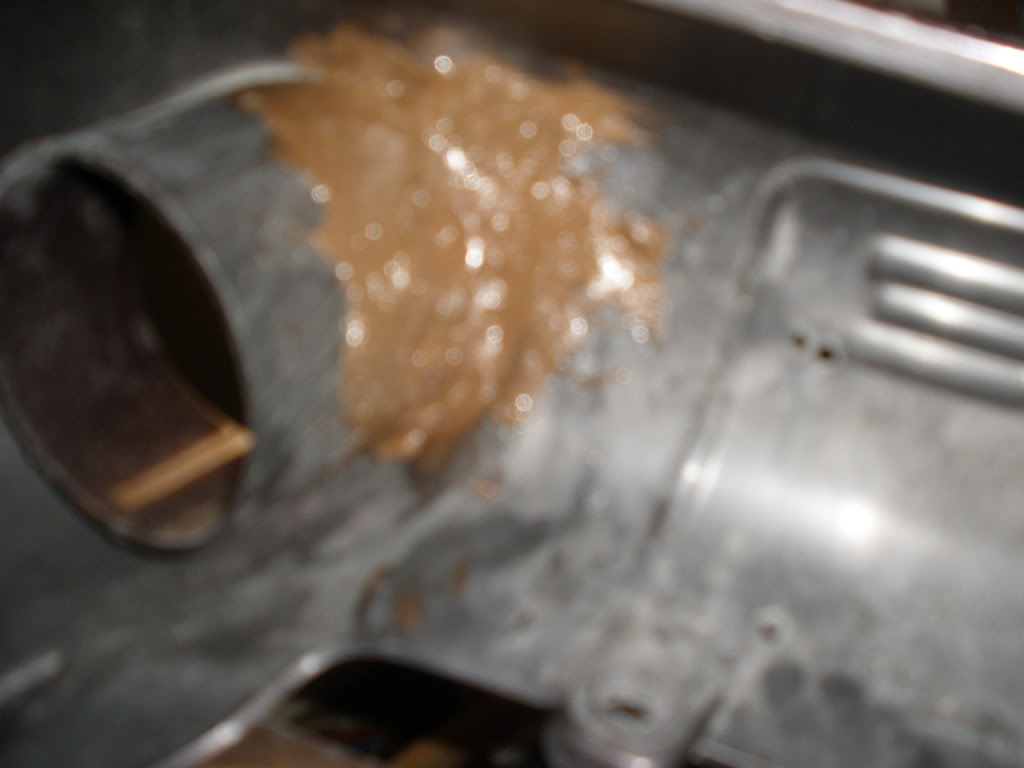

And glassed up the back.
Name:  PC250320.jpg
Views: 79
Size:  63.3 KB

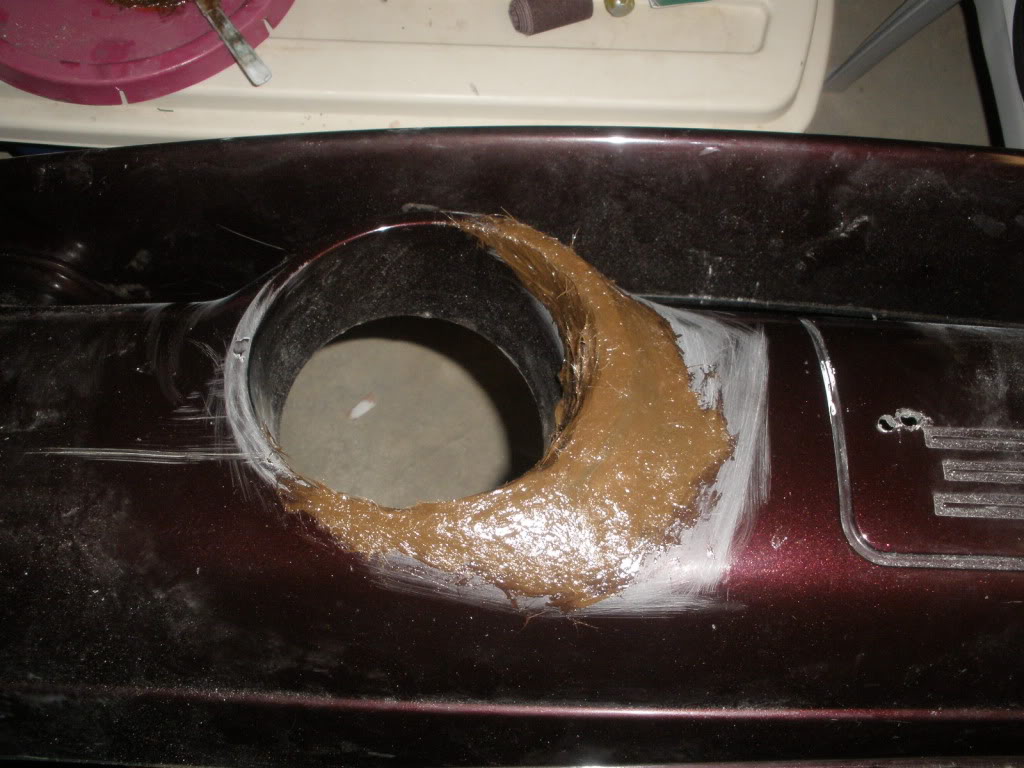

Then I filled in the outside with kittyfur.
Name:  PC250318.jpg
Views: 86
Size:  140.9 KB

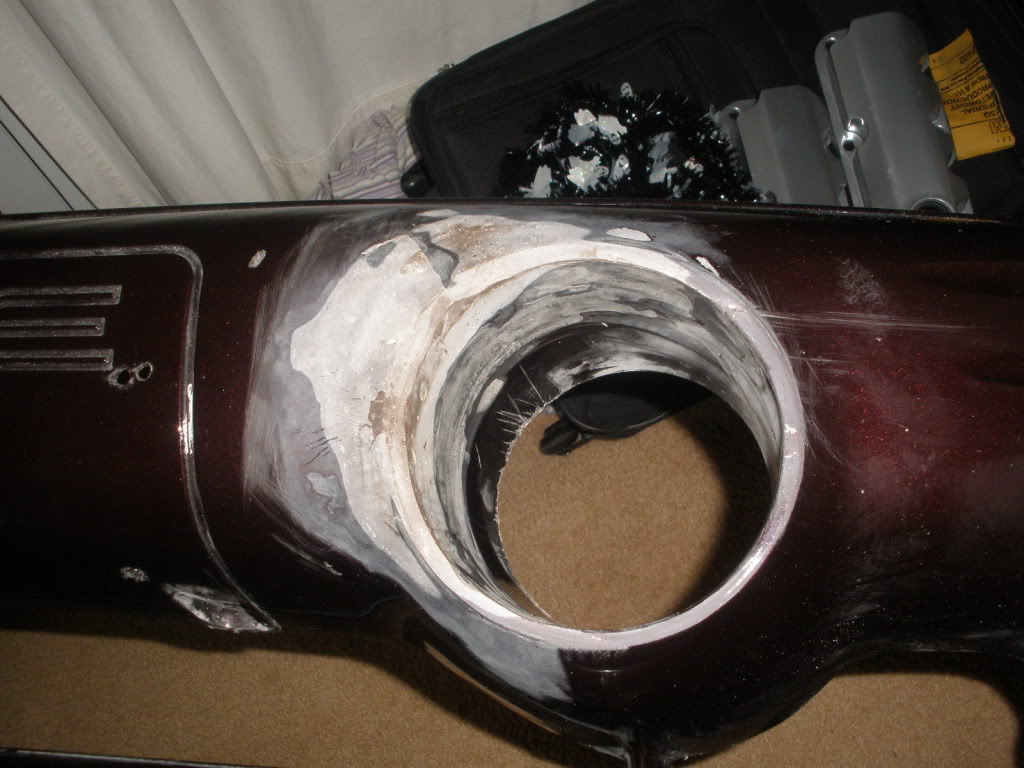

Did some rough sanding
Name:  PC250321.jpg
Views: 89
Size:  130.5 KB

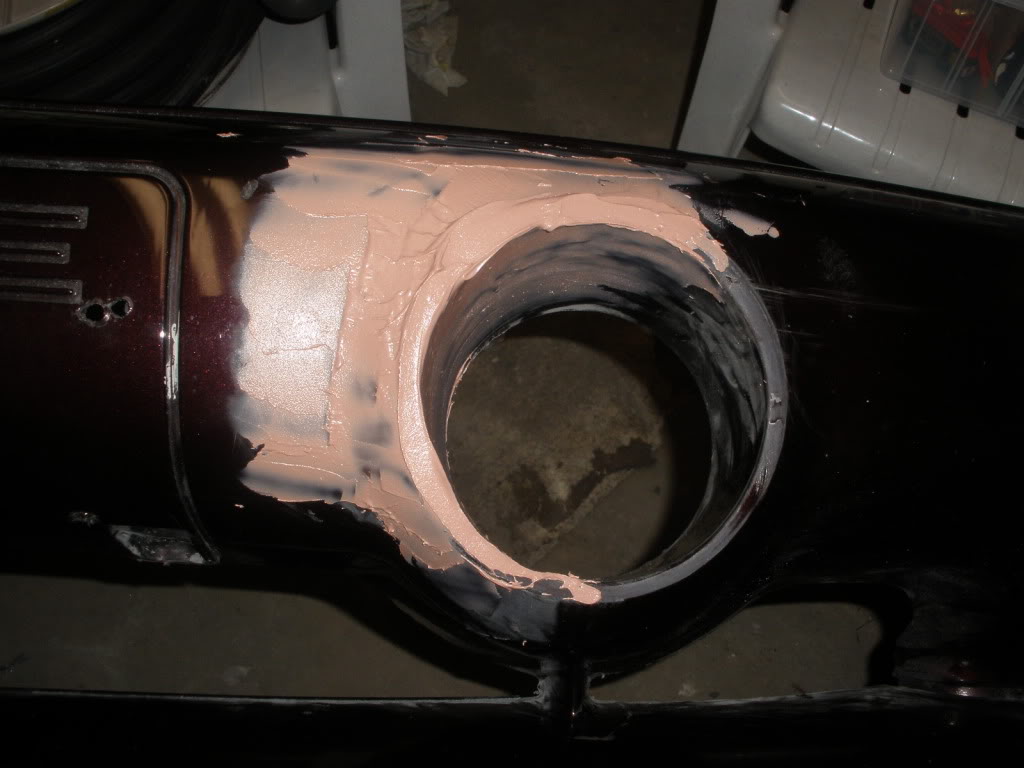

Added some bondo
Name:  PC250322.jpg
Views: 73
Size:  94.2 KB

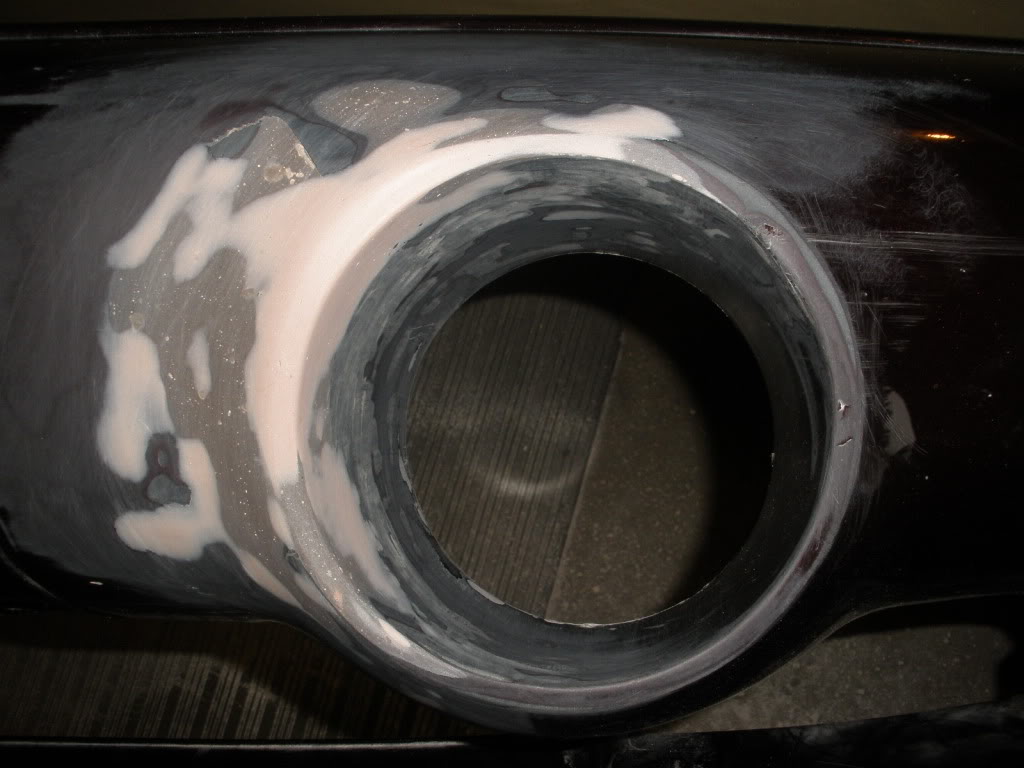

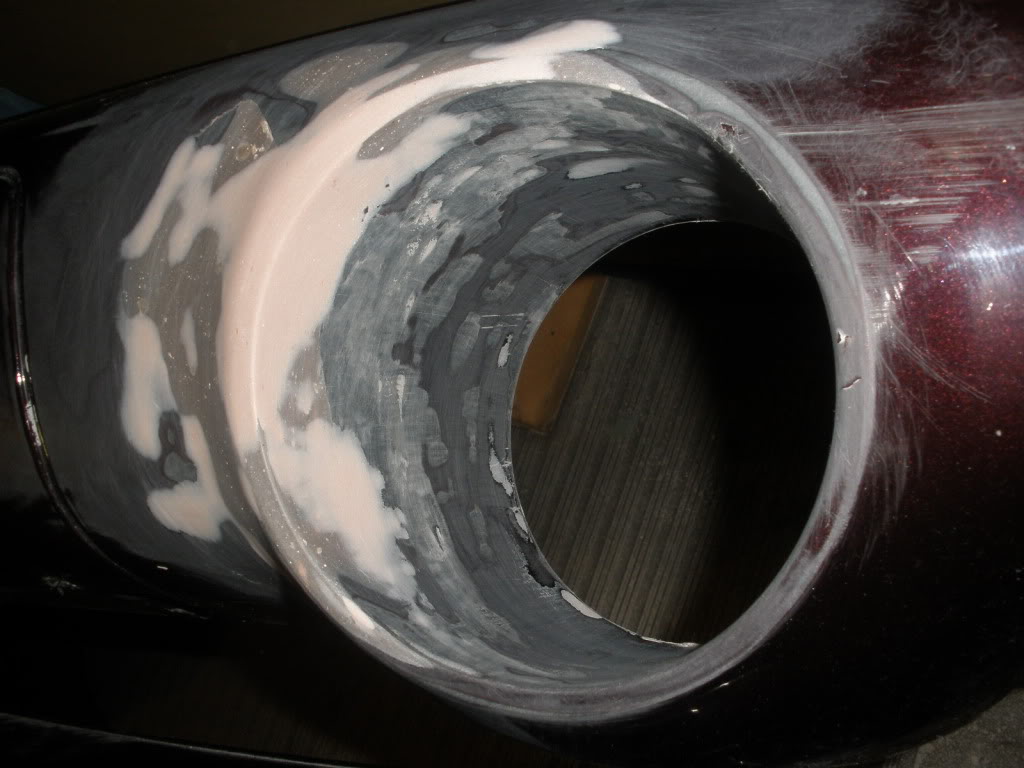

Then sanded that real good.
Name:  PC250323.jpg
Views: 70
Size:  102.8 KB

Name:  PC250324.jpg
Views: 70
Size:  107.6 KB

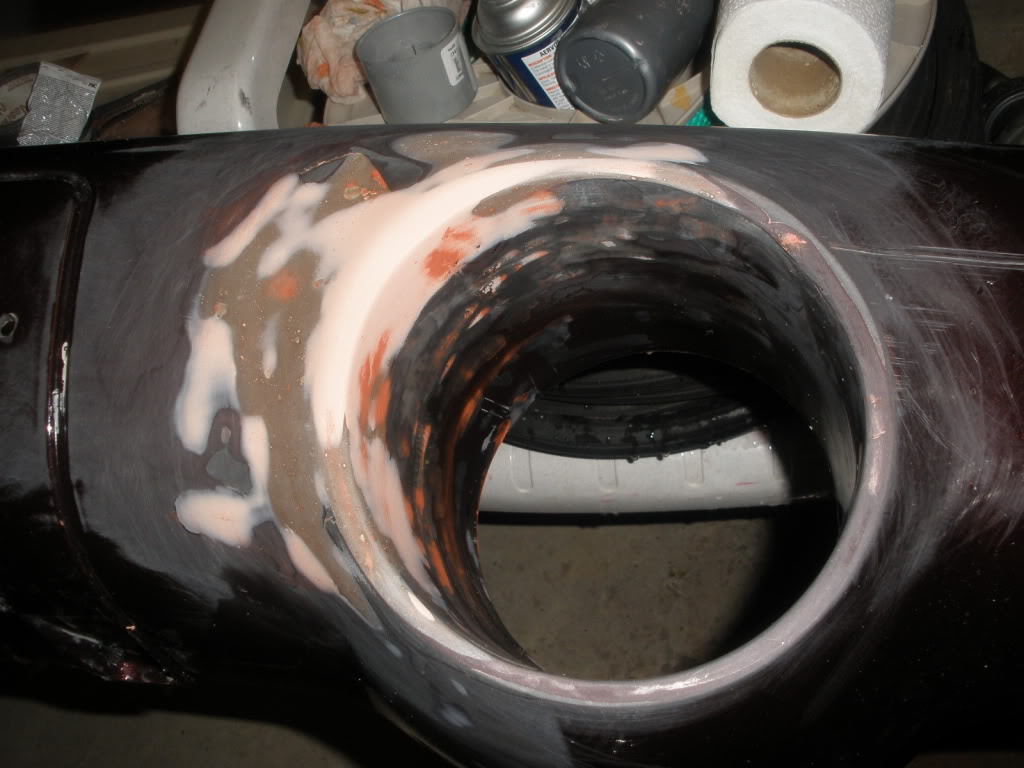

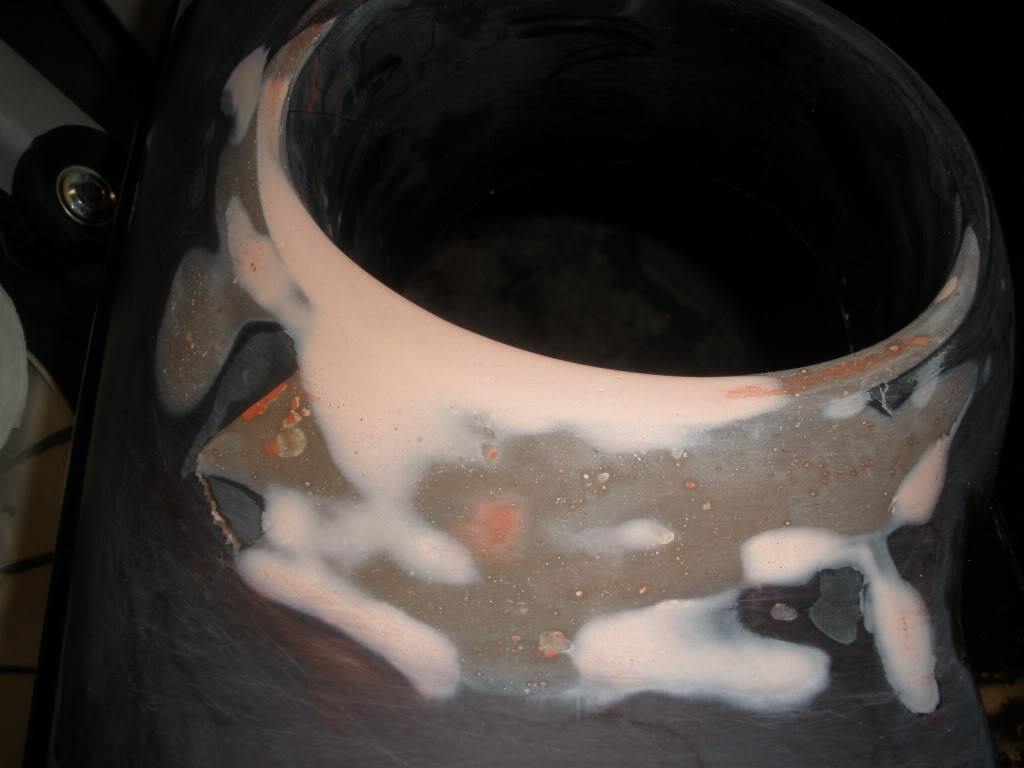

A bit more filling
Name:  PC250325.jpg
Views: 74
Size:  111.4 KB

Name:  PC250326.jpg
Views: 78
Size:  79.7 KB

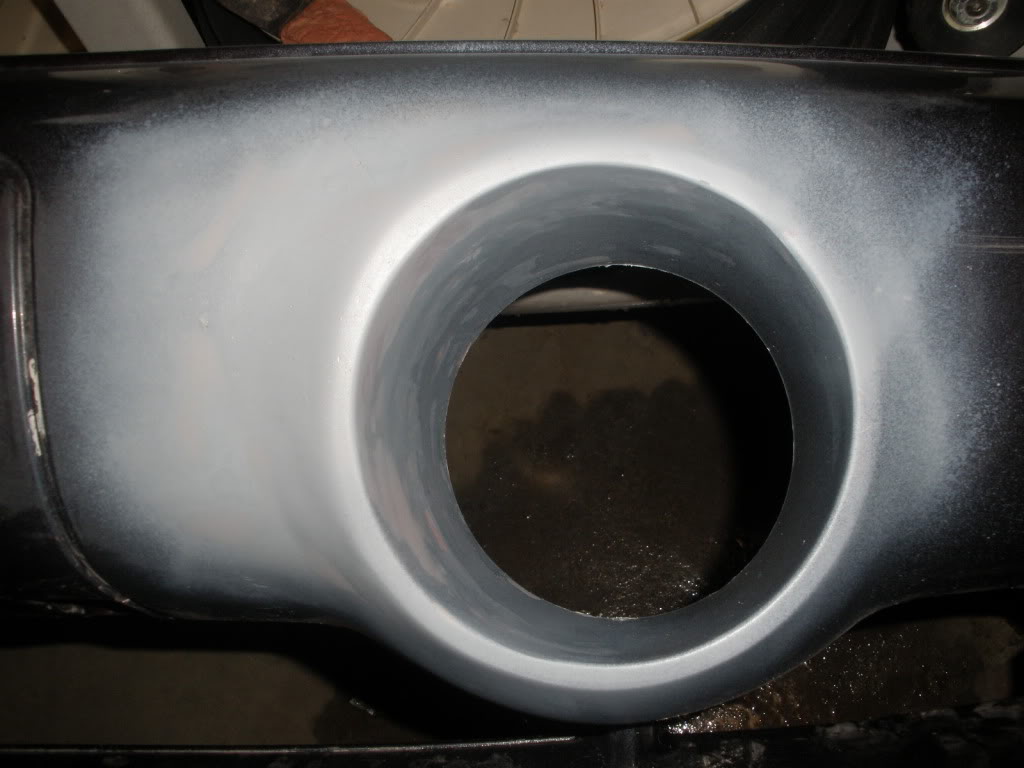

And a light shot of can primer.
Name:  PC250327.jpg
Views: 79
Size:  93.4 KB

Tomorrow I will pick up a can of paint. I'll sand a bit more and give it a shot of paint to get threw the winter. I plan to remove the bumper in spring and sand it smooth and paint it with the right primer and paint.
Reply
Old Dec 25, 2009 | 03:39 PM
  #2
sawgunner's Avatar
Senior Member
True Car Nut

Joined: Jan 2009
Posts: 7,122
Likes: 0
From: Dover, NH
sawgunner is on a distinguished road
Default

looks good dan almost like it never happened
Reply
Old Dec 25, 2009 | 06:45 PM
  #3
GXP Venom's Avatar
Administratus Emeritus
Certified Car Nut

Joined: Jan 2006
Posts: 16,539
Likes: 18
From: Purgatory, Pennsylvania
GXP Venom is on a distinguished road
Default

Quite the afternoon project Dan. Nice work for a get er done on a winter'* day. Where do you get the DCM in a paint bomb?
Reply
Old Dec 25, 2009 | 06:54 PM
  #4
Purplehazeir's Avatar
Senior Member
True Car Nut

Joined: Sep 2008
Posts: 7,979
Likes: 2
From: Arlington, WA
Purplehazeir is on a distinguished road
Default

Good work and you got lot'* done today. I suppose I can quit shaving the neighborhood cats now...doesn't look like you need any more kitty fur.
Reply
Old Dec 25, 2009 | 07:08 PM
  #5
Black Pearl's Avatar
Senior Member
True Car Nut

Joined: Apr 2009
Posts: 3,301
Likes: 1
From: STC, MN
Black Pearl is on a distinguished road
Default

Nice work as always Dan
Reply
Old Dec 25, 2009 | 07:38 PM
  #6
BillBoost37's Avatar
DINOSAURUS BOOSTUS

Expert Gearhead

Joined: Mar 2005
Posts: 41,391
Likes: 30
From: Enfield, CT
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Looks great Dan. I've only heard of fixing bumpers with urethane since they flex with wind etc. Similar to how painting them is different because of the flex agent that is added to the paint.

Glad to see that you won't be going through the winter with an ugly spot on the bumper.
Reply
Old Dec 25, 2009 | 08:08 PM
  #7
Mike's Avatar
Retired
Certified Car Nut

Joined: Jul 2003
Posts: 17,960
Likes: 1,839
From: Dark Side, AZ
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

After your done with yours Dan, your more than welcome to come over and do mine. Just bring warm clothes. I have everything else including paint.

Good job btw.
Reply
Old Dec 25, 2009 | 09:18 PM
  #8
Danthurs's Avatar
Thread Starter
Retired Senior Admin

Expert Gearhead

Joined: May 2006
Posts: 29,661
Likes: 43
From: Sheboygan Wisconsin
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I'm just using standard paint for the winter. I figuer if the job doesn't hold up threw the winter, I can make what ever changes I need in spring. If it does hold up threw winter, then it can hold up to anything.
Reply
Old Dec 26, 2009 | 03:49 PM
  #9
Danthurs's Avatar
Thread Starter
Retired Senior Admin

Expert Gearhead

Joined: May 2006
Posts: 29,661
Likes: 43
From: Sheboygan Wisconsin
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

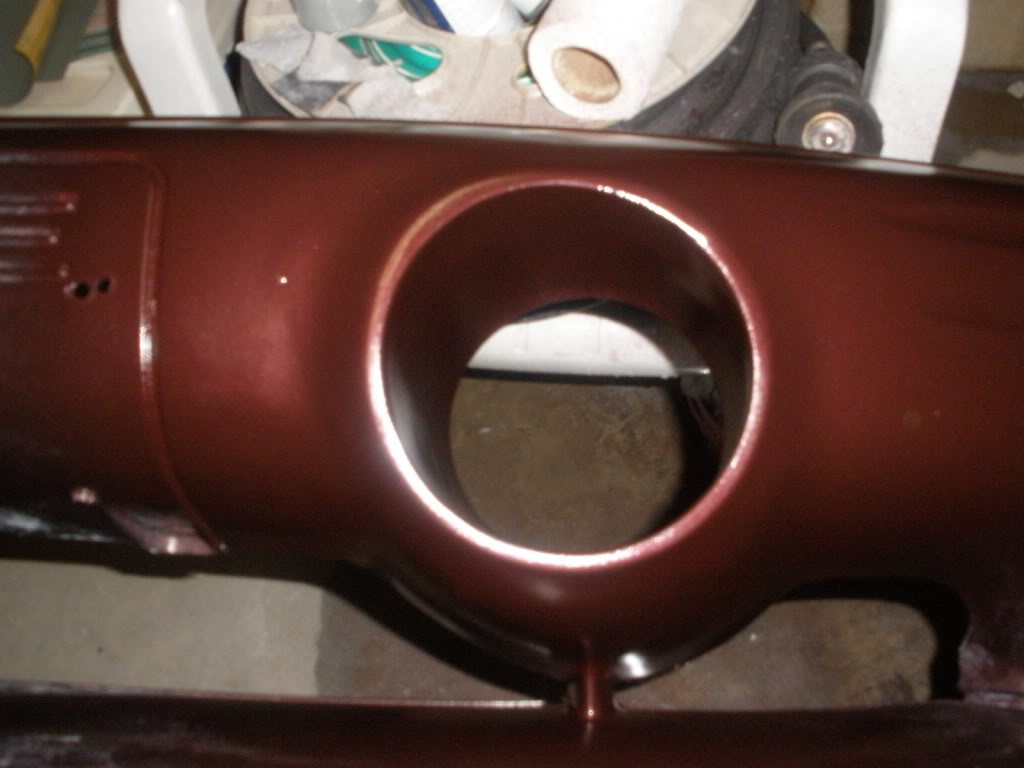

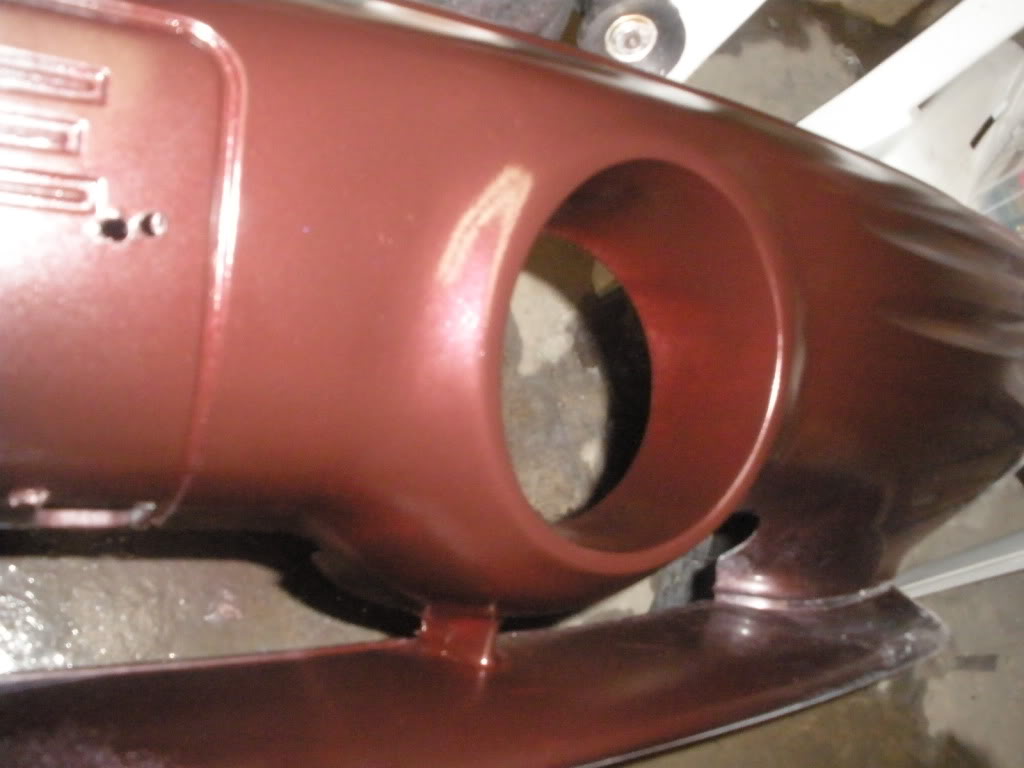

Nearly done now. All filled, primed, and painted.
Name:  PC260328.jpg
Views: 81
Size:  82.4 KB

Name:  PC260329.jpg
Views: 83
Size:  81.4 KB

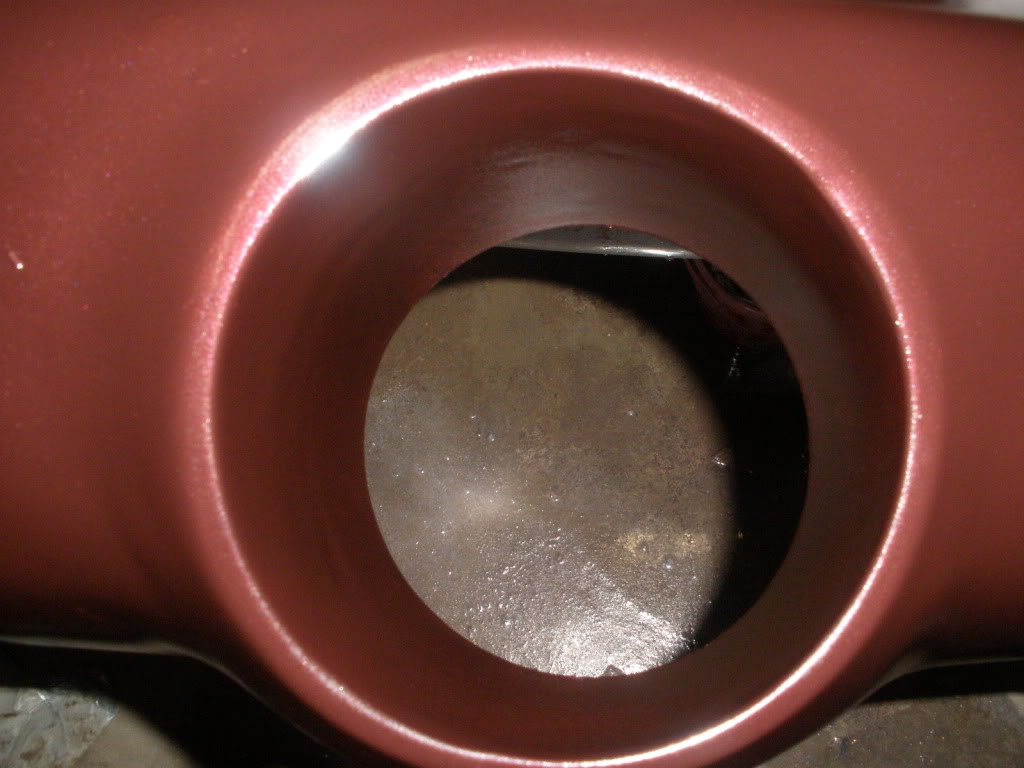

There'* a small area to the left of the fog light hole that'* not perfect. But that'* not what I was looking for at this time. I want to see how this works threw the winter. Wasn't going to make it perfect because I can't paint it right until spring. If the work holds up good, then it will be cleaned up a bit in spring and be painted with good paint.
Name:  PC260330.jpg
Views: 74
Size:  122.9 KB

Name:  PC260331.jpg
Views: 73
Size:  98.2 KB

All that'* left is wet sand with 2000 grit, then put it back on the car.
Reply
Old Dec 26, 2009 | 03:51 PM
  #10
Mike's Avatar
Retired
Certified Car Nut

Joined: Jul 2003
Posts: 17,960
Likes: 1,839
From: Dark Side, AZ
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

That came out nice Dan.
