Default Fixed DIC with pictures

I followed acg_ssei'* write up in tech info, took it all apart, played around with all of the plugs and what not and now, hurray it works!
It wasn't working at all today to begin with. The hardest part was removing 50 million screws from the back of the cluster.
Well Worth my time, the lights are even brighter now.
Figured I would toss in some pictures I took of the process.

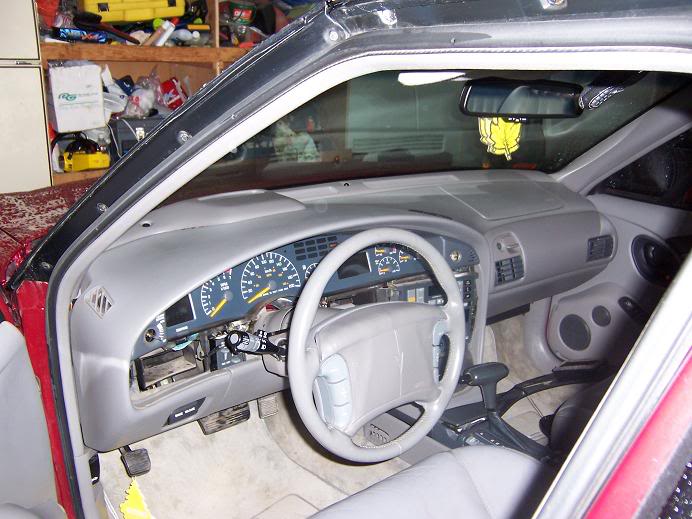

1. Frame removed off of dash
Name:  frameoff.jpg
Views: 1
Size:  68.3 KB

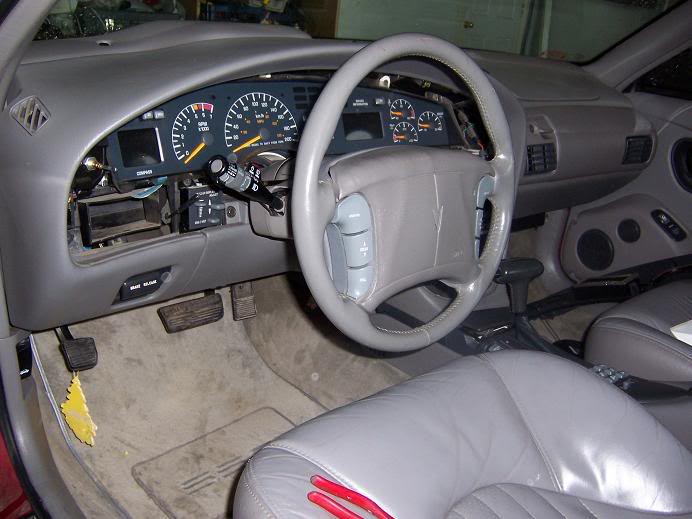

2.Trim removed from gage cluster
Name:  trimoff.jpg
Views: 1
Size:  52.2 KB

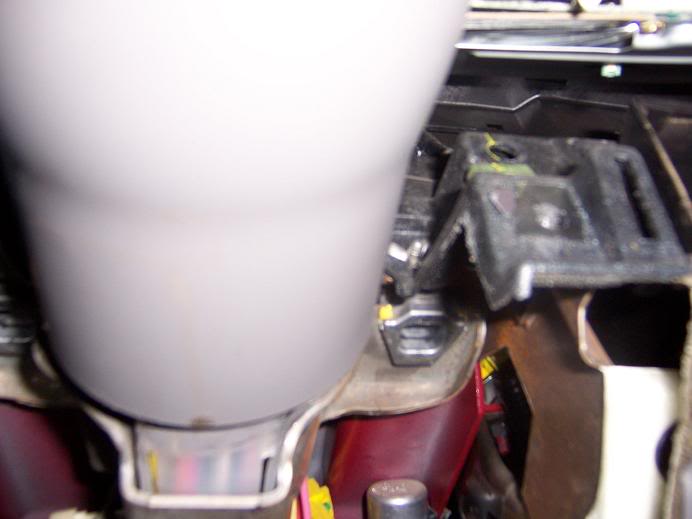

3. Bolts used to drop steering wheel column, i removed mine compleatly and let it drop down.
Name:  Steering_column_drop_bolts.jpg
Views: 1
Size:  31.4 KB

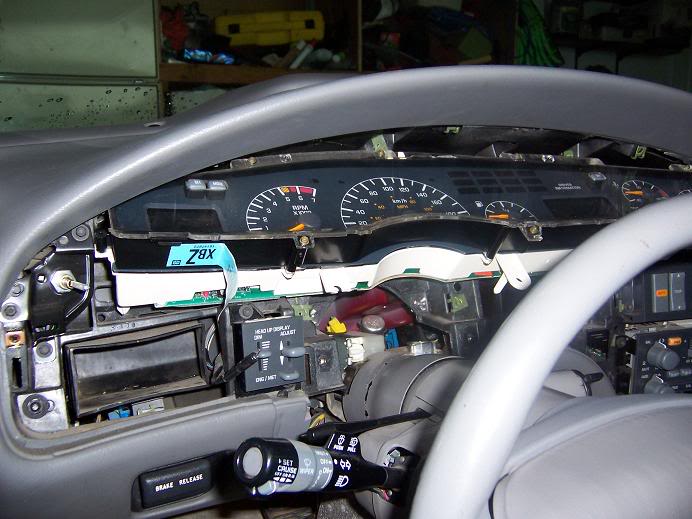

4. Steering Column dropped, cluster tilted rearward, so the two plug connectors can be removed
Name:  dropped.jpg
Views: 1
Size:  61.7 KB

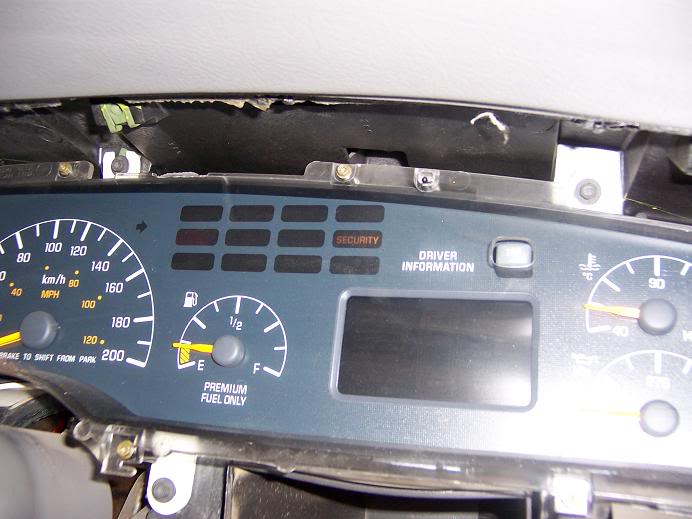

5. Bolts on top of cluster to be removed
Name:  bolts.jpg
Views: 1
Size:  50.7 KB

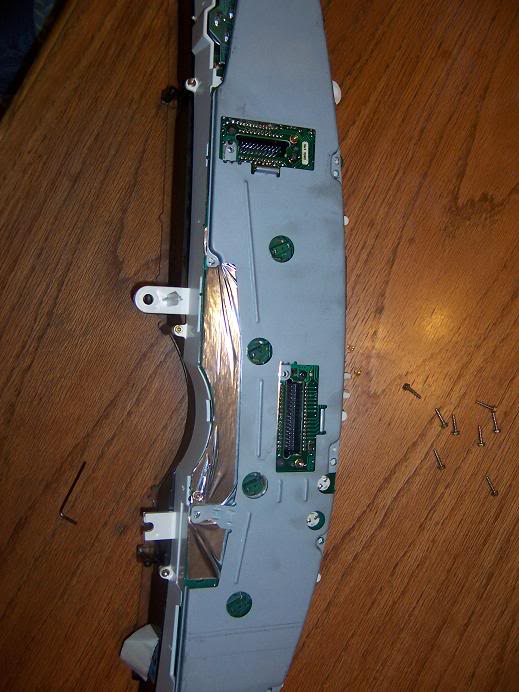

6. Rear of cluster
Name:  cluster.jpg
Views: 1
Size:  59.1 KB
I took no pictures of the unit apart...I don't know why either.
There is quite a few screws to remove, but it was not to hard. I un plugged the ribbon connector that connects to the DIC, This cleaned the contacts well enough that it now opertates well. I also wiped off all the bulbs, then used PlastX on the inner side and outter side of the clear lense, looks PERFECT now!

Messin around with a flash light

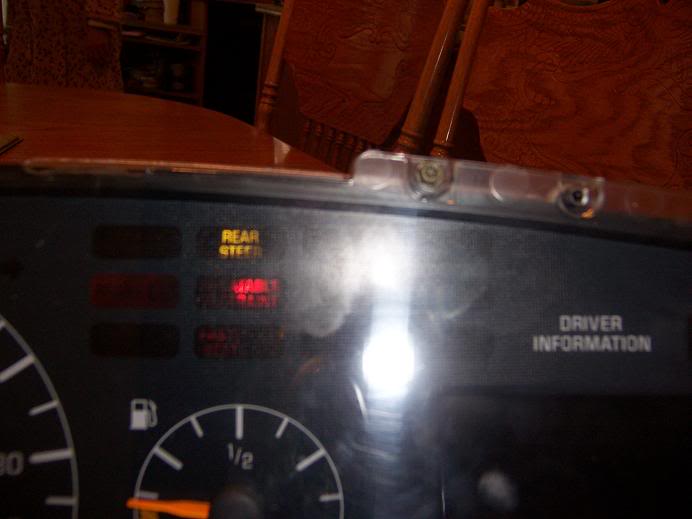

Rear steer light:
Name:  rearsteer.jpg
Views: 1
Size:  30.5 KB

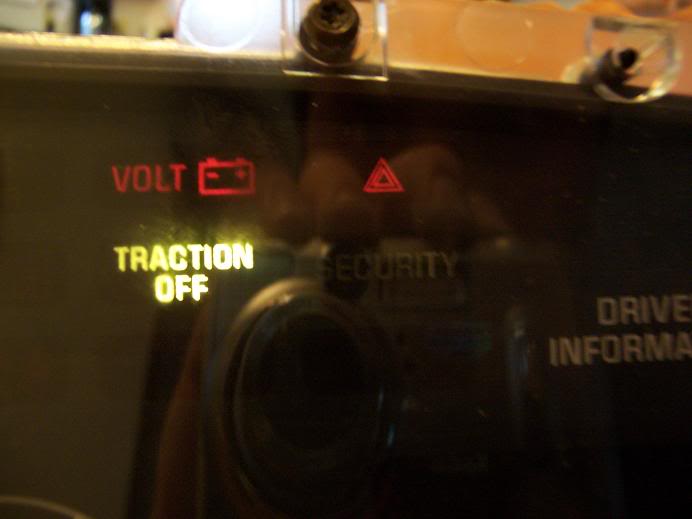

And un-used hazard light?
Name:  un-used_hazard_light.jpg
Views: 1
Size:  24.3 KB

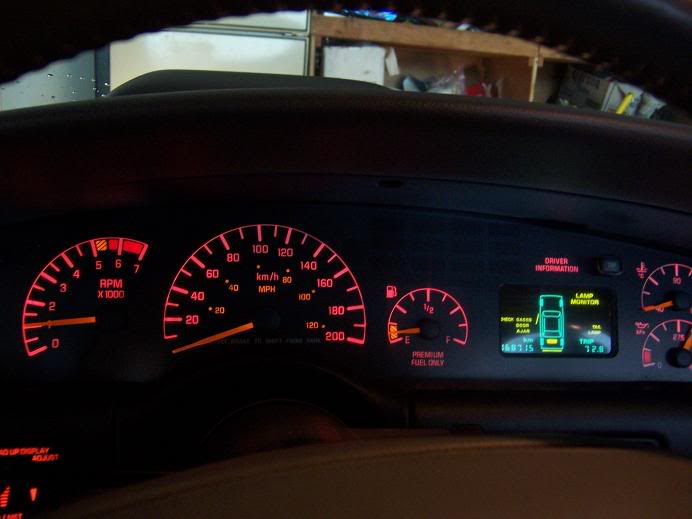

Put back Together and Working
Name:  together.jpg
Views: 1
Size:  33.3 KB
Name:  gages569.jpg
Views: 1
Size:  28.1 KB

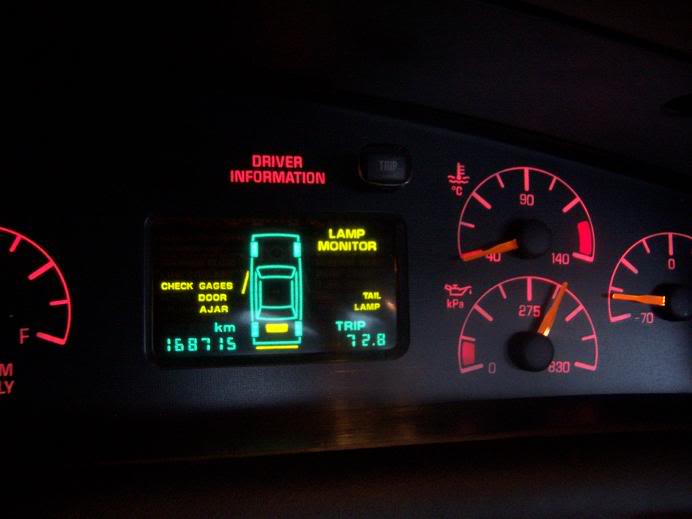

Note: Burnt Tail lamp, low fuel, and open door!
Thats a bit more yellow than I would like to see!
SSEimatt93 is offline   Reply With Quote
Old 06-25-2005, 07:19 PM   #2
Senior Member
True Car Nut

Join Date: May 2003
Posts: 7,262
Thanks: 0
Thanked 0 Times in 0 Posts
ssesc93 is on a distinguished road
Default

wow! why GM didnt think to put that hazard light to use?
Name:  un-used_hazard_light.jpg
Views: 1
Size:  24.3 KB


They sure know how to mess up the simplest stuff. That rear steer is still a classic though
ssesc93 is offline   Reply With Quote
Old 06-25-2005, 07:28 PM   #3
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

i have the "Low Oil Level" light in my car but there is no bulb in there, it might work with the hazards.....you should have tried and put a bulb in there
1993 SLE is offline   Reply With Quote
Old 06-25-2005, 07:31 PM   #4
Senior Member
True Car Nut

Join Date: May 2003
Posts: 7,262
Thanks: 0
Thanked 0 Times in 0 Posts
ssesc93 is on a distinguished road
Default

let me know what tools i need and i will go back in my dash and put a bulb in all of them
ssesc93 is offline   Reply With Quote
Old 06-25-2005, 07:35 PM   #5
Senior Member
True Car Nut
Thread Starter

Join Date: May 2003
Location: Lethbridge, Alberta, _______Canada._______ West Coast Bonneville Fest ___05,06,07 Survivor___
Posts: 8,134
Thanks: 0
Thanked 0 Times in 0 Posts
SSEimatt93 is on a distinguished road
Default

you could waste the money on two more bulbs, BUT they still wont illuminate. If the PCM does't throw a code for Rear Steer, you won't get a light simply put.
All I used was an allan Key, thats all I had hehe.
And a 10mm socket to remove the 4 bolts around the bottom of the steering column, and drop bolts which were 12mm.
SSEimatt93 is offline   Reply With Quote
Old 06-25-2005, 07:43 PM   #6
Senior Member
True Car Nut

Join Date: Apr 2004
Location: Three Oaks, Michigan
Posts: 4,879
Thanks: 0
Thanked 0 Times in 0 Posts
opensourceguy is on a distinguished road
Default

it'd come on. I have a spare [unused] dummy light, and when I put a bulb in there it turns on with the ignition, then turns off after the car starts.


-justin
opensourceguy is offline   Reply With Quote
Old 06-25-2005, 08:10 PM   #7
Senior Member
True Car Nut
Thread Starter

Join Date: May 2003
Location: Lethbridge, Alberta, _______Canada._______ West Coast Bonneville Fest ___05,06,07 Survivor___
Posts: 8,134
Thanks: 0
Thanked 0 Times in 0 Posts
SSEimatt93 is on a distinguished road
Default

okay then, but who would want to see another dummy light illuminated constantly? lol
SSEimatt93 is offline   Reply With Quote
Old 06-25-2005, 08:15 PM   #8
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by 1993 SLE
i have the "Low Oil Level" light in my car but there is no bulb in there, it might work with the hazards.....you should have tried and put a bulb in there
welp had to go get food, and its not Low Oil Level........i know there is a extra light tho
1993 SLE is offline   Reply With Quote
Old 06-25-2005, 08:21 PM   #9
Senior Member
True Car Nut

Join Date: Jun 2003
Location: Purgatory
Posts: 6,313
Thanks: 0
Thanked 0 Times in 0 Posts
PontiacDad is on a distinguished road
Default

Good job matt, now on to the tail light to minus one more yellow warning from the dic
PontiacDad is offline   Reply With Quote
Old 06-25-2005, 09:42 PM   #10
Senior Member
True Car Nut

GAMEOVER's Avatar

Join Date: Aug 2003
Location: Racine Wi
Posts: 5,146
Thanks: 0
Thanked 0 Times in 0 Posts
GAMEOVER is on a distinguished road
Default

what is the rear steer for?
