ECC no longer flashes! (Update 9-05)

Thread Tools

Search this Thread

Old 06-13-2007, 01:20 AM
  #1
Junior Member
Thread Starter

Bonneville92V688's Avatar

Join Date: Apr 2006
Location: Purgatory
Posts: 0
Likes: 0
Received 0 Likes on 0 Posts
Bonneville92V688 is on a distinguished road
Default ECC no longer flashes! (Update 9-05)

Well, ever since I bought my '92, it would run past 200* even with the 180* thermo, and the ECC display would flash. Well, today I noticed that my "High speed fans" for the AC weren't so fast. I KNEW it wasn't right, as it seemed it was defaulting to the low speed relay, so I proceeded to switch the low speed relay and put it on the high speed connection. Well sure enough, reached in, fired it up, flipped the ECC on, and flipped the redneck AC switch on, and BAM! I got high speed fans, also another odd thing, the ECC was no longer flashing, AND now my temp stays near a solid 180-185* now according to the gauge. The other fan relay that was dead is on order, so I will have a low speed for the fan again. Crazy how one little relay could cause such a fuss. At least I can rip that stupid redneck AC switch out now.
Old 06-14-2007, 11:54 AM
  #2
Senior Member
Posts like a Corvette

VigCS's Avatar

Join Date: Mar 2005
Location: Frederick, Maryland
Posts: 1,441
Likes: 0
Received 0 Likes on 0 Posts
VigCS is on a distinguished road
Default

You really like telling every little detail about your car, don't ya? Congrats on the fix.
Old 06-14-2007, 12:23 PM
  #3
Junior Member
Thread Starter

Bonneville92V688's Avatar

Join Date: Apr 2006
Location: Purgatory
Posts: 0
Likes: 0
Received 0 Likes on 0 Posts
Bonneville92V688 is on a distinguished road
Default

Yup!

But I must have gotten too excited to notice that night that the ECC is still flashing. I guess I will check the freon level of the AC, it may be low.
Old 06-14-2007, 12:27 PM
  #4
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Likes: 0
Received 8 Likes on 8 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Do you suppose it might be the pressure sensor or pressure switch that is causing the redneck switch to be needed in the first place?
Old 06-14-2007, 12:36 PM
  #5
Senior Member
Certified Car Nut

bonnie94ssei's Avatar

Join Date: Oct 2002
Posts: 11,308
Likes: 0
Received 0 Likes on 0 Posts
bonnie94ssei is on a distinguished road
Default

Glad you got the fans working properly. Though with my 180 I still got above 200*, which is normal. Though even in 90* temps while running on the highway it would take forever for the coolant temps to go down below 200. I drilled my t-stat the next weekend and so far things are much better. I may drill another hole though, and switch to the INTENSE thermostat.
Old 06-14-2007, 12:39 PM
  #6
Junior Member
Thread Starter

Bonneville92V688's Avatar

Join Date: Apr 2006
Location: Purgatory
Posts: 0
Likes: 0
Received 0 Likes on 0 Posts
Bonneville92V688 is on a distinguished road
Default

Originally Posted by BillBoost37
Do you suppose it might be the pressure sensor or pressure switch that is causing the redneck switch to be needed in the first place?
I was told that. Where is it and how much do they cost? The code IS Long Term Freon Loss.
Old 06-14-2007, 12:42 PM
  #7
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Likes: 0
Received 8 Likes on 8 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Well...in 97 it'* right by the compressor. I'm not sure in your year, maybe right near the dryer on the firewall?
Old 06-14-2007, 01:50 PM
  #8
Junior Member
Thread Starter

Bonneville92V688's Avatar

Join Date: Apr 2006
Location: Purgatory
Posts: 0
Likes: 0
Received 0 Likes on 0 Posts
Bonneville92V688 is on a distinguished road
Default

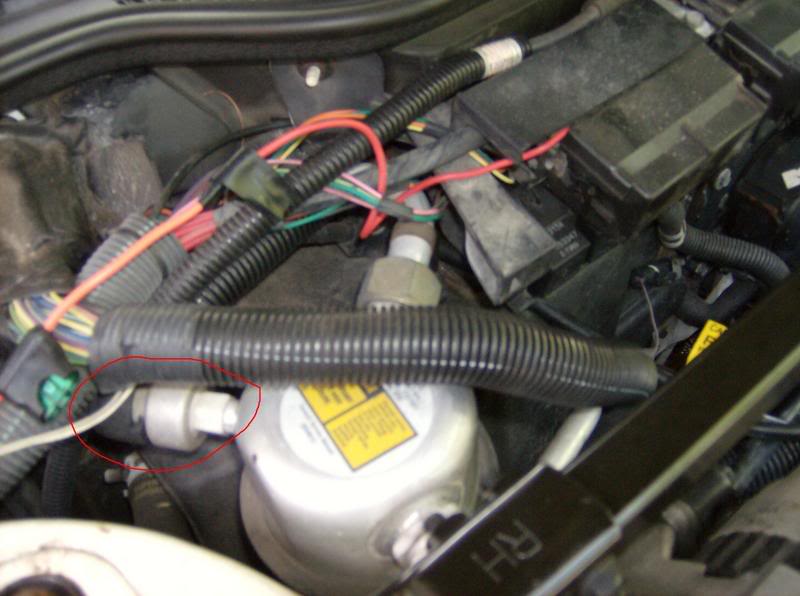

This one -

Name:  Picture001.jpg
Views: 93
Size:  57.9 KB

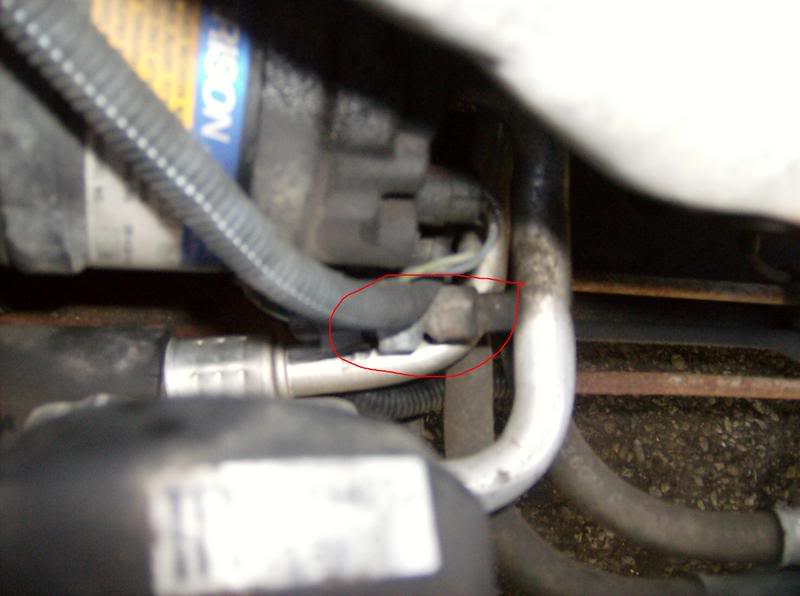

Or this one? -

Name:  Picture002.jpg
Views: 98
Size:  41.0 KB
Old 06-14-2007, 02:32 PM
  #9
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Likes: 0
Received 8 Likes on 8 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

There you go..it'* going to be one of those..

here'* the point where I don't know enough about AC to help much further though.
Old 06-14-2007, 02:51 PM
  #10
Junior Member
Thread Starter

Bonneville92V688's Avatar

Join Date: Apr 2006
Location: Purgatory
Posts: 0
Likes: 0
Received 0 Likes on 0 Posts
Bonneville92V688 is on a distinguished road
Default

Don't feel bad, I don't know crap about AC either.
