Default DRL'* question

Hey guys,

I want to disable my DRL'* (2005 SLE), and I know there are many threads about doing this...but my question is: My car'* DRL'* are my low beams, and i understand most Bonnevilles have the High beams as DRL'*.....would this change the process at all for me to disable them?

Thanks,
Eric
Yonkerse is offline   Reply With Quote
Old 07-02-2010, 02:37 AM   #2
Artist
True Car Nut

yutzybrian's Avatar

Join Date: Jul 2009
Location: USA
Posts: 5,283
Thanked 48 Times in 35 Posts
yutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to behold
Default

Nope. Same relay, same jumper needed to retain driver'* side high beam
yutzybrian is offline   Reply With Quote
Old 07-02-2010, 09:53 AM   #3
Senior Member
Posts like a 4 Banger
Thread Starter

Join Date: Jul 2009
Posts: 143
Thanks: 0
Thanked 0 Times in 0 Posts
Yonkerse is on a distinguished road
Default

Thanks Brian! You seem to be one of the wiring genius'* around the forum! Thanks to you many of our cars get nice lighting upgrades!!!

Eric
Yonkerse is offline   Reply With Quote
Old 07-03-2010, 11:16 AM   #4
Senior Member
Posts like a 4 Banger
Thread Starter

Join Date: Jul 2009
Posts: 143
Thanks: 0
Thanked 0 Times in 0 Posts
Yonkerse is on a distinguished road
Default DRL'*...Updated!

Hey guys,

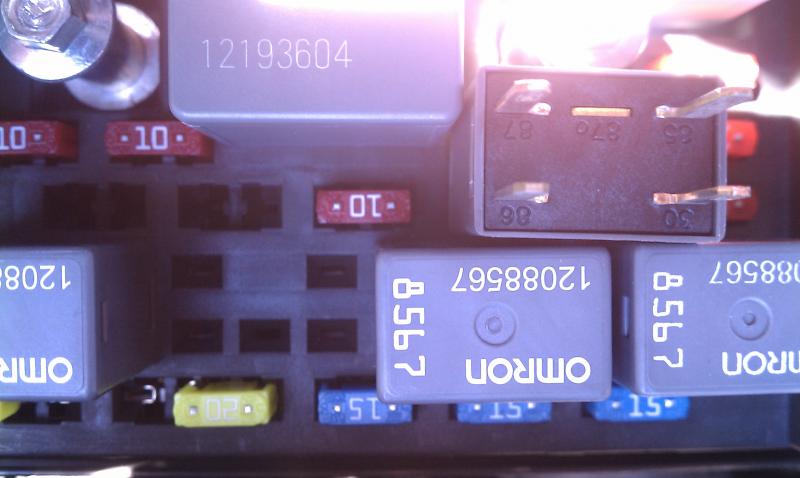

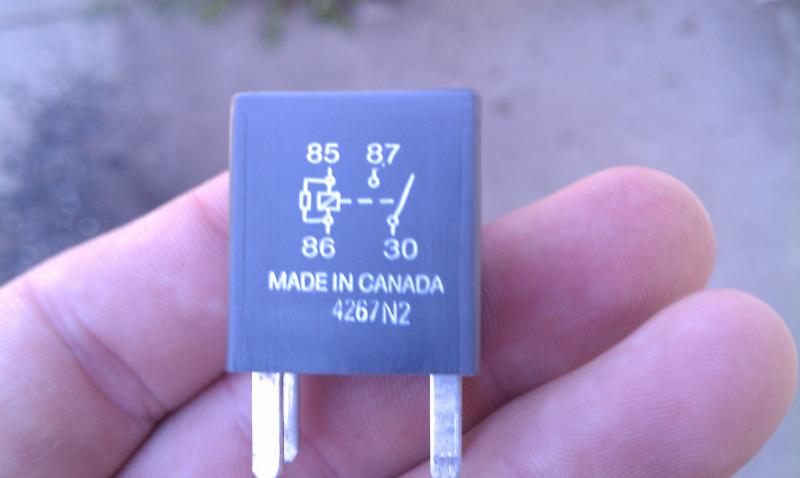

Well, as posted before, my car runs the low beams for the DRL'*, and i posted the question if its the same. I pulled the relay this morning, and mine only has 4 prongs....not 5 like all the others with the high beams for DRL'*. so my question is, would i instead jump the 30 prong to the 87 prong...instead of the 30 to 87a like the rest of you? I posted pictures of my relay so its easier to see what im talking about....

Thanks guys!
Eric
Attached Thumbnails
DRL's question-imag0087.jpg   DRL's question-imag0088.jpg   DRL's question-imag0089.jpg
Yonkerse is offline   Reply With Quote
Old 07-03-2010, 12:37 PM   #5
Senior Member
True Car Nut

SAMzGXP's Avatar

Join Date: Mar 2009
Location: Fort crack homie
Posts: 2,894
Thanks: 0
Thanked 0 Times in 0 Posts
SAMzGXP is on a distinguished road
Default

funny how how i turn my head and foglights on during the day and some people want no light at all lool

i wish i can help you here Eric, i re routed my DRLs from low to fogs

but good luck!!
SAMzGXP is offline   Reply With Quote
Old 07-03-2010, 04:23 PM   #6
Artist
True Car Nut

yutzybrian's Avatar

Join Date: Jul 2009
Location: USA
Posts: 5,283
Thanked 48 Times in 35 Posts
yutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to behold
Default

Quote:
Originally Posted by Yonkerse View Post
Hey guys,

Well, as posted before, my car runs the low beams for the DRL'*, and i posted the question if its the same. I pulled the relay this morning, and mine only has 4 prongs....not 5 like all the others with the high beams for DRL'*. so my question is, would i instead jump the 30 prong to the 87 prong...instead of the 30 to 87a like the rest of you? I posted pictures of my relay so its easier to see what im talking about....

Thanks guys!
Eric
Hmm that'* odd. Turn on your high beams with the relay removed and see if both come on
yutzybrian is offline   Reply With Quote
Old 07-04-2010, 01:14 PM   #7
Senior Member
True Car Nut

Black Pearl's Avatar

Join Date: Apr 2009
Location: STC, MN
Posts: 3,301
Thanks: 0
Thanked 1 Time in 1 Post
Black Pearl is on a distinguished road
Default

The jumper from 30 to 87a will work.
Relays can be configured in a Normally Open or Normally Closed configuration by adding or removing the fifth pin
Black Pearl is offline   Reply With Quote
Old 07-06-2010, 04:56 PM   #8
Senior Member
Posts like a 4 Banger
Thread Starter

Join Date: Jul 2009
Posts: 143
Thanks: 0
Thanked 0 Times in 0 Posts
Yonkerse is on a distinguished road
Default

Hey guys,

I was just looking at my car further, and looking at the hole on the fuse box where the center (or fifth pin) would be located, looks to be open and not a use-able hole. What i mean, is you can obviously see contact areas in the other 4 pins where the prongs go into, but this center hole doesnt have these contact areas...

My theory is, that the 87a would be for the high beams, and the 87 would be for the low beams....but that only make sense in theory, not necessarily electrically....what do you guys think about this? I'm not very experienced in electrical circuits/fuse boxes/relays......

Thanks for continually helping me out!

Eric
Yonkerse is offline   Reply With Quote
Old 07-12-2010, 12:08 AM   #9
Senior Member
Posts like a 4 Banger
Thread Starter

Join Date: Jul 2009
Posts: 143
Thanks: 0
Thanked 0 Times in 0 Posts
Yonkerse is on a distinguished road
Default

Bump...any suggestions anyone???
Yonkerse is offline   Reply With Quote
Old 07-12-2010, 08:56 AM   #10
Artist
True Car Nut

yutzybrian's Avatar

Join Date: Jul 2009
Location: USA
Posts: 5,283
Thanked 48 Times in 35 Posts
yutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to behold
Default

Try what I said. Remove the relay and turn the high-beams on. If both come on you're fine
