Default Does GM still make the 3800 v6 ? Also did they ever fix the intake problem

I just heard that GM stopped the 3800 is this true ?? If so why ??

Also I was told that after 2000 they do not have the intake problem anymore true or false ??

Thanks
goldfinger22 is offline   Reply With Quote
Old 01-03-2010, 04:05 PM   #2
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

Production of the 3800 V6 engine officially ended on Friday, August 22, 2008 when plant 36 was closed. Read more about the motor here.
Purplehazeir is offline   Reply With Quote
Old 01-03-2010, 04:06 PM   #3
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I believe that was replaced with the 3500, I can't remember.

The intake problem was corrected with new aluminum gaskets.

I took a few of the old gaskets apart to see why they failed. They have a very thin plastic frame that fails very easy and then the rubber gasket material no longer has anything to hold on to. The aluminum gaskets fixed this by providing a much stronger support for the rubber gasket.
Danthurs is offline   Reply With Quote
Old 01-03-2010, 04:07 PM   #4
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,643
Thanked 997 Times in 774 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Wikipedia
Quote:
[edit] Discontinuation
Production of the 3800 V6 engine officially ended on Friday, August 22, 2008 when plant 36 was closed. There was a closing ceremony and speakers who extolled the virtues of the engine. Originally GM had set this date for January 1, 1999; however, due to the vast number of complaints from both investors and customers because of the popularity and reliability of the engine, the date was extended. At the end of production, the LZ4 3500 OHV V6 replaced the naturally aspirated 3800 applications, and the LY7 3600 DOHC V6 replaced the supercharged 3800 applications.

Not sure about them failing in the later 2000'*.
Mike is offline   Reply With Quote
Old 01-03-2010, 04:17 PM   #5
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Dec 2006
Posts: 471
Thanks: 0
Thanked 1 Time in 1 Post
goldfinger22 is on a distinguished road
Default

I heard after 2000 they went to an aluminum intake ?? Like the old 3800 series 1'* used to be ??
goldfinger22 is offline   Reply With Quote
Old 01-03-2010, 04:21 PM   #6
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,643
Thanked 997 Times in 774 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Quote:
Originally Posted by goldfinger22 View Post
I heard after 2000 they went to an aluminum intake ?? Like the old 3800 series 1'* used to be ??
Quote:
Originally Posted by Danthurs View Post
The intake problem was corrected with new aluminum gaskets.

I took a few of the old gaskets apart to see why they failed. They have a very thin plastic frame that fails very easy and then the rubber gasket material no longer has anything to hold on to. The aluminum gaskets fixed this by providing a much stronger support for the rubber gasket.

Dan smacked that nail right through the block.
Mike is offline   Reply With Quote
Old 01-03-2010, 04:22 PM   #7
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

That is correct. I'll post some pictures of the gaskets.

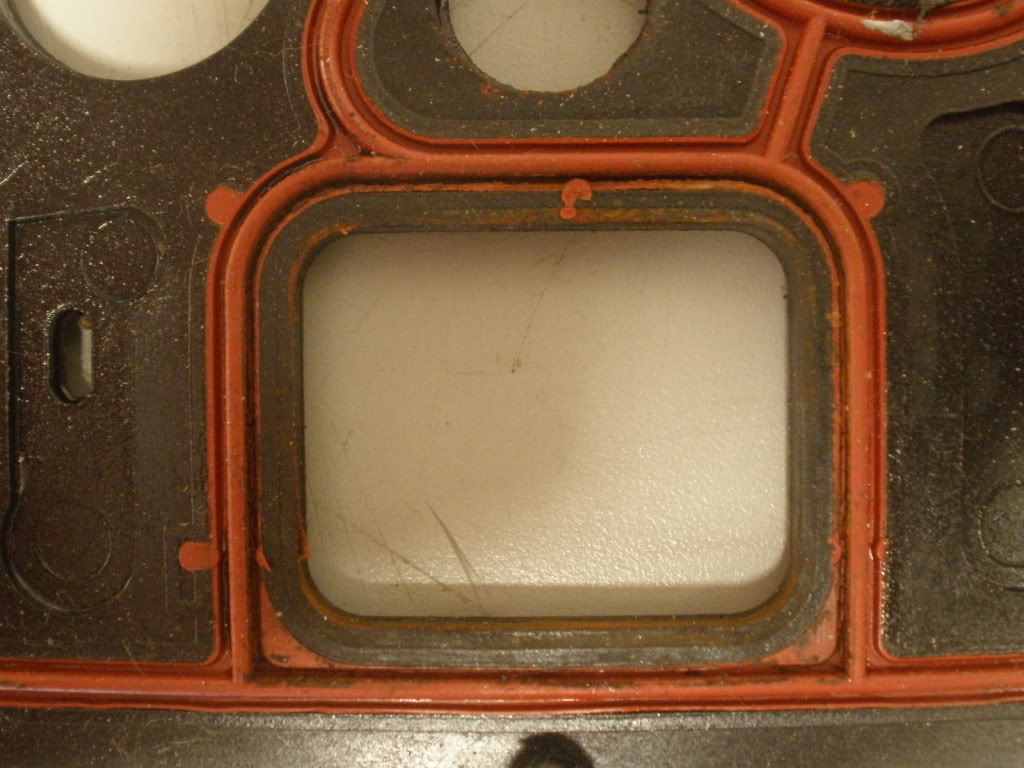

OEM gasket
Name:  P4150004.jpg
Views: 104
Size:  123.0 KB

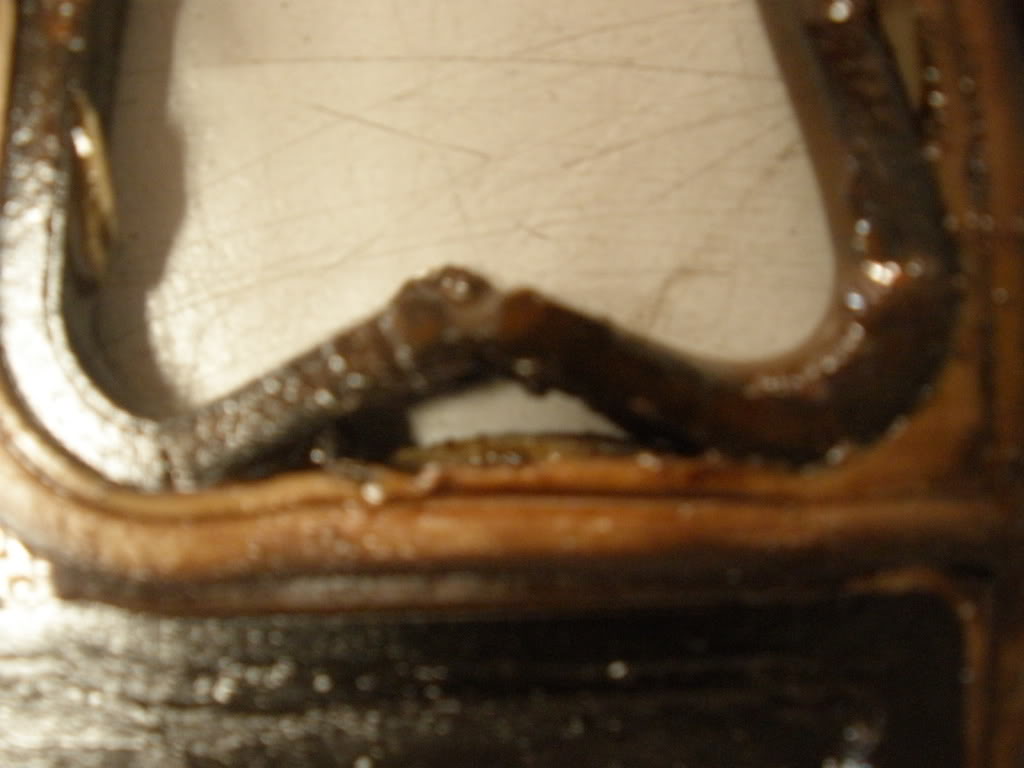

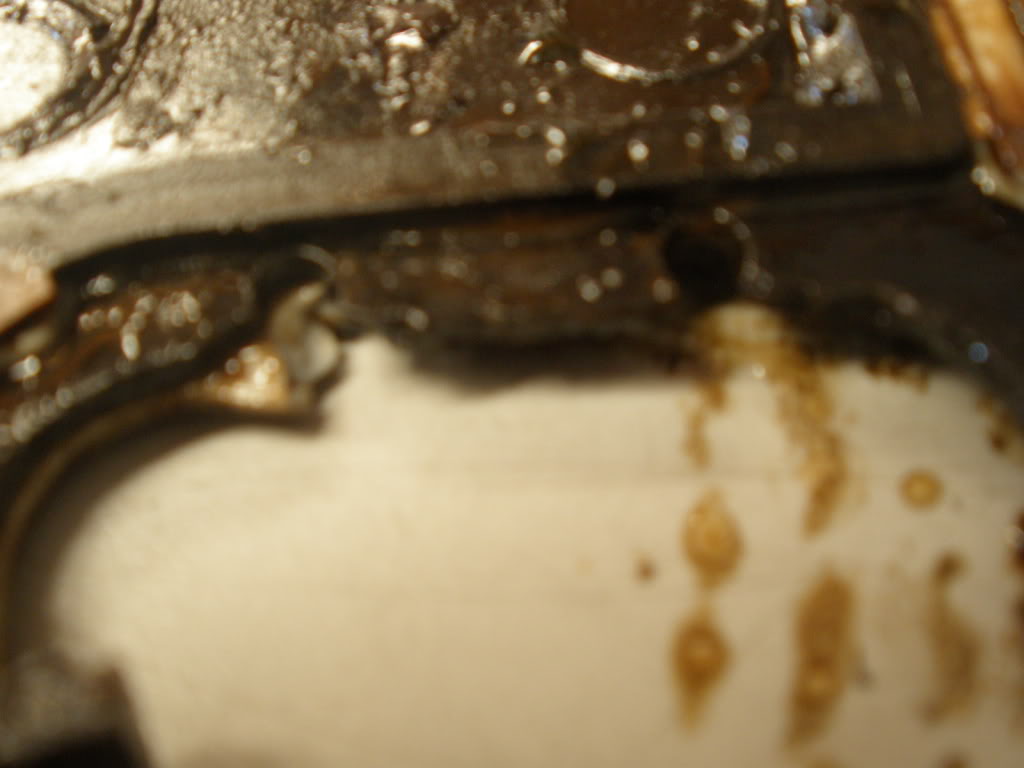

Failed gasket
Name:  P4150008.jpg
Views: 111
Size:  65.7 KB
Name:  P4150011.jpg
Views: 112
Size:  65.4 KB

Ack, can't find a aluminum set. But, the inner plastic frame is replaced with aluminum.
Danthurs is offline   Reply With Quote
Old 01-03-2010, 04:28 PM   #8
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,643
Thanked 997 Times in 774 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

That looked just like mine did a couple years ago on my 95. Typical failure. On a scale of 1-10, 10 being the hardest, I give this task a 3 for repairing it.
Mike is offline   Reply With Quote
Old 01-03-2010, 04:30 PM   #9
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I've done many of these. It'* about a 4 hour job.
Danthurs is offline   Reply With Quote
Old 01-03-2010, 05:15 PM   #10
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Dec 2006
Posts: 471
Thanks: 0
Thanked 1 Time in 1 Post
goldfinger22 is on a distinguished road
Default

I too think running the EGR tube which gets VERY hot into the plastic intake was not real bright. It would melt the plastin and fail
goldfinger22 is offline   Reply With Quote
