Default Disabling DRL on 2000+

So, I'm contemplating doing this. First a question. If I do this, will it have any effect on my automatic headlights? Like will they still come by themselves at night and when the wipers are on?

If those will still work just fine I'll do it. What do I need to do?
MouSe is offline   Reply With Quote
Old 01-21-2010, 03:06 PM   #2
Senior Member
Posts like a Camaro

rjblazer's Avatar

Join Date: Jan 2010
Location: Elmira, New York
Posts: 853
Thanked 31 Times in 29 Posts
rjblazer has a spectacular aura aboutrjblazer has a spectacular aura about
Default

you could try pulling the fuse or relay for the drl and see what happens i havent ever done this my self its just a suggestion
rjblazer is offline   Reply With Quote
Old 01-21-2010, 03:15 PM   #3
Senior Member
True Car Nut

sawgunner's Avatar

Join Date: Jan 2009
Location: Dover, NH
Posts: 7,122
Thanks: 0
Thanked 0 Times in 0 Posts
sawgunner is on a distinguished road
Default

no it will not affect the auto headlights but you will lose your perimitter lighting in the front with the keyless entry i have a spare jumper wire if you want it i made 2 just in case everything will work the same les the from perimitter lighting and the DRL'* will be gone
sawgunner is offline   Reply With Quote
Old 01-21-2010, 04:45 PM   #4
Senior Member
Posts like a Corvette

crunkfrunk's Avatar

Join Date: Jun 2008
Location: Cleveland, OH
Posts: 1,389
Thanks: 0
Thanked 0 Times in 0 Posts
crunkfrunk is on a distinguished road
Default

Well the parking lights will still flash when you unlock it along with the reverse lights coming on, just no DRL flash
crunkfrunk is offline   Reply With Quote
Old 01-21-2010, 07:23 PM   #5
Senior Member
Posts like a 4 Banger

2000bonny's Avatar

Join Date: Jan 2010
Posts: 114
Thanks: 0
Thanked 0 Times in 0 Posts
2000bonny is on a distinguished road
Default

Mine is the opposite. Check out my thread. My parking lights flash, but no head lights flash when i disabled my drl. But I didn't do the 30 to 87 jumper as it didn't work on my 2000 se. I just ended up doing the 86 to 87. weird but i got a pic up on the new thread i made today.
craig
2000bonny is offline   Reply With Quote
Old 01-21-2010, 07:50 PM   #6
Senior Member
Posts like a Corvette

crunkfrunk's Avatar

Join Date: Jun 2008
Location: Cleveland, OH
Posts: 1,389
Thanks: 0
Thanked 0 Times in 0 Posts
crunkfrunk is on a distinguished road
Default

Quote:
Originally Posted by 2000bonny View Post
Mine is the opposite. Check out my thread. My parking lights flash, but no head lights flash when i disabled my drl. But I didn't do the 30 to 87 jumper as it didn't work on my 2000 se. I just ended up doing the 86 to 87. weird but i got a pic up on the new thread i made today.
craig
Isn't that what everyone else said? I have a 2000 SE too
crunkfrunk is offline   Reply With Quote
Old 01-21-2010, 07:58 PM   #7
Senior Member
Posts like a 4 Banger

2000bonny's Avatar

Join Date: Jan 2010
Posts: 114
Thanks: 0
Thanked 0 Times in 0 Posts
2000bonny is on a distinguished road
Default

Quote:
Originally Posted by crunkfrunk View Post
Isn't that what everyone else said? I have a 2000 SE too
No they said 30 & 87. lol, as I did that it didn't work. But 86 and 87 worked
2000bonny is offline   Reply With Quote
Old 01-21-2010, 08:03 PM   #8
Senior Member
Posts like a Corvette

crunkfrunk's Avatar

Join Date: Jun 2008
Location: Cleveland, OH
Posts: 1,389
Thanks: 0
Thanked 0 Times in 0 Posts
crunkfrunk is on a distinguished road
Default

Oh I thought you meant what happened as a result not the pins, I think I did it the same way as the writeup but I don't remember
crunkfrunk is offline   Reply With Quote
Old 01-21-2010, 08:16 PM   #9
Senior Member
Posts like a 4 Banger

2000bonny's Avatar

Join Date: Jan 2010
Posts: 114
Thanks: 0
Thanked 0 Times in 0 Posts
2000bonny is on a distinguished road
Default

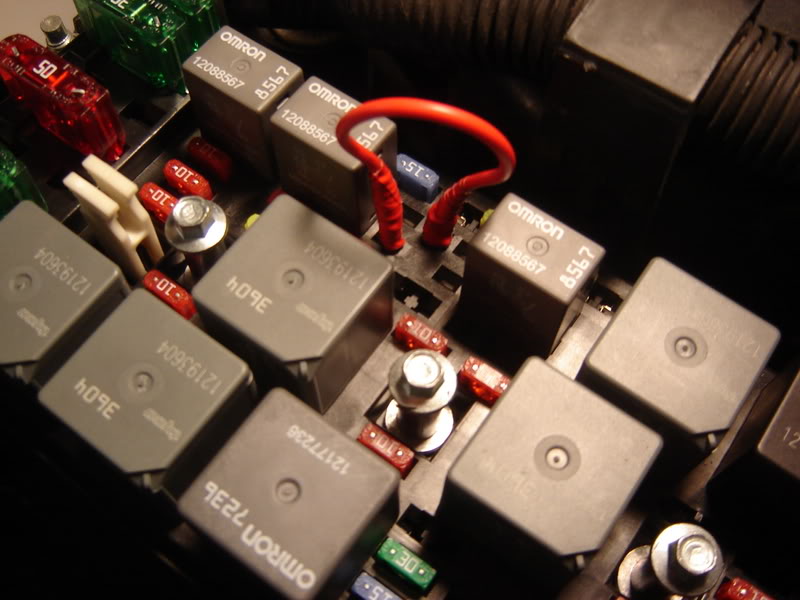

This was a very helpful article on the drl disable procedure! BUT THE NUMBERS ARE NOT 30 AND 87 FOR THE JUMPER WIRE. THEY ARE 86 AND 87. I'm not making a big deal, but it should be changed. The picture shows the wires in # 86 and 87, and I double checked on the bottom of my relay maybe he just had the relay upside down, no biggie. I just happened to go back after actually trying 30 and 87 with no luck and i figured it out on my own that its actually 86 and 87 and then saw his wires hooked up to 86 and 87. lol Well I found out the words were wrong lol. The picture posted below is from another member on here and thanks for it, it is correct.
Attached Thumbnails
Disabling DRL on 2000+-30-87.jpg
2000bonny is offline   Reply With Quote
Old 01-21-2010, 08:24 PM   #10
Senior Member
Posts like a Corvette

crunkfrunk's Avatar

Join Date: Jun 2008
Location: Cleveland, OH
Posts: 1,389
Thanks: 0
Thanked 0 Times in 0 Posts
crunkfrunk is on a distinguished road
Default

Is that 87 or 87a? just clarifying
crunkfrunk is offline   Reply With Quote
