Default Did a intercooler install on a GP

Got to work right away.
Name:  DSC03777.jpg
Views: 1
Size:  111.4 KB

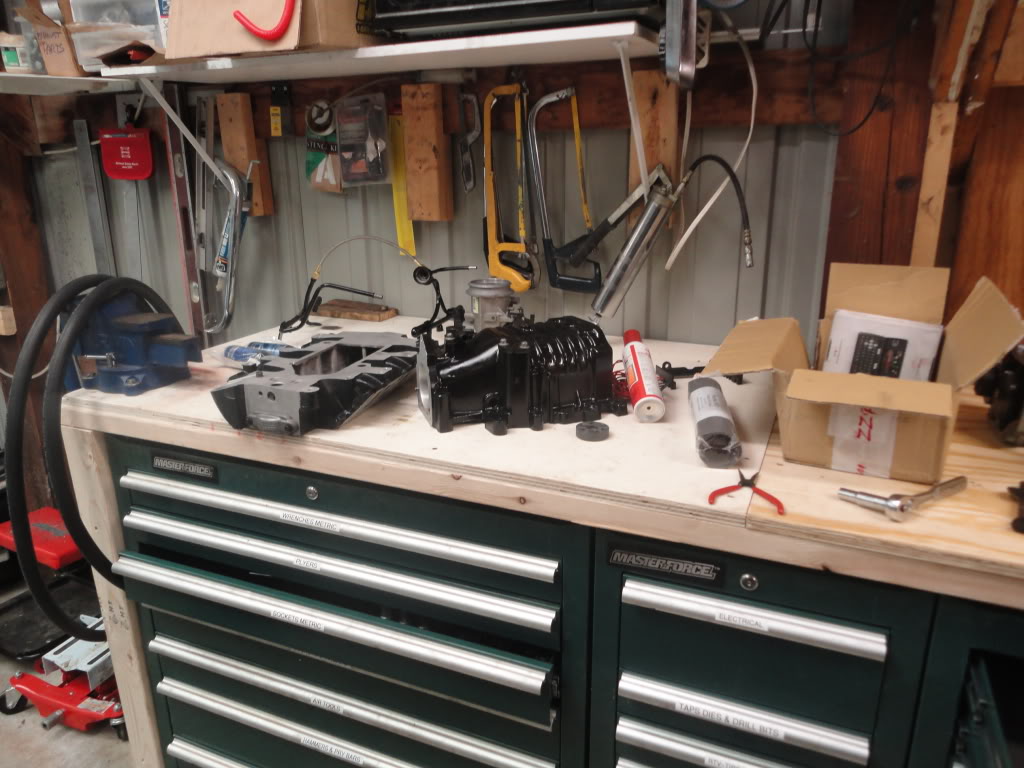

Laid out all the parts.
Name:  DSC03778.jpg
Views: 1
Size:  119.6 KB

FMHE
Name:  DSC03779.jpg
Views: 1
Size:  105.2 KB

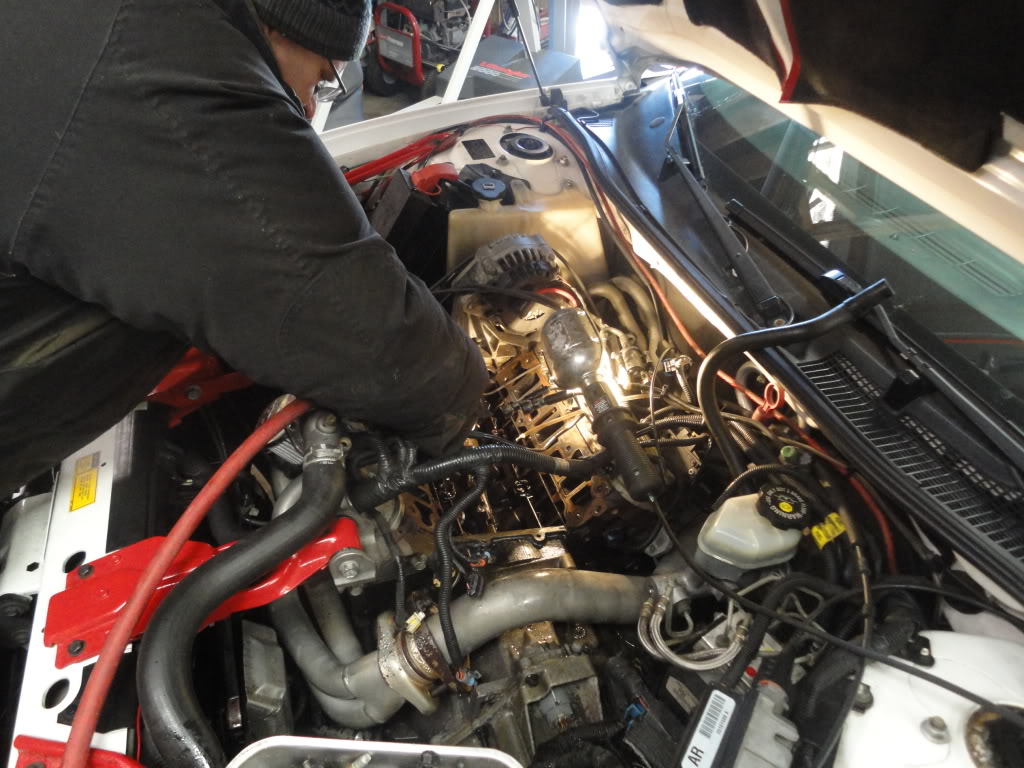

Down to the lifter valley
Name:  DSC03781.jpg
Views: 1
Size:  137.1 KB

Mounted the FMHE
Name:  DSC03780.jpg
Views: 1
Size:  91.2 KB

Name:  DSC03782.jpg
Views: 1
Size:  87.5 KB

Got the intercooler installed.
Name:  DSC03783.jpg
Views: 2
Size:  114.4 KB

My old ported supercharger.
Name:  DSC03784.jpg
Views: 1
Size:  101.1 KB

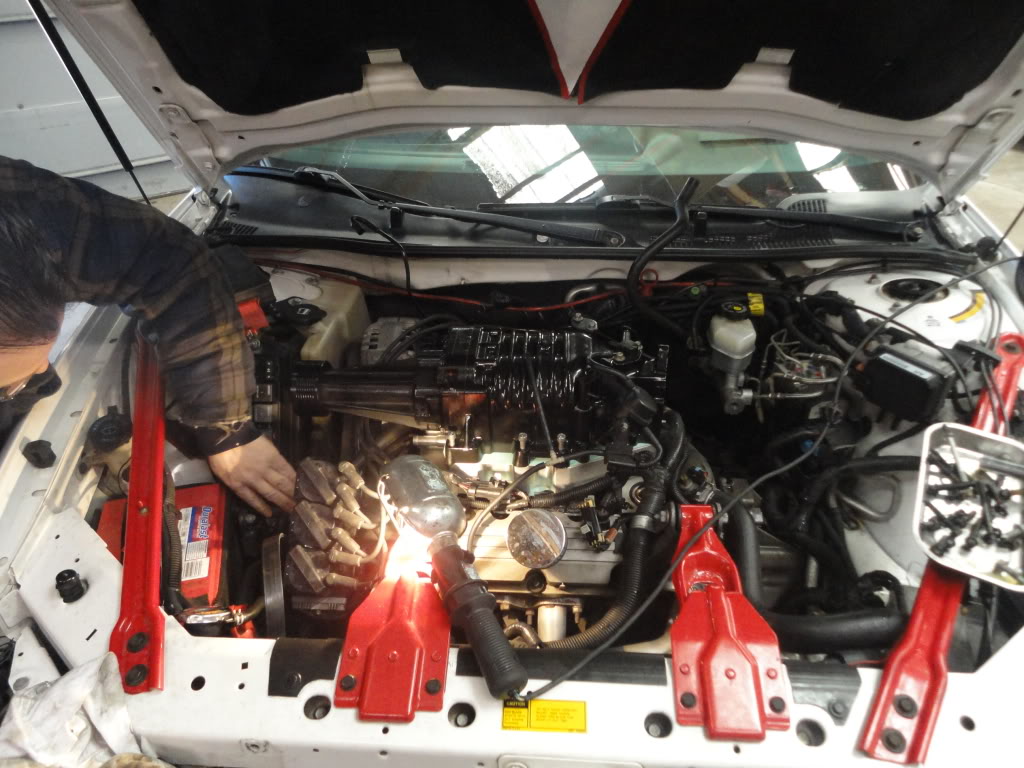

Got that all in with no real problems
Name:  DSC03785.jpg
Views: 1
Size:  131.9 KB

Fuel rails and throttle body in.
Name:  DSC03786.jpg
Views: 1
Size:  120.9 KB

Name:  DSC03787.jpg
Views: 1
Size:  133.3 KB

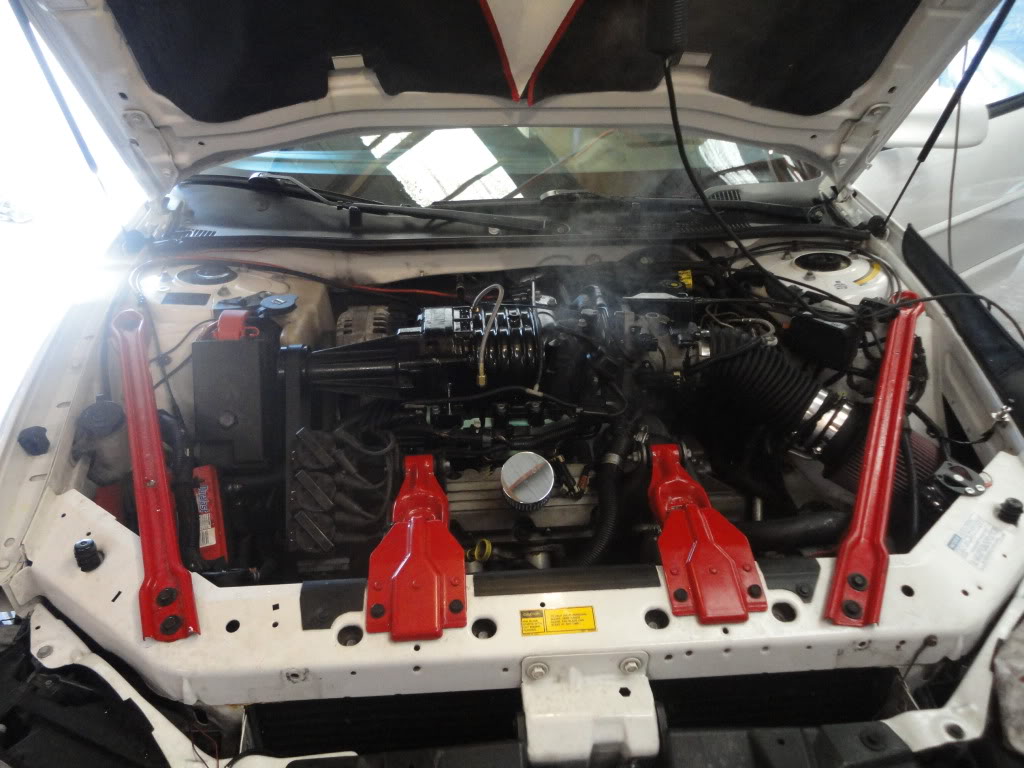

Got it all done, about 6 hours total time.
Name:  DSC03788.jpg
Views: 1
Size:  118.0 KB
Danthurs is offline   Reply With Quote
Old 03-27-2011, 08:20 PM   #2
Senior Member
True Car Nut

Jonpro03's Avatar

Join Date: Jul 2010
Location: Danville, Illinois
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Jonpro03 is on a distinguished road
Default

Good job! Now do mine!
Jonpro03 is offline   Reply With Quote
Old 03-27-2011, 08:22 PM   #3
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Get the stuff and come on up.
Danthurs is offline   Reply With Quote
Old 03-27-2011, 08:45 PM   #4
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

As always Dan, Nice work!
GXP Venom is offline   Reply With Quote
Old 03-27-2011, 08:51 PM   #5
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

The only real problem we ran in to was the supercharger belt was hitting the ICM plate. So I added 3 washers to lift up the top side, and that worked.
Danthurs is offline   Reply With Quote
Old 03-28-2011, 10:19 AM   #6
-- SITE DONATOR --
True Car Nut

ymmot04's Avatar

Join Date: May 2009
Posts: 4,638
Thanked 5 Times in 4 Posts
ymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of light
Default

Bet it'* a lot nicer working in the shop with all that room!
ymmot04 is offline   Reply With Quote
Old 03-28-2011, 10:28 AM   #7
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Way better.

One small problem seems to have come up. He called this morning and said gas is leaking out of the bottom of the front 3 injectors. No leaking when he left. I suspect teh ZZP modified fuel rails are the problem. The cross over hose was to long and stuck up kind of high. You can see it in the picture. I'm guessing the hood was pressing down on that and forced the front fuel rail to move down changing the angle and pinching the front 3 O rings. Dang it, is it so hard to make a fuel line the right length?
Danthurs is offline   Reply With Quote
Old 03-28-2011, 11:22 AM   #8
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I misread that a little the first time. I thought you meant the plastic fuel line was leaking. Those rails should bolt down like the stockers with two 10mm nuts. I wonder if the brackets are tweaked somehow.

Ain't that coil bracket a joy. Bonneville tensioner is much better in my book.
BillBoost37 is offline   Reply With Quote
Old 03-28-2011, 12:40 PM   #9
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I know the nuts holding it down are tight. But the way they are there is so little left holding it. Nothing to prevent front to back movement. And if the rails were pushed down, that would also move the injectors pinching the O rings. That'* the only way I can think that all 3 would leak in the same place.
Danthurs is offline   Reply With Quote
Old 03-28-2011, 01:14 PM   #10
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I'd think that it would cause a vacuum leak before being bent over far enough to leak fuel. I mean..that'* below the o-ring level and vacuumis pulling into to the motor.

Abeit..it'* a ZZP part and therefore anything is possible. They sell VC gaskets that have to be stretched to fit in a VC
