Default Critical L36 Upper Intake Manifold Info....for 2000+ owners

Maybe you thought like I did that the problem ended in 1999. That was either a rumor or a false hope.

I have in my lap the AC Delco UIM off of EK98'* car. His is obviously a 98, but his upper (second one on the car) was manufactured on:

March 2nd, 2002 <<<<<<remember this date while you look at the EGR passage in the pics below:

Name:  uim1.jpg
Views: 2
Size:  48.8 KB

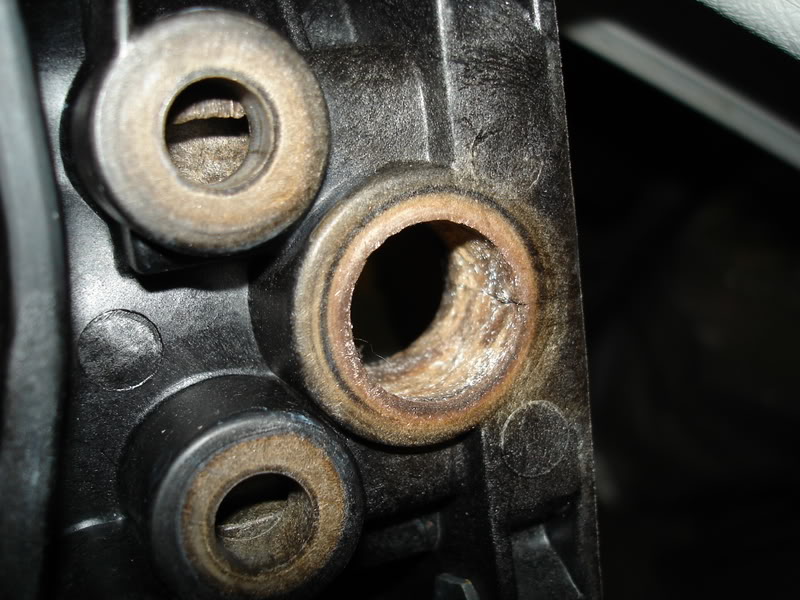

Name:  uim2.jpg
Views: 1
Size:  96.6 KB

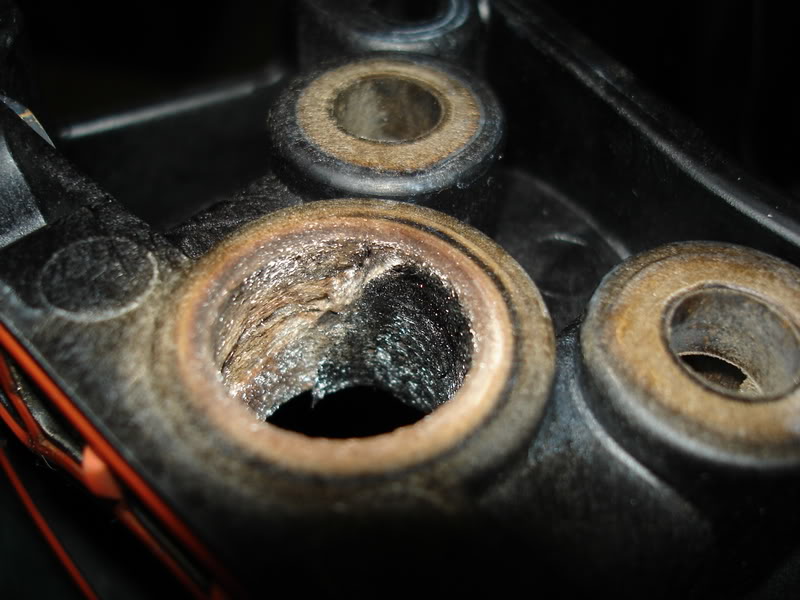

Name:  uim3.jpg
Views: 2
Size:  73.8 KB

I firmly believe it'* only a matter of time before we start seeing more NEWER cars, particularly 2000 and newer begin to fail. Be VERY watchful of your idle quality, smell of the exhaust, and coolant levels.
willwren is offline   Reply With Quote
Old 10-04-2006, 06:21 PM   #2
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Bill...This may be one to toss into the 00+ mechanical area with a link..

I understand you put it here for better exposure.
BillBoost37 is offline   Reply With Quote
Old 10-04-2006, 06:26 PM   #3
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

I put it here because it relates to 1995-2005 (and even newer GP'*, not to mention the various Buick and Olds owners here).
willwren is offline   Reply With Quote
Old 10-04-2006, 06:37 PM   #4
Senior Member
True Car Nut

toastedoats's Avatar

Join Date: Sep 2004
Location: Fitchburg Ma _ToastedRice_
Posts: 6,837
Thanks: 0
Thanked 0 Times in 0 Posts
toastedoats is on a distinguished road
Default

Bill, are we positive that is a replacement ACDelco part?
toastedoats is offline   Reply With Quote
Old 10-04-2006, 06:42 PM   #5
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

It is an AC Delco. Identical to every production L36.

Delco manufactured in 2002.
willwren is offline   Reply With Quote
Old 10-05-2006, 09:17 AM   #6
Senior Member
Posts like a Camaro

Join Date: Dec 2003
Location: Massachusetts
Posts: 1,019
Thanks: 0
Thanked 0 Times in 0 Posts
CFoote is on a distinguished road
Default

Dumb question, but does the Shortstar (3.6 V6) have this problem as well?

I have 30k on my Dorman on the '96 SE and so far so good.
CFoote is offline   Reply With Quote
Old 10-05-2006, 09:56 AM   #7
Junior Member

Join Date: Mar 2003
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
vital49 is on a distinguished road
Default

Quote:
Originally Posted by CFoote
Dumb question, but does the Shortstar (3.6 V6) have this problem as well?
Not that we know of. But, we don't follow that engine as closely as we do the Bonneville power plants.
vital49 is offline   Reply With Quote
Old 10-05-2006, 10:05 AM   #8
Senior Member
True Car Nut

Join Date: Oct 2005
Location: Central Florida
Posts: 7,030
Thanks: 0
Thanked 0 Times in 0 Posts
lash is on a distinguished road
Default

This doesn't surprise me in the slightest. The replacement manifolds made after 2000 don't have any more real protection than the originals, unless you consider a little heavier plastic material around the coolant passages sufficient.

As far as I know, there was no better EGR standpipe protection provided.

That is why I took the opportunity to stock a replacement UIM while I could get a good deal and have the time to properly shield the passages from the EGR pipe. This even though my UIM replacement by dealer was done in 2004 with a 2004 vintage UIM.
lash is offline   Reply With Quote
Old 10-06-2006, 08:15 AM   #9
Senior Member
Posts like a Supercharger

Join Date: Aug 2005
Location: Saukville Wisconsin
Posts: 193
Thanks: 0
Thanked 0 Times in 0 Posts
19bonnie95 is on a distinguished road
Default

My uim was manufactured like in 2003 went out 3 months ago fixed with a one that is supposted to stop this problem.
19bonnie95 is offline   Reply With Quote
Old 10-07-2006, 02:13 PM   #10
Senior Member
True Car Nut

Join Date: Jun 2003
Location: Climax Springs, Missouri
Posts: 2,493
Thanks: 0
Thanked 0 Times in 0 Posts
LittleHoov is on a distinguished road
Default

Quote:
Originally Posted by CFoote
Dumb question, but does the Shortstar (3.6 V6) have this problem as well?

I have 30k on my Dorman on the '96 SE and so far so good.

Ive done a pretty fair amount of research on the 3.5 and I dont know of any problems with the UIM or LIM gaskets, or any common engine problems at all for that matter.

It does have the same composite UIM though, but the problem with the 3.8 is a design flaw, not because its made of composite material.
LittleHoov is offline   Reply With Quote
