I need some pictures of a 92-95 center console (the lid)
some detailed close-ups of the hook on the lid aswell

I'm gonna try an fab something up, apparently the part the dealer sells
is a completely different than the original...

If anyone has pictures of the 96-99 or 2000+ I'd like to see thoses aswell
maybe I can find out what the part they were selling is from

Thanks,
Ice
Iceman is offline   Reply With Quote
Old 07-12-2005, 02:15 PM   #2
Senior Member
True Car Nut

Join Date: Feb 2002
Posts: 3,993
Thanks: 0
Thanked 0 Times in 0 Posts
JimmyFloyd is on a distinguished road
Default

These might help. http://bizio.homeftp.org/geoff/bc/sseiday/Console/

Let me know if you need more, my console is still mostly apart in the trunk of my car so I can get more if needed. I can also give advice on taking the whole thing apart.
JimmyFloyd is offline   Reply With Quote
Old 07-12-2005, 06:39 PM   #3
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: Sep 2004
Location: Ontario
Posts: 179
Thanks: 0
Thanked 0 Times in 0 Posts
Iceman is on a distinguished road
Default

I need pictures like this...

Name:  DSC00983.jpg
Views: 2
Size:  36.0 KB

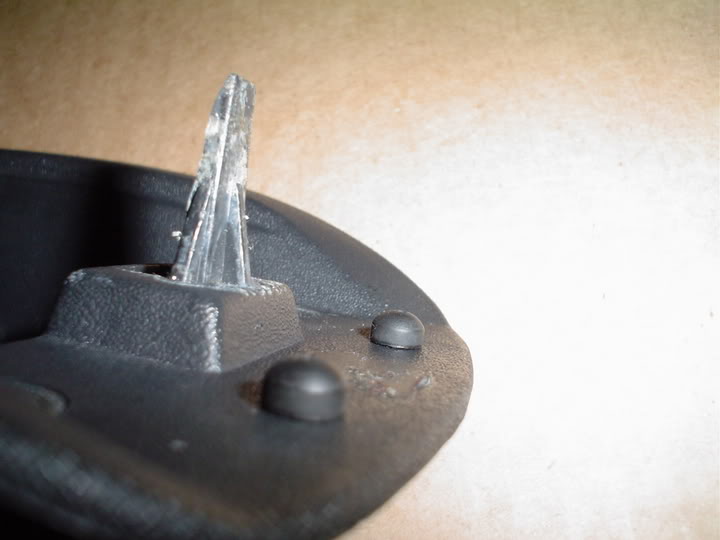

Name:  DSC00981.jpg
Views: 0
Size:  35.0 KB

excuse the gunk, some moron used duct tape, I'm in the process of cleaning it

dimensions would also help, how long is the hook and how wide,
how far does the end of the hook stick out?

Any help would be great thanks
Iceman is offline   Reply With Quote
Old 07-12-2005, 06:47 PM   #4
Senior Member
True Car Nut

Join Date: Jan 2005
Location: Montevideo, MN MWBF '05, '06, '07 WCBF '06 '07 survivor
Posts: 3,882
Thanks: 0
Thanked 0 Times in 0 Posts
sonoma_zr2 is on a distinguished road
Default

I would convert the lid to the newer 96-99 style. Why you ask? Well, I am stuck with a brand new, never used, in the box, bezel that I would like to unload

This includes the latch, and cup holder. I have been told they are nicer than the older style.

Just a suggestion
sonoma_zr2 is offline   Reply With Quote
Old 07-12-2005, 07:09 PM   #5
Senior Member
True Car Nut

Join Date: Feb 2002
Posts: 3,993
Thanks: 0
Thanked 0 Times in 0 Posts
JimmyFloyd is on a distinguished road
Default

I might be interested in the 96-99 lid if he is not.


I will get some pictures of my lid in a bit.
JimmyFloyd is offline   Reply With Quote
Old 07-12-2005, 07:12 PM   #6
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: Sep 2004
Location: Ontario
Posts: 179
Thanks: 0
Thanked 0 Times in 0 Posts
Iceman is on a distinguished road
Default

Quote:
Originally Posted by sonoma_zr2
I would convert the lid to the newer 96-99 style. Why you ask? Well, I am stuck with a brand new, never used, in the box, bezel that I would like to unload

This includes the latch, and cup holder. I have been told they are nicer than the older style.

Just a suggestion
got any pictures? I am very interested...
Iceman is offline   Reply With Quote
Old 07-12-2005, 10:28 PM   #7
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

The conversion is pretty easy, and well worth it.... I did it to mine... I went through 2 92-95 latched and cup holders.... I had a fit when the last one broke, and just ordered the 96-99 parts and installed them a ways back... I think I have pics on a disk somewhere.. Very happy with the newer style unit...

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 07-13-2005, 12:28 AM   #8
Senior Member
True Car Nut

Join Date: Jan 2004
Location: Michigan
Posts: 3,978
Thanks: 0
Thanked 0 Times in 0 Posts
Princess Jeanie is on a distinguished road
Default

Quote:
Originally Posted by jr's3800
The conversion is pretty easy, and well worth it.... I did it to mine... I went through 2 92-95 latched and cup holders.... I had a fit when the last one broke, and just ordered the 96-99 parts and installed them a ways back... I think I have pics on a disk somewhere.. Very happy with the newer style unit...
Yep, yep. I would have to agree that just converting is well worth your time. I believe in the 96-99 version, the hook and where it hooks are reversed (I think, I'm trying to remember this from way back when I was a youngster and we had to get a new one) which somehow managed to be a much better design. The '94 Logan now has broke the hook soon after we got it, and we got the improved design. Years later-it'* still good.
Princess Jeanie is offline   Reply With Quote
Old 07-13-2005, 03:27 AM   #9
Senior Member
Posts like a Turbo

aukc's Avatar

Join Date: Mar 2003
Location: vancouver, canada 1995 bonneville SSEi
Posts: 348
Thanks: 0
Thanked 0 Times in 0 Posts
aukc is on a distinguished road
Default

there'* some good pics & descriptions here http://www.bonnevilleclub.com/forum/...pic.php?t=2518
aukc is offline   Reply With Quote
Old 07-13-2005, 09:40 AM   #10
Senior Member
Certified Car Nut

Join Date: Oct 2002
Posts: 11,307
Thanks: 0
Thanked 0 Times in 0 Posts
bonnie94ssei is on a distinguished road
Default

I used some adhesive velcro when my hook broke. I hated when it would pop open every time I hit the smallest bump in the road.
