Default Connections for battery

I recently learned something that should have been evidient to me before... I thought..this is a good thing to bring up.

I've had some minor annoyances with my car since changing the battery and it seems to be coming down to corrosion at the battery cable ends. Specifically at the battery terminals, UNDER the boots that are put on the ends to give the cables a cleaner look.

The boots are not sealed and pull off when the bolt is out of the cable. Then and only then do you truly see what is underneath.

As a gearhead here on the forum, I've suggested cleaning the cables at all ends, etc to gain better connections and help cure electrical issues. I have never suggested pulling the boots and cleaning underneath as well.

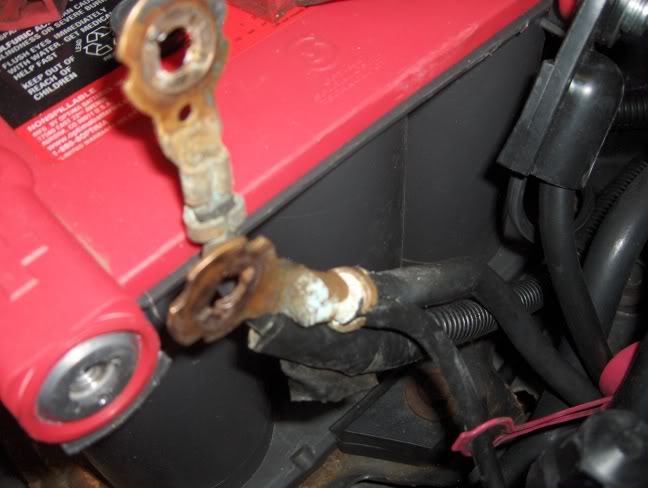

Here is my example. I have chosen not to clean, but replace my cables.

Name:  Picture001.jpg
Views: 17
Size:  42.7 KB
Name:  Picture002.jpg
Views: 20
Size:  37.8 KB

These are pretty bad... Bad enough that when you are doing preventative maintenance or other work and have the battery disconnect. I suggest pulling the boots off the cables and looking to keep this from happening to you. Electrical problems can be very intermittant and annoying.
BillBoost37 is offline   Reply With Quote
Old 05-24-2006, 02:39 PM   #2
Senior Member
Certified Car Nut

Join Date: Oct 2002
Posts: 11,307
Thanks: 0
Thanked 0 Times in 0 Posts
bonnie94ssei is on a distinguished road
Default

My DIC flickers once in a while, everything lights up and it rings for about 10 minutes at the worst. I'm thinking something else is causing the issue though. I'll check my cables anyhow.
bonnie94ssei is offline   Reply With Quote
Old 05-24-2006, 02:58 PM   #3
Senior Member
True Car Nut

Join Date: Jan 2006
Location: NEBF:06,07 | NYBF:06,07 | ONBF:06,07 | CNBF:06 & more............
Posts: 8,029
Thanks: 0
Thanked 0 Times in 0 Posts
bandit is on a distinguished road
Default

how easy is it to change the whole cables? never look that far down, or over, or where ever....
bandit is offline   Reply With Quote
Old 05-24-2006, 03:01 PM   #4
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by bandit
how easy is it to change the whole cables? never look that far down, or over, or where ever....
its not bad, one goes to the starter, one to the alt and the other cable goes to the Maxifuse relay center
1993 SLE is offline   Reply With Quote
Old 05-24-2006, 03:03 PM   #5
Senior Member
True Car Nut

Join Date: Jan 2006
Location: NEBF:06,07 | NYBF:06,07 | ONBF:06,07 | CNBF:06 & more............
Posts: 8,029
Thanks: 0
Thanked 0 Times in 0 Posts
bandit is on a distinguished road
Default

Quote:
Originally Posted by 1993 SLE
Quote:
Originally Posted by bandit
how easy is it to change the whole cables? never look that far down, or over, or where ever....
its not bad, one goes to the starter, one to the alt and the other cable goes to the Maxifuse relay center
cool so... say if my cables look worst then bills it should only take like 30min to change them or so....
cool

Bill- where did you get you new cables from?
bandit is offline   Reply With Quote
Old 05-24-2006, 03:30 PM   #6
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

My negative cable came from GMPD and their world of super slow shipping. The positives were ordered by Mechanic Dan through a dealership he used to work at.

As Pat says..I wasn't looking for that GM Feeling when I paid for them.
BillBoost37 is offline   Reply With Quote
Old 05-24-2006, 03:33 PM   #7
Senior Member
True Car Nut

Join Date: Jan 2006
Location: NEBF:06,07 | NYBF:06,07 | ONBF:06,07 | CNBF:06 & more............
Posts: 8,029
Thanks: 0
Thanked 0 Times in 0 Posts
bandit is on a distinguished road
Default

Quote:
Originally Posted by BillBoost37
My negative cable came from GMPD and their world of super slow shipping. The positives were ordered by Mechanic Dan through a dealership he used to work at.

As Pat says..I wasn't looking for that GM Feeling when I paid for them.
cool cuz i think im going to replace them be for the winter months...
bandit is offline   Reply With Quote
Old 05-24-2006, 03:35 PM   #8
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

You may be able to clean them w/o needing to replace. With my current issues, I am not playing anymore....I'm out to win or die trying.
BillBoost37 is offline   Reply With Quote
Old 05-24-2006, 03:54 PM   #9
Senior Member
True Car Nut

Join Date: Dec 2003
Location: Right in front of you
Posts: 7,965
Thanks: 0
Thanked 0 Times in 0 Posts
SSE14U24ME is on a distinguished road
Default

That is very interesting information. It is one of those things easily looked over. Thanks for the heads up!
SSE14U24ME is offline   Reply With Quote
Old 05-24-2006, 03:58 PM   #10
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Quote:
Originally Posted by SSE14U24ME
That is very interesting information. It is one of those things easily looked over. Thanks for the heads up!
Espcecially when it'* hidden under the boot...
BillBoost37 is offline   Reply With Quote
