Exclamation Cold Weather= Tighten Battery Connections!

Today I checked my top post connections & guess what... they were loose!
Out Comes the trunk Wrenches!

These lead marine terminals work, but as you can see the + is close to maxing out in the tightening department.
Are there any other similar top post terminals I can use for a better, secure connection, that will adapt to the current ring terminals I have on the PA?
Attached Thumbnails
Cold Weather= Tighten Battery Connections!-toppostonparkave_zps7b9d349b.jpg
Soft Ride is offline   Reply With Quote
Old 12-13-2014, 06:31 AM   #2
Retired Administrator

True Car Nut

GunsOfNavarone's Avatar

Join Date: Apr 2009
Location: Williamsport, PA
Posts: 2,856
Thanked 167 Times in 129 Posts
GunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud of
Default

You converted from side mount battery?
GunsOfNavarone is offline   Reply With Quote
Old 12-13-2014, 03:50 PM   #3
Senior Member
True Car Nut
Thread Starter

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,588
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

The Car came like this originally...


No Corrosion problems with the AGM battery and a more solid Top Post solution was utilized.
Now I would like to find higher quality top post connectors, that stay tight.
Attached Thumbnails

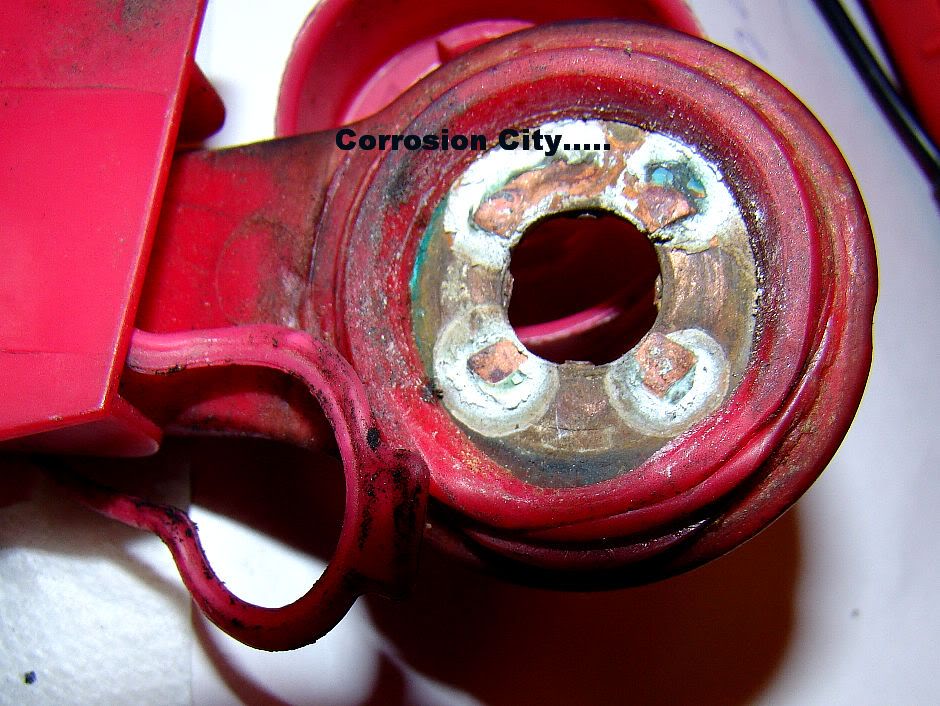

Cold Weather= Tighten Battery Connections!-originalparkavesideconnectors_zps0cfc9c0e.jpg   Cold Weather= Tighten Battery Connections!-buickbattsidecorrosion_zpsd9fcc22f.jpg
Soft Ride is offline   Reply With Quote
Old 12-14-2014, 09:52 AM   #4
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

these connectors for adding amps with big wires work well and make good positive connections. just have to cut off the ends in your application. after you put the wire in and tighten them down i would squeeze some dielectric grease on both sides and up to were the insulation starts.


something like this
Amazon.com : Scosche EBT Battery Terminal with ABS Cover : Vehicle Amplifier Power Cable Terminals : Automotive Amazon.com : Scosche EBT Battery Terminal with ABS Cover : Vehicle Amplifier Power Cable Terminals : Automotive
jwfirebird is offline   Reply With Quote
Old 12-14-2014, 10:06 AM   #5
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

probably have to get one with three big ports for the positive, but you get my point. sonic electronics is good and has a good selection of different ones.

Xscorpion DBT024RP Platinum Digital Display Battery Terminal
jwfirebird is offline   Reply With Quote
Old 12-14-2014, 05:00 PM   #6
Senior Member
True Car Nut
Thread Starter

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,588
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

I think I would rather remain with the factory ring terminal ends.
I've had a bad experiences with inserting the bare wire into terminals.
Remember the 200 amp fuse that melted with a plastic casing....Yeiks!
Metal casings only please.
Soft Ride is offline   Reply With Quote
Old 12-14-2014, 06:53 PM   #7
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Stay away from the lead clamps. They are soft and just loosen up over time. Go with steel or copper clamps.
Then treat them with Permatex battery protector.
Amazon.com: Permatex 80370 Battery Protector and Sealer, 5 oz. net Aerosol Can: Automotive Amazon.com: Permatex 80370 Battery Protector and Sealer, 5 oz. net Aerosol Can: Automotive

We use that stuff at work on big trucks that have 2, 3 and 4 battery systems.
Mike is online now   Reply With Quote
The Following User Says Thank You to Mike For This Useful Post:
Soft Ride (12-14-2014)
Old 12-14-2014, 07:40 PM   #8
Senior Member
True Car Nut
Thread Starter

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,588
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

Thanks Mike..
I really have not found any steel or copper listed under Wing Nut Marine Battery Terminals.
How about brass?
Here are some that I can get easily locally..Maybe if I phone one of the dealers they will know if anything is in steel or copper up here.
Pico No 894N | Brass Marine Battery Terminal | Pico of Canada Ltd.

Last edited by Soft Ride; 12-14-2014 at 07:42 PM. Reason: steel oops
Soft Ride is offline   Reply With Quote
Old 12-14-2014, 07:56 PM   #9
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Surprising thing about lead is, its a pretty dense metal, but its very soft. Brass doesn't have the carrying capacity of lead or copper, but is more rigid to a point until it gets so cold, it breaks. Brass also corrodes like copper.

Either way you look at it, its a lose-lose situation.
Mike is online now   Reply With Quote
Old 12-15-2014, 09:00 AM   #10
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

the plastic is just an insulating cover on any connector, if there is heat its because of a poor high resistance connection, which is what happens to ring terminals after a while. any connection really. lugs like the two i pictured is the only reliable way to terminate high current connections for the home diy'er. unless you have a hydraulic crimper to put new connectors on it, it will be better than whats on there for longer with the dielectric grease. best bet would to be to avoid dissimilar metals, copper wire needs copper terminals. they have no-ox but most people dont have that laying around either
jwfirebird is offline   Reply With Quote
