Default Changing out a noisy supercharger

Some free time, so off with the noisy supercharger.

Name:  P5100071.jpg
Views: 2
Size:  127.8 KB

Well well, a damaged O-ring on the injector.
Name:  P5100072.jpg
Views: 1
Size:  79.5 KB

Old supercharger, lost a lot of coating.
Name:  P5100073.jpg
Views: 1
Size:  197.9 KB

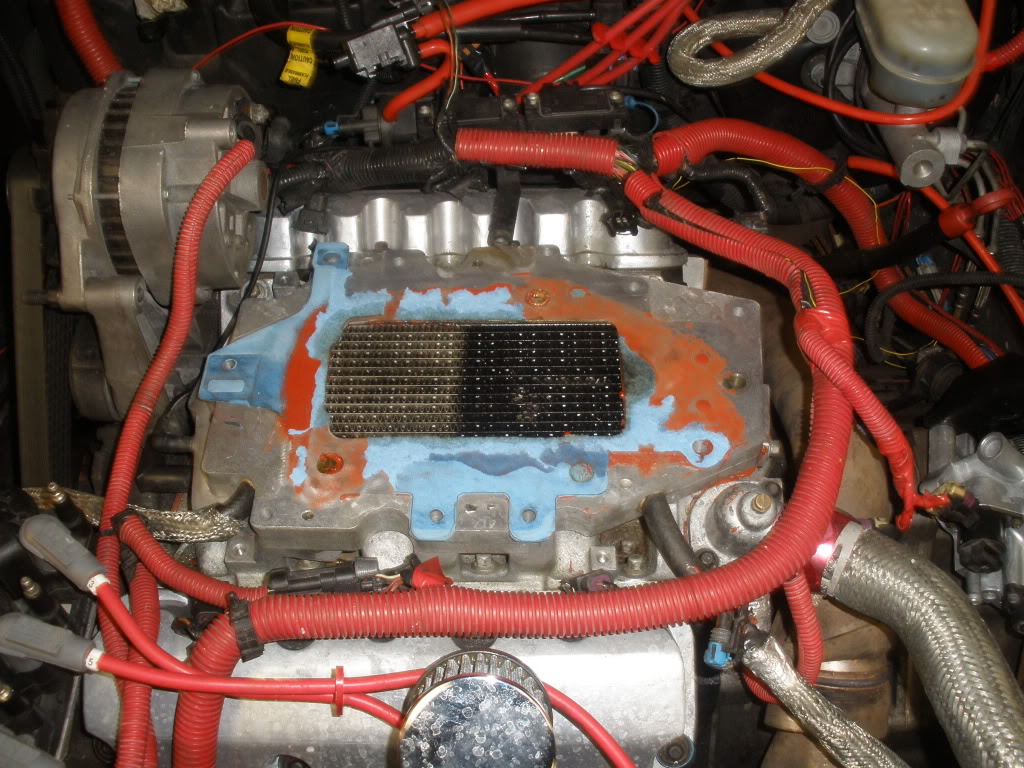

Got some cleaning to do here.
Name:  P5100074.jpg
Views: 2
Size:  202.8 KB

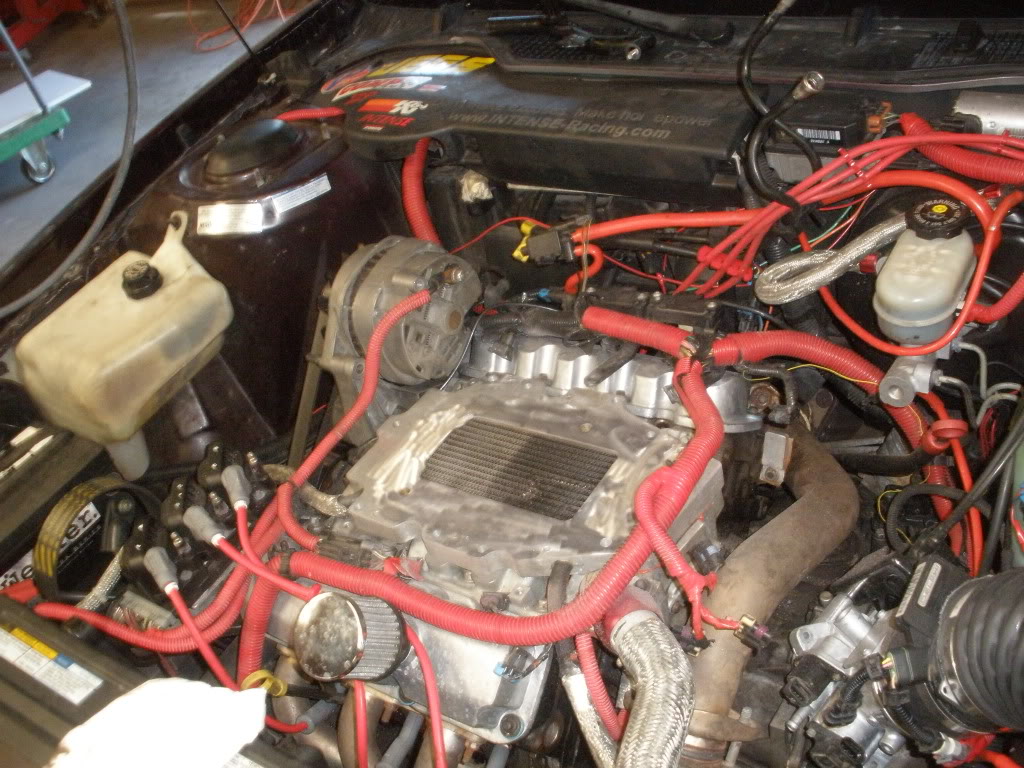

All cleaned and ready to go.
Name:  P5100075.jpg
Views: 1
Size:  194.0 KB

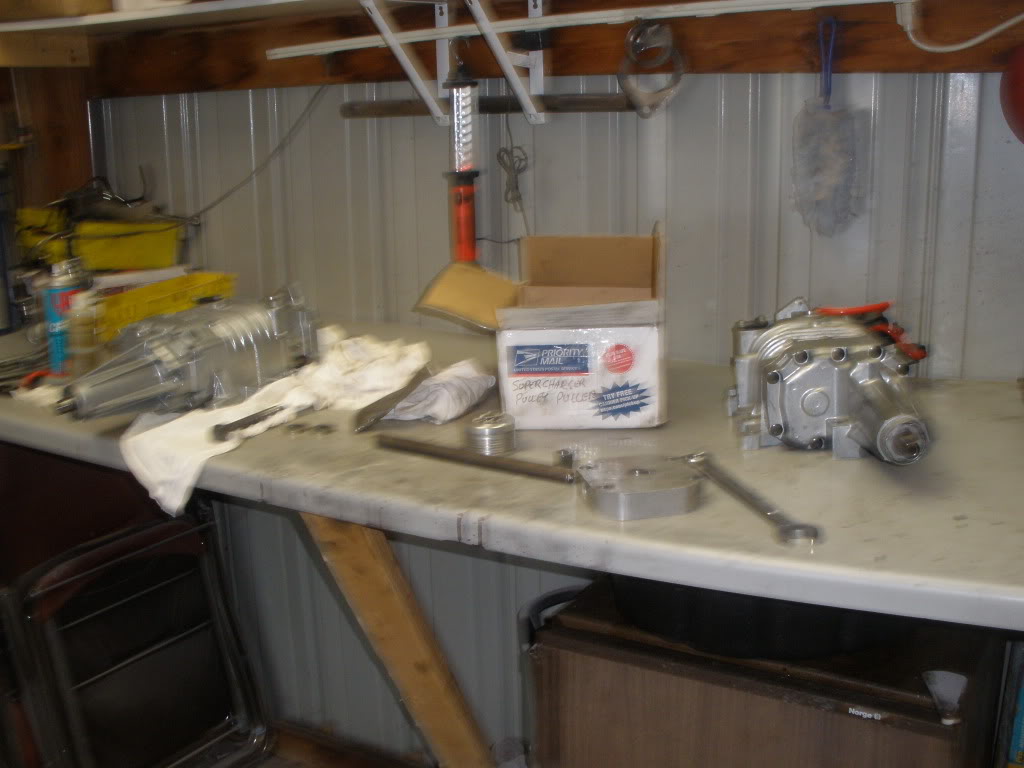

Moving the MPS over to the new supercharger.
Name:  P5100076.jpg
Views: 1
Size:  101.3 KB

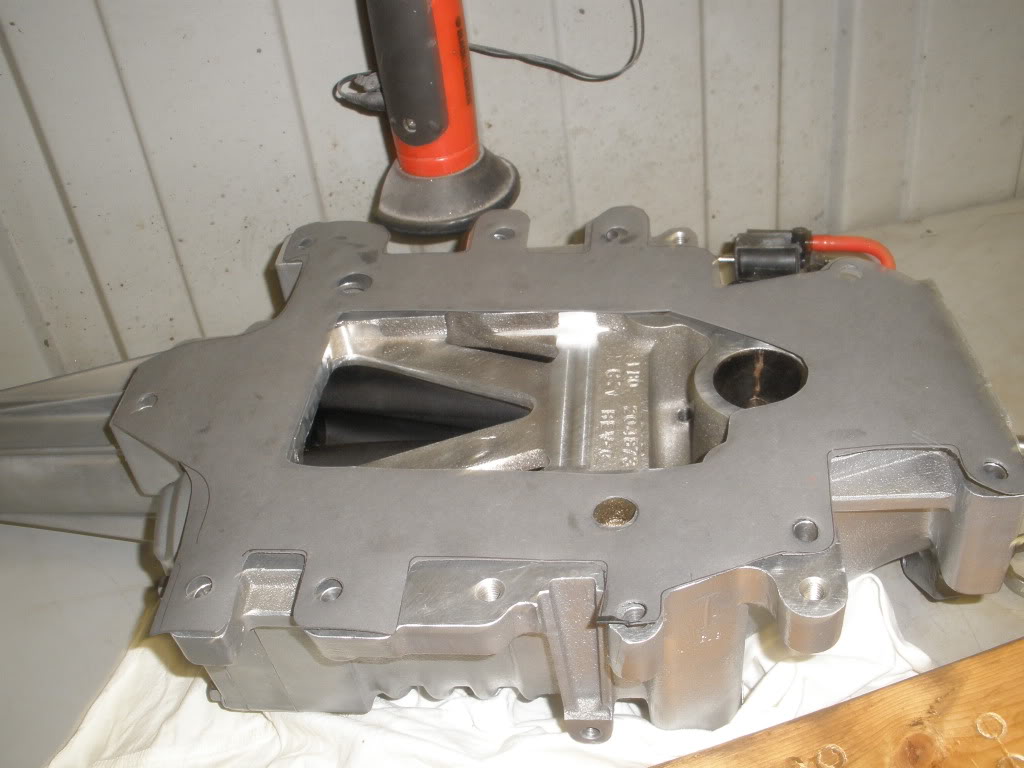

Made up a new gasket.
Name:  P5100078.jpg
Views: 0
Size:  106.9 KB

On the right, the old supercharger. My very first porting job. On the left, my latest job. Outlet looks a lot better.
Name:  P5100077.jpg
Views: 2
Size:  142.2 KB

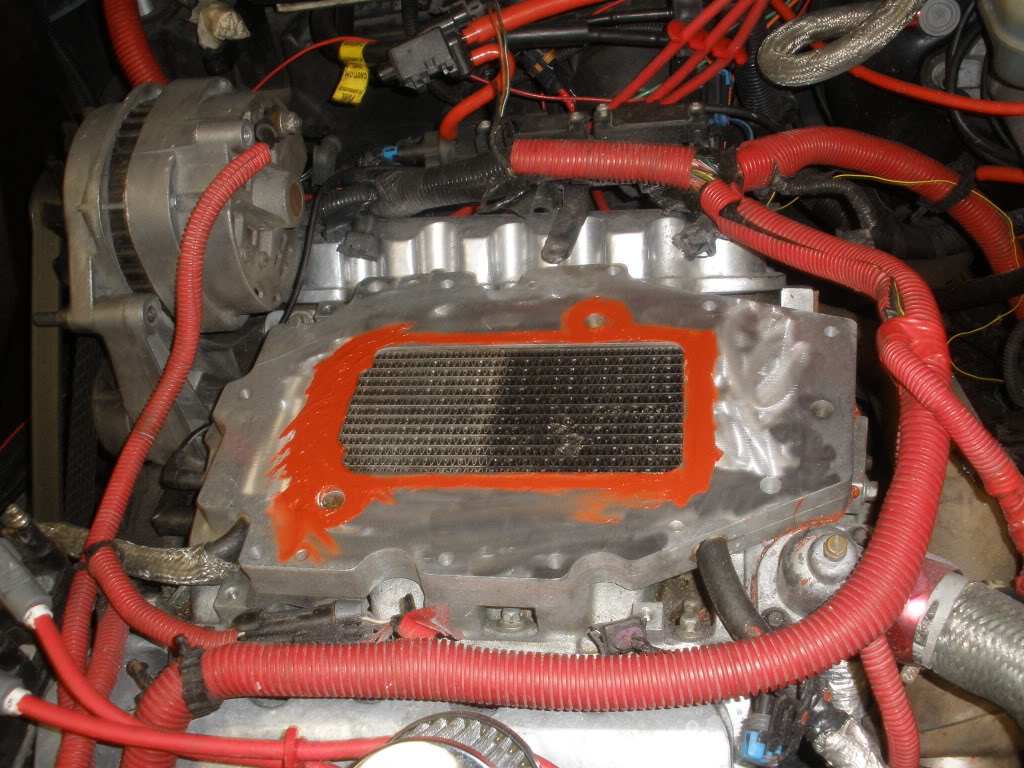

Don't want any more leaks. RTV is my friend.
Name:  P5100079.jpg
Views: 1
Size:  194.0 KB

Got it all mounted.
Name:  P5100080.jpg
Views: 0
Size:  169.8 KB

Had to pull the fuel rails again, had a fuel leak. Another damaged O ring. All better now.

This oil is only a week old and the only driving was the cruise around town. Not good.
Name:  P5100081.jpg
Views: 1
Size:  88.2 KB

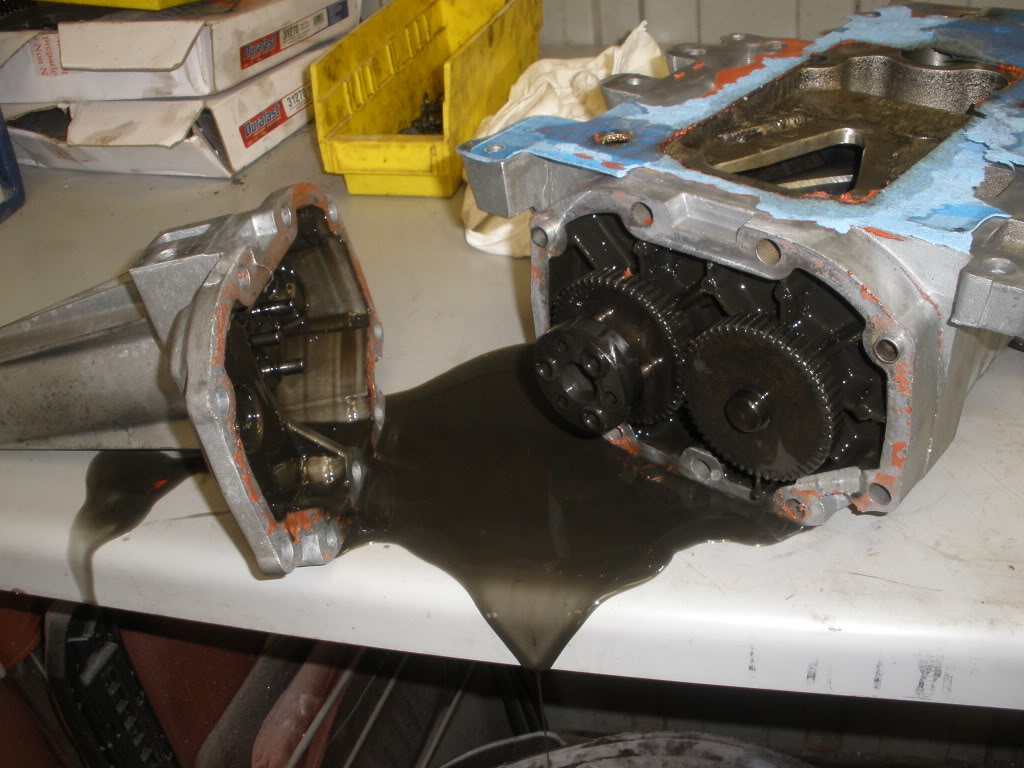

Popped the snout open. Ya, not good. The rotors seem ok other then the coating. The coupler is fine. But found a tight spot on the snout. Bearing went out.
Name:  P5100082.jpg
Views: 1
Size:  135.2 KB

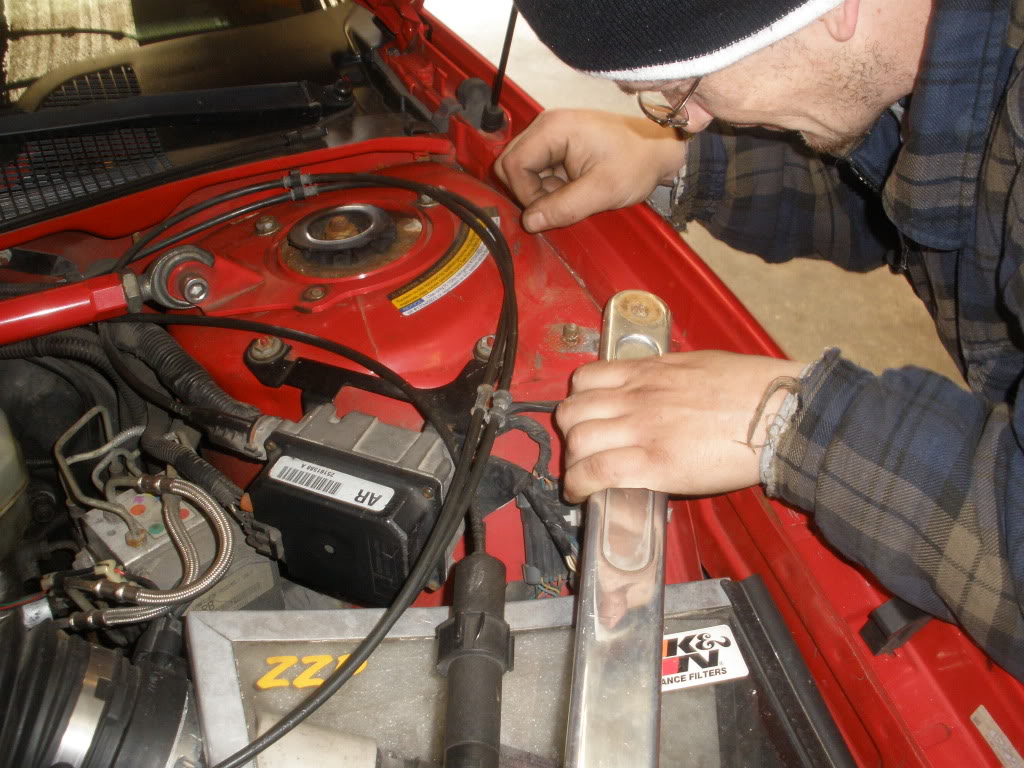

Chris showed up. He broke a bolt off, so I had to fix that.
Name:  P5100083.jpg
Views: 1
Size:  168.6 KB
Danthurs is offline   Reply With Quote
Old 05-10-2010, 04:57 PM   #2
Senior Member
Certified GM nut

SpinEm_90's Avatar

Join Date: Mar 2010
Location: Wentzville, Missouri
Posts: 1,754
Thanks: 0
Thanked 0 Times in 0 Posts
SpinEm_90 is on a distinguished road
Default

wow looks like a lot of working going down over there.have fun!
SpinEm_90 is offline   Reply With Quote
Old 05-10-2010, 05:05 PM   #3
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Just got a phone call. A 79 Vette is stopping over for a quote on a detail. He has another car he also wants done. Hurray, my detailing business is getting back on it'* feet. I was crushed last year because the road was ripped up all summer. Who'* going to pay $200 for a detail and then drive over a dirt road to leave.
Danthurs is offline   Reply With Quote
Old 05-10-2010, 05:09 PM   #4
Senior Member
Certified GM nut

SpinEm_90's Avatar

Join Date: Mar 2010
Location: Wentzville, Missouri
Posts: 1,754
Thanks: 0
Thanked 0 Times in 0 Posts
SpinEm_90 is on a distinguished road
Default

yayy! how exciting =) i was gonna officially start my business this week but its suppose to storm all week so theres no point to start it this week lol
SpinEm_90 is offline   Reply With Quote
Old 05-10-2010, 06:11 PM   #5
Artist
True Car Nut

yutzybrian's Avatar

Join Date: Jul 2009
Location: USA
Posts: 5,283
Thanked 48 Times in 35 Posts
yutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to behold
Default

Moving up the plan to change the */c I see. Looks great.

How exactly did Chris break that bolt?
yutzybrian is offline   Reply With Quote
Old 05-10-2010, 06:31 PM   #6
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

It was stuck so e used a bigger wrench.

The guy stopped over for me to look at his cars. I'm detailing the Jeep on Wednesday. Gezz, looks like someone cleaned it with a SOS pad. It'* all scratched up.
Name:  P5100085.jpg
Views: 1
Size:  104.1 KB

There'* the Jeep I'm doing.
Name:  P5100086.jpg
Views: 0
Size:  103.2 KB

I love it when people just drop off Corvettes, here' clean it, I'll pick it up tomorrow.
Name:  P5100087.jpg
Views: 1
Size:  147.2 KB

The paint is a little rough.
Name:  P5100088.jpg
Views: 1
Size:  179.9 KB

Looks like it sat in the sun with little to no wax on it.
Name:  P5100089.jpg
Views: 0
Size:  150.8 KB

I could have sworn he said a 79 vette. Looks a little newer then that.
Danthurs is offline   Reply With Quote
Old 05-10-2010, 07:11 PM   #7
Senior Member
Posts like a Turbo

sseiyaaround's Avatar

Join Date: May 2009
Location: lansing, MI
Posts: 440
Thanks: 0
Thanked 0 Times in 0 Posts
sseiyaaround is on a distinguished road
Default

Quote:
Originally Posted by Danthurs View Post
Looks like it sat in the sun with little to no wax on it.


I could have sworn he said a 79 vette. Looks a little newer then that.
lol maybe a LITTLE newer than that =] btw thjose are some big tips on that vette, look pretty good tho.
sseiyaaround is offline   Reply With Quote
Old 05-10-2010, 07:11 PM   #8
Senior Member
True Car Nut

raptor660's Avatar

Join Date: Mar 2010
Location: Eaton Rapids MI
Posts: 2,964
Thanks: 0
Thanked 0 Times in 0 Posts
raptor660 is on a distinguished road
Default

I wish u were my neighbor! I would brib u into putting one of those SC u got on my NA L27. Then borrow your hedge trimmer and never get it back. lol
raptor660 is offline   Reply With Quote
Old 05-10-2010, 07:14 PM   #9
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

They look nice, but I like the duals better.
Danthurs is offline   Reply With Quote
Old 05-10-2010, 08:01 PM   #10
Senior Member
Posts like a Turbo

ekidman's Avatar

Join Date: Apr 2009
Location: Sussex, WI
Posts: 252
Thanks: 0
Thanked 0 Times in 0 Posts
ekidman is on a distinguished road
Default

Making a little extra cash is always nice...especially when u get to drive and clean vette'* while making it lol.
ekidman is offline   Reply With Quote
