Default Caliper bolt broken/frozen

Working on this Bonneville today.

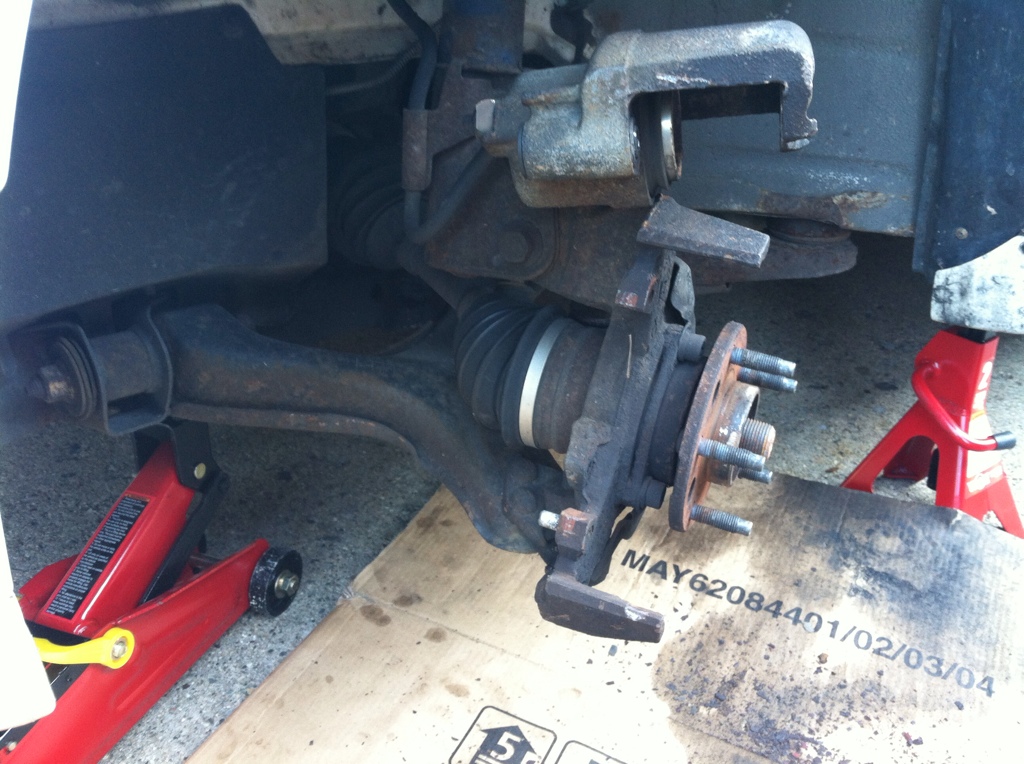

Name:  b92f433f.jpg
Views: 12
Size:  301.6 KB

Bottom bolt for the caliper broke. Half of it came out half of it is still in the bracket. Any suggestions on how to get it out?

Couple more pics. Did the pass side brakes really easily.

Name:  c28079d1.jpg
Views: 7
Size:  281.9 KB

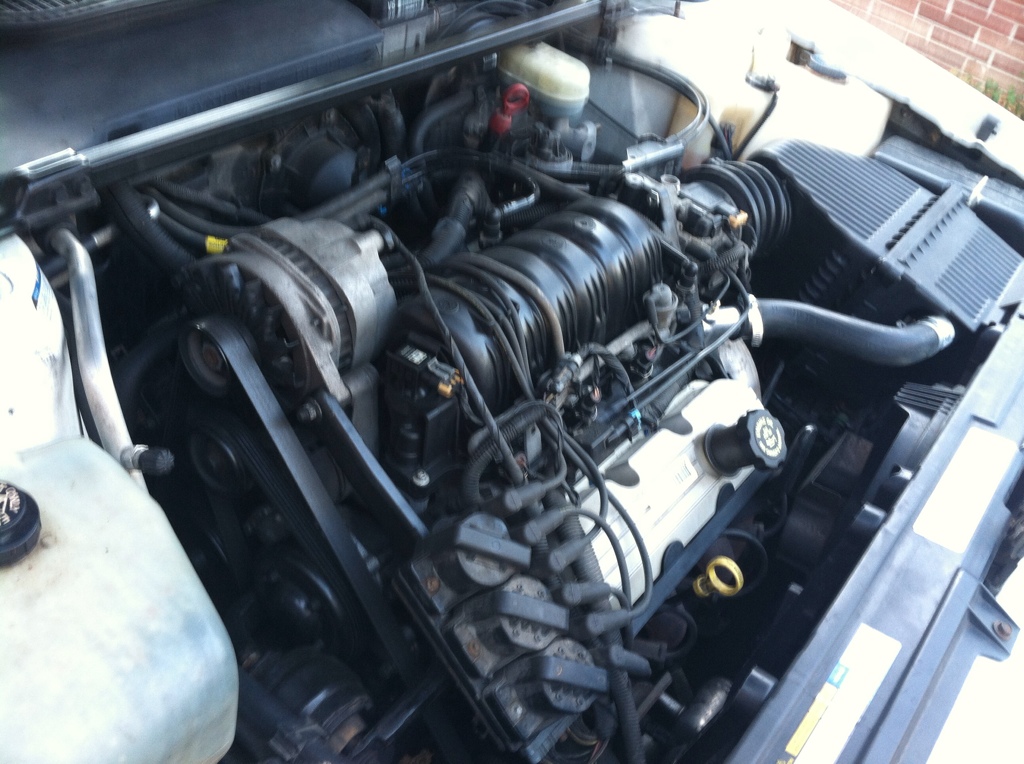

Name:  e1c3ab13.jpg
Views: 11
Size:  281.7 KB
94 olds vert is offline   Reply With Quote
Old 07-08-2012, 10:07 PM   #2
Senior Member
Posts like a Turbo

roboticjunky's Avatar

Join Date: Aug 2009
Location: Indiana
Posts: 487
Thanks: 0
Thanked 0 Times in 0 Posts
roboticjunky is on a distinguished road
Default

In those situations, I use an easy out.

I welded 2 heated wide band O2 sensors on my truck. I also "tried" to tint my driver'* window and vent window and it doesn't look good.
roboticjunky is offline   Reply With Quote
Old 07-08-2012, 10:11 PM   #3
Senior Member
Posts like a Corvette
Thread Starter

94 olds vert's Avatar

Join Date: Apr 2011
Location: Michigan
Posts: 1,548
Thanked 22 Times in 20 Posts
94 olds vert will become famous soon enough94 olds vert will become famous soon enough
Default

I could try and use one, but I don't know if it will have any affect. It'* worth a shot.
94 olds vert is offline   Reply With Quote
Old 07-09-2012, 12:31 AM   #4
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,643
Thanked 997 Times in 774 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Grab a pair of brand new vise grips. Clamp onto the bolt. Heat the part the bolt is threaded into with a plumbers torch and try to rotate it out.
Mike is offline   Reply With Quote
Old 07-09-2012, 07:33 AM   #5
Senior Member
Posts like a Corvette
Thread Starter

94 olds vert's Avatar

Join Date: Apr 2011
Location: Michigan
Posts: 1,548
Thanked 22 Times in 20 Posts
94 olds vert will become famous soon enough94 olds vert will become famous soon enough
Default

That was the first thing I tired. Used my acetylene torch. I had that thing red hot too.
94 olds vert is offline   Reply With Quote
Old 07-09-2012, 09:34 AM   #6
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,643
Thanked 997 Times in 774 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Looks like you may have to drill it out now.
Mike is offline   Reply With Quote
Old 07-09-2012, 12:18 PM   #7
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

Quote:
Originally Posted by 94 olds vert View Post
That was the first thing I tired. Used my acetylene torch. I had that thing red hot too.
My apologies for asking what is probably a stupid question, but did you heat the bolt or the bracket?
2kg4u is offline   Reply With Quote
Old 07-09-2012, 01:19 PM   #8
Senior Member
Posts like a Corvette
Thread Starter

94 olds vert's Avatar

Join Date: Apr 2011
Location: Michigan
Posts: 1,548
Thanked 22 Times in 20 Posts
94 olds vert will become famous soon enough94 olds vert will become famous soon enough
Default

First I heated the bolt, try to remove it and nothing. Heated just the bracket away from the bolt and still could not remove. Tried an easy out today and it snapped the bit.

What if I welded a nut on the end of this bolt and then tried to turn it out with a wrench?

Thoughts?
94 olds vert is offline   Reply With Quote
Old 07-09-2012, 01:38 PM   #9
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

Weld a nut on the bolt, let it cool, and heat the bracket (not the bolt). When the bracket is hot, spray some WD-40 or PB Blaster on the bolt and try turning it out. The spray will cool the bolt a little. You want the bracket hot and the bolt cool. If that doesn't work, you may have to drill it out
2kg4u is offline   Reply With Quote
Old 07-09-2012, 01:41 PM   #10
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

By the way, you can get a new caliper bracket off rockauto for around $12.
