Default anyone know the voltage of these LED'*

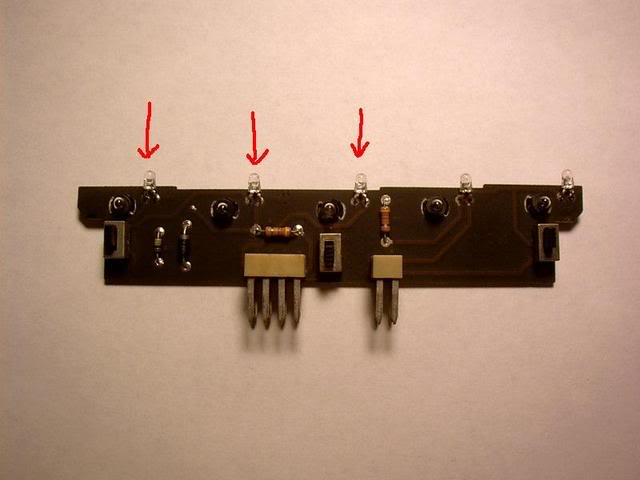

anyone know the voltage of these LED'*. they are from my center console, perform/normal/trac/perfom/touring

the three with arrows are the burned out ones....but i dont know how to test the other ones, becaue i dont knonw what voltage they are. i wanna put blue ones in there, that would look cool

Name:  PDR_0025.jpg
Views: 0
Size:  23.9 KB
harofreak00 is offline   Reply With Quote
Old 05-27-2004, 02:07 AM   #2
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

OOH, blue ones. You definatly need to send me some once you get this figured out. I like that idea.
J Wikoff is offline   Reply With Quote
Old 05-27-2004, 02:10 AM   #3
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

im sure i could buy in bulk off ebay if a bunch of ppl want em

http://cgi.ebay.com/ws/eBayISAPI.dll...817438365&rd=1
harofreak00 is offline   Reply With Quote
Old 05-27-2004, 02:15 AM   #4
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

Do you have a voltmeter? Turn the car on and check. If I hadn't just got done putting my engine together, I'd totally take my console apart to figure this out.
J Wikoff is offline   Reply With Quote
Old 05-27-2004, 02:17 AM   #5
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

yeah i guess i could do that...for some reason i was thinking the resistors would make it impossible to read...but ill got out and try to see if i can get a voltage off the working ones
harofreak00 is offline   Reply With Quote
Old 05-27-2004, 02:19 AM   #6
Senior Member
Posts like a Turbo

aukc's Avatar

Join Date: Mar 2003
Location: vancouver, canada 1995 bonneville SSEi
Posts: 348
Thanks: 0
Thanked 0 Times in 0 Posts
aukc is on a distinguished road
Default

here'* some info from when I rebuilt my switch
http://www.bonnevilleclub.com/forum/...pic.php?t=3029
aukc is offline   Reply With Quote
Old 05-27-2004, 02:22 AM   #7
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

Quote:
Originally Posted by harofreak00
yeah i guess i could do that...for some reason i was thinking the resistors would make it impossible to read...but ill got out and try to see if i can get a voltage off the working ones
Can you pull a dead one out and test it'* connections?
J Wikoff is offline   Reply With Quote
Old 05-27-2004, 02:24 AM   #8
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

well i answered my own question. 2.18 volts my meter read with the engine running, 2.11 when it wasnt. so the 3.0 volt ones should work. if i buy a 50 pack, who wants some??
harofreak00 is offline   Reply With Quote
Old 05-27-2004, 02:26 AM   #9
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

ME!! Wouldn't Radio Shack have these for cheap?
J Wikoff is offline   Reply With Quote
Old 05-27-2004, 02:27 AM   #10
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

i used to work there...they are a rip off...but lemme check online
harofreak00 is offline   Reply With Quote
