Aluminum Oil Pan - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


General GM Chat When starting new posts, please specify YEAR, MAKE, MODEL, ENGINE type, and whatever modifications you have made. Chat about all things GM (and related cars). Off-topic stuff should be in the Lounge, and all Model specific mechanical problems should be posted in the proper forum.

Reply



Thread Tools Search this Thread
Old 04-08-2007, 07:30 PM   #1
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default Aluminum Oil Pan

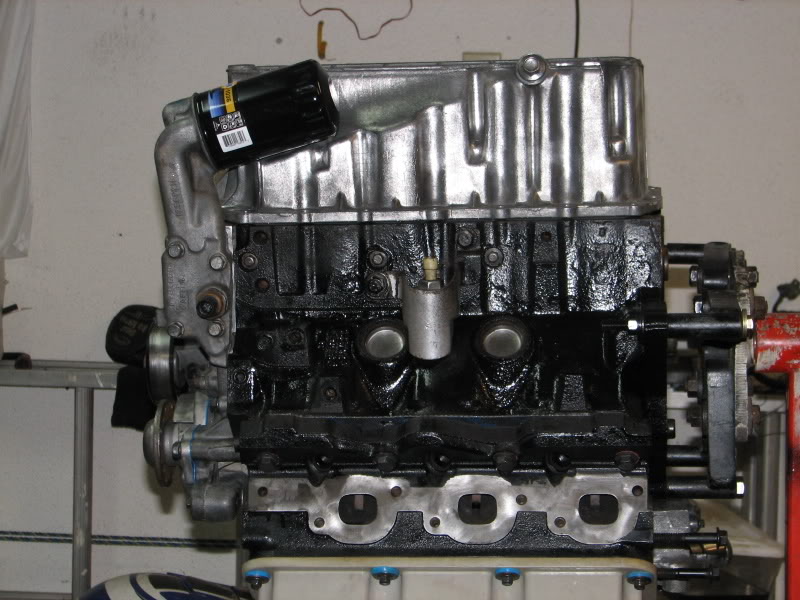

And filter clearances once you put either a PF52
Name:  IMG_1662.jpg
Views: 12
Size:  96.9 KB

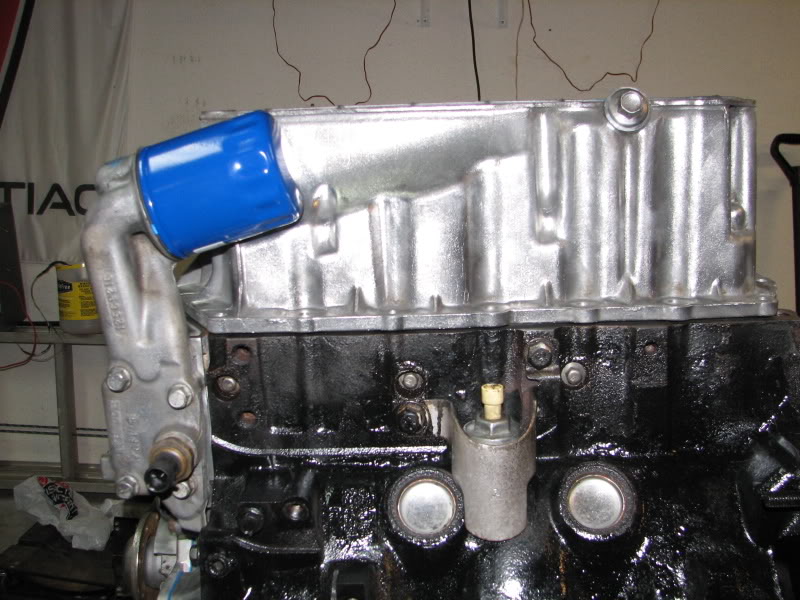

Or PF47 on it
Name:  IMG_1666.jpg
Views: 9
Size:  101.5 KB

Keep in mind..this is the 2000+ oil filter adapter as well
BillBoost37 is offline   Reply With Quote
Old 04-08-2007, 07:43 PM   #2
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

No word on subframe clearance yet? Or the ability to remove the pan in your frame without pulling the motor?
willwren is offline   Reply With Quote
Old 04-08-2007, 10:16 PM   #3
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Clearance was already checked long ago. (like I told your old butt on the phone)

Held up for a test fit it on Tony'* car when it was up in the air, it'* going to fit fine... Never had a problem getting a pan out while in a 92-99 .. afterall..we don't have oil cooler lines on an series 2
BillBoost37 is offline   Reply With Quote
Old 04-09-2007, 12:05 AM   #4
Senior Member
Posts like a Northstar

Skippy1827's Avatar

Join Date: Jun 2006
Location: Waukesha, Wisconsin
Posts: 747
Thanks: 0
Thanked 0 Times in 0 Posts
Skippy1827 is on a distinguished road
Default

So, I got a 98 that probably needs a new pan. You would recommend the aluminum from a 2000+ and not a pan from the 98? For what reason?
Skippy1827 is offline   Reply With Quote
Old 04-09-2007, 12:38 AM   #5
Senior Member
True Car Nut

Join Date: Dec 2002
Location: Sauk Centre, MN
Posts: 5,458
Thanks: 0
Thanked 0 Times in 0 Posts
OLBlueEyesBonne is on a distinguished road
Default

Interesting.... I am going to be dropping a 2001 L67 engine into my 99 this Tuesday hopefully. I had forgotten about the pan.
So, if I read correctly, the 2000+ oil filter bracket will work OK too in a 96-99?
OLBlueEyesBonne is offline   Reply With Quote
Old 04-09-2007, 07:43 AM   #6
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Skippy.. would I recommend it? No.. if you don't need to spend the money, don't. I was sick and tired of having an oil leak that when pulling the motor apart seems to have been the rear engine cover bolts (only accessible when motor or trans are out).

I do like the way the 00+ pan has the windage tray built into the pan and not the gasket. The gasket is a much better design as well and appears to be one that will hopefully give many years of great service at a better cost than the S2 96-99 pan gasket.

Marty..
There is no reason why the filter adapter for a 00+ bonne won't fit, I don't recall where the GP filter sits...as long as it doesn't try and face forward of the water pump you should be fine. Tthe transmission connects to all these motors in the same ways.

Seems to me that there shouldn't be an issue changing it. I'll know very soon.
BillBoost37 is offline   Reply With Quote
Old 04-09-2007, 12:13 PM   #7
Senior Member
Posts like a Northstar

Join Date: Oct 2004
Location: Purgatory
Posts: 533
Thanks: 0
Thanked 0 Times in 0 Posts
Greyhare is on a distinguished road
Default

Bill, did you know your engine is upside down?
Greyhare is offline   Reply With Quote
Old 04-09-2007, 12:16 PM   #8
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Quote:
Originally Posted by Greyhare
Bill, did you know your engine is upside down?
Yup..I heard it works better than on it'* end.
BillBoost37 is offline   Reply With Quote
Old 04-09-2007, 12:30 PM   #9
Guest
Certified GM nut

Join Date: Jul 2004
Location: West Point, Utah - Village Idiot
Posts: 1,606
Thanks: 0
Thanked 2 Times in 2 Posts
SSE Motorhead is on a distinguished road
Default

Quote:
Originally Posted by BillBoost37
Quote:
Originally Posted by Greyhare
Bill, did you know your engine is upside down?
Yup..I heard it works better than on it'* end.
And the crank won't fall out.
(I'm getting some good mileage out of this one...)
SSE Motorhead is offline   Reply With Quote
