Old 09-12-2013, 11:29 AM   #11
BANNED
Posts like a Supercharger
Thread Starter

Join Date: Aug 2009
Location: Wahpeton, North Dakota
Posts: 183
Thanks: 0
Thanked 0 Times in 0 Posts
zigger21 is on a distinguished road
Default

Quote:
Originally Posted by jwfirebird View Post
i doubt it is supposed to ground through the frame because that would not be a very good connection. the bodies get a bunch of rust and it wouldnt work. so you are saying it had a ground wire that you didnt put back?
Im just trying to go through every thing that maybe the reason behind the compressors not Kicking on Does anyone know the location of the fuse or relay because that maybe a Reason why we are not getting any juice.

Help Please
zigger21 is offline   Reply With Quote
Old 09-12-2013, 11:53 AM   #12
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

Attached Thumbnails

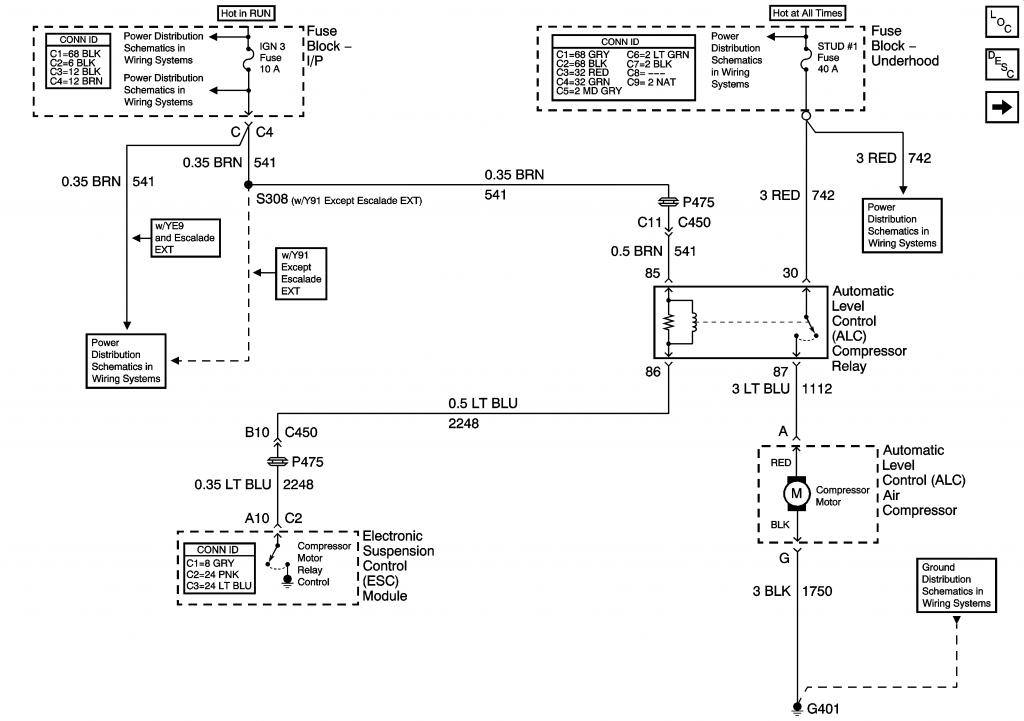

Air Ride Suspension Issue-04dencompressor_zps33785706.png
jwfirebird is offline   Reply With Quote
Old 09-12-2013, 04:50 PM   #13
Senior Member
True Car Nut

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,586
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

I had a similar situation where one day my compressor was working and the next compressor stopped and clutch would no longer engage in any mode.
Just by chance with the car running, I carefully started jiggling the wire and connector that goes onto the AC clutch and bingo it started working. There was a bad wire 4 inches up above connector, and once that was fixed, the connector was still bad. I found a new connector with a built in diode installed that and all is fine now.
Soft Ride is offline   Reply With Quote
Old 09-12-2013, 04:55 PM   #14
Senior Member
True Car Nut

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,586
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

Also to test that the magnetic AC clutch to ensure it was still working, I made a wire with the ac connector, and quickly connected it to the battery. The clutch engaged immediately. I only left it for a quick second connected, to ensure it would engage.
Soft Ride is offline   Reply With Quote
Old 09-12-2013, 05:03 PM   #15
Senior Member
True Car Nut

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,586
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

Sorry I should have stated that this is a similar situation to a diagnostic from my AC pump not the air compressor for suspension pump.
However if the connector is bad or pump wont run properly with a jumper the same diagnostic should apply. Find or fix the missing or improved ground. and definitely try with a jumper to battery if you can get pump working and work it backwards. Something is not grounded or getting power. Fuse> Relay? all ok?
Soft Ride is offline   Reply With Quote
Old 09-13-2013, 11:01 AM   #16
BANNED
Posts like a Supercharger
Thread Starter

Join Date: Aug 2009
Location: Wahpeton, North Dakota
Posts: 183
Thanks: 0
Thanked 0 Times in 0 Posts
zigger21 is on a distinguished road
Default Thank you

Quote:
Originally Posted by jwfirebird View Post
Thanks A ton JW bird your the man for helping out and not having a vag itch on me about what I did to ask the question. Its Much Appreciated.
zigger21 is offline   Reply With Quote
Old 09-13-2013, 02:24 PM   #17
Junior Member

Join Date: Sep 2013
Posts: 9
Thanks: 0
Thanked 0 Times in 0 Posts
KICROXEQUINOX is on a distinguished road
Default

WOW how did people get AC compressor out of this?

talking to a tech today, he said relay was part of ESC Module.
KICROXEQUINOX is offline   Reply With Quote
Old 09-13-2013, 03:09 PM   #18
BANNED
Posts like a Supercharger
Thread Starter

Join Date: Aug 2009
Location: Wahpeton, North Dakota
Posts: 183
Thanks: 0
Thanked 0 Times in 0 Posts
zigger21 is on a distinguished road
Default

Quote:
Originally Posted by KICROXEQUINOX View Post
how about power from the plug? Also new parts can be faulty out of the box. I would try and see what Chassis code you have also. that will help lead in the right direction.
I had to use the power plug from the old compressor. I just need to snip the old compressor wires long enough to be able to crimp them onto the new wires on the Arnott compressor color to color. Im thinking its maybe a relay. Do you know which one it is under the hood so I can test it and make sure that is not the issue or if it is the issue. Thanks and take care.
zigger21 is offline   Reply With Quote
Old 09-13-2013, 03:12 PM   #19
BANNED
Posts like a Supercharger
Thread Starter

Join Date: Aug 2009
Location: Wahpeton, North Dakota
Posts: 183
Thanks: 0
Thanked 0 Times in 0 Posts
zigger21 is on a distinguished road
Default

Quote:
Originally Posted by zigger21 View Post
Thanks A ton JW bird your the man for helping out and not having a vag itch on me about what I did to ask the question. Its Much Appreciated.
Is there any other relay I can pull to put in its spot to check if it works with out causing an issue with the vehicle running??
zigger21 is offline   Reply With Quote
Old 09-13-2013, 03:13 PM   #20
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

should be a relay called alc up there
jwfirebird is offline   Reply With Quote
