Optimas are actually known to drop one cell. Ask how I know..lol

On the WSS, being newer you should be able to see a code with your HPT. My 97 Bville wouldn't show a code, but the newer stuff does. Could be a loose wire or connector. My Regal has occasional spats of WSS unhappiness. Dielectrical goop is your best friend.

Clock, RFA/BCM etc could explain the drain you see. It'* obvious something is bad about the battery. Plus there'* the loose post that you mentioned in the pm.

BTW, it'* ELC.
BillBoost37 is offline   Reply With Quote
Old 07-29-2010, 03:00 PM   #12
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Alright, the wife said the door locks were opening and closing for about 5 minuets by them self. My first thought is corrosion.

This is the connections are the side doors, who thought this would be a good idea, really.
Name:  DSC01100.jpg
Views: 0
Size:  116.6 KB

So I cleaned them up and put a thin film of dielectric grease over the pads.
Name:  DSC01102.jpg
Views: 0
Size:  89.2 KB

Everything seems to be working. now it'* just wait and see again.

Think I'm going to go wash and detail the caddy.
Danthurs is offline   Reply With Quote
Old 07-29-2010, 03:57 PM   #13
Artist
True Car Nut

yutzybrian's Avatar

Join Date: Jul 2009
Location: USA
Posts: 5,283
Thanked 48 Times in 35 Posts
yutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to behold
Default

Wow guess that'* what happens when the designer falls asleep at the drawing table
yutzybrian is offline   Reply With Quote
Old 07-29-2010, 04:07 PM   #14
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Just washed the caddy and gave it a wipe with the quick detailer. Didn't go all out with it.

Name:  DSC01106.jpg
Views: 0
Size:  199.7 KB

Name:  DSC01105.jpg
Views: 0
Size:  206.4 KB

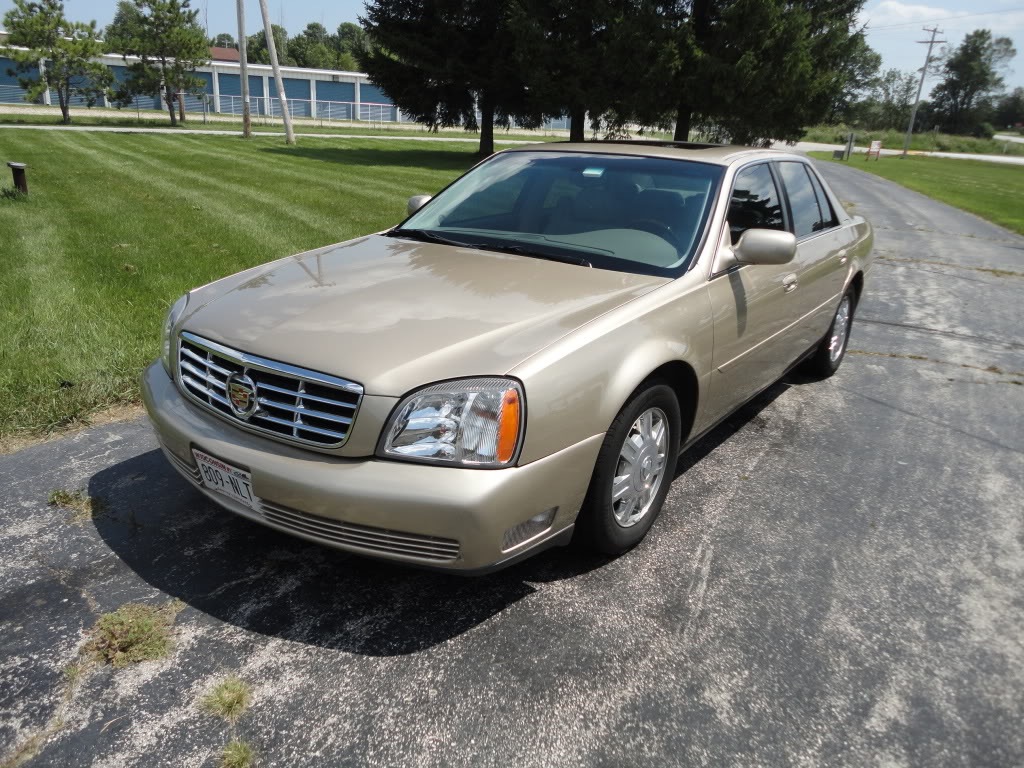

Name:  DSC01104.jpg
Views: 0
Size:  238.8 KB

Name:  DSC01103.jpg
Views: 0
Size:  152.7 KB

Nice car, but drives like a boat.
Danthurs is offline   Reply With Quote
Old 07-29-2010, 04:40 PM   #15
Senior Member
Posts like a Northstar

RobertISaar's Avatar

Join Date: Jul 2010
Location: Camden, MI
Posts: 615
Thanks: 0
Thanked 0 Times in 0 Posts
RobertISaar is on a distinguished road
Default

that'* because it is a boat...
RobertISaar is offline   Reply With Quote
Old 07-29-2010, 08:29 PM   #16
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

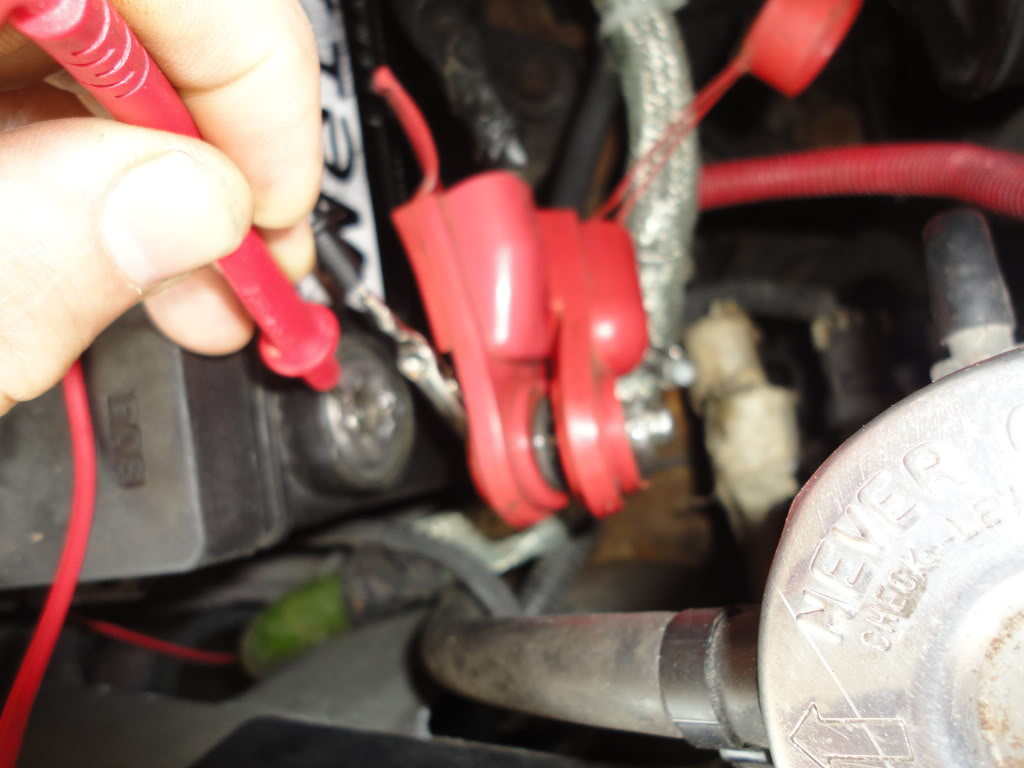

OK, with a lot of testing, and a phone call from Bill, I think we have the dead battery figured out. I left a charged battery sit in the car unhooked. It started at 12.2 volts, and dropped down to 11.97 volts and just stayed there. Bill and I started talking about many different possible problems. Then he suggested doing a Amp draw test. So that'* what I did. I connected the negative cable and left the positive unhooked. I connected one side of the amp meter to the cable and the other end to the battery post.
Name:  DSC01107.jpg
Views: 0
Size:  96.6 KB

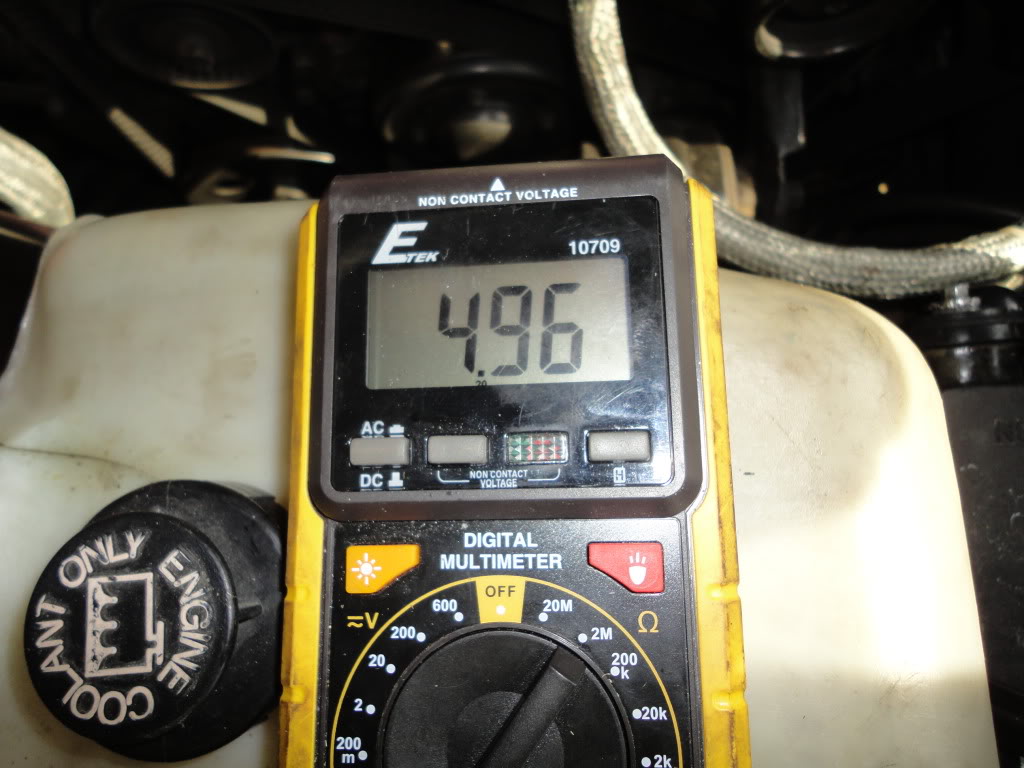

4.96 amps of draw. Nothing is on in the car, and there my be a few milliamp, but not nearly 5 amps.
Name:  DSC01108.jpg
Views: 0
Size:  133.3 KB

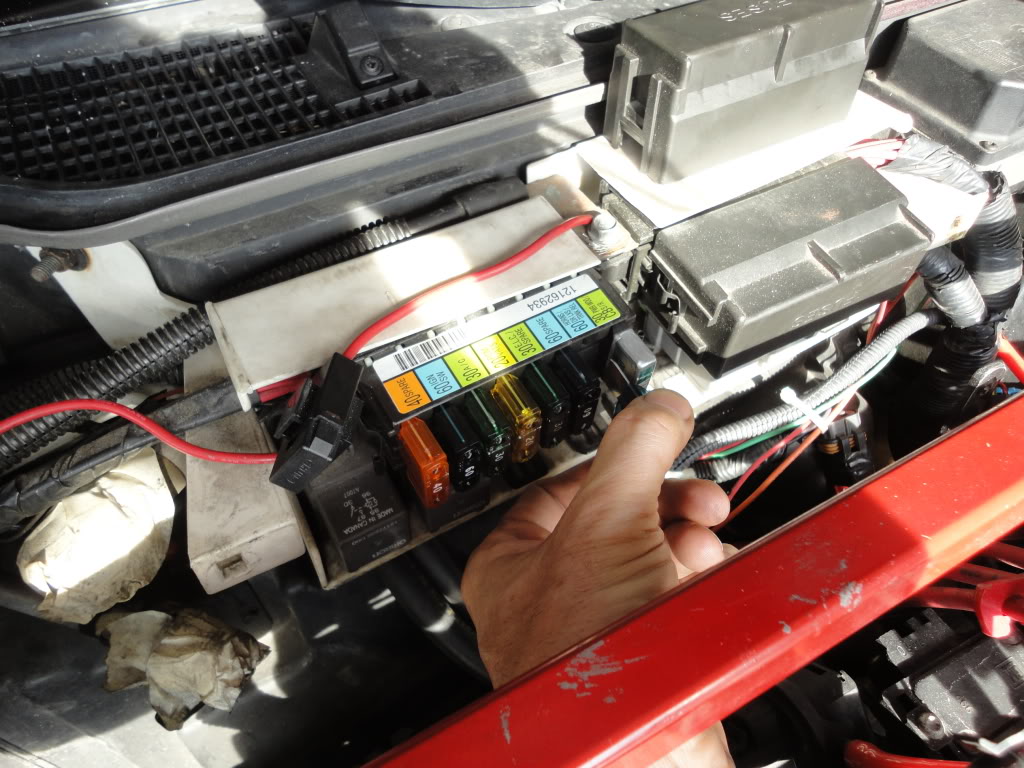

I started pulling fuses one at a time.
Name:  DSC01109.jpg
Views: 0
Size:  171.3 KB

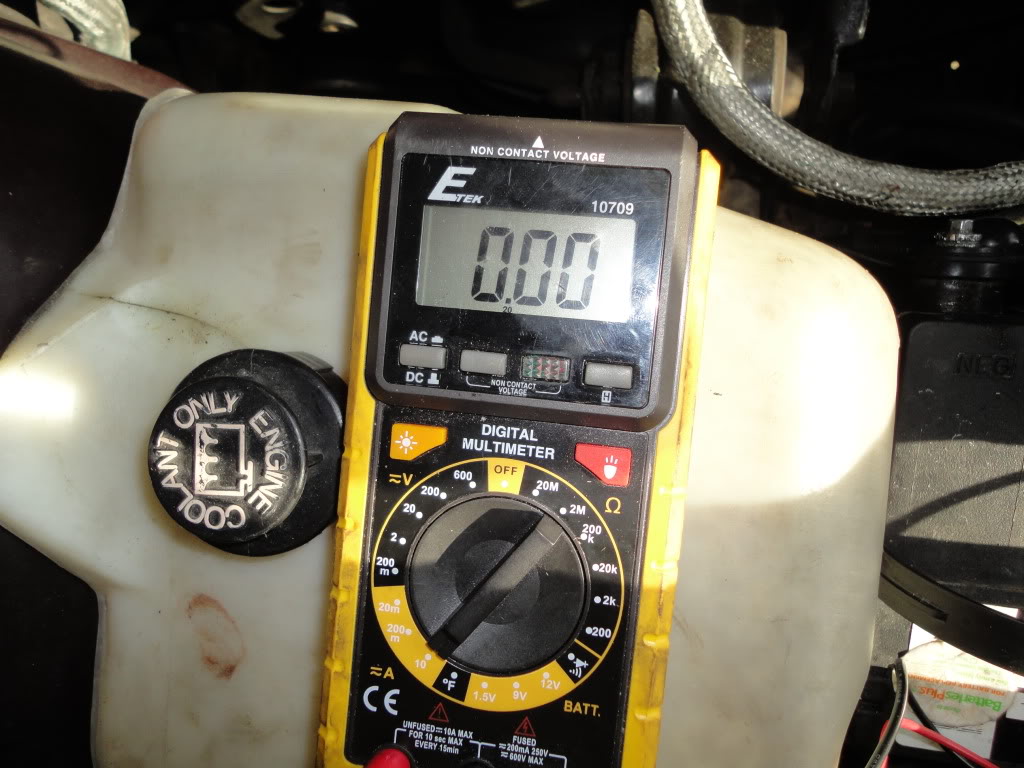

Hello, what have we here.
Name:  DSC01110.jpg
Views: 0
Size:  148.6 KB

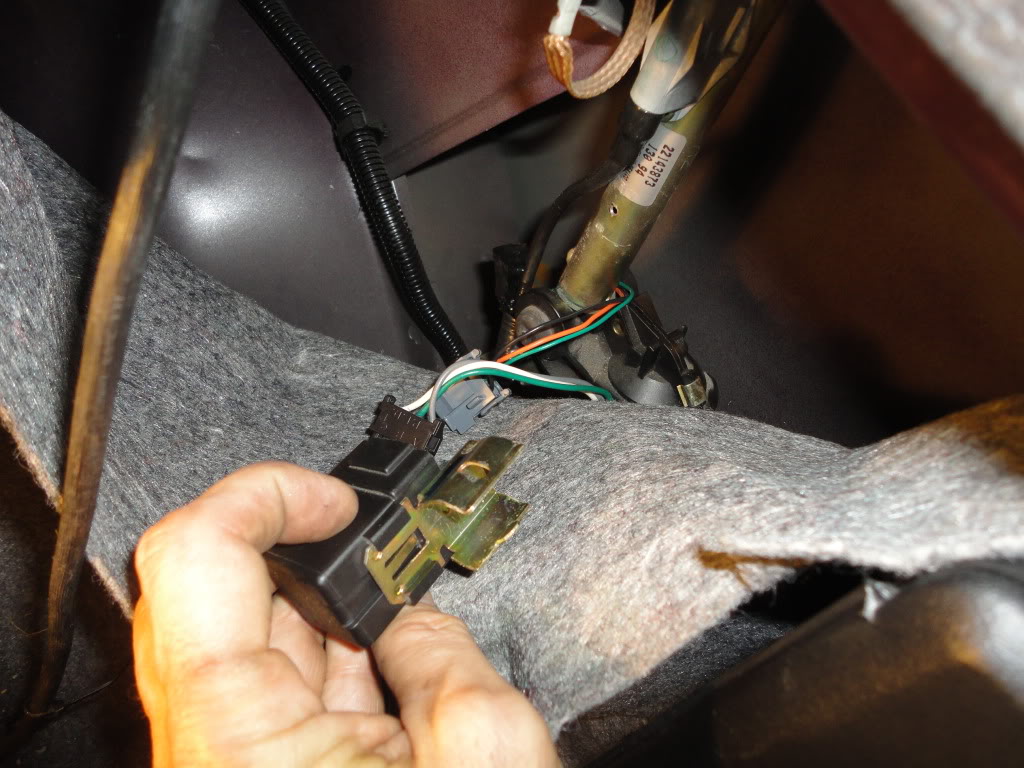

Next step would be to check what is all in that fuse and start pulling other fuses under the dash. I unplugged the horns because they were listed on that big 60amp fuse, no change. Then, on a hunch I went for the power antenna. Why? Because I change that a month or so ago.
Name:  DSC01111.jpg
Views: 0
Size:  158.4 KB

So now I wait and see if the battery goes dead, but I'm thinking it wont.
Danthurs is offline   Reply With Quote
Old 07-29-2010, 08:34 PM   #17
-- SITE DONATOR --
True Car Nut

ymmot04's Avatar

Join Date: May 2009
Posts: 4,638
Thanked 5 Times in 4 Posts
ymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of light
Default

Did you check the draw again with the antenna unplugged? Hopefully this doesn't mean you end up having to buy another one.... I had to replace mine as soon as I got my 99', and luckily it made it till I traded it in.
ymmot04 is offline   Reply With Quote
Old 07-29-2010, 08:38 PM   #18
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Yep, zero with it unplugged. I think it might be the relay, I'll have to test it when I have a bit more time. I got that antenna from the salvage yard but didn't grab the relay, I reused mine. Wish I had grabbed it now.
Danthurs is offline   Reply With Quote
Old 07-30-2010, 07:35 AM   #19
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Dang... you know I was onboard with buying a new battery as we kept chatting about the various things that go wrong with them. Tossed out the test as a .... "This is what we'd tell someone on the forum to do". Meanwhile us super gearhead guys, we frequently skip the testing steps and go right to replacment..lol

Isn't that a standard 5 pin on a bracket? Swap that baby out. (you do have spares....right) I'm assuming that the antenna motor wasn't running?
BillBoost37 is offline   Reply With Quote
Old 07-30-2010, 07:59 AM   #20
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

No, that relay is different, it has 2 plugs on it. No, the motor was not running, in fact the radio wasn't even on.
