60degV6 question - head gasket repair, coolant questions - Page 2 - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


General GM Chat When starting new posts, please specify YEAR, MAKE, MODEL, ENGINE type, and whatever modifications you have made. Chat about all things GM (and related cars). Off-topic stuff should be in the Lounge, and all Model specific mechanical problems should be posted in the proper forum.

Reply



Thread Tools Search this Thread
Old 02-14-2011, 01:43 PM   #11
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

It'* possible someone topped off the radiator with non DEX. This will cause a dark black sludge. A lighter browner sludge is air in the system with old coolant.
Danthurs is offline   Reply With Quote
Old 02-14-2011, 02:12 PM   #12
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Feb 2011
Posts: 12
Thanks: 0
Thanked 0 Times in 0 Posts
da59a is on a distinguished road
Default

Quote:
Originally Posted by Jonpro03 View Post
There is a drain plug on each side of the block for coolant. I meant to post a pic early but forgot. Here it is.

Is it the hole to the above/right of the oil filter mount?

The rear of the block looks much different - not sure where there...
da59a is offline   Reply With Quote
Old 02-14-2011, 02:13 PM   #13
Senior Member
True Car Nut

Jonpro03's Avatar

Join Date: Jul 2010
Location: Danville, Illinois
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Jonpro03 is on a distinguished road
Default

That'* correct. In this picture I have the plug removed. It will be in roughly the same spot in the rear of the block.
Jonpro03 is offline   Reply With Quote
Old 02-14-2011, 02:13 PM   #14
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Feb 2011
Posts: 12
Thanks: 0
Thanked 0 Times in 0 Posts
da59a is on a distinguished road
Default

Quote:
Originally Posted by Danthurs View Post
It'* possible someone topped off the radiator with non DEX. This will cause a dark black sludge. A lighter browner sludge is air in the system with old coolant.
Light brown/rust colored...
da59a is offline   Reply With Quote
Old 02-14-2011, 02:25 PM   #15
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Feb 2011
Posts: 12
Thanks: 0
Thanked 0 Times in 0 Posts
da59a is on a distinguished road
Default

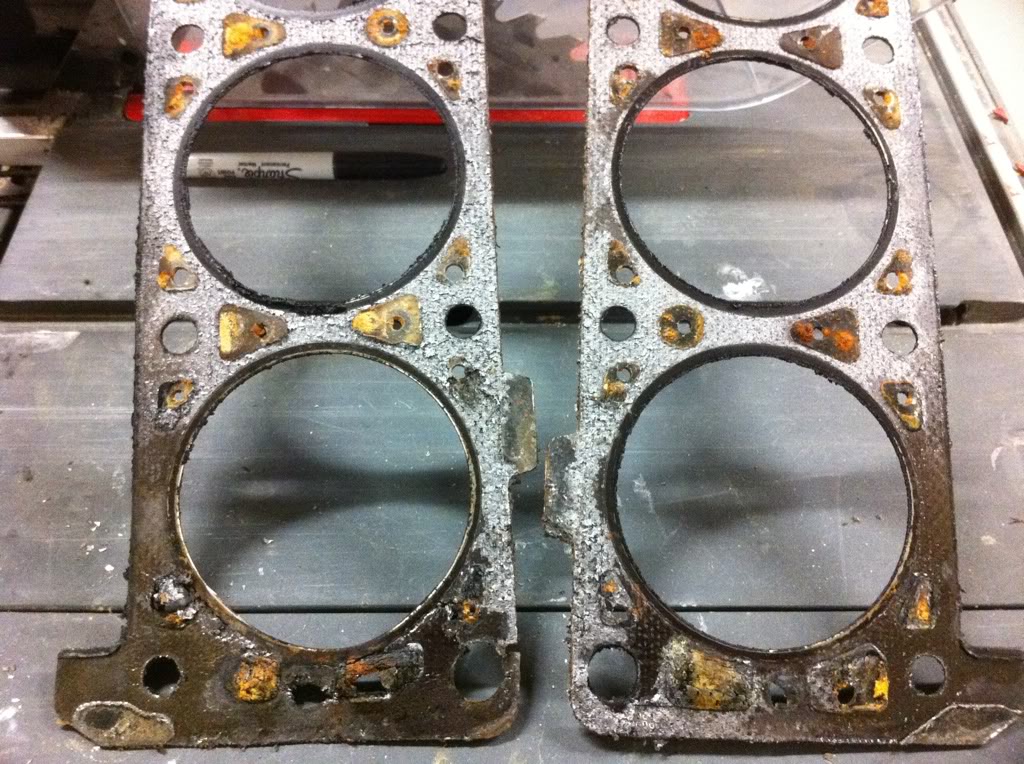

Name:  3a27f7c5.jpg
Views: 5
Size:  203.2 KB
The holes for the water passages are only about 1/4" dia, and many were clogged up. Some still are in the above photo
da59a is offline   Reply With Quote
Old 02-14-2011, 02:26 PM   #16
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Feb 2011
Posts: 12
Thanks: 0
Thanked 0 Times in 0 Posts
da59a is on a distinguished road
Default

Quote:
Originally Posted by Jonpro03 View Post
That'* correct. In this picture I have the plug removed. It will be in roughly the same spot in the rear of the block.
See it, THX!
da59a is offline   Reply With Quote
Old 02-14-2011, 02:36 PM   #17
Senior Member
True Car Nut

Jonpro03's Avatar

Join Date: Jul 2010
Location: Danville, Illinois
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Jonpro03 is on a distinguished road
Default

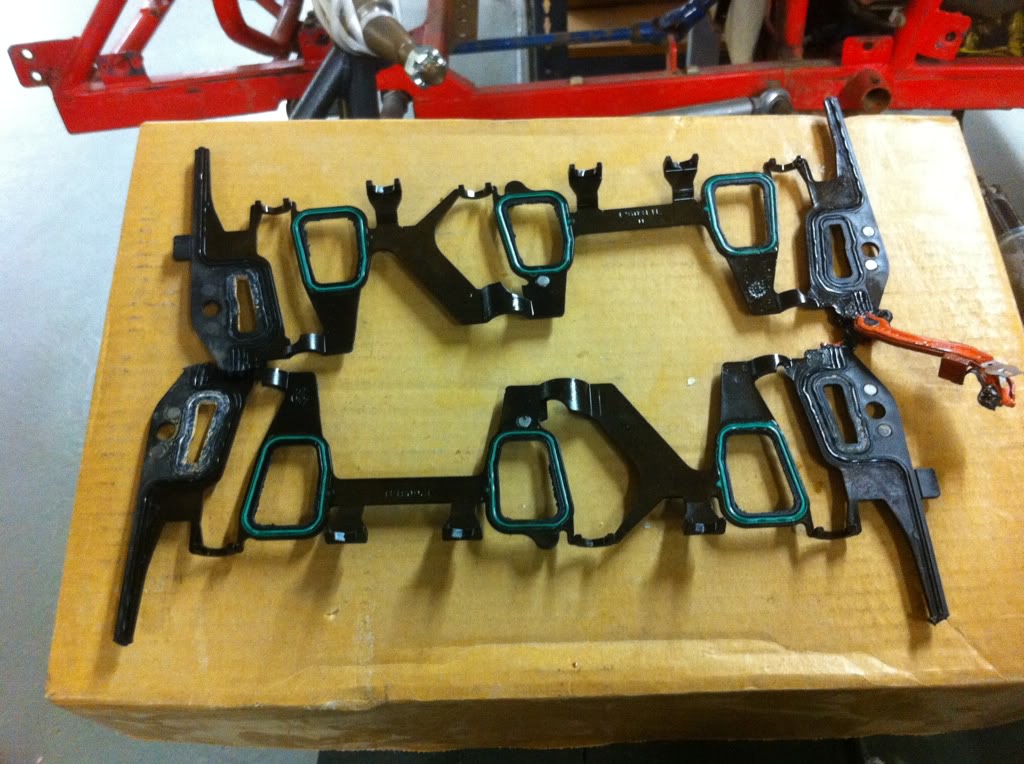

No problem! Also, do you have a picture of the lower intake manifold gaskets? Those are common failures on the older 60*V6'* (as xtremerevolution mentioned) but I'm pretty sure that your motor came with the updated gaskets.
Jonpro03 is offline   Reply With Quote
Old 02-14-2011, 02:44 PM   #18
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Feb 2011
Posts: 12
Thanks: 0
Thanked 0 Times in 0 Posts
da59a is on a distinguished road
Default

Name:  2ae7cea4.jpg
Views: 4
Size:  137.1 KB
da59a is offline   Reply With Quote
Old 02-14-2011, 03:01 PM   #19
Senior Member
True Car Nut

Jonpro03's Avatar

Join Date: Jul 2010
Location: Danville, Illinois
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Jonpro03 is on a distinguished road
Default

They look great! You did get the updated gaskets.
Jonpro03 is offline   Reply With Quote
Old 02-14-2011, 03:12 PM   #20
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Feb 2011
Posts: 12
Thanks: 0
Thanked 0 Times in 0 Posts
da59a is on a distinguished road
Default

Quote:
Originally Posted by Jonpro03 View Post
They look great! You did get the updated gaskets.
Bought all inclusive kit from Rock auto:
FEL-PRO Part # HS9071PT3 PermaDryŽ; Head Gasket Set
da59a is offline   Reply With Quote
