Default 4T60-E Transmission Service

so i finally performed a Trans Service on my SLE. at 97,500 it has NEVER had a fluid change/flush or any work done to the Trans

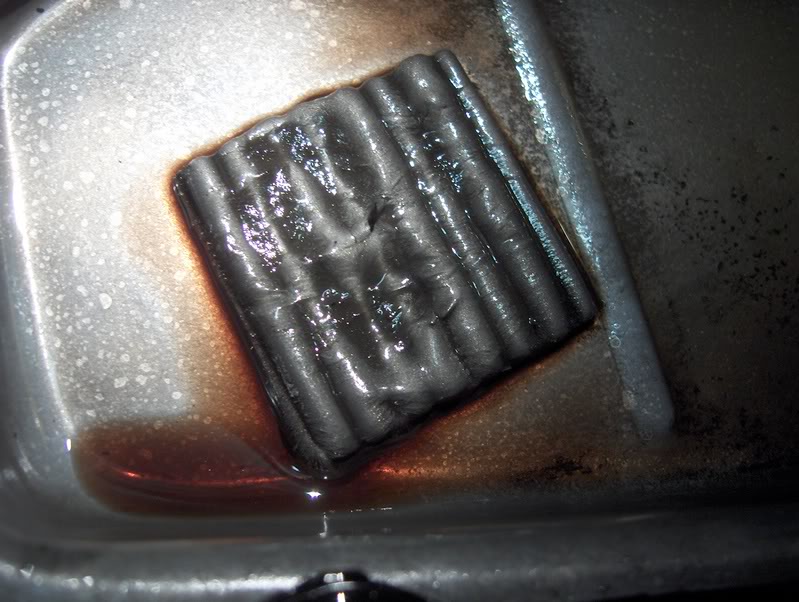

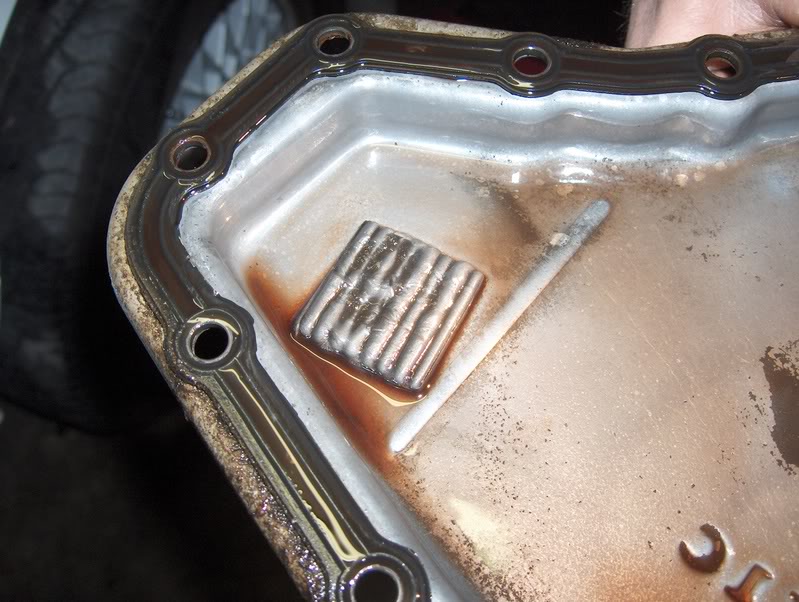

Magnet
Name:  TransmissionFluidChange001.jpg
Views: 1
Size:  91.3 KB

Name:  TransmissionFluidChange002.jpg
Views: 1
Size:  97.2 KB

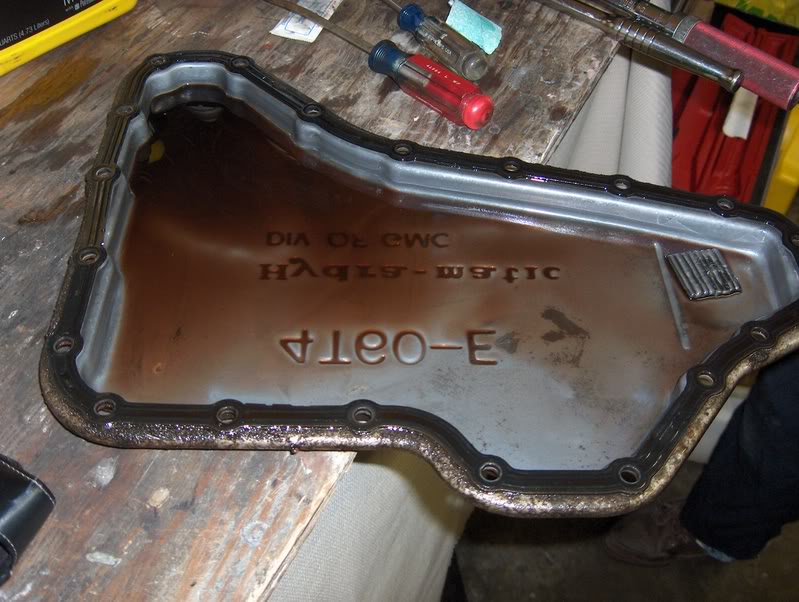

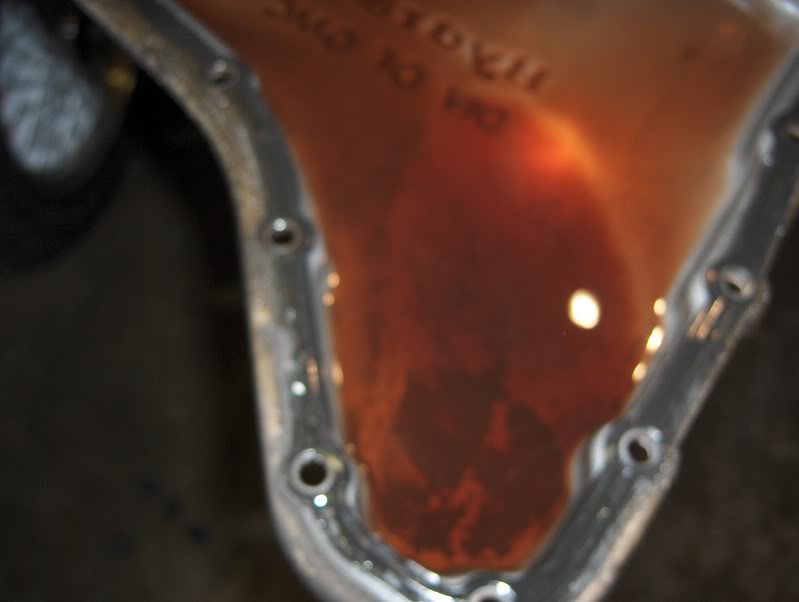

Bottom of the Pan,
Name:  TransmissionFluidChange003.jpg
Views: 1
Size:  30.2 KB

Name:  TransmissionFluidChange004.jpg
Views: 1
Size:  93.7 KB

old fluid, 6.5 quatrs came out
Name:  TransmissionFluidChange011.jpg
Views: 1
Size:  46.8 KB


Name:  TransmissionFluidChange005.jpg
Views: 1
Size:  88.3 KB

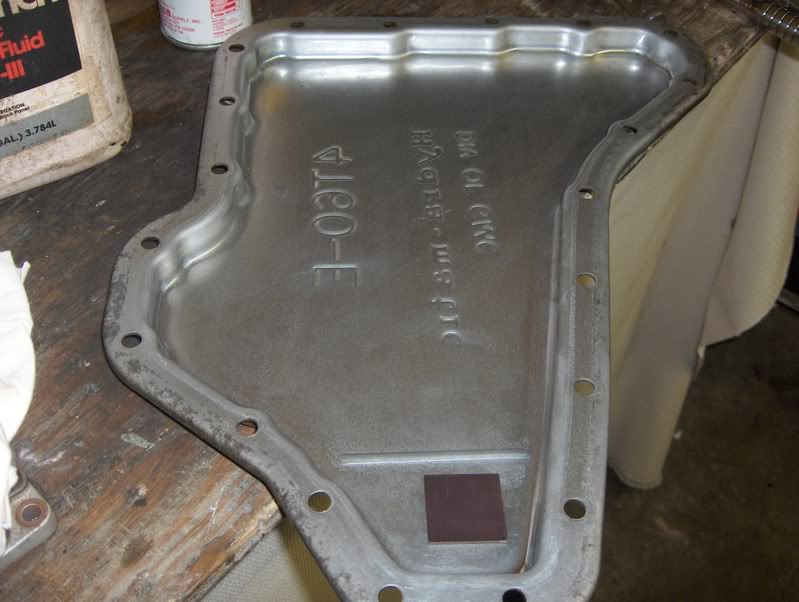

Cleaned out the pan before reinstallation
Name:  TransmissionFluidChange006.jpg
Views: 1
Size:  68.5 KB

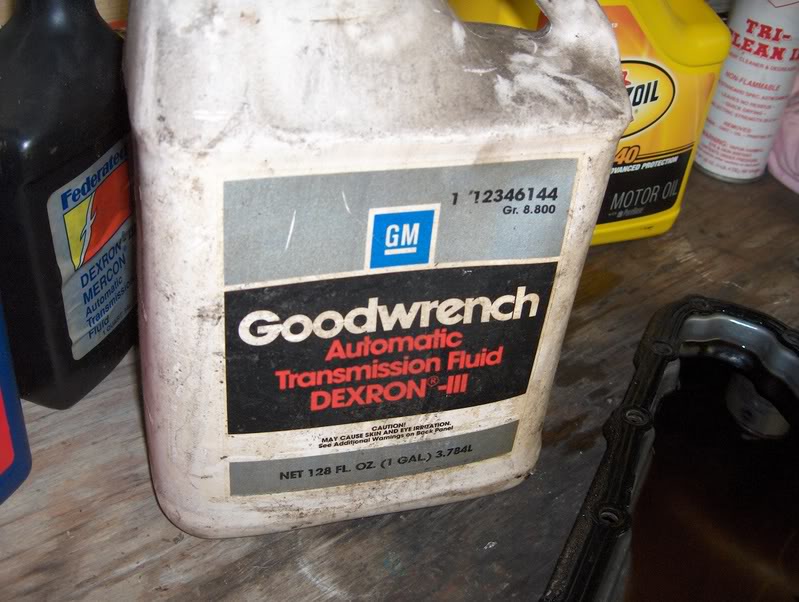

Good stuff going back in
Name:  TransmissionFluidChange012.jpg
Views: 1
Size:  63.6 KB

all in all the pan was clean no chunks, no metal. The fluid was oxidized but other than that i dont think that it was bad for 97K.

I also added a Adjustable Vac Modulator to the trans
1993 SLE is offline   Reply With Quote
Old 03-12-2007, 08:28 PM   #2
Senior Member
True Car Nut

Join Date: May 2003
Location: Lethbridge, Alberta, _______Canada._______ West Coast Bonneville Fest ___05,06,07 Survivor___
Posts: 8,134
Thanks: 0
Thanked 0 Times in 0 Posts
SSEimatt93 is on a distinguished road
Default

The fluid that came out and the pan itself looked alot better than mine did at 78,000 miles.
Not bad at all...
The adjustable modulator idea..be very carefull in adjusting that, your OEM reverse reactor shell can hardly take how hard it engages from park to reverse or drive to reverse as it is, as this is a common item to wear or simply crack....chances are your clutches are up to the task of firmer shifting, but they're getting old now..you know that though..dont over crank that puppy and you should be good to go!
SSEimatt93 is offline   Reply With Quote
Old 03-12-2007, 08:41 PM   #3
Senior Member
Posts like a Camaro

Join Date: Jun 2005
Location: n.h.
Posts: 1,066
Thanks: 0
Thanked 0 Times in 0 Posts
handdrumman is on a distinguished road
Default

I did the whole fluid/filter thing this last Sat. at Boosty'*....my pan and fluid looked about the same.
handdrumman is offline   Reply With Quote
Old 03-12-2007, 08:59 PM   #4
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Looks good Pat.

I'd say go with the modulator. The first thing to go on the 60'* is the 2nd gear clutches. A quicker shift can prolong their life. Just wait a couple minutes idling on cold days to prevent reverse damage before shifting.
willwren is offline   Reply With Quote
Old 03-12-2007, 09:31 PM   #5
Senior Member
Certified Car Nut
Thread Starter

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

for the Reverse issues, i always back in to my spot so i really never use reverse when the car is cold

i have not played with the modulator, i put it in with the stock settings, i may firm it just a touch
1993 SLE is offline   Reply With Quote
Old 03-15-2007, 05:14 PM   #6
Senior Member
Certified Car Nut
Thread Starter

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

ok so i played with the Adjustable Vac modulator....it was set to super soft shifts

so i went out for a drive today and played with it a little.....adjusted it, drove it, adjusted it, drove it......

its Amazing now. the 1-2 shift is very firm at all speeds and the 2-3 is much, much more noticable now...i love it
1993 SLE is offline   Reply With Quote
