Default 2000+ Lowering: New info found for those interested

Alright, so I created a thread not too long ago about this, and I have found some more information on this.

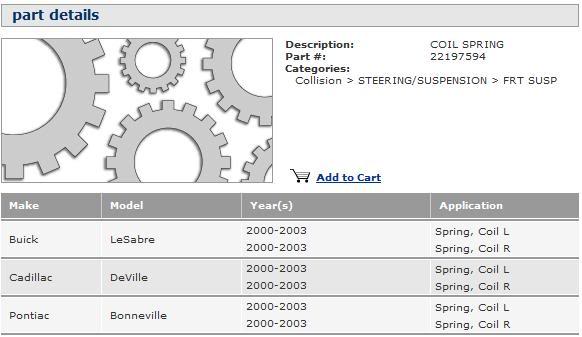

The 2000+ Bonnevilles share the same front springs as the 2000+ Deville'*, as can be seen here:
Name:  Frontspringscrossreference.jpg
Views: 5
Size:  27.5 KB

Which is a good thing, because Eibach makes a set of lowering springs for the 2000+ Deville'*.

Now, the rear suspension. After examining exploded views of the 2000+ Bonne'* and the 2000+ Deville'*, they appear to be identical, BUT the springs are not the same PN. This leaves me to believe that they have two different spring rates, hence the different part number.

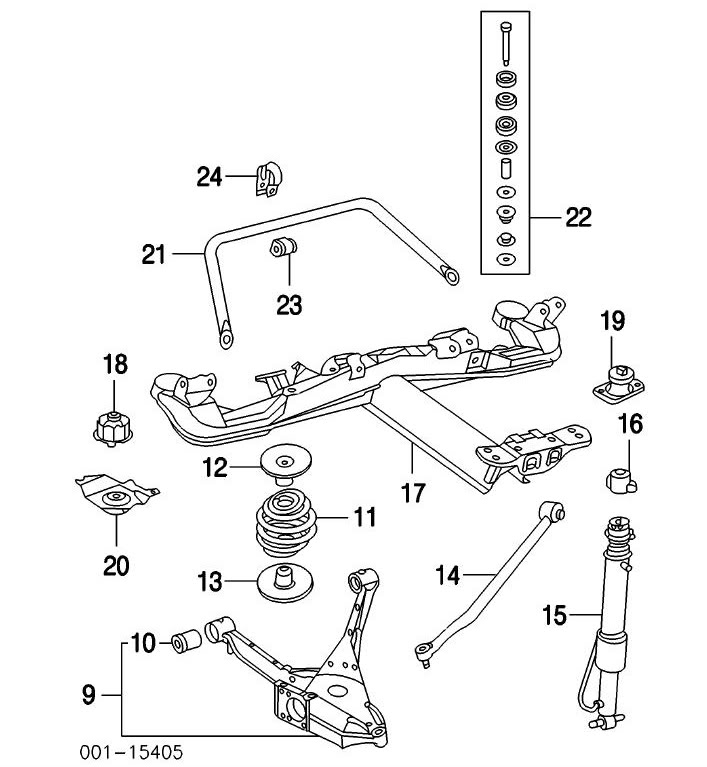

Bonne Exploded View
Name:  bonnerearsuspensionexploded.jpg
Views: 4
Size:  71.3 KB

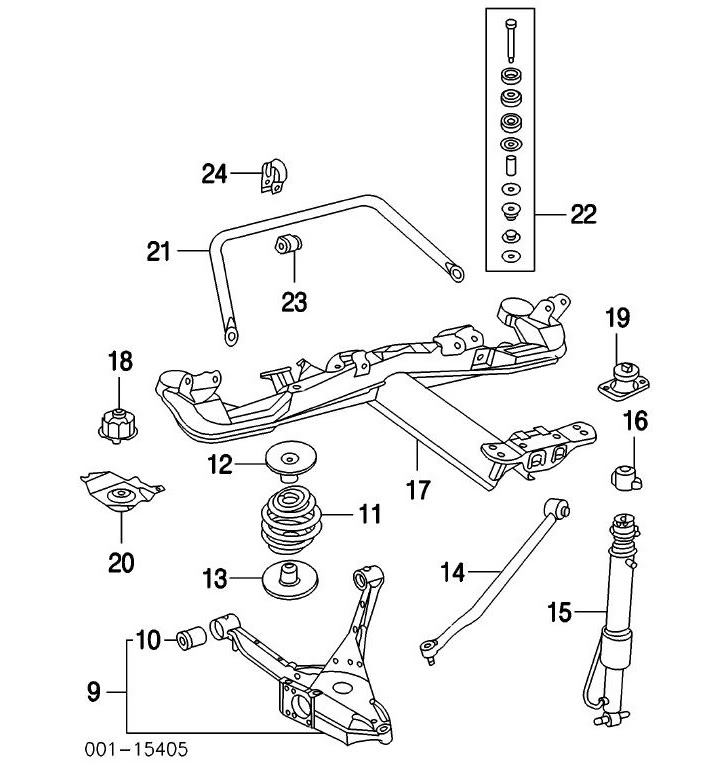

Deville Exploded View
Name:  2000devillerearsuspension.jpg
Views: 6
Size:  71.8 KB


Now, I know a few years ago, GM stopped releasing the spring rate info for who knows what reason. This kinda sucks, but nothing I can do about it. So... the next venture I can do is compare the curb weights of the Bonneville'* against the Deville'*. This can kinda give a general idea as to which had the stiffer spring rate.

Anyone have any other thoughts or input on this. Toasty and I have been discussing back and forth over PM about it, figured there might be other interest or input to be had.

Thanks.
slick94prix is offline   Reply With Quote
Old 04-20-2007, 01:20 AM   #2
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Mar 2007
Location: Maumee, OH
Posts: 529
Thanks: 0
Thanked 0 Times in 0 Posts
slick94prix is on a distinguished road
Default

I just noticed that they use the EXACT same scans for each of these, which means that they are the same rear end setup, just different springs.

So, if ANYONE has any info on the spring rates or curb weights, speak up! I think we have a match on lowering springs!!!!
slick94prix is offline   Reply With Quote
Old 04-20-2007, 01:22 AM   #3
Senior Member
True Car Nut

Join Date: Apr 2004
Posts: 4,816
Thanks: 0
Thanked 0 Times in 0 Posts
GonneVille is on a distinguished road
Default

Deville has a heavier butt, so figure that for the higher spring rate. They probably share the rear springs with the Park Ave.
GonneVille is offline   Reply With Quote
Old 04-20-2007, 01:25 AM   #4
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Mar 2007
Location: Maumee, OH
Posts: 529
Thanks: 0
Thanked 0 Times in 0 Posts
slick94prix is on a distinguished road
Default

So I had figured.

Next I wonder- Will the rear springs lower the car, or actually RAISE the butt end of the car?

And... what effect will the springs have on the auto leveling system?
slick94prix is offline   Reply With Quote
Old 04-20-2007, 02:28 AM   #5
Senior Member
Posts like a Camaro

Join Date: Nov 2004
Location: Portage, Michigan
Posts: 1,134
Thanks: 0
Thanked 0 Times in 0 Posts
leftd90 is on a distinguished road
Default

good find, I'll be keeping my eye on this. My bonnie is in need of some new springs anyways
leftd90 is offline   Reply With Quote
Old 04-20-2007, 03:02 AM   #6
Member
Posts like a V-Tak

Join Date: Apr 2006
Location: McVeytown, PA
Posts: 82
Thanks: 0
Thanked 0 Times in 0 Posts
2000boostedbonnie is on a distinguished road
Default

I might be stupid but.....
If the spring rate is a little higher (weight difference probably isnt much) The deville lowering spring would just stiffen up the ride abit in the already stiff bonnie. However I would bet the spring weight is very close because the Deville springs would have a little more bounce to them to give the Caddy Cushy ride and the Bonneville springs are a little stiffer than normal to improve handling. So even if the weight is a good bit away without trying these springs many questions will go unanswered. So I guess this means one of us needs to try these. I am willing but I bet someone trys before I because I would need a month or so to get the springs and install.


I think I confused myself
2000boostedbonnie is offline   Reply With Quote
Old 04-20-2007, 09:54 AM   #7
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

You would need hard data, although the Caddy'* weight would suggest the stronger spring.

As for the effect on an autoleveling system... adjust the height to match your new spring height. In theory, it'* easy.
BillBoost37 is offline   Reply With Quote
Old 04-20-2007, 10:12 AM   #8
Senior Member
True Car Nut

toastedoats's Avatar

Join Date: Sep 2004
Location: Fitchburg Ma _ToastedRice_
Posts: 6,837
Thanks: 0
Thanked 0 Times in 0 Posts
toastedoats is on a distinguished road
Default

well, Bill, raising the car if it is too low is easy, but there is no way to lower i the car if it comes out too high; since the 00+ use the sir shocks only to provide the extra lift, and do not affect baseline ride height - the springs SHOULD be providing adequate ride-height until they sag
toastedoats is offline   Reply With Quote
Old 04-20-2007, 10:16 AM   #9
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

wow.....interesting info....

ill be watching this thread....the 03 sits too high
1993 SLE is offline   Reply With Quote
Old 04-20-2007, 10:23 AM   #10
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Design a lowering bracket for the shock that will compensate. Although..along with lowering comes..fixing the geomentry issues.
BillBoost37 is offline   Reply With Quote
