02 sle questions *RPO* - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


General GM Chat When starting new posts, please specify YEAR, MAKE, MODEL, ENGINE type, and whatever modifications you have made. Chat about all things GM (and related cars). Off-topic stuff should be in the Lounge, and all Model specific mechanical problems should be posted in the proper forum.

Reply



Thread Tools Search this Thread
Old 02-23-2007, 03:47 AM   #1
Senior Member
Posts like a Corvette
Thread Starter

Join Date: Jul 2006
Location: Cheyenne, Wy.
Posts: 1,251
Thanked 0 Times in 0 Posts
gojo83 is on a distinguished road
Default 02 sle questions *RPO*

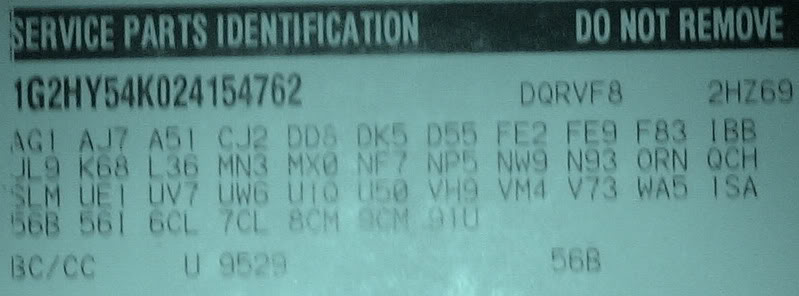

Name:  rpocodes.jpg
Views: 2
Size:  39.6 KB

known codes
AG1 - 6 way power drivers seat, split bench
CJ2 - hvac system air cond front,auto temp control
DK5 - mirrors, O/* LH & RH, remote control electric heated
D55 - Console, front compartment, floor
FE2 - suspension, ride and handling
FE9 - certified emissions federal
F83 - ratio, transaxle, final drive 3.05
JL9 - brake system, power, front & RR disk,antilock front W
K68 - generator 105 amp
L36 - 3.8L V6 MFI 3800 II
MX0 - trans, merchandised, overdrive
NP5 - steering wheel, leather wrapped
NW9 - traction control electronic
ORN - orion plant
UW6 - speaker system,6,dual F/D tweet & WWF,dual EXT
U50 - cluster, instrument,oil,temp, volts, trip
VH9 - owner information manual
VM4 - label information, consumer,contains BPR IMP standard for front
V73 - USA/Canada
WA5- Merchandised package bonneville SLE
1SA - package, option 01
56B - Trim combination cloth,medium neautral II(B)(96)
56I - Interior trim medium neautral II(96)
91U - exterior color,primary,dark polo green metallic
unknown codes
AJ7,A51, DD5, IBB, MN3, NF7, N93, QCH, SLM, UE1, UV7, U1Q, 6CL, 7CL, 8CM, 9CM
please let me know what they are I searched and came up empty
gojo83 is offline   Reply With Quote
Old 02-23-2007, 03:59 AM   #2
Senior Member
True Car Nut

Join Date: Nov 2002
Location: Texarkana, Texas
Posts: 6,041
Thanks: 0
Thanked 0 Times in 0 Posts
Damemorder is on a distinguished road
Default

AJ7 Restraint System Seat, Inflatable, Driver and Passenger, Front and Side
A51 Front bucket seat
DD5 : MIRROR O/*, LH, REM CONT, ELEC

NF7 Emission System, Federal, Label

N93 Wheel - New - Aluminum - 17 x 7.5 ???
QCH Should be tire code
SLM Stock Order Processing Code
UE1 Communication System Vehicle, G.P.*. 1
UV7 Windshield Antenna
U1Q : RADIO, AM STEREO/FM STEREO/WX/TV, SEEK/SCAN, CD
Damemorder is offline   Reply With Quote
Old 02-23-2007, 04:11 AM   #3
Senior Member
Posts like a Corvette

Join Date: Jan 2007
Location: San Diego, CA
Posts: 1,451
Thanks: 0
Thanked 0 Times in 0 Posts
agrazela is on a distinguished road
Default

AJ7 is Front seat side airbags
MN3 is 4T65E transaxle
NF7 is Federal Emissions Label
N93 is Wheels, 4 - 17" x 7.5" (43.2 cm x 19.1 cm) aluminum
UE1 is OnStar
UV7 is Windshield antenna
U1Q is RADIO, AM STEREO/FM STEREO/WX/TV, SEEK/SCAN, CD

I don't know the others.
agrazela is offline   Reply With Quote
Old 02-23-2007, 12:07 PM   #4
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

6CL COMPONENT FRT LH COMPUTER SEL SUSP (6CL)
7CL COMPONENT FRT RH COMPUTER SEL SUSP (7CL)
8CM COMPONENT RR LH COMPUTER SEL SUSP (8CM)
9CM COMPONENT RR RH COMPUTER SEL SUSP (9CM)
1993 SLE is offline   Reply With Quote
Old 02-23-2007, 12:17 PM   #5
Senior Member
Posts like a Corvette
Thread Starter

Join Date: Jul 2006
Location: Cheyenne, Wy.
Posts: 1,251
Thanked 0 Times in 0 Posts
gojo83 is on a distinguished road
Default

Quote:
Originally Posted by 1993 SLE
6CL COMPONENT FRT LH COMPUTER SEL SUSP (6CL)
7CL COMPONENT FRT RH COMPUTER SEL SUSP (7CL)
8CM COMPONENT RR LH COMPUTER SEL SUSP (8CM)
9CM COMPONENT RR RH COMPUTER SEL SUSP (9CM)
in dummy terms what does that mean
gojo83 is offline   Reply With Quote
Old 02-23-2007, 12:24 PM   #6
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by gojo83
Quote:
Originally Posted by 1993 SLE
6CL COMPONENT FRT LH COMPUTER SEL SUSP (6CL)
7CL COMPONENT FRT RH COMPUTER SEL SUSP (7CL)
8CM COMPONENT RR LH COMPUTER SEL SUSP (8CM)
9CM COMPONENT RR RH COMPUTER SEL SUSP (9CM)
in dummy terms what does that mean
it means that when your car is being built, there is a WIDE variety of springs sitting at the factory. They select the 4 springs that are the closest to each other to give the car the correct balance and ride , and install them

every bonneville has 4 computer select suspension RPOs on the car.....
1993 SLE is offline   Reply With Quote
Old 02-23-2007, 12:25 PM   #7
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Means Pat is faster than me on somethings and has too much RPO studying time on his hands.. :P

Fargin... friiisdkdk$%#^$#^ scooped me ... freaking curse is gonna get him.......again
BillBoost37 is offline   Reply With Quote
Old 02-23-2007, 12:27 PM   #8
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

oh ya

IBB-TRIM INTERIOR DESIGN (BB)
QCH-P235/55R17-98H BW R/PE ST TL AL3
N93-WHEEL 17 X 7.5, ALUMINUM
1993 SLE is offline   Reply With Quote
