Default Supercharger swap Confused!!!

Hi, I have a 96 Bonneville SSEI . The supercharger that is on my car has been rattling ever since I got the car. I replaced the coupler and changed the oil and it still has the rattling. I bought another supercharger off ebay that was supposedly rebuilt. I got my supercharger off yesterday, and when I was ready to do the swap, I noticed that the new Supercharger is slightly different. The only difference I can see is that my old Supercharger has a port for a pressure or vacuum line on the right side near the back. There is a metal port with 3 different lines coming from it about 3/4 to 1 inch in diameter. The new supercharger is shaped exactly like the old one but the port is not drilled out. I am not sure what to do, or if I can port this off of the supercharger somewhere else.I Am assuming this port services the boost gauge and maybe a sensor or two.The new supercharger must be from a different year Bonneville. Has anyone else run into this problem or know what can be done to use the new supercharger? I could take the new supercharger somewhere to get the port drilled out, but I am not sure if it goes into the same air jacket as the old supercharger. Any suggestions?????? Thanks
gmanjeep is offline   Reply With Quote
Old 05-25-2009, 10:27 PM   #2
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

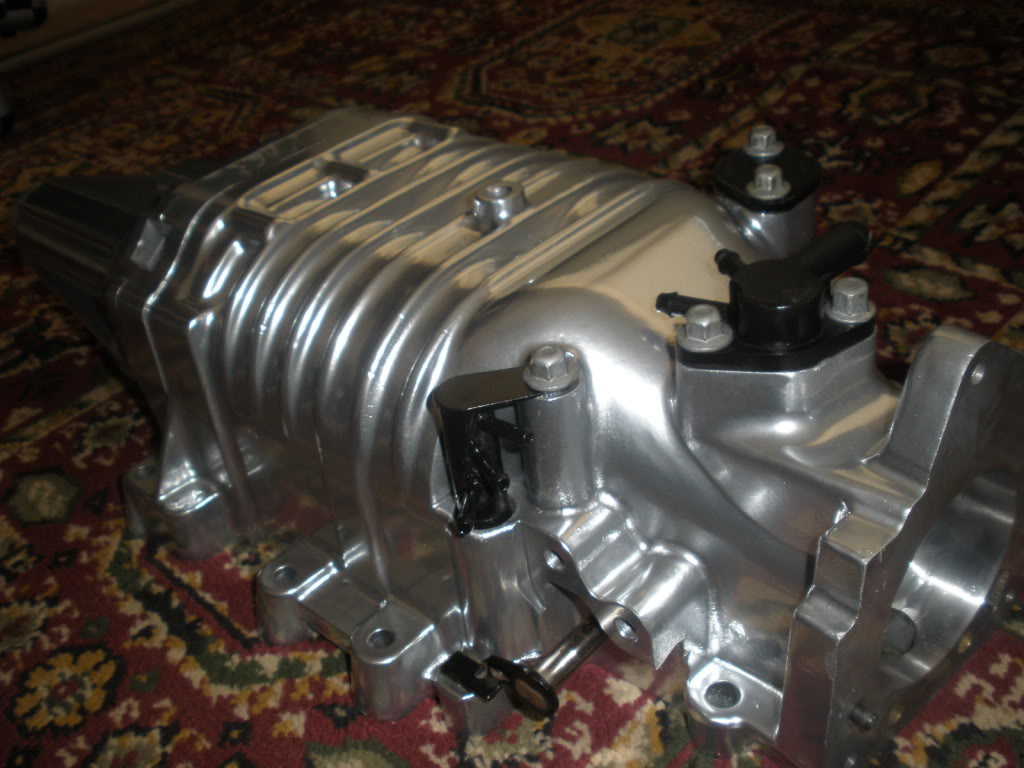

Not sure if I'm following what your saying but I will try to guess. Are you talking about a vacuum tree on the front left side near the throttle body. Some super chargers have 3 ports coming off this tree and others has 2 ports. You can remove the trees and change them. Here is a picture of the vacuum connections. Both can be swapped.

Name:  P3140064.jpg
Views: 3
Size:  94.4 KB
Danthurs is offline   Reply With Quote
Old 05-26-2009, 07:47 AM   #3
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Apr 2009
Posts: 19
Thanks: 0
Thanked 0 Times in 0 Posts
gmanjeep is on a distinguished road
Default

Hi Dan, Yes that is exactly what I am talking about. It is the 3 port tree in your picture. I wasn't sure if it was vacuum or if it was pressure. But yes, my new supercharger does not have that port opened up to insert the tree, so How do I bypass that and hook it up somewhere else?
gmanjeep is offline   Reply With Quote
Old 05-26-2009, 08:04 AM   #4
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

You could hook a T up to another line I guess.
Danthurs is offline   Reply With Quote
Old 05-26-2009, 08:58 AM   #5
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Apr 2009
Posts: 19
Thanks: 0
Thanked 0 Times in 0 Posts
gmanjeep is on a distinguished road
Default

If it is a vacuum line, I am sure I can figure something out. But since the Supercharger creates pressure, Not Vacuum, I would think that the tree is a pressure line, not a vacuum line. Are you sure they are vacuum lines? Thanks
gmanjeep is offline   Reply With Quote
Old 05-26-2009, 10:48 AM   #6
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Those are on the vacuum side of the supercharger.
Danthurs is offline   Reply With Quote
Old 05-26-2009, 11:09 AM   #7
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

You can easily take care of it with vacuum line. The 96 and 97 chargers had the fitting,, then the remaining years didn't. T if off at the LIM under the snout, run to the FPR and then BCS. All good
BillBoost37 is offline   Reply With Quote
Old 05-27-2009, 11:44 PM   #8
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Apr 2009
Posts: 19
Thanks: 0
Thanked 0 Times in 0 Posts
gmanjeep is on a distinguished road
Default

Hi, Thanks for all the help, but before I let you go, Please explain what is LIM, FPR, And BCS. I am really new to all of this. Thanks again
gmanjeep is offline   Reply With Quote
Old 05-27-2009, 11:50 PM   #9
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

LIM Lower Intake Manifold.
FPR Fuel Pressure Regulator
BCS Boost control solenoid
Danthurs is offline   Reply With Quote
Old 06-17-2009, 11:51 PM   #10
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Apr 2009
Posts: 19
Thanks: 0
Thanked 0 Times in 0 Posts
gmanjeep is on a distinguished road
Default More Problems

I got the supercharger swapped out this past weekend.Everything went pretty well except one of my fuel injectors did not seat correctly and was leaking fuel. I had a small fire on top of my manifold, and it completely melted the plastic fuel lines coming to the fuel rail between the fuel rail and the firewall where they go back to the gas tank.Is there any way to replace the melted pieces or splice a new piece in without running a whole new line from the tank to the injectors? Why they used a plastic line I will never know.
gmanjeep is offline   Reply With Quote
