Default nose bearings

I got bearings for the SC nose and wondering if it matters that I leave the rubber seal on the ball bearing or should they be open.
jdq is offline   Reply With Quote
Old 04-13-2006, 12:24 PM   #2
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

There should be no shroud. Sounds like the wrong bearings to me. SC oil must be able to freely flow all the way to the nosedrive seal through both bearings.
willwren is offline   Reply With Quote
Old 04-13-2006, 01:01 PM   #3
jdq
Senior Member
Posts like a Corvette
Thread Starter

Join Date: Nov 2005
Location: Hamilton, Ontario , Canada
Posts: 1,201
Thanks: 0
Thanked 0 Times in 0 Posts
jdq is on a distinguished road
Default

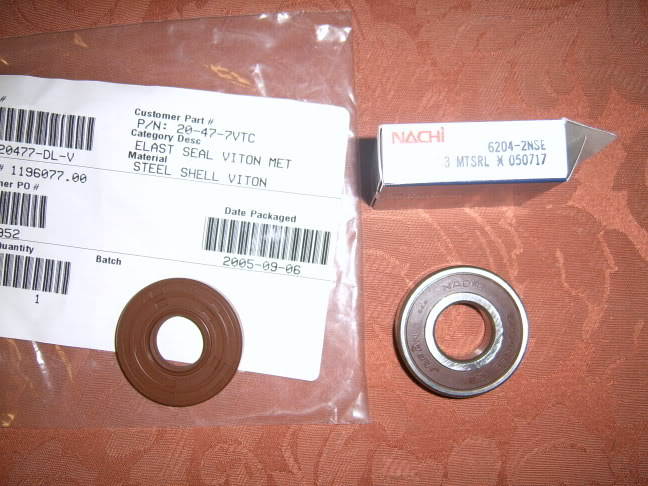

Will I took the part #* and bearing is c3 rated and 6 204 nse the guy says the seal can be taken out if not needed I also gave him the part # for the VITON nose seal and he showed me from his book how the part #* matched.
Name:  SUC50825.jpg
Views: 1
Size:  110.1 KB

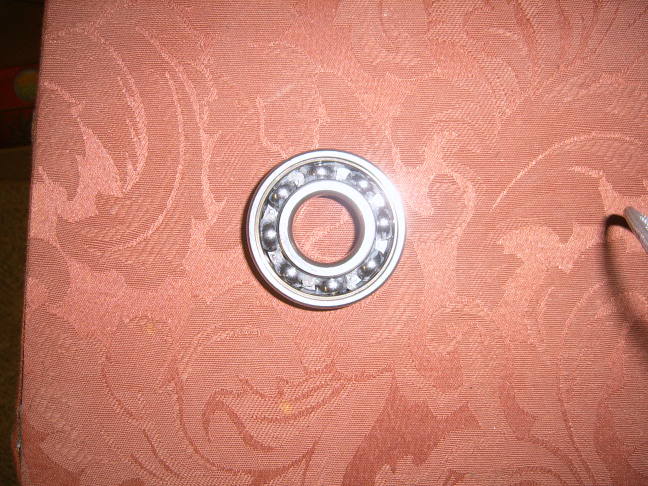

Name:  SUC50827.jpg
Views: 1
Size:  108.8 KB
Also I thought the nose side of bearing was sealed, no? And I was only changing them cause I was in there so I can leave them if we are not sure.I have the front bearing too 6203 but need to press it in I think so I was leaving it.
jdq is offline   Reply With Quote
Old 04-13-2006, 02:12 PM   #4
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

The set I recently got from Rolling Performance did not have seals on them. Just the nose drive seals. I'd take them off if they were meant to come off.
J Wikoff is offline   Reply With Quote
Old 04-13-2006, 05:24 PM   #5
jdq
Senior Member
Posts like a Corvette
Thread Starter

Join Date: Nov 2005
Location: Hamilton, Ontario , Canada
Posts: 1,201
Thanks: 0
Thanked 0 Times in 0 Posts
jdq is on a distinguished road
Default

They werent meant to ,they can either be sealed or non sealed.I will take them off and save that job for anither day as I am having problem with puller anyway ,taking up too much time.thanks
jdq is offline   Reply With Quote
Old 04-14-2006, 09:42 PM   #6
Guest
Posts like a Northstar

Join Date: Nov 2004
Posts: 584
Thanks: 0
Thanked 0 Times in 0 Posts
ssei1995 is on a distinguished road
Default

The bearings are the same, with and without the seal. The seal is added when the bearing is self lubricated and will be exposed to the open environment such as the bearings in alternators. Removing the seal is okay, however, take a can of Brake Cleaner and spray the bearing to remove the lubricant that was put at the factory since it will contaminate the SC oil and may not be compatible.
ssei1995 is offline   Reply With Quote
Old 04-14-2006, 09:54 PM   #7
jdq
Senior Member
Posts like a Corvette
Thread Starter

Join Date: Nov 2005
Location: Hamilton, Ontario , Canada
Posts: 1,201
Thanks: 0
Thanked 0 Times in 0 Posts
jdq is on a distinguished road
Default

Ok thanks I will save this job for another day,I was only going to do front bearing , nose seal and coupler.
jdq is offline   Reply With Quote
Old 04-14-2006, 11:19 PM   #8
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

You can't just pull the front bearing. If you go in there, do both bearings and the seal. Don't waste your time trying to do just one.
willwren is offline   Reply With Quote
Old 04-15-2006, 12:35 AM   #9
Senior Member
True Car Nut

Join Date: May 2003
Location: Lethbridge, Alberta, _______Canada._______ West Coast Bonneville Fest ___05,06,07 Survivor___
Posts: 8,134
Thanks: 0
Thanked 0 Times in 0 Posts
SSEimatt93 is on a distinguished road
Default

the 2nse part of the the bearing part number stands for 2 shields, for future reference.
