Default Windows and Door Locks KO'ed

2000 Bonnie SE
Strange thing happened on the way to work the other day. Everything was good all systems were a go when I got out. Come out of work and the door locks and windows do not work. The drivers window and door lock still work but all the others are Knocked Out.

Checked underhood and back seat fuses all ok. Any ideas? Thanks for any help!
Big Tim is offline   Reply With Quote
Old 03-18-2009, 02:15 PM   #2
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

You will need to check on your door control module Ddalder is the guy to ask about this.
Danthurs is offline   Reply With Quote
Old 03-19-2009, 01:38 PM   #3
Junior Member
Thread Starter

Join Date: Aug 2008
Location: South Central Michigan
Posts: 7
Thanks: 0
Thanked 0 Times in 0 Posts
Big Tim is on a distinguished road
Default

Thanks for the reply. How do I get a hold of Ddalder?
Big Tim is offline   Reply With Quote
Old 03-19-2009, 02:01 PM   #4
Senior Member
Posts like a Corvette

Join Date: Nov 2006
Location: Alberta, Canada
Posts: 1,446
Thanks: 0
Thanked 0 Times in 0 Posts
ddalder is on a distinguished road
Default

Just so I understand, everything functions normally on the drivers door (locks, window, mirror, etc)? From what I gather, no other doors work. Is this only when you try and control them from the drivers door controls or is this also when you try each door using the controls on each one independantly?
ddalder is offline   Reply With Quote
Old 03-19-2009, 02:09 PM   #5
Junior Member
Thread Starter

Join Date: Aug 2008
Location: South Central Michigan
Posts: 7
Thanks: 0
Thanked 0 Times in 0 Posts
Big Tim is on a distinguished road
Default

From the drivers door the only thing that works is the drivers window and lock.

Nothing at any individual door works including the interior lights. The remote fob opens the driver door and trunk only. It also looks like the driver side floor is wet if it helps any.

Thanks for the reply!
Big Tim is offline   Reply With Quote
Old 03-19-2009, 02:15 PM   #6
Senior Member
Posts like a Corvette

Join Date: Nov 2006
Location: Alberta, Canada
Posts: 1,446
Thanks: 0
Thanked 0 Times in 0 Posts
ddalder is on a distinguished road
Default

I have a couple of thoughts here but before I jump to any conclusion let me check a couple of diagrams. I'll try and post back here later today.

I'm going to assume that since your car is an SE you probably don't have a moonroof, is this correct?
ddalder is offline   Reply With Quote
Old 03-20-2009, 08:28 AM   #7
Junior Member
Thread Starter

Join Date: Aug 2008
Location: South Central Michigan
Posts: 7
Thanks: 0
Thanked 0 Times in 0 Posts
Big Tim is on a distinguished road
Default

Hey thanks a million for the help!!
Yes it does have a moonroof.
It'* a loaded out SE with just about everything on it.
Did not order it out it was an end of season deal. (grin)
Big Tim is offline   Reply With Quote
Old 03-23-2009, 04:23 AM   #8
Senior Member
Posts like a Corvette

Join Date: Nov 2006
Location: Alberta, Canada
Posts: 1,446
Thanks: 0
Thanked 0 Times in 0 Posts
ddalder is on a distinguished road
Default

I haven't forgotten about this, I've just been extremely busy.

What I'm wondering is if you lost data communication between the Driver Door Module (DDM) and the other three door modules. I need to review some diagrams to look for routing of the data line. There are also a couple of other possibilities as well.

The fact that there is water underneath your carpet is quite concerning. Most connectors are up and out of the way (unless you had an excessive amount), but it'* still possible that this could be moisture related. I'll come back to this once I've had a chance to look at diagrams and routing info. Regardless, you really need to find the source of the water because even if it isn't somehow related to this problem, it will cause you grief down the road.

Two possibilities are clogged or leaking sunroof drains. The other, and very common in the 2K+ Bonneville is leaking water deflectors behind the door panels.

Have a look at these threads...

the 2000 sunroof drain fix (20+ 800x600 pics) - Pontiac Bonneville Forum - Official home of the Pontiac Bonneville Club.

2000 - 2005 Water Leaks. Drying them up! - Pontiac Bonneville Forum - Official home of the Pontiac Bonneville Club.

I'll post back on the original issue as soon as possible. I have a suspicion you're going to want to pull the driver seat out and have a look underneath. If nothing else, make sure it'* dry under there once you find the source of the water.
ddalder is offline   Reply With Quote
Old 03-23-2009, 01:54 PM   #9
Junior Member
Thread Starter

Join Date: Aug 2008
Location: South Central Michigan
Posts: 7
Thanks: 0
Thanked 0 Times in 0 Posts
Big Tim is on a distinguished road
Default

Sparky no problem thanks for sticking with me on this. I will check out the things you mentioned and just let me know what you find out when you have a minute. Appreciate the help!

BT.
Big Tim is offline   Reply With Quote
Old 04-04-2009, 11:32 PM   #10
Junior Member

tbirdrv's Avatar

Join Date: Oct 2007
Location: Northwest Ohio
Posts: 7
Thanks: 0
Thanked 0 Times in 0 Posts
tbirdrv is on a distinguished road
Default I just fixed the same problem today!

I just fixed the same problem you're having. See this thread https://www.gmforum.com/t274001/

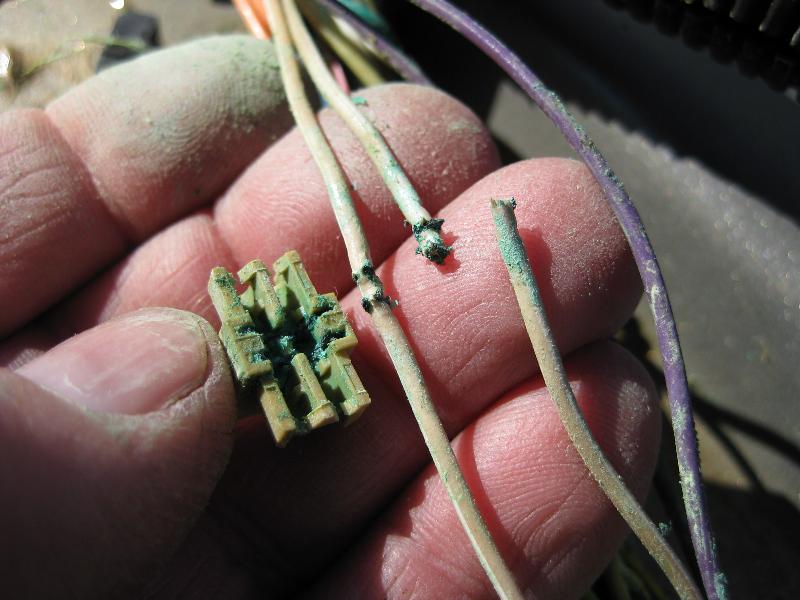

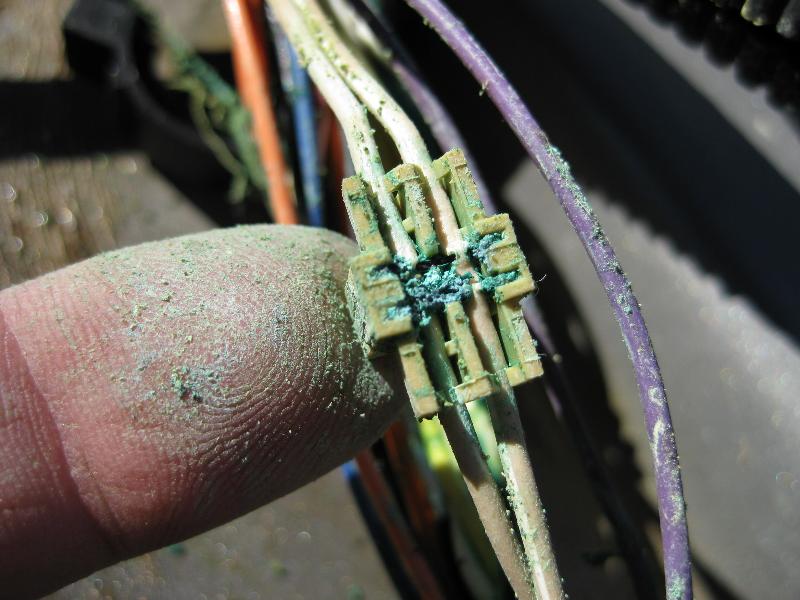

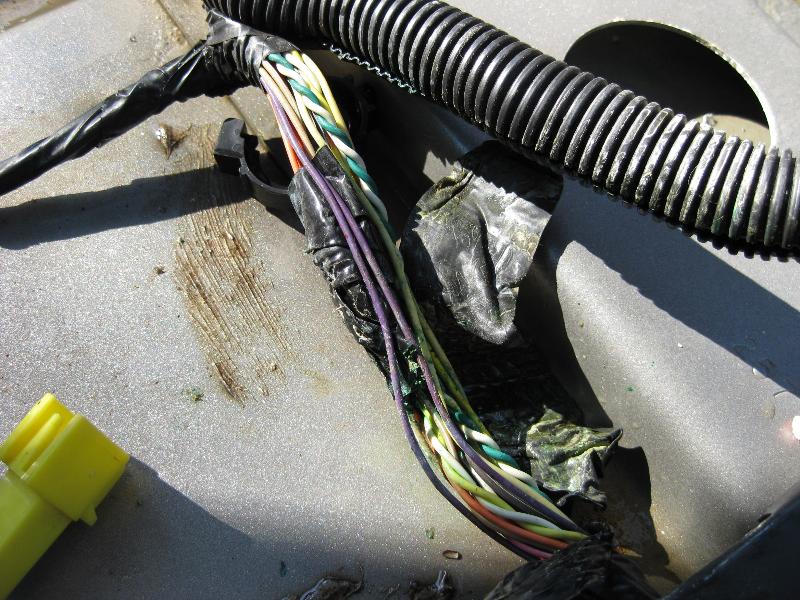

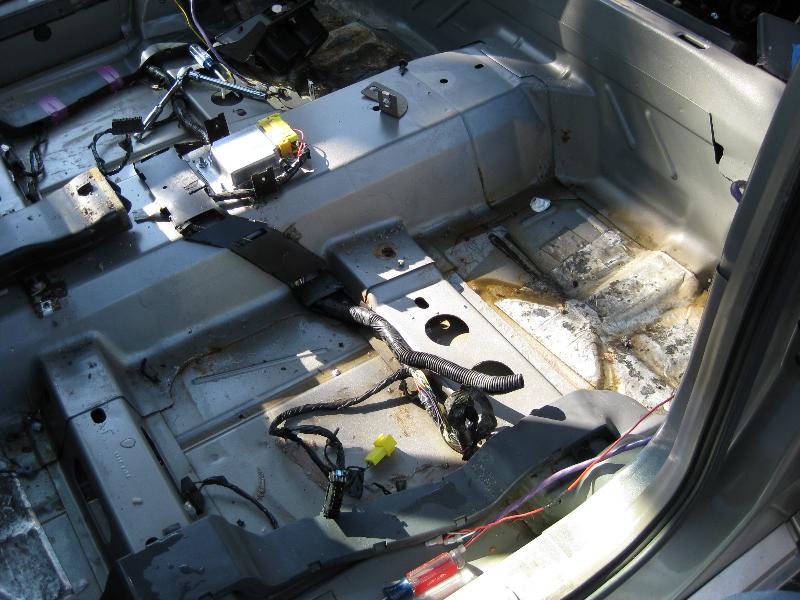

My driver'* side carpet is soaking wet, I pulled it out and took the loom off the wire harness under the driver'* seat, I could see the green corrosion even before I took the tape off the factory installed splice connector.

The pictures tell the whole story. I cut back the infected wires until they were clean and spliced in a new section of wire. Now all the door locks and windows work as they should.
Attached Thumbnails
Windows and Door Locks KO'ed-img_1118_small.jpg   Windows and Door Locks KO'ed-img_1120_small.jpg   Windows and Door Locks KO'ed-img_1127_small.jpg   Windows and Door Locks KO'ed-img_1129_small.jpg
tbirdrv is offline   Reply With Quote
