upgrading 2001 SSEi to HID - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


Everything Electrical & Electronic Have an electrical problem? Lighting, Alternators, gauges, DIC, HUD, etc? Post it here. Please post Audio problems in the Audio forum, and Engine control problems in the appropriate Mechanical forum for your year.

Reply



Thread Tools Search this Thread
Old 04-02-2009, 11:22 PM   #1
Junior Member
Posts like a V-Tak
Thread Starter

Join Date: Mar 2009
Location: Just outside of NYC
Posts: 29
Thanks: 0
Thanked 0 Times in 0 Posts
thefloyd is on a distinguished road
Default upgrading 2001 SSEi to HID

Has anyone done this? What are your thoughts?

I was thinking of something like the following:

HID Xenon CONVERSION KIT H1 H3 H4 H7 H11 9005 9006 9007 - eBay (item 160320530322 end time Apr-07-09 21:48:54 PDT)

Any pitfalls or anything to watch out for?

thanks
thefloyd is offline   Reply With Quote
Old 04-03-2009, 12:29 AM   #2
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

crunkfunk has done it, he'* a gearhead here and will prolly see this thread tommorrow, I'll PM him to make sure.
GXP Venom is offline   Reply With Quote
Old 04-03-2009, 01:26 AM   #3
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

I'm going to give this one a try before I do any HID work. Looking at these bulbs and the minor amount of moding you have to do, it'* worth the try https://www.gmforum.com/t280278/
Purplehazeir is offline   Reply With Quote
Old 04-03-2009, 07:40 AM   #4
Senior Member
Posts like a Corvette

crunkfrunk's Avatar

Join Date: Jun 2008
Location: Cleveland, OH
Posts: 1,389
Thanks: 0
Thanked 0 Times in 0 Posts
crunkfrunk is on a distinguished road
Default

I've bought a bunch of those ~$60 kits and I never had anything go wrong, the only extra thing you will need is an HID relay harness that way you are getting power to the balsts from teh battery and not the stock headlight wiring

here is one on Ebay HID Fuse Relay Wire Wiring Harness 9005 9006 40A 12V DC - eBay (item 250399408064 end time Apr-07-09 11:49:44 PDT)

You don't need the exact one just search HID relay harness

Then once you have them installed if you have problems with them tunring on then going out while you are cranking the car to start let me know and I can give you a diagram to disable the lights while the starter is working, hopefulle you are not afraid of cutting a wire or 2
crunkfrunk is offline   Reply With Quote
Old 04-03-2009, 11:55 AM   #5
Junior Member
Posts like a V-Tak
Thread Starter

Join Date: Mar 2009
Location: Just outside of NYC
Posts: 29
Thanks: 0
Thanked 0 Times in 0 Posts
thefloyd is on a distinguished road
Default

No, definitely not afraid of wiring. I still tinker with microcontrollers and advanced electronics in my (lack of) spare time..

I did get a bit scared off after reading up on the legality of converting to HID though. It seems these drop-in replacements are by no means legal anywhere in the USA, as they don't control the light being emitted properly (pattern is wrong, aiming is wrong) - in fact in severe cases the light pattern coming out of stock headlight assemblies with (aftermarket) HID lights leaves you LESS usable light at further distances. I don't really have any desire to blind oncoming drivers or look 'cool', but I would like to see better at night - and freeing up a few amps in the electrical system allows for more stereo too - once I get to that point

Has anyone upgraded an 00+ bonnie with a proper kit? As in new headlight assemblies with HID lights to match?
thefloyd is offline   Reply With Quote
Old 04-03-2009, 04:30 PM   #6
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

i am only one of 2 people that i know have a LEGAL HID retrofit...

I retrofitted a set of projectors into my stock Bonneville Headlight assemblies....here is a preview

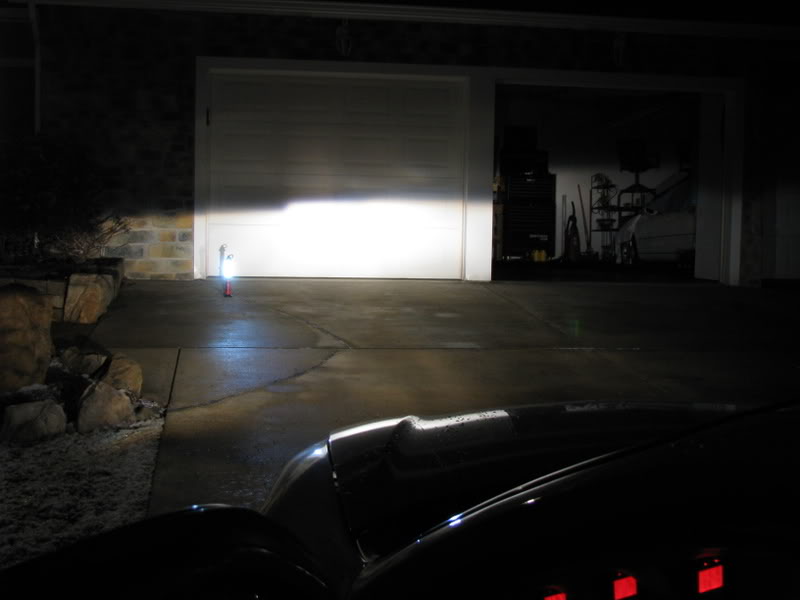

see how there is no light above the cutoff....
Name:  projectors042.jpg
Views: 24
Size:  36.2 KB

not finished, but you get the idea

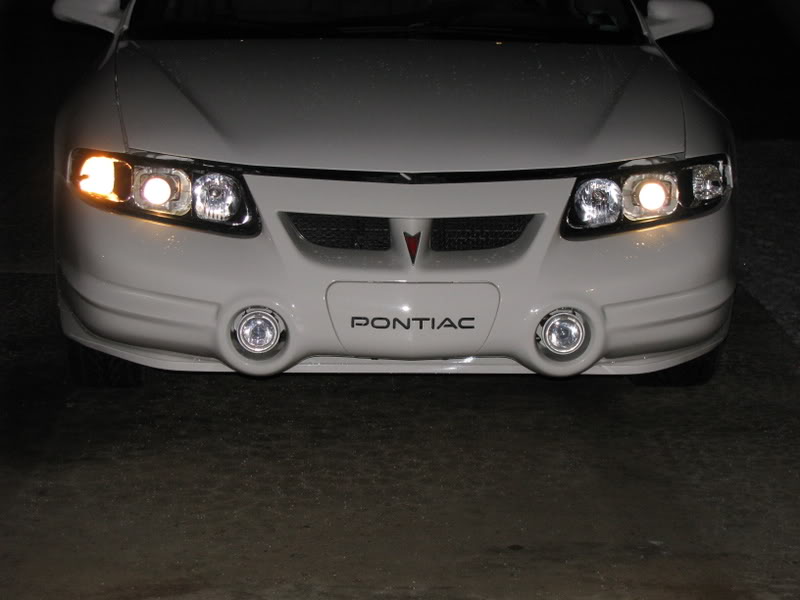

Name:  projectors037.jpg
Views: 71
Size:  49.5 KB
1993 SLE is offline   Reply With Quote
Old 04-04-2009, 01:33 AM   #7
Senior Member
Posts like a Corvette

crunkfrunk's Avatar

Join Date: Jun 2008
Location: Cleveland, OH
Posts: 1,389
Thanks: 0
Thanked 0 Times in 0 Posts
crunkfrunk is on a distinguished road
Default

1993SLE is working on a set for me, but right now 8000K are pretty bright when you are coming at them, but the sight distance is good, especially with high beams on
crunkfrunk is offline   Reply With Quote
Old 04-17-2009, 01:34 PM   #8
Member
Posts like a V-Tak

Join Date: Oct 2008
Location: Bristol, CT
Posts: 38
Thanks: 0
Thanked 0 Times in 0 Posts
Sickness90 is on a distinguished road
Default

Double post of Crunkfunks, Didnt see it. I use 6k from that HID kit, its so nice.

Last edited by Sickness90; 04-17-2009 at 01:36 PM.
Sickness90 is offline   Reply With Quote
