Default Unknown sensor unused?

I can't find a pic of it but I have a sensor.......thing.... that isn't connected to anything.

It sits between and forward of the left front fuel injector and the center fuel injector, mounted to a braket there. It is a black box about 1 1/2" by 2". It has a larger hose-like connection on the left side (passenger) with a triangular opening and two smaller line connections on the right side. It also has the sensor plug connector on the right side. Says Delco Remmy on it.

I've only found supercharged pics of the motor and they don't have it. It is a non-fuctioning item because nothing is hooked to it. It is just mounted there.

Any clues?
Thanks.
Lee
Lee_Mur is offline   Reply With Quote
Old 03-22-2007, 10:30 AM   #2
Junior Member

Join Date: Apr 2006
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
Bonneville92V688 is on a distinguished road
Default

I believe that is a EVAP canister solenoid that they used on the 95 L36. It should be connected, but it may have failed before and someone blocked it off. Can you take a picture of the current setup that someone did to block it off?
Bonneville92V688 is offline   Reply With Quote
Old 03-22-2007, 11:49 AM   #3
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Pinks..you are on fire this week.

That is the evap purge soleniod. Although.. 95/96 probably also have a evap purge switch located near the thermostat housing (top radiator hose meets engine)
BillBoost37 is offline   Reply With Quote
Old 03-22-2007, 12:05 PM   #4
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

here is the pics of the L36

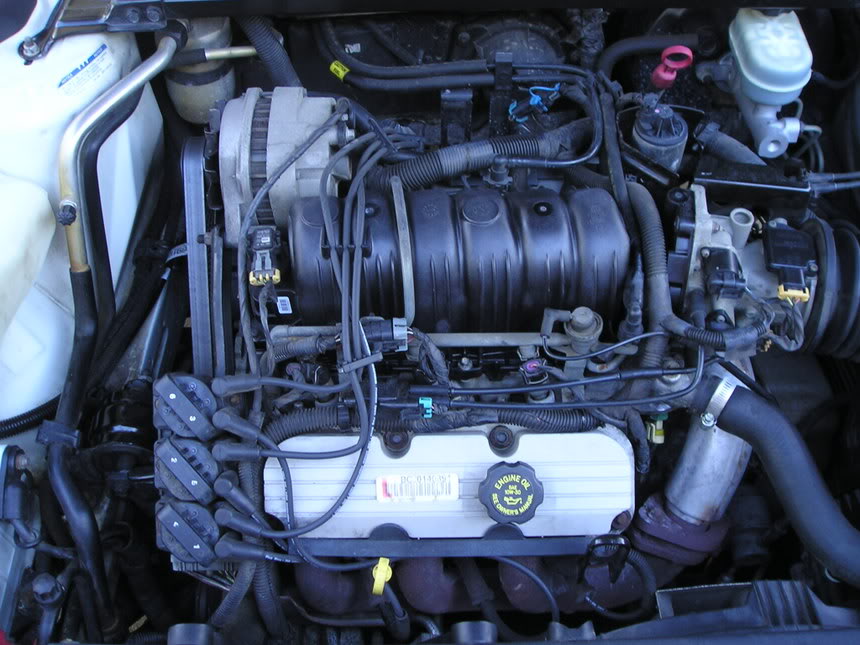

Name:  L36Overview2.jpg
Views: 1
Size:  104.0 KB

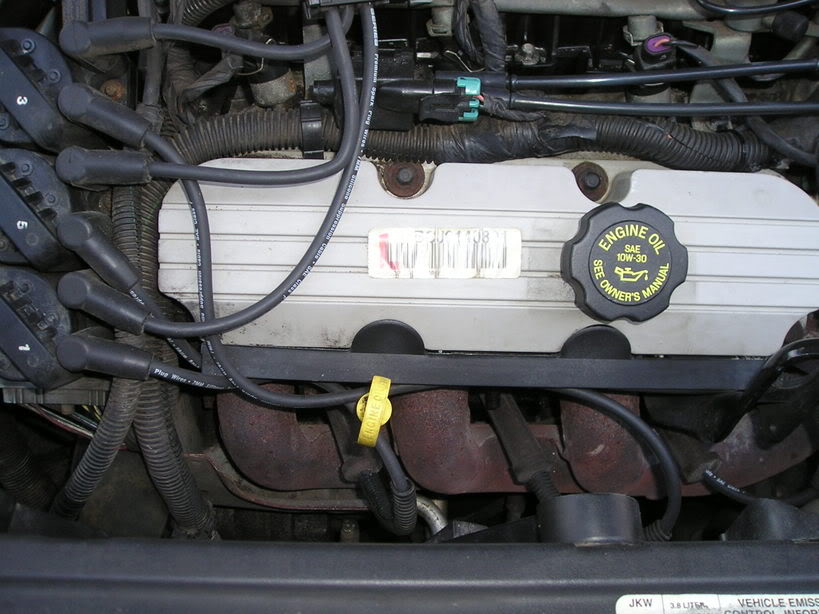

Name:  L36FrontPlugs.jpg
Views: 3
Size:  81.7 KB

this should give you a better idea, and help up if its not the EVAP
1993 SLE is offline   Reply With Quote
Old 03-22-2007, 12:36 PM   #5
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

That is the evap purge.
BillBoost37 is offline   Reply With Quote
Old 03-22-2007, 02:01 PM   #6
Member
Posts like a V-Tak
Thread Starter

Join Date: Mar 2007
Location: NorthWest WI
Posts: 44
Thanks: 0
Thanked 0 Times in 0 Posts
Lee_Mur is on a distinguished road
Default

Yep, that is it. I have the other car today so I'll have to look later at where the lines go instead of there. I don't think there is a sensor plug or wiring for it. None near it as I recollect.

Thanks much for the pics! You guys are great. Shouldn't take me too long to get this thing purring like my old Regal. That poor thing, motor/tranny has about 250K and it is still bulletproof. Only the rest of the car is disintegrating around it.
Lee_Mur is offline   Reply With Quote
Old 03-22-2007, 02:07 PM   #7
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Evap does have one connector that should be hooked up. The vacuum is one line to the canister and one to the TB
