Default Substitute for GM crimper tool

Finally getting around to replacing the blower motor wiring. Just one question, though.

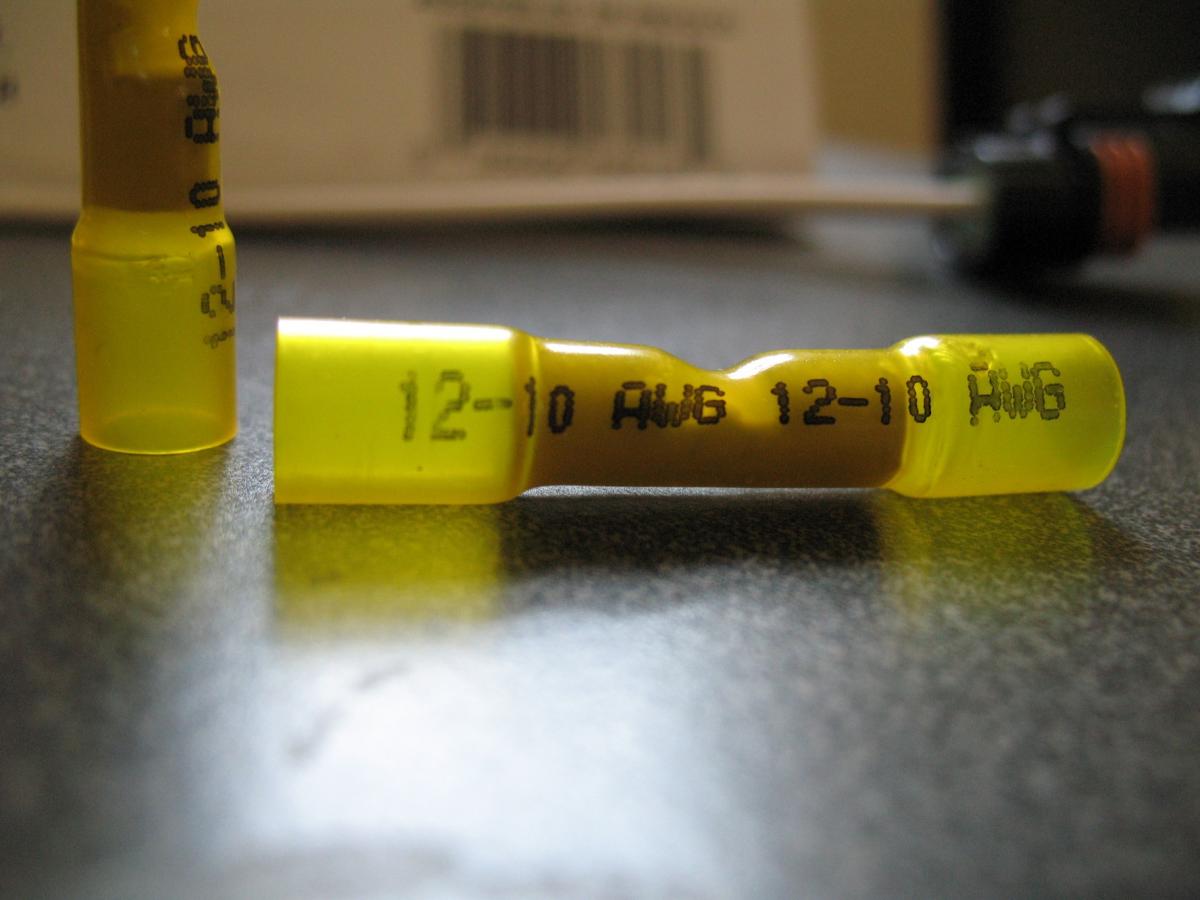

It says to use these wiring sleeves, but requires "the approved crimping tool," GM part number 12085115. Is there any common equivalent?
Attached Thumbnails
Substitute for GM crimper tool-img_1577.jpg
SignOfZeta is offline   Reply With Quote
Old 11-06-2011, 11:21 AM   #2
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

thats a standard connector, just alot of people use the "non insulated" part of the normal crimper and you want to use the insulated part
jwfirebird is offline   Reply With Quote
Old 11-06-2011, 11:23 AM   #3
Senior Member
Certified GM nut
Thread Starter

SignOfZeta's Avatar

Join Date: Mar 2005
Location: New Milford, CT
Posts: 2,284
Thanked 16 Times in 13 Posts
SignOfZeta has a spectacular aura aboutSignOfZeta has a spectacular aura about
Default

Quote:
Originally Posted by jwfirebird View Post
thats a standard connector, just alot of people use the "non insulated" part of the normal crimper and you want to use the insulated part
The only crimper I own is for Ethernet… I don't think that will work. Any other suggestions?
SignOfZeta is offline   Reply With Quote
Old 11-06-2011, 11:30 AM   #4
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

http://www.homedepot.com/webapp/wcs/...cStoreNum=1273

this is what i use, if you dont intend on using it very much you can probably find a cheaper one like this
jwfirebird is offline   Reply With Quote
Old 11-07-2011, 01:29 AM   #5
Senior Member
Certified GM nut
Thread Starter

SignOfZeta's Avatar

Join Date: Mar 2005
Location: New Milford, CT
Posts: 2,284
Thanked 16 Times in 13 Posts
SignOfZeta has a spectacular aura aboutSignOfZeta has a spectacular aura about
Default

Quote:
Originally Posted by jwfirebird View Post
http://www.homedepot.com/webapp/wcs/...cStoreNum=1273

this is what i use, if you dont intend on using it very much you can probably find a cheaper one like this
Now I know what to look for. Thanks!

In case I can't find a crimper (doubtful), would those twist-on caps used for house wiring work for automotive wires? The package says they're good up to 700 V, but doesn't say anything about amperage.
SignOfZeta is offline   Reply With Quote
Old 11-07-2011, 07:42 AM   #6
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

you dont want to use those on anything that vibrates. so no. in fact i would be soldering and heat shrink the heater wires or any high current application on the car. if you solder it you dont have to worry about vibration, corrosion, heat, etc...
jwfirebird is offline   Reply With Quote
Old 11-07-2011, 10:36 AM   #7
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Me, I'd solder.. That way it'* a solid wire connection and your high power blower voltage isn't only flowing where the outter piece is crimped to the wire.
BillBoost37 is offline   Reply With Quote
Old 11-07-2011, 11:40 AM   #8
certified crazy person
Certified GM nut

eltatertoto's Avatar

Join Date: Sep 2010
Location: hobart indiana (1 hr from chicago)
Posts: 1,871
Thanked 64 Times in 52 Posts
eltatertoto is a jewel in the rougheltatertoto is a jewel in the rougheltatertoto is a jewel in the rougheltatertoto is a jewel in the rough
Default

solder is definitely the way to go. probably cheaper too if you have an iron already. just make sure you get some good shrink tubing.
eltatertoto is offline   Reply With Quote
Old 11-07-2011, 10:34 PM   #9
Senior Member
Certified GM nut
Thread Starter

SignOfZeta's Avatar

Join Date: Mar 2005
Location: New Milford, CT
Posts: 2,284
Thanked 16 Times in 13 Posts
SignOfZeta has a spectacular aura aboutSignOfZeta has a spectacular aura about
Default

I'm terrible at soldering, but that does seem like the best way if I can't use these fancy wire joiners. Will regular solder work, or do I need a certain kind?
SignOfZeta is offline   Reply With Quote
Old 11-07-2011, 10:48 PM   #10
Retired Administrator

True Car Nut

GunsOfNavarone's Avatar

Join Date: Apr 2009
Location: Williamsport, PA
Posts: 2,856
Thanked 167 Times in 129 Posts
GunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud of
Default

Wal-mart, in the auto section, carries the solder you need, along with the heat shrink tube, which is about 80% cheaper than Radio Shack. Practice a bit on some old wire, you will find it is not that hard. Since you are not doing work on a printed circuit board, a high power solder gun is the easiest to work with.
GunsOfNavarone is offline   Reply With Quote
