Default PRND321 lights

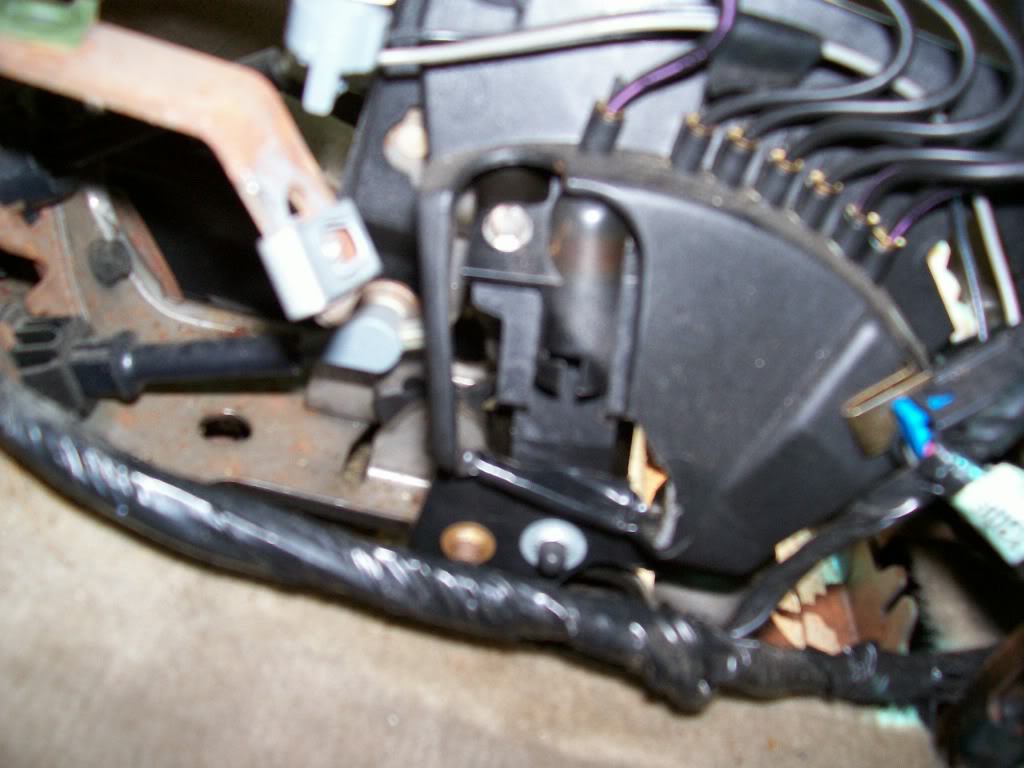

I did some searching for other threads onn this topic and were too old so I started my own thread. I pulled my console up and back out of the way and found the black wire was cut . I figured out that the edges in the plastic where the wires slide around in there were so sharp it wore through the black wire and cut it. The bulb was good and worked again after I hooked it back up. Heres a pic of it back together. Name:  100_0026.jpg
Views: 1
Size:  86.7 KB You can see where I broke out the black plastic piece so the wires wont rub any more. I took a pic of the indicator lit up but with my camera it didnt show because of the daylight. I'll try to take a pic of it tonite after dark.
mcsslover1987 is offline   Reply With Quote
Old 07-14-2006, 03:32 PM   #2
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jun 2006
Location: Yreka CA
Posts: 212
Thanks: 0
Thanked 0 Times in 0 Posts
mcsslover1987 is on a distinguished road
Default

Also the 7 wires you see going up to the indicator I believe are fiber optics
mcsslover1987 is offline   Reply With Quote
Old 07-15-2006, 01:30 PM   #3
Senior Member
Posts like a Camaro

Join Date: Apr 2006
Location: Coon Rapids, Minnesota
Posts: 936
Thanks: 0
Thanked 0 Times in 0 Posts
GreenMachine98 is on a distinguished road
Default

wouldnt they be just normal LEDs for the indicator???
GreenMachine98 is offline   Reply With Quote
Old 07-15-2006, 02:09 PM   #4
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jun 2006
Location: Yreka CA
Posts: 212
Thanks: 0
Thanked 0 Times in 0 Posts
mcsslover1987 is on a distinguished road
Default

Quote:
Originally Posted by GreenMachine98
wouldnt they be just normal LEDs for the indicator???

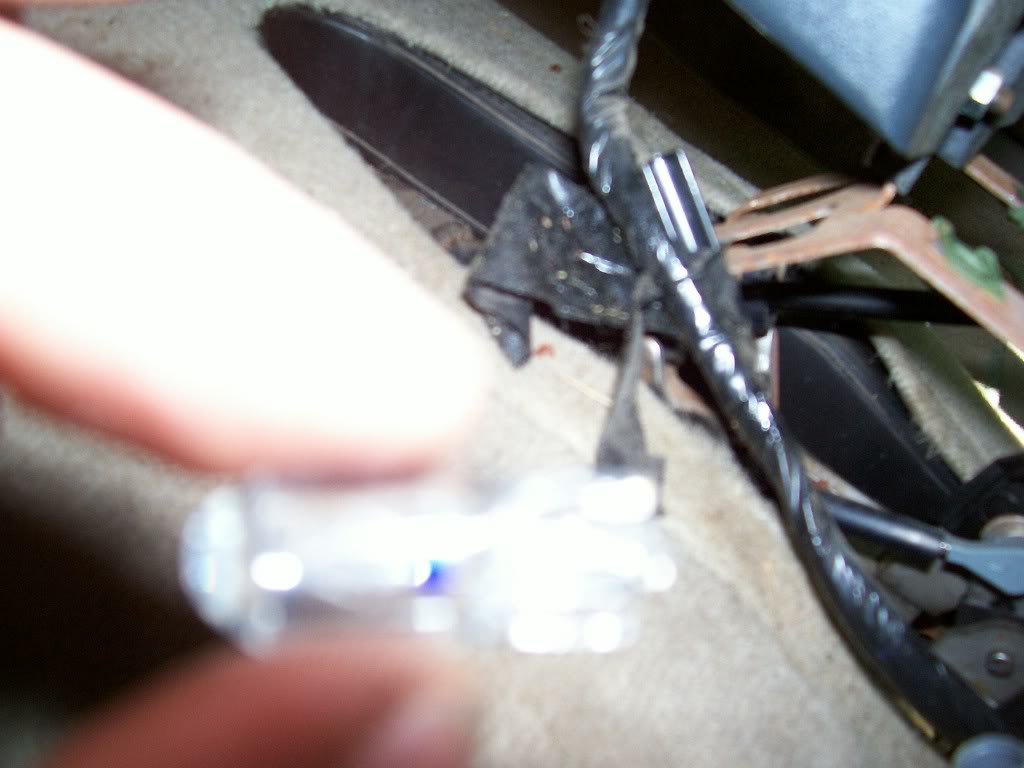

Nope, fiber optics!! they didt work until I fixed that wire and this little wedge bulb was there. Sorry for the crappy pics, but you get the idea!
Name:  100_0028.jpg
Views: 1
Size:  70.9 KB

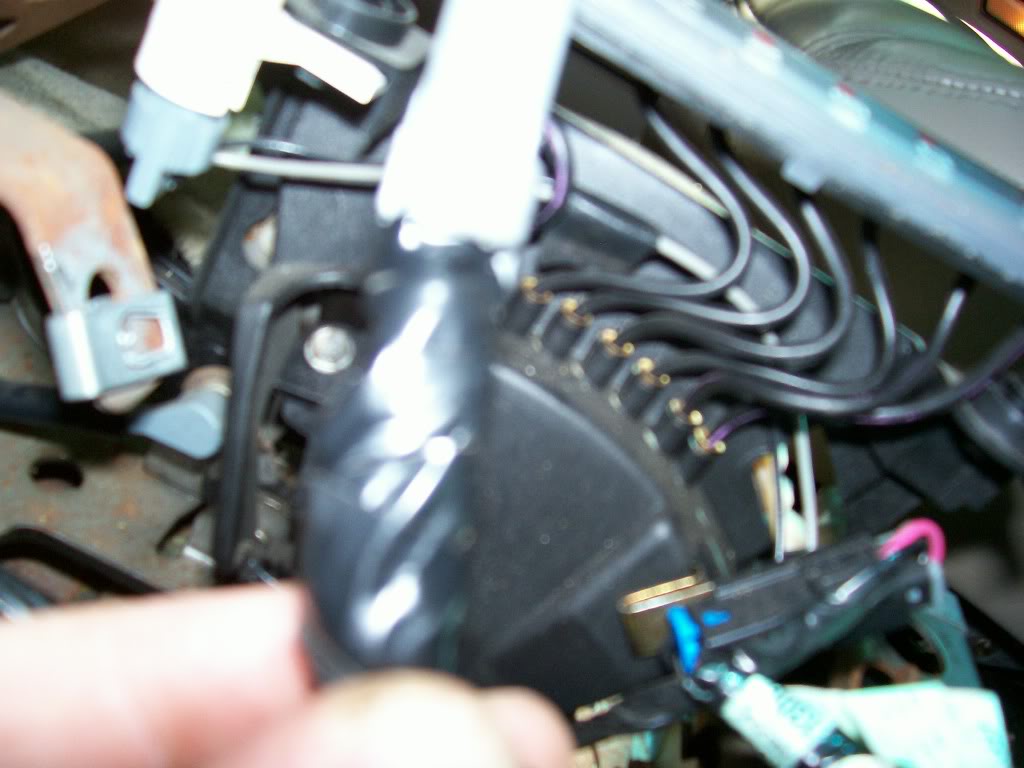

Name:  100_0027.jpg
Views: 1
Size:  80.7 KB
I'm sorry I didnt take pics of it with the wire broke and what I did.
mcsslover1987 is offline   Reply With Quote
Old 07-15-2006, 02:22 PM   #5
Senior Member
Posts like a Camaro

Join Date: Apr 2006
Location: Coon Rapids, Minnesota
Posts: 936
Thanks: 0
Thanked 0 Times in 0 Posts
GreenMachine98 is on a distinguished road
Default

good to know, ive seen plenty of those bulbs. they are everywhere in the bonnie like 8 in the doors.... hmmm i think im going to take mine apart....
GreenMachine98 is offline   Reply With Quote
Old 07-18-2006, 10:22 PM   #6
Senior Member
Certified Car Nut

Join Date: Oct 2002
Posts: 11,307
Thanks: 0
Thanked 0 Times in 0 Posts
bonnie94ssei is on a distinguished road
Default

I can't even make out those pics But I know what you did because I had the same problem a couple months ago. I went into my console and found a wire wasn't really cut, but it was pulled out of the connector, so I just put it back in the connector and squeezed it tight so it wouldn't fall out again. It'* one of those little things that you fix that makes you smile

BTW, I'm pretty sure that bulb is a 194...pretty common, but not found in the doors.
bonnie94ssei is offline   Reply With Quote
Old 07-19-2006, 02:50 AM   #7
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jun 2006
Location: Yreka CA
Posts: 212
Thanks: 0
Thanked 0 Times in 0 Posts
mcsslover1987 is on a distinguished road
Default

Yes I know the pics suck, but I figured I'd post them anyways just to give y'all the general idea of what I did.
mcsslover1987 is offline   Reply With Quote
Old 07-23-2006, 11:05 PM   #8
Executed

Join Date: Dec 2002
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
shortstuf212559 is on a distinguished road
Default

it is a 194, but its special. it has a magnifying end on the bulb... on my ol d92 SSESC i thought mine was burned out, but also ended up only being the broken wire. i tried to replace the bulb first, but no one carried the bulb with the magnifying tip on it
shortstuf212559 is offline   Reply With Quote
