Default Need wiring diagram -1994 Park Avenue Ultra fuel pump relay

Still having trouble getting Dads 1994 Park Avenue Ultra going. We can get the car running if we pull the fuel pump relay, but with it in it keeps blowing the 20 amp fuse under the passenger side of the dash.
We used the 1995 FSM set I have, but apparently the 1995 has different electronics that run off the fuel pump relay than the 1994'*, at least in the PA, which shares the FSM with the Bonneville.

We are strictly wanting to know what else is run off the relay that the fuel pump runs off of. If anyone has a diagram from a 1994 FSM that they could scan in and post that would be awesome.

Thanks in advance,
Martin (and Dad)
OLBlueEyesBonne is offline   Reply With Quote
Old 02-22-2007, 09:31 AM   #2
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Marty...check the oil pressure sender... I read in another post that the fuel pump relay and that are on the same circuit.

Sorry..I don't ahve the diagram.
BillBoost37 is offline   Reply With Quote
Old 02-22-2007, 06:52 PM   #3
Senior Member
Certified GM nut

Join Date: Oct 2005
Location: Western New York
Posts: 1,942
Thanks: 0
Thanked 0 Times in 0 Posts
Technical Ted is on a distinguished road
Default

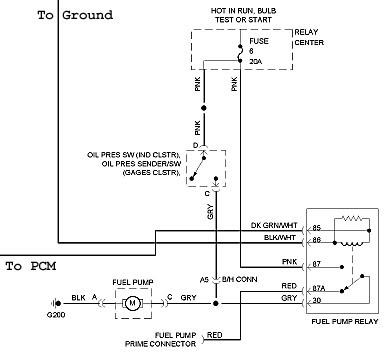

Here'* a wiring diagram but not from a FSM.
Did you try another relay?

Name:  94ParkAveUltraFuelPump.jpg
Views: 1728
Size:  19.5 KB
