Default manual control of lights on a 96-99

yes I know, I know. It has been discussed before, and blah blah blah. I know the way to do it with the photocell.

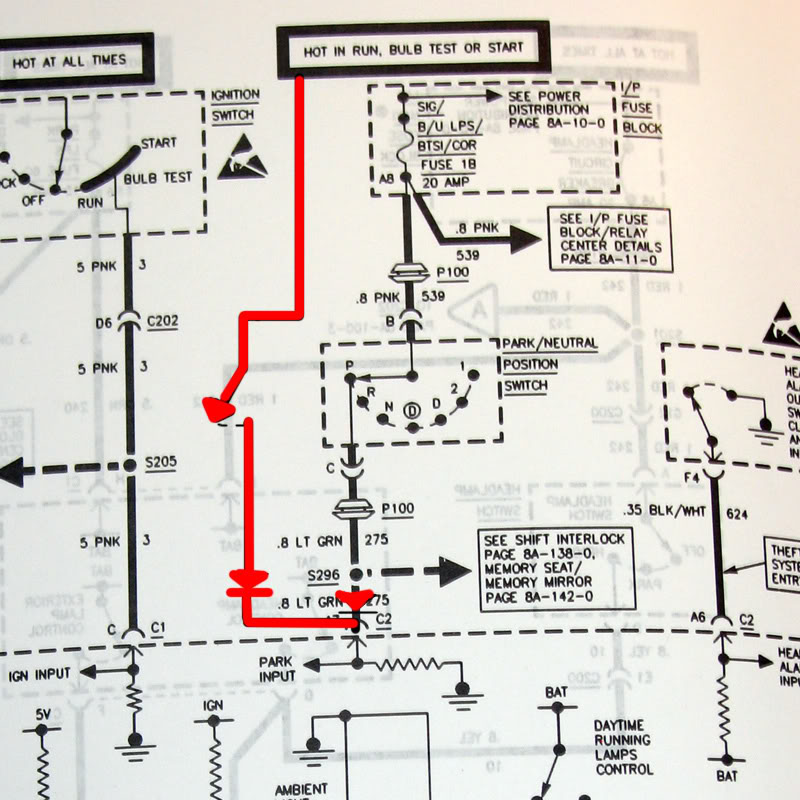

But I want to go a different route. The Lamp control module(LCM) is partially controlled by the Park/neutral position switch. When in park, you have full control over the lights. To me this meant there has to be a way to trick the LCM to thinking that it is in park. So a little FSM digging and you get this

Name:  FSMpage.jpg
Views: 1
Size:  123.2 KB

Run a diode on the LT GRN wire 275 after the junction S296 and before the LCM. and another on the added power wire(for saftey although this one isn't necessary) and it should be good to go. One switch on that added power wire and you should have a way to swap between OEM and manual. For those times when you really dont want to have to think about the lights. Yes this will still require you to play with the twilight switch and such to turn your lights off.

Hopefully if the weather holds out I can get this done today.
corvettecrazy is offline   Reply With Quote
Old 11-07-2006, 02:43 PM   #2
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

sweet....should be a neat mod for the 96-99'*

although i love how GM already gave me full controll on my 93 from the factory :P
1993 SLE is offline   Reply With Quote
Old 11-07-2006, 03:35 PM   #3
Senior Member
True Car Nut

Join Date: Jan 2006
Location: NEBF:06,07 | NYBF:06,07 | ONBF:06,07 | CNBF:06 & more............
Posts: 8,029
Thanks: 0
Thanked 0 Times in 0 Posts
bandit is on a distinguished road
Default

Yeah i cant wait to see how this works, cuz when someday i get a 97+ i going to do the same
bandit is offline   Reply With Quote
Old 11-07-2006, 03:41 PM   #4
Senior Member
True Car Nut

toastedoats's Avatar

Join Date: Sep 2004
Location: Fitchburg Ma _ToastedRice_
Posts: 6,837
Thanks: 0
Thanked 0 Times in 0 Posts
toastedoats is on a distinguished road
Default

looks good to me!
toastedoats is offline   Reply With Quote
Old 11-07-2006, 04:07 PM   #5
Senior Member
True Car Nut
Thread Starter

Join Date: Jun 2004
Location: Rochester, NY (college)
Posts: 6,182
Thanks: 0
Thanked 0 Times in 0 Posts
corvettecrazy is on a distinguished road
Default

installed, I fused it also, so I need to get a fuse for the holder, and eventually mount the switch. The switch mounting is in the brainstorming phase still.

Now I just need it to get dark.
corvettecrazy is offline   Reply With Quote
Old 11-07-2006, 04:08 PM   #6
Senior Member
True Car Nut

Join Date: Jan 2006
Location: NEBF:06,07 | NYBF:06,07 | ONBF:06,07 | CNBF:06 & more............
Posts: 8,029
Thanks: 0
Thanked 0 Times in 0 Posts
bandit is on a distinguished road
Default

cool, Well by the time i get there it should be dark to test
bandit is offline   Reply With Quote
Old 11-07-2006, 04:13 PM   #7
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by corvettecrazy
installed, I fused it also, so I need to get a fuse for the holder, and eventually mount the switch. The switch mounting is in the brainstorming phase still.

Now I just need it to get dark.
rob a GP foglight switch mounted under the HL switch between the vent and the end of the dash
1993 SLE is offline   Reply With Quote
Old 11-07-2006, 05:16 PM   #8
Senior Member
True Car Nut
Thread Starter

Join Date: Jun 2004
Location: Rochester, NY (college)
Posts: 6,182
Thanks: 0
Thanked 0 Times in 0 Posts
corvettecrazy is on a distinguished road
Default

Quote:
Originally Posted by 1993 SLE
Quote:
Originally Posted by corvettecrazy
installed, I fused it also, so I need to get a fuse for the holder, and eventually mount the switch. The switch mounting is in the brainstorming phase still.

Now I just need it to get dark.
rob a GP foglight switch mounted under the HL switch between the vent and the end of the dash
I have to think farther ahead than that....

HL mod switch, fog light switch, and eventual projector switch....If I was only doing one switch then it would be easy.

Installed completely and waiting for darkness.
corvettecrazy is offline   Reply With Quote
Old 11-07-2006, 05:25 PM   #9
Senior Member
True Car Nut

toastedoats's Avatar

Join Date: Sep 2004
Location: Fitchburg Ma _ToastedRice_
Posts: 6,837
Thanks: 0
Thanked 0 Times in 0 Posts
toastedoats is on a distinguished road
Default

Quote:
Originally Posted by corvettecrazy
Quote:
Originally Posted by 1993 SLE
Quote:
Originally Posted by corvettecrazy
installed, I fused it also, so I need to get a fuse for the holder, and eventually mount the switch. The switch mounting is in the brainstorming phase still.

Now I just need it to get dark.
rob a GP foglight switch mounted under the HL switch between the vent and the end of the dash
I have to think farther ahead than that....

HL mod switch, fog light switch, and eventual projector switch....If I was only doing one switch then it would be easy.

Installed completely and waiting for darkness.
its currently dark enough for my auto lights to come on - GO NOW!
toastedoats is offline   Reply With Quote
Old 11-07-2006, 09:23 PM   #10
Senior Member
True Car Nut
Thread Starter

Join Date: Jun 2004
Location: Rochester, NY (college)
Posts: 6,182
Thanks: 0
Thanked 0 Times in 0 Posts
corvettecrazy is on a distinguished road
Default

Well I would like to report, that after a few DUMB errors that were all on my part, the over ride works wonderfully.

Now if I had fog lights at the moment I would be out driving around with just them on
corvettecrazy is offline   Reply With Quote
