Default Keyless programming

Okay, the code says my 96 LeSabre has keyless entry and I tried to start programming it but the doors don't lock unlock to say it'* in test mode.

What is the best way to jumper the OB II? and Where would the factory keyless receiver be located?

Thanks
Kimbo is offline   Reply With Quote
Old 05-29-2007, 10:31 PM   #2
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

The procedures are in Techinfo.

I suspect you're jumpering the wrong pins.

Please verify that you have RPO code AUO on your spare tire cover, and that the VIN on the RPO label matches the VIN of the car.

Then double-check the jumper pins you're using.
willwren is offline   Reply With Quote
Old 05-29-2007, 10:56 PM   #3
Member
Posts like a V-Tak
Thread Starter

Join Date: May 2007
Location: Dallas (Lewisville), TX
Posts: 98
Thanks: 0
Thanked 0 Times in 0 Posts
Kimbo is on a distinguished road
Default

Quote:
Originally Posted by willwren
The procedures are in Techinfo.

I suspect you're jumpering the wrong pins.

Please verify that you have RPO code AUO on your spare tire cover, and that the VIN on the RPO label matches the VIN of the car.

Then double-check the jumper pins you're using.
Check, pins 8 and 4
Check, RPO AU0
Check, VIN matches

What is best to use to jumper the pins?
Kimbo is offline   Reply With Quote
Old 05-30-2007, 12:23 AM   #4
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

A piece of wire.

Check for blown fuses also. I can't help you with the RFA module location. (remote function actuator). Yours may be different than ours.
willwren is offline   Reply With Quote
Old 05-30-2007, 07:43 AM   #5
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Our RFA in your year is located above the hush panel on the passenger side... or basically behind the glove box.
BillBoost37 is offline   Reply With Quote
Old 06-09-2007, 12:23 PM   #6
Member
Posts like a V-Tak
Thread Starter

Join Date: May 2007
Location: Dallas (Lewisville), TX
Posts: 98
Thanks: 0
Thanked 0 Times in 0 Posts
Kimbo is on a distinguished road
Default

Quote:
Originally Posted by BillBoost37
Our RFA in your year is located above the hush panel on the passenger side... or basically behind the glove box.

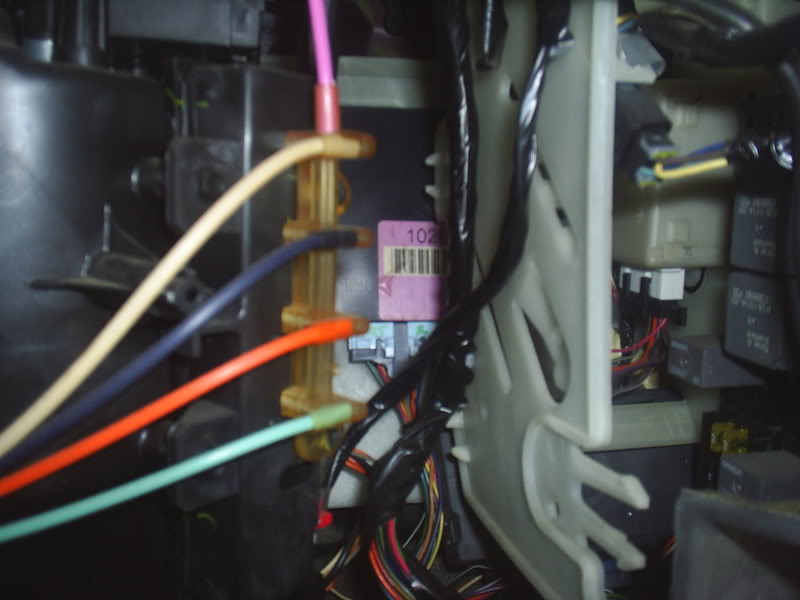

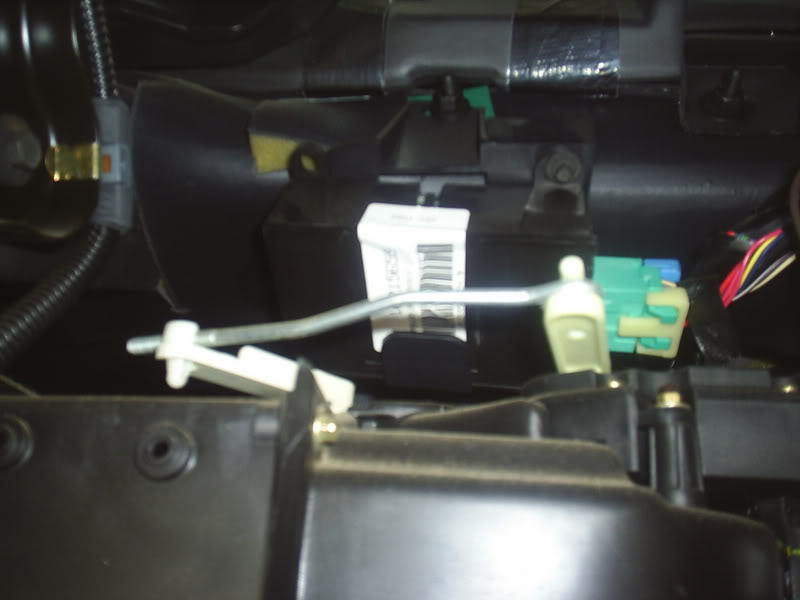

Do either of these pictures shoe the receiver?:

Name:  S4010017.jpg
Views: 2
Size:  49.3 KB

Name:  S4010018.jpg
Views: 1
Size:  38.1 KB
