Default insturment panel light went out?????

i got done installing a remote starter in my car and now there are a bunch of different lights out all over. like random ones on the insturment pan, the drivers side heated seat light, the left side of the hud control ****, the right side of the display on the radio, and o couple more.. is it just a blown fuse or did i screw something up. if it is a fuse would you know what one it would be. any help would be appreciated
scoobydoo34 is offline   Reply With Quote
Old 03-13-2008, 05:56 PM   #2
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

2000+ are notorious for having those bulbs go out. Any chance you just didn't notice before? If only half of certain sets of lights are working, its probably not a fuse and more likely a burnt out bulb. They just wear out.
harofreak00 is offline   Reply With Quote
Old 03-13-2008, 07:24 PM   #3
Senior Member
Posts like a Corvette

Join Date: Nov 2006
Location: Alberta, Canada
Posts: 1,446
Thanks: 0
Thanked 0 Times in 0 Posts
ddalder is on a distinguished road
Default

Quote:
Originally Posted by harofreak00
2000+ are notorious for having those bulbs go out. Any chance you just didn't notice before? If only half of certain sets of lights are working, its probably not a fuse and more likely a burnt out bulb. They just wear out.
Haro is dead on target. This can be even more of a problem if there was any rough handling during disassembly or reassembly (accidentally dropping a switch, etc).

I'm currently working on some alternate lighting solutions but I won't likely have an opportunity to do much testing for a couple of months.
ddalder is offline   Reply With Quote
Old 03-13-2008, 10:23 PM   #4
Member
Posts like a V-Tak
Thread Starter

Join Date: Jun 2005
Location: mukwonago,wi
Posts: 32
Thanks: 0
Thanked 0 Times in 0 Posts
scoobydoo34 is on a distinguished road
Default

yeah im positive they were not out before. are those all bulbs that can be replace or are they soldered on the circuit boardsand would have to take it in to get fixed. damn it. lights are all out of things that i took out. i didn't dop them or anything but i guess i wasn't super careful putting them down. i didn't think that would be a problem. but that is the only thing it would probably be. like if i forgot to plug something back in would cause any of that?
scoobydoo34 is offline   Reply With Quote
Old 03-13-2008, 10:29 PM   #5
Senior Member
Posts like a Corvette

Join Date: Nov 2006
Location: Alberta, Canada
Posts: 1,446
Thanks: 0
Thanked 0 Times in 0 Posts
ddalder is on a distinguished road
Default

The bulbs are soldered to the circuit boards. I won't say it isn't possible to replace them, but there is certainly some degree of technical skill required (especially with the the cluster) to avoid other problems.

Edit:

If the switches otherwise work, it won't be a case of forgetting to plug something in. The backlighting is all wired through the same connector as the other functions.
ddalder is offline   Reply With Quote
Old 03-16-2008, 10:20 AM   #6
Member
Posts like a V-Tak
Thread Starter

Join Date: Jun 2005
Location: mukwonago,wi
Posts: 32
Thanks: 0
Thanked 0 Times in 0 Posts
scoobydoo34 is on a distinguished road
Default

well before i start ripping stuff apart i thought i would ask..... in the insturment panel are they just like led'* or something. where would i get some replacements for that. like at radio shack or something. and in all the switches can those be replaced too or do i have to get new switches. and also half of the back light on the radio display is out. is that just like a led too??
scoobydoo34 is offline   Reply With Quote
Old 03-16-2008, 01:09 PM   #7
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

everything can be fixed, but it just how much do you want to pay and how much work do you want to do.

http://www.bonnevilleclub.com/forum/...adio+light+fix

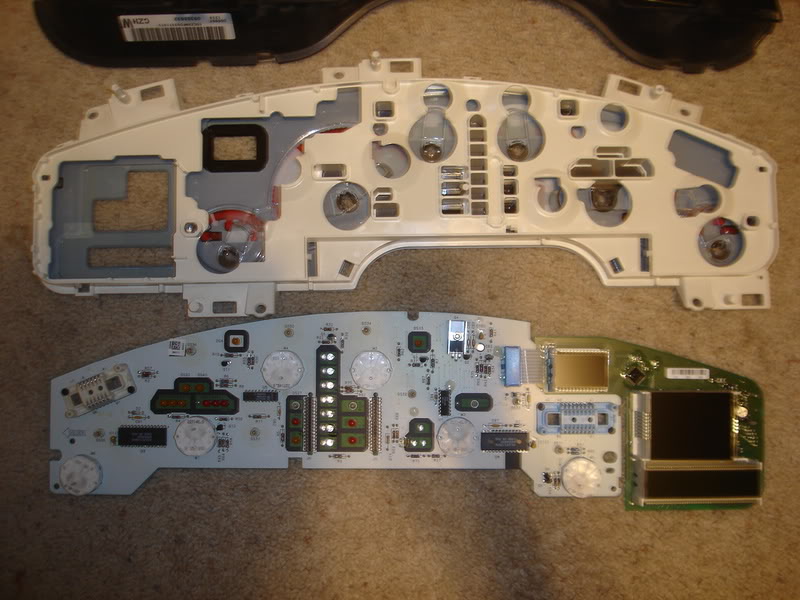

Name:  DSC06889.jpg
Views: 8
Size:  85.3 KB

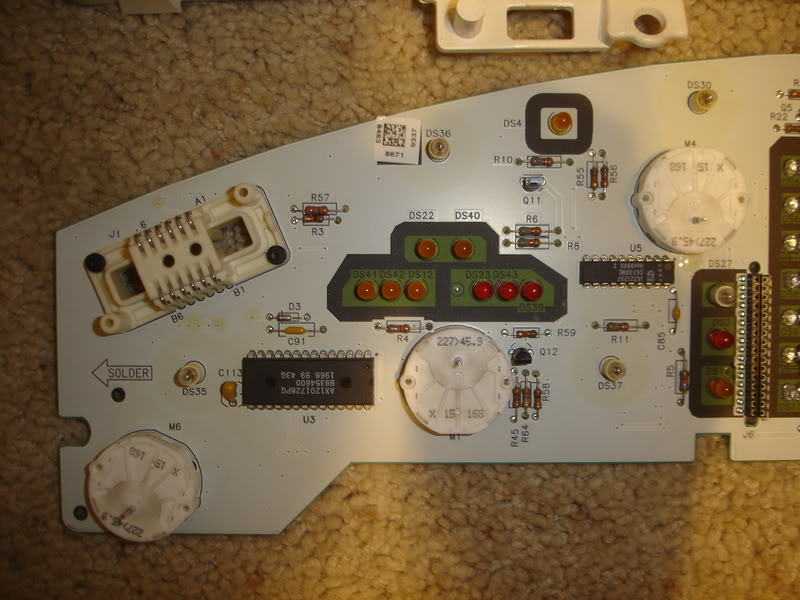

Name:  DSC06890.jpg
Views: 8
Size:  81.9 KB

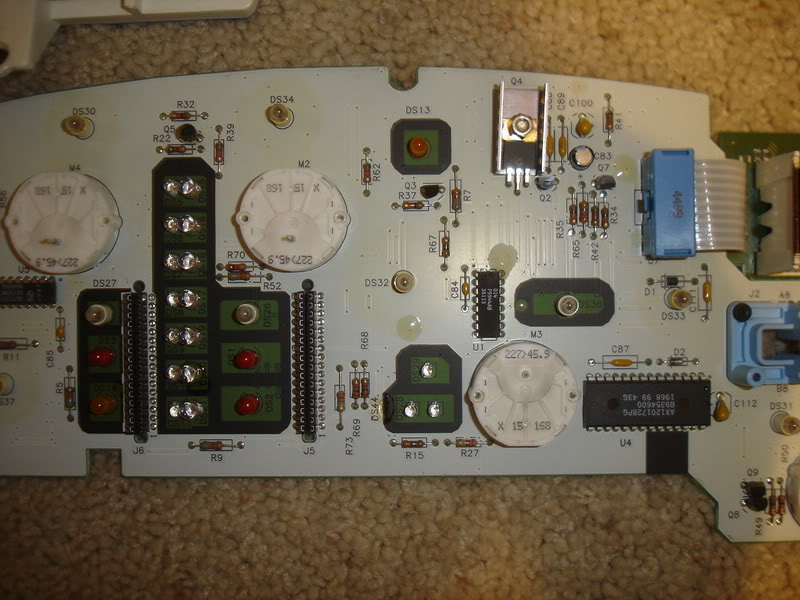

Name:  DSC06891.jpg
Views: 10
Size:  90.3 KB

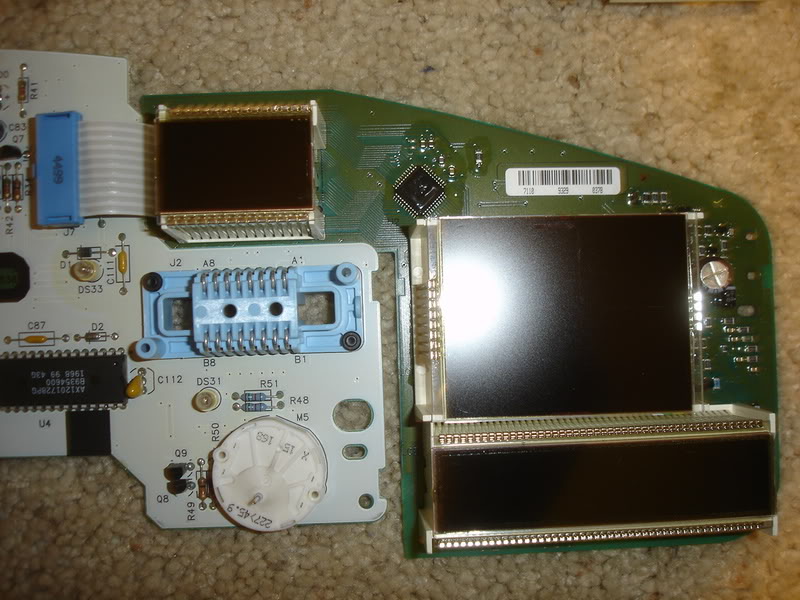

Name:  DSC06892.jpg
Views: 8
Size:  98.1 KB

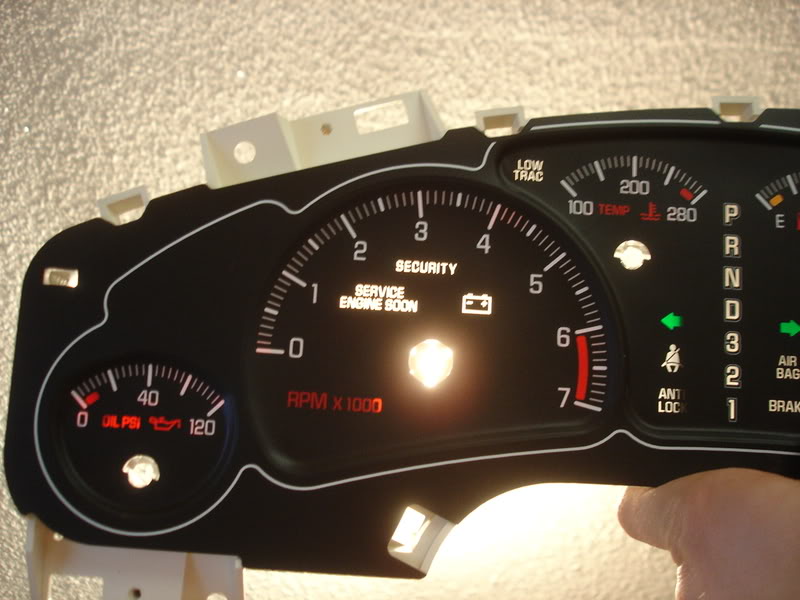

Name:  DSC06894.jpg
Views: 7
Size:  66.5 KB
Name:  DSC06895.jpg
Views: 8
Size:  71.1 KB

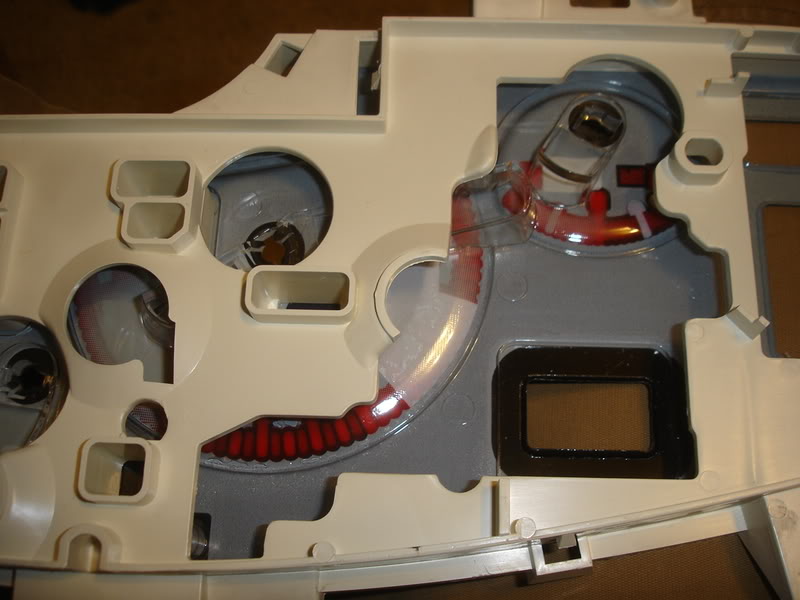

Name:  DSC06896.jpg
Views: 7
Size:  58.0 KB

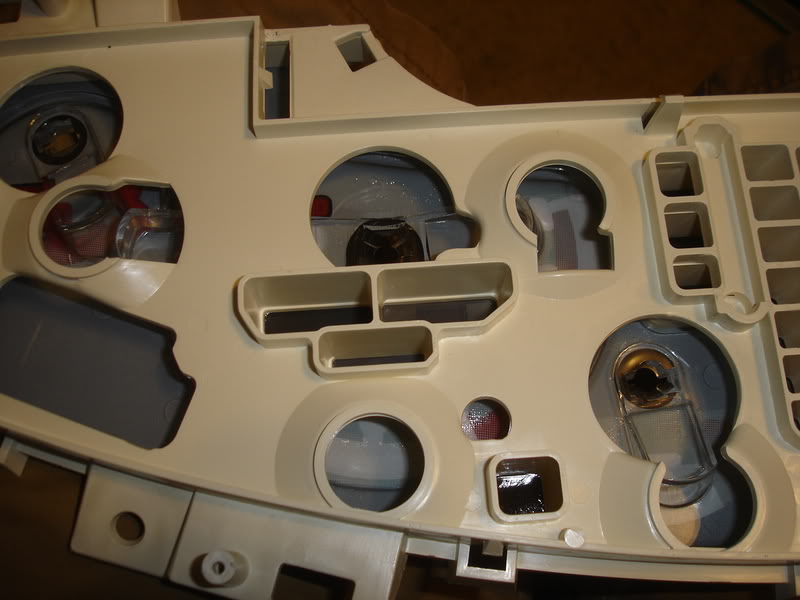

Name:  DSC06897.jpg
Views: 6
Size:  57.5 KB
harofreak00 is offline   Reply With Quote
Old 03-16-2008, 08:20 PM   #8
Member
Posts like a V-Tak
Thread Starter

Join Date: Jun 2005
Location: mukwonago,wi
Posts: 32
Thanks: 0
Thanked 0 Times in 0 Posts
scoobydoo34 is on a distinguished road
Default

yeah i dont really care about the work and the money i don't really care about as long as it isn't hundreds of dollars. i know someone that is good at soldering small stuff so that not a problem. thanks so much for all your help guy. it help al lot. one more thing. do you know if the light in the heated switch is just a led too. just need to pop it off and get a new light? any idea where would get that?
scoobydoo34 is offline   Reply With Quote
Old 03-16-2008, 08:28 PM   #9
Senior Member
Posts like a Corvette

Join Date: Nov 2006
Location: Alberta, Canada
Posts: 1,446
Thanks: 0
Thanked 0 Times in 0 Posts
ddalder is on a distinguished road
Default

Only the HI / LOW indicators are LED'*. The backlighting is incandescent.

ddalder is offline   Reply With Quote
Old 03-16-2008, 08:32 PM   #10
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

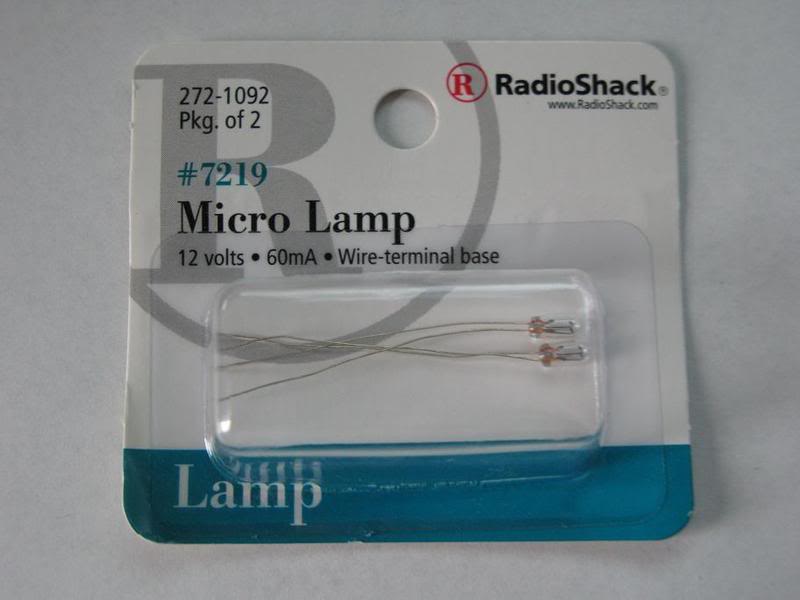

The backlighting bulbs are easy to replace, just transfer the orange covers to the new bulbs after you get them in
Name:  IMG_3920.jpg
Views: 7
Size:  36.8 KB
harofreak00 is offline   Reply With Quote
