Default How To Replace Tail Light Bulbs on 2000 - 2005 (for Dummies)

While many think nothing of tearing apart their engine without so much as breaking a sweat, some of us are "not-so-mechanically-inclined". This write up is for those, like me, whose version of "working on the car" is maintaining fluid levels and tire pressure.

So, when it comes to having a tail light out, we may put it off for the sake of not knowing how to do it. But there are two problems with that:
1) It'* a safety hazard
2) It'* a ticket waiting to happen.


It'* far cheaper to spend $6 on new bulbs ($12 if you do both sides) and 15 mins doing it yourself than waiting for someone to do it for you. So...here we go...

Replacing Tail Light Bulbs on a 2000 - 2005 Bonneville

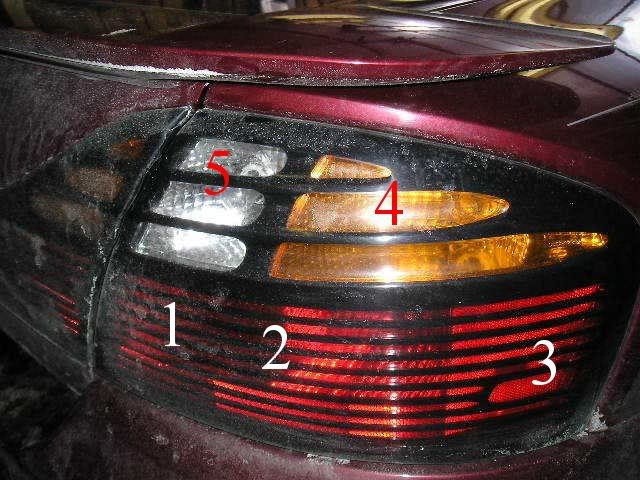

We’ll be removing the entire light assembly and replacing the two tail/brake light bulbs located at #1 and #2 in the pic below. While you're in there, you may also want to replace the other bulbs:

#1 & #2 - Tail / Brake - #3057
#3 - Side marker - # 194
#4 - Turn signal - #3057
#5 - Reverse - #3057

Name:  RearLamps.jpg
Views: 264
Size:  66.4 KB

Tools required:
Fingers
Adjustable wrench
Optional: Soft towel
Optional: rubbing alcohol & cotton ball or swab

Parts required:
Bulbs – I used Sylvania 12V 3057 LL (longlife) - 2pk $5.99 Advanced Auto

1) Open trunk….it may sound dumb, but it isn’t. Remove contents from the center-rear of the truck (the area over the spare tire) if cluttered. You’ll need to lift up the spare tire cover in a moment. Remove cargo net if it’* secured on the plastic *****.

2) Open new bulb package and put them within reach. Again, this may sound dumb, but when you end up with the tail light hanging – you’ll be glad the bulbs are within reach.

NOTE: I wore gloves (it was 10F out) but also wanted to avoid touching the new bulbs to prevent dirt/oils from getting on them. While these are not halogens, it’* probably good practice to not touch the bulbs. But even gloves can be dirty…for good measure, you can swab the bulb with rubbing alcohol on a cotton ball or q-tip after the light is in the socket.

3) Remove interior plastic guard/sill plate – this sill plate goes the entire length of the trunk. Do this by:

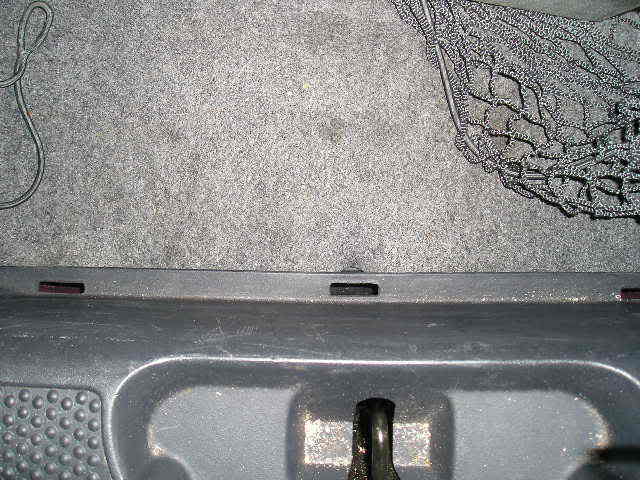

a) Carefully pulling back carpet from the spare tire area, lifting the plastic tire cover from the sill plate while gently pushing down on the sill plate. This should allow the tire cover tabs to pull up an out of the slots in the sill plate.

Name:  misc105.jpg
Views: 145
Size:  50.1 KB

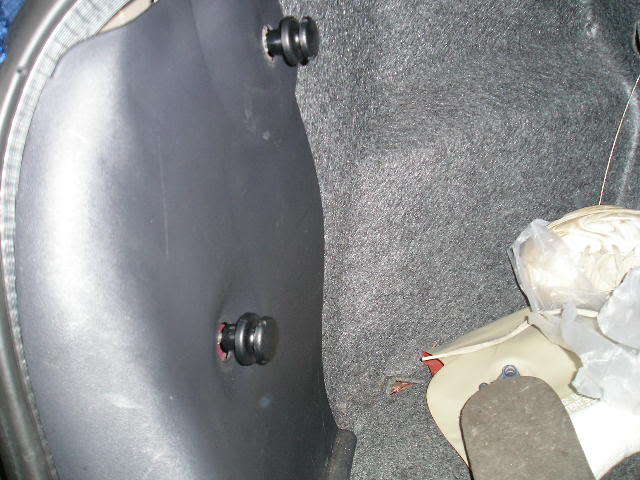

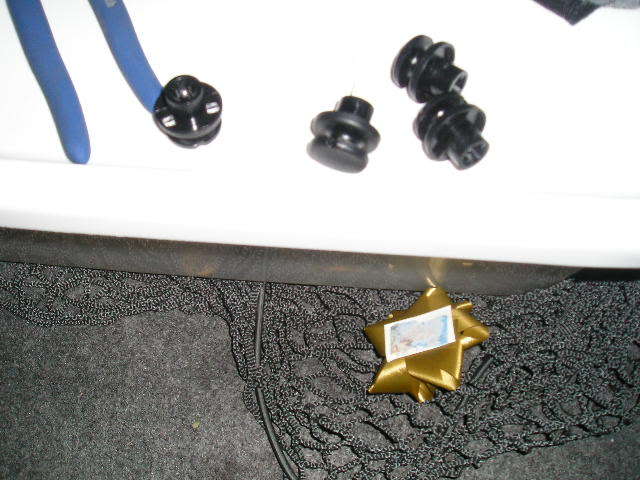

b) Remove the two plastic ***** found on both sides of the interior rear section of the trunk. These are actually called trim retainers and they also hold the cargo net in place.

Name:  misc086.jpg
Views: 141
Size:  48.0 KB

Name:  misc085.jpg
Views: 143
Size:  48.0 KB

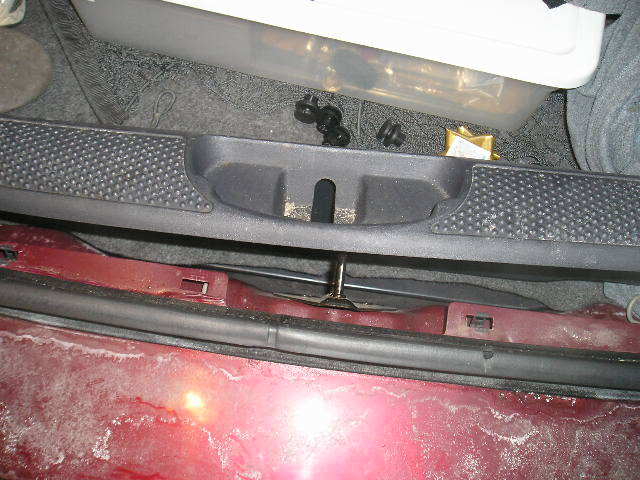

c) Carefully remove the plastic sill plate by lifting up and then out towards the front of the car.

Name:  misc084.jpg
Views: 144
Size:  50.9 KB

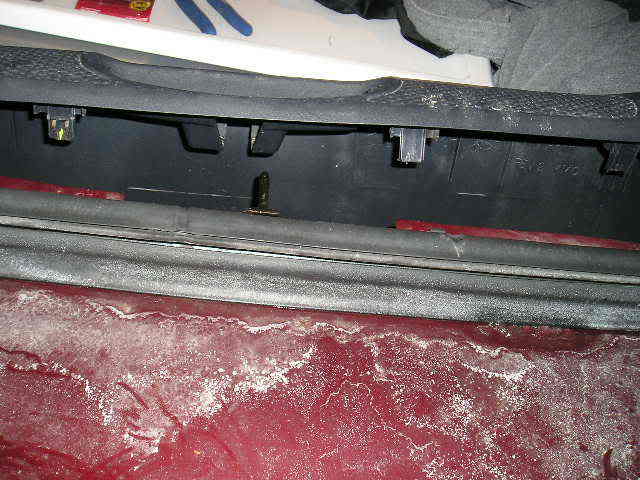

NOTE: The reason for lifting up is that there are four plastic tabs securing it along the length of the trunk – two on either side of the trunk latch.

Name:  misc083.jpg
Views: 150
Size:  43.3 KB

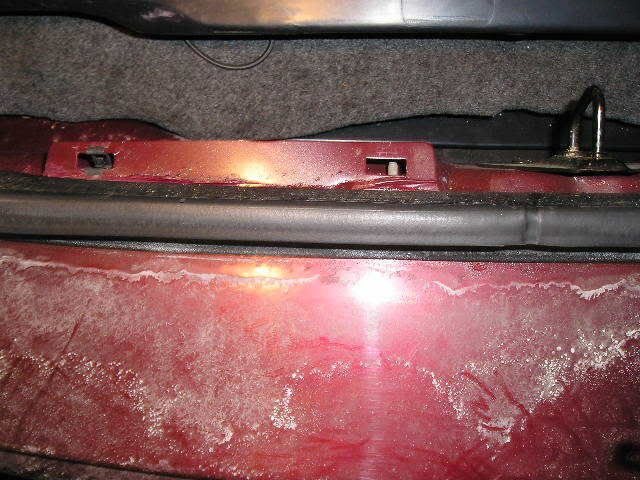

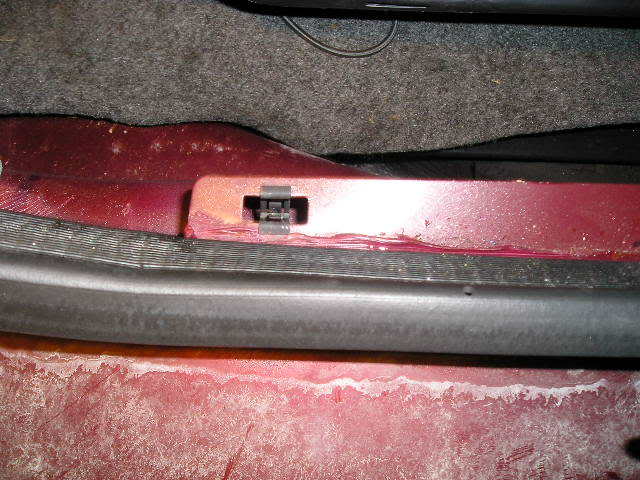

NOTE: Be careful not to lose the metal clips – they tend to pop off with the removal of the plastic guard. If they do, re-insert them into the metal slots on the car: There are two slots on either side of the trunk latch.

Name:  misc079.jpg
Views: 144
Size:  53.8 KB

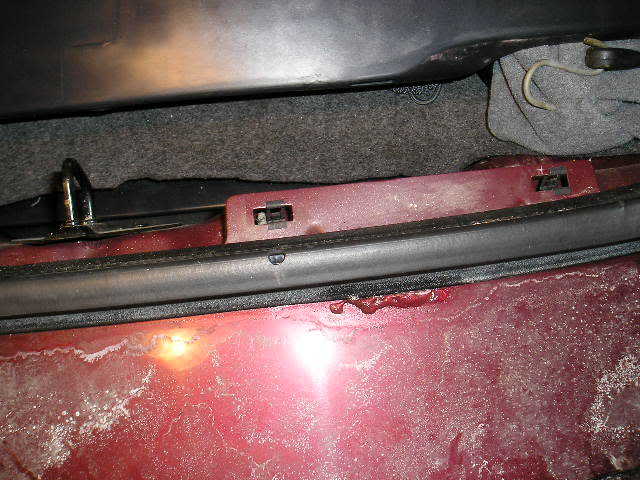

Yes.... I lost one

Name:  misc080.jpg
Views: 144
Size:  52.1 KB

Name:  misc081.jpg
Views: 141
Size:  53.0 KB

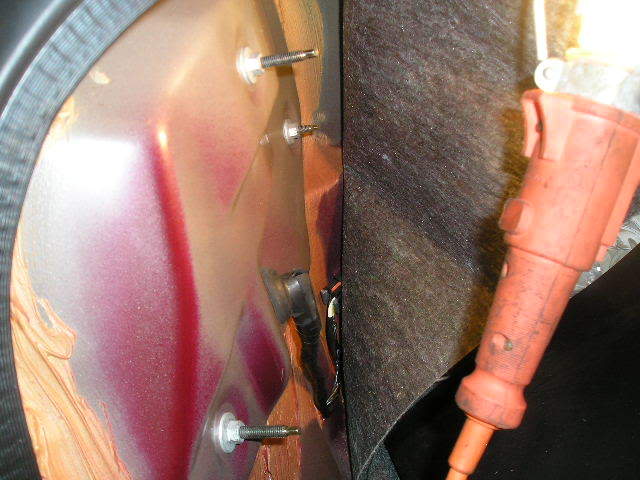

4) Carefully move the felt liner to expose three screws and use the adjustable wrench to remove the nut/washer combo from each screw.

CAUTION: Be sure to support the tail light with your leg… once the nut/washers are removed, the entire light assembly can be pulled out from the body of the car.

Name:  misc078.jpg
Views: 141
Size:  47.9 KB

5) I put a soft cloth on the bumper to prevent scratching of the lens, however this made it slippery – your choice. Carefully pull the light assembly away from the car and rotate it upwards to expose the backside, resting in on the bumper and supporting it with your leg.

NOTE: Light Assembly is still connected to the car by the wiring harness. I did not remove it, however it would be safer to do so as you would be less likely to damage the lens and/or drop the assembly.

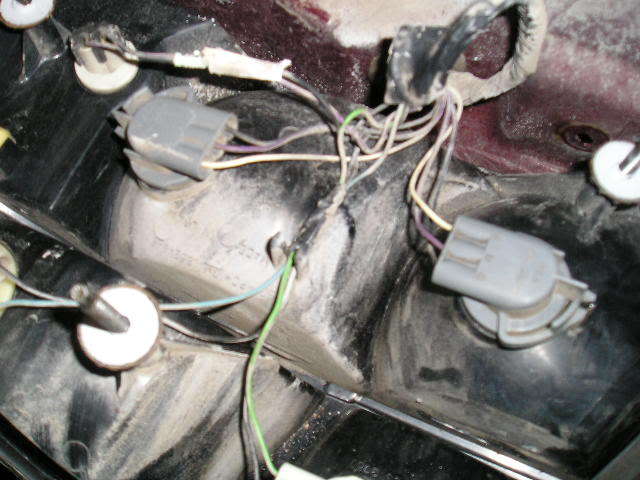

6) Locate the two large grey plastic inserts - These are the Tail / Brake Lights.

Name:  misc076.jpg
Views: 140
Size:  46.0 KB

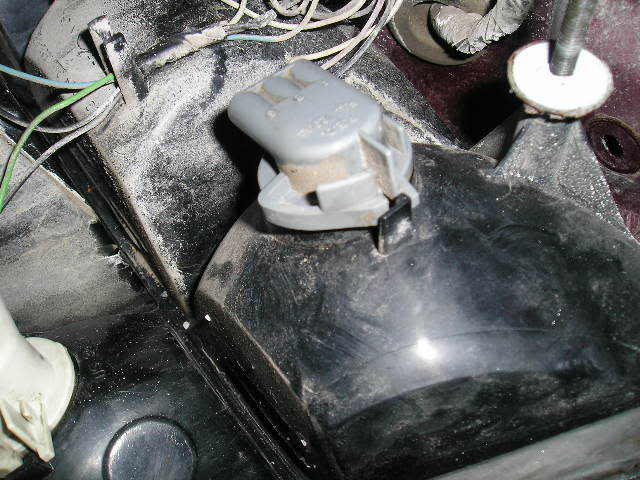

7) Push in the grey tab and turn counter clockwise to get this tab past the black plastic mount. This is similar to the security caps on antifreeze bottle.

Name:  misc075.jpg
Views: 139
Size:  52.9 KB

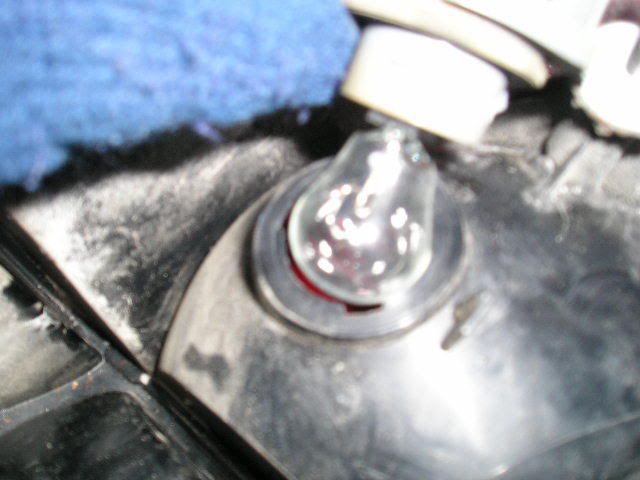

You can now lift up the insert and expose the bulb.

Name:  misc073.jpg
Views: 138
Size:  37.8 KB

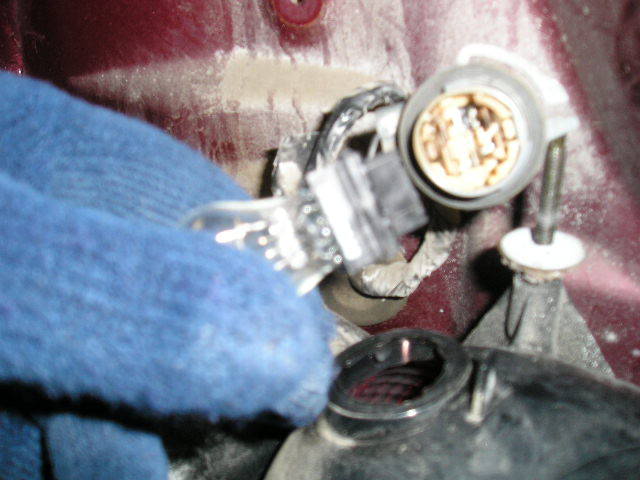

8 ) Remove old bulb by gently pulling it out of the insert – no twisting!!

Name:  misc071.jpg
Views: 137
Size:  42.3 KB

9) Insert new bulb - Here’* where that cotton ball/swab dipped in rubbing alcohol will come in handy to ensure the bulb is free of dirt/oils. You can treat yourself to a shot of real alcohol soon, if so desired.

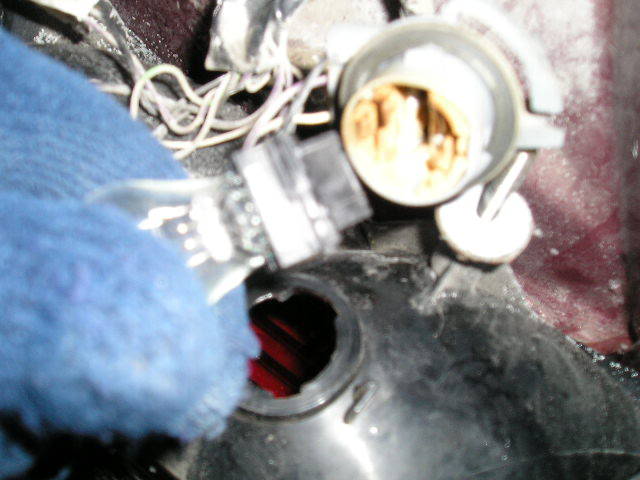

10) Replace the grey plastic insert into the hole. Note the slots in the black plastic housing – this is similar to slots found on the radiator cap.

Name:  misc068.jpg
Views: 137
Size:  41.1 KB

11) Turn the grey insert clockwise, securing it to its original position.

Name:  misc075.jpg
Views: 139
Size:  52.9 KB

Do this for both bulbs. Again, you may wish to replace the other bulbs at this time since you've got it all apart anyhow.

12) When done, replace the light assembly onto the car and secure the nut/washers onto the screws. While this is not a muscle-man event, you do need to tighten them up using the adjustable wrench fairly tight to ensure there is no play or wiggle in the light assembly.

CHECKPOINT: At this point, it’* a good idea to start the car and check to make sure all lights are working correctly.

13) Final re-assembly:
Replace the felt liner on both sides over the screws
Replace the plastic sill
Re-position the tire cover on the sill
Replace the plastic ***** (cargo net holders.) CAUTION: When replacing the ****, do not tighten them too aggressively - they can strip pretty easy. Been there, done that.

For those who want the All Data instructions, see this link: http://www.bonnevilleclub.com/forum/...ic.php?t=70686 They suggest unplugging the light assembly from the harness and removing it from the car. Again, be careful when handling your tails – you don’t want to scratch them.

That’* it…. Now you can do more than just check the fluids and tire pressure… you are now safer and may have avoided the cost of a fine.
Attached Images
File Type: jpg misc075.jpg (52.9 KB, 15 views)
singscountry1967 is offline   Reply With Quote
Old 02-18-2007, 06:39 PM   #2
Senior Member
Posts like a Camaro

Join Date: Apr 2004
Location: Sioux Falls, SD. Member #2387
Posts: 907
Thanks: 0
Thanked 0 Times in 0 Posts
ten_gigahertz is on a distinguished road
Default

Great write-up!

One tiny tiny detail I could add is when screwing on the black plastic trim retainers (and cargo net holders) be sure to not tighten too aggressively. They can strip pretty easy. My car came with a stripped one when I bought it.

Awesome job, though.
ten_gigahertz is offline   Reply With Quote
Old 02-18-2007, 09:48 PM   #3
Senior Member
True Car Nut

Join Date: Oct 2002
Location: Groton, CT _NEBF 05, 06, 07_
Posts: 2,703
Thanks: 0
Thanked 0 Times in 0 Posts
markwb is on a distinguished road
Default

Tracy, you too could be a Gearhead. Excellent write up & picture presentation. Sorry it was 10 degrees though.
markwb is offline   Reply With Quote
Old 02-18-2007, 10:55 PM   #4
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

Great job! Good recommendation on replacing both bulbs at the same time. Even if only one is burned out, the other one will be right behind it in burning out. While you're in there, you may also want to replace the small running light (maybe a #89 bulb) on the side that often burns out about the same time.

One thing to mention, the plastic trim/sill guard, the center part on the bottom also supports the plastic cover for the spare tire well. Some tabs from that cover slip into slots on the trim piece.

It looks like a good techinfo article to me.
Archon is offline   Reply With Quote
Old 02-19-2007, 10:27 AM   #5
Junior Member
Thread Starter

Join Date: Aug 2005
Location: North of Buffalo, NY *** NEBF '05, '06, '07 *** ***ONBF & NYBF 06; 07*** ***WCBF 06***
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
singscountry1967 is on a distinguished road
Default

Quote:
Originally Posted by Archon
One thing to mention, the plastic trim/sill guard, the center part on the bottom also supports the plastic cover for the spare tire well. Some tabs from that cover slip into slots on the trim piece.
You know....I've been wondering what those slots were for!! Apparently, my spare tire cover has not been positioned correctly for a while....thanks for the info! I guess if all are positioned correctly, then I should edit the above to include lifting off the spare tire cover from it...

Thank you all for your help/suggestions!
singscountry1967 is offline   Reply With Quote
Old 02-19-2007, 12:02 PM   #6
Guest
Certified GM nut

Join Date: Jul 2004
Location: West Point, Utah - Village Idiot
Posts: 1,606
Thanks: 0
Thanked 2 Times in 2 Posts
SSE Motorhead is on a distinguished road
Default

Excellent! This should be posted in the tech info section.

Now go WASH your car!
SSE Motorhead is offline   Reply With Quote
Old 02-19-2007, 12:06 PM   #7
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

Tracy, often you can push down a bit on the trim piece and then slide it under the spare tire cover well enough for it to grab the tabs without having to remove the cover. That is, if the cover doesn't have too much weight on it.
Archon is offline   Reply With Quote
Old 02-19-2007, 12:08 PM   #8
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Tracy, can you get this ready (with added advice) for Techinfo, and move your pics to the GH account?
willwren is offline   Reply With Quote
Old 02-19-2007, 10:35 PM   #9
Junior Member
Thread Starter

Join Date: Aug 2005
Location: North of Buffalo, NY *** NEBF '05, '06, '07 *** ***ONBF & NYBF 06; 07*** ***WCBF 06***
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
singscountry1967 is on a distinguished road
Default

Sure thing! working on it
singscountry1967 is offline   Reply With Quote
Old 02-20-2007, 12:57 PM   #10
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

Nice job, Tracy.
