Default H.I.D problems?

Hey guys, I have an 01 SE. a few months ago I installed H.I.D assemblies in it and a few days ago I started to notice a problem. When I first start my car at night, my passenger side headlight comes on but the drivers side does. Now here is the most confusing part of the whole ordeal. If I turn the **** to just the marker lights and then back to its orgional position, then both lights come on... Anyone familiar with this problem? I am not sure if its the twilight sentinial or if its the H.I.D assembly itself. I would appreciate all advice. thanks in advance
black_friday is offline   Reply With Quote
Old 03-20-2009, 02:39 AM   #2
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

This is an after market part. I think the maker of that part might be better suited in figuring out whats going on. However; It sounds like it might be a ballast or an ignitor issue.
Purplehazeir is offline   Reply With Quote
Old 03-20-2009, 07:33 AM   #3
Senior Member
Posts like a Corvette

crunkfrunk's Avatar

Join Date: Jun 2008
Location: Cleveland, OH
Posts: 1,389
Thanks: 0
Thanked 0 Times in 0 Posts
crunkfrunk is on a distinguished road
Default

Do you have the balasts hooked into the stock headlight connectors? If you do you need to get the upgraded harness that pull power directly from the battery with a relay controlling it, I had the same problem in the winter, its a protection feature in the balast

and if that still doesn't solve the problem I'm working on a write up that will turn the headlights off while cranking like the car should have been from the factory
crunkfrunk is offline   Reply With Quote
Old 03-21-2009, 11:00 PM   #4
Senior Member
Posts like a Turbo
Thread Starter

black_friday's Avatar

Join Date: Dec 2006
Location: Cincinnati, Ohio
Posts: 484
Thanks: 0
Thanked 0 Times in 0 Posts
black_friday is on a distinguished road
Default

that seems like it would help my lights signal tremendously! Purplehazeir I agree that normally I would have contacted the manufacturer but they are asian and speak very poor english. Where can I get the upgraded parts you are talking about crunkfunk? Thanks for the input
black_friday is offline   Reply With Quote
Old 03-22-2009, 08:44 PM   #5
Senior Member
Posts like a Corvette

crunkfrunk's Avatar

Join Date: Jun 2008
Location: Cleveland, OH
Posts: 1,389
Thanks: 0
Thanked 0 Times in 0 Posts
crunkfrunk is on a distinguished road
Default

it'* called an HID relay harness, about $20-$25, but totally worth it, then the light disable while cranking is a little bit of wiring if your comforable let me know i'll make a little diagram
crunkfrunk is offline   Reply With Quote
Old 03-23-2009, 04:11 PM   #6
Senior Member
Posts like a Turbo
Thread Starter

black_friday's Avatar

Join Date: Dec 2006
Location: Cincinnati, Ohio
Posts: 484
Thanks: 0
Thanked 0 Times in 0 Posts
black_friday is on a distinguished road
Default

im totally comfortable doing it! Just tell me where I can get the parts and the diagram. I own an audio business so i am not afraid to rip anything apart in even a bentley
black_friday is offline   Reply With Quote
Old 03-23-2009, 08:41 PM   #7
Senior Member
Posts like a Corvette

crunkfrunk's Avatar

Join Date: Jun 2008
Location: Cleveland, OH
Posts: 1,389
Thanks: 0
Thanked 0 Times in 0 Posts
crunkfrunk is on a distinguished road
Default

the HID relay harness you can find online, then you will need a SPDT relay for the crank disable, give me a little bit to get my pen tablet working on my computer and I can draw you a diagram for what you need to do
crunkfrunk is offline   Reply With Quote
Old 03-23-2009, 09:16 PM   #8
Senior Member
Posts like a Corvette

crunkfrunk's Avatar

Join Date: Jun 2008
Location: Cleveland, OH
Posts: 1,389
Thanks: 0
Thanked 0 Times in 0 Posts
crunkfrunk is on a distinguished road
Default

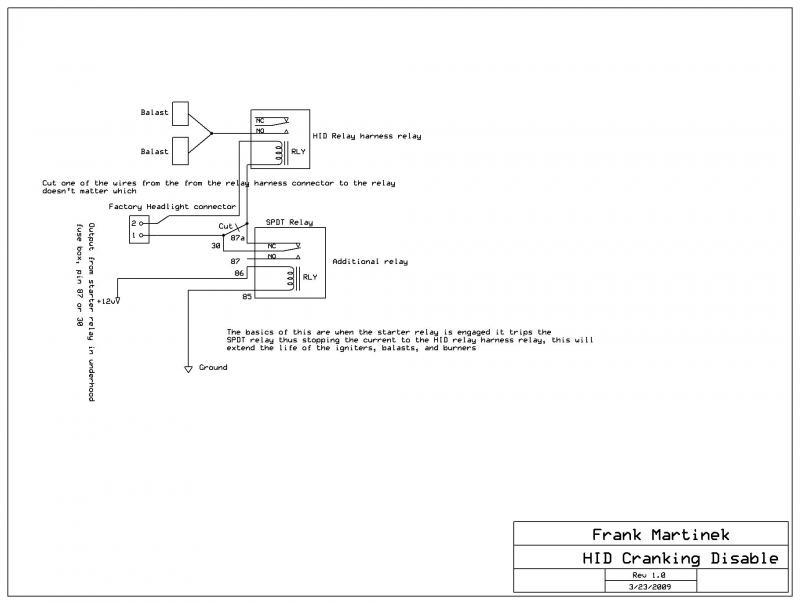

here is a diagram, save it and zoom in to see what is all there, let me know if you have any questions
Attached Thumbnails
H.I.D problems?-hid-disable.jpg
crunkfrunk is offline   Reply With Quote
Old 03-23-2009, 10:43 PM   #9
Senior Member
Posts like a Turbo
Thread Starter

black_friday's Avatar

Join Date: Dec 2006
Location: Cincinnati, Ohio
Posts: 484
Thanks: 0
Thanked 0 Times in 0 Posts
black_friday is on a distinguished road
Default

thanks a million!
black_friday is offline   Reply With Quote
Old 03-24-2009, 12:07 AM   #10
Senior Member
Posts like a Corvette

crunkfrunk's Avatar

Join Date: Jun 2008
Location: Cleveland, OH
Posts: 1,389
Thanks: 0
Thanked 0 Times in 0 Posts
crunkfrunk is on a distinguished road
Default

no problem, if anything comes up let me know
