Default Front power window failure

The front window on my 95 Bonn wont go down. It makes a clicking sound when powered. I took the door panel off to check the motor/regulator...and the motor seems to me to be working just fine....the lil teeth/gear on the end works but wont engage the big gear behind the window channel... Any ideas? suggestions? thanx... Mike
seahuntmike is offline   Reply With Quote
Old 03-08-2007, 08:19 AM   #2
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

It could be bound up (aka loosen bolts) or need to be greased. (uh.. search..I think Archon was the author)

Or ..it could simply be an old tired motor and need to be replaced.
BillBoost37 is offline   Reply With Quote
Old 03-09-2007, 02:38 PM   #3
Member
Posts like a V-Tak
Thread Starter

Join Date: Aug 2006
Location: Pensacola, FL
Posts: 33
Thanks: 0
Thanked 0 Times in 0 Posts
seahuntmike is on a distinguished road
Default

Could the motor still be bad if the lil gear on the end turns when turned on? Would one of the rear window motors fit the front?
seahuntmike is offline   Reply With Quote
Old 03-09-2007, 02:51 PM   #4
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Not sure, honestly we have such a low failure rate on window motors that you may even have trouble finding an answer through using the search feature. It'* worth a try though.
BillBoost37 is offline   Reply With Quote
Old 03-09-2007, 05:20 PM   #5
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

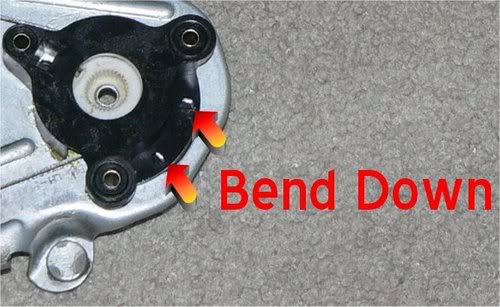

I'm not familiar with the '95 design. This is a picture of "the big gear" on a 2000 rear window regulator. Is yours similar to that?

Name:  ReelInstall.jpg
Views: 5
Size:  37.6 KBhttp://<br /> <br /> This is how i...0[/ATTACH]

With those, the small gear on the motor slips in the middle of that large gear and all the teeth mesh together. Are all the teeth in good shape on yours? Does the motor turn freely, but there'* no movement of the window when it'* put together, or does the motor not turn? If the motor doesn't turn when reinstalled, check out this thread by Bob Dillon and see if that helps.

http://www.bonnevilleclub.com/forum/...er=asc&start=0
Attached Images

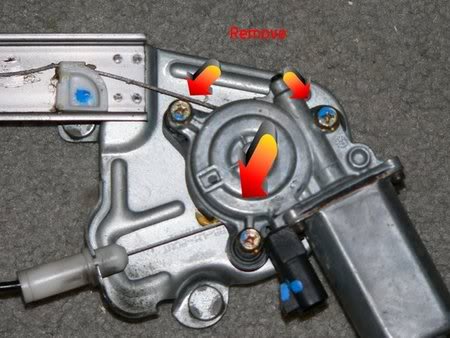

File Type: jpg Screws.jpg (34.3 KB, 3 views)
Archon is offline   Reply With Quote
Old 03-10-2007, 09:47 AM   #6
Member
Posts like a V-Tak
Thread Starter

Join Date: Aug 2006
Location: Pensacola, FL
Posts: 33
Thanks: 0
Thanked 0 Times in 0 Posts
seahuntmike is on a distinguished road
Default

The window mechanism on my 95 looks totally different than the one in the pic. When I had the motor off and powered up, the gear on the motor spins ..But when I reinstall it...I'm not sure if the gear isn't engaging into the big gear behind the bracket/brace or just spinning.... I can hear clicking sounds like it'* trying.....I've greased the window parts already... still no luck..
seahuntmike is offline   Reply With Quote
Old 03-10-2007, 12:41 PM   #7
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

You should be able to hear a whirring or similar sound from the motor if it is spinning, or feel the vibration. How do the teeth on the gears look? Are any stripped or broken? Did you grease the motor as per the link to Bob Dillon'* post?
Archon is offline   Reply With Quote
Old 03-10-2007, 06:32 PM   #8
Member
Posts like a V-Tak
Thread Starter

Join Date: Aug 2006
Location: Pensacola, FL
Posts: 33
Thanks: 0
Thanked 0 Times in 0 Posts
seahuntmike is on a distinguished road
Default

The motor is making a whirring sound and the teeth on the gear all look good with none missing or broken off. I've greaded all parts too. Still wont work/engage. Just makes a clicking sound.
seahuntmike is offline   Reply With Quote
Old 03-10-2007, 07:22 PM   #9
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

How is the gear attached to the motor? Could the motor shaft be turning without turning the gear once it'* under load? If that'* not the problem, we'll have to wait until someone familiar with the window regulator for your vehicle generation to jump in.
Archon is offline   Reply With Quote
Old 03-11-2007, 12:39 PM   #10
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

Quote:
Originally Posted by Archon
How is the gear attached to the motor? Could the motor shaft be turning without turning the gear once it'* under load? If that'* not the problem, we'll have to wait until someone familiar with the window regulator for your vehicle generation to jump in.
The motor is gear driven.... But the 87-99 Bonnevilles use a Nylon/Plastic Ribbon of sorts with holes in it for the gear.... Its possible for the plastic ribbon to strip out... I haven't seen to many that had that failure, But from time to time with the age its possible.. Might almost be easier to get another unit from the wrecker
