Old 07-04-2007, 01:17 PM   #11
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Apr 2005
Location: Starbuck, MN
Posts: 259
Thanks: 0
Thanked 0 Times in 0 Posts
viper8907 is on a distinguished road
Default

alright thats what i figured i would end up doing, putting in an external relay, but i am with you on that one, i want to make sure its not going to mess anything up before i do it, oh and i dont have a problem splicing wires, i've done a lot of that before.
viper8907 is offline   Reply With Quote
Old 07-11-2007, 06:45 PM   #12
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

I finally got the opportunity to look the schematics over. I believe that I've found a way to do it with one external relay and without cutting any wires. There are two minuses to it, however - both are related. #1 - You will not be able to turn off the fogs when the high beams are on. The fogs will work normally any other time. #2 - The fogs will be on anytime the high beams are, whether activated with the fog light switch or not.

If this is acceptable, let me know and I'll do some testing and then post how to do it.
Archon is offline   Reply With Quote
Old 07-12-2007, 12:14 AM   #13
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Apr 2005
Location: Starbuck, MN
Posts: 259
Thanks: 0
Thanked 0 Times in 0 Posts
viper8907 is on a distinguished road
Default

yea thats acceptable, i dont mind them being on all the time at all.
viper8907 is offline   Reply With Quote
Old 07-12-2007, 07:49 PM   #14
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

I'm going to start this off with a disclaimer. This mod will violate the motor vehicle code in many states that says that a maximum of 4 lamps can be lit (Michigan is one of them) at any one time. With this mod, when the high beams are activated, the 4 head lamps and the 2 fog lamps will be lit for total of 6, which could cause you to be stopped, and written a citation by the police. That is the reason the fogs are normally turned off with high beam activation. Use this procedure (or any of the various options) at your own risk. Neither me, nor anyone associated with this site accept any responsibility for you using this procedure.

The external relay and wires needed for this do not have to be heavy duty as they will not carry the current for the lamps. All that they will do is provide a ground path for the fog lamp relay that is removed when the high beams are turned on.

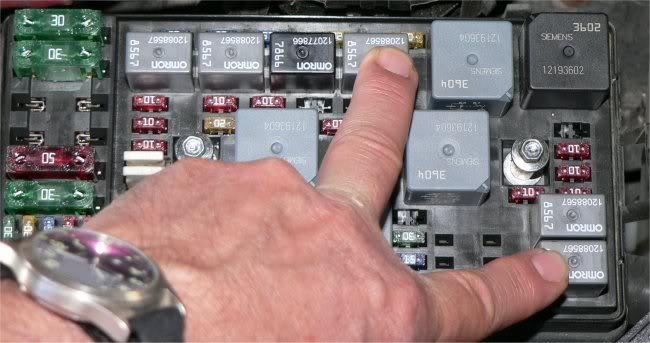

The following picture shows which relays' terminals will be used for this. The lower right is the high beam relay, and the upper center is for the fog lights.
Name:  Relays.jpg
Views: 11
Size:  45.3 KB

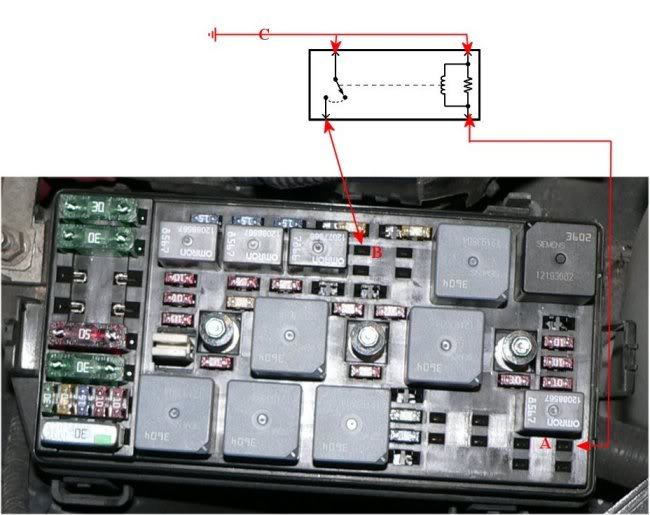

Remove the two relays shown above. Use the picture below for how to install the relay. I've shown where the wires will need to be attached, rather than relay connection numbers, as those vary depending on which way the relay is installed into the socket. Be certain to make your wires long enough to reach to where you decide to install the external relay.

Wrap one wire around the leg of the relay for the high beams that will correspond to point A on the picture. Attach the other end of that wire to the connection on the external relay that goes to one end of the coil.

Wrap another wire around the fog lamp relay leg that will be inserted into point B on the picture. Attach the other end of that wire to a connection on the external relay that corresponds with the switched section.

The two remaining connections on the external relay attach to ground. For the testing, I used the bolt for the alternator bracket as a grounding point.
Name:  Fog-HBeams.jpg
Views: 10
Size:  54.8 KB
Doing this will make the fog lights stay on when the high beams are activated, and automatically turn on anytime the high beams are on. The fog lights can be turned on and off with the regular fog lamp switch with the low beams or DRL. If you want the ability to shut off the fog lights when the high beams are on, or to switch this mod on and off, cut the ground wire at point C, and install a switch. If you want the fog lamps to be lit anytime the key is turned to run, connect a wire from point B to ground.
Archon is offline   Reply With Quote
Old 07-17-2007, 03:31 PM   #15
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Apr 2005
Location: Starbuck, MN
Posts: 259
Thanks: 0
Thanked 0 Times in 0 Posts
viper8907 is on a distinguished road
Default

wow sorry it took me so long to reply back, that is exactly what i was looking for, i am going to try that, probably wont be for a while though since im pretty busy right now, but i will let you know how it turns out/ if i have any questions.

thanks!
viper8907 is offline   Reply With Quote
Old 07-24-2007, 02:19 AM   #16
Senior Member
Posts like a Turbo

Join Date: May 2007
Location: Sycamore, IL (ILRt. 64 and ILRt. 23)
Posts: 303
Thanks: 0
Thanked 0 Times in 0 Posts
01BonneSC is on a distinguished road
Default

Found this on midwest3800.com . someone with a '00 GTP did this.....
"Installed Jumper wire from relay 11 to relay 17 to allow fog lights to stay on with the high beams. "
I havnt tried it, not even sure if GTP box is the same as Bonne......?
01BonneSC is offline   Reply With Quote
Old 07-24-2007, 02:30 AM   #17
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

We don't have a relay 11 or 17. You'd also have to know which of the 4 connections on each relay to use for the jumper.
Archon is offline   Reply With Quote
Old 02-09-2009, 10:31 PM   #18
Senior Member
Posts like a Turbo

excessive81's Avatar

Join Date: Dec 2003
Location: INDIANA
Posts: 248
Thanks: 0
Thanked 0 Times in 0 Posts
excessive81 is on a distinguished road
Default

i was just going to post asking if anyone had done this mod. i did it to my camaro and want to to it to bonn and my vette. so just grounding post b on the fog relay will have fog lights on all the time with no need for relay? that what i really want

Last edited by excessive81; 02-09-2009 at 10:32 PM.
excessive81 is offline   Reply With Quote
Old 02-10-2009, 06:47 AM   #19
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I'll have to see if we can come up with a new write up for this. Might take a while.
Danthurs is offline   Reply With Quote
Old 09-26-2009, 11:49 PM   #20
Junior Member

Join Date: Sep 2009
Posts: 1
Thanks: 0
Thanked 0 Times in 0 Posts
carlpfei1 is on a distinguished road
Default

Hey guys, new member here, I just tried this and it did not work? I have a 2002 bonneville SLE, i tried numerous times, and switch to all points on the realay, tested the ground etc! any other options for having high beams and fog lights??
carlpfei1 is offline   Reply With Quote
