Old 09-29-2006, 11:13 PM   #11
Senior Member
Posts like a Camaro

Join Date: Jan 2004
Location: Colorado Springs C.O.
Posts: 851
Thanks: 0
Thanked 0 Times in 0 Posts
duffer26 is on a distinguished road
Default

i just got a new dash and my isues are fixed never went through the trouble of looking for the grounds due to the fact that everything elts works finr hud speedo tach and all lighting never flicker so i just went for a new dash and wala now i can watch my boost agin
duffer26 is offline   Reply With Quote
Old 09-29-2006, 11:55 PM   #12
Member
Posts like a V-Tak

Join Date: Sep 2006
Location: Oak Ridge, TN USA
Posts: 33
Thanks: 0
Thanked 0 Times in 0 Posts
DrewB is on a distinguished road
Default

Quote:
Originally Posted by duffer26
i just got a new dash and my isues are fixed never went through the trouble of looking for the grounds due to the fact that everything elts works finr hud speedo tach and all lighting never flicker so i just went for a new dash and wala now i can watch my boost agin
But can you see your odometer at night? Pease advise. See this link for a discussion of the problem:

http://www.bonnevilleclub.com/forum/...ic.php?t=63271
DrewB is offline   Reply With Quote
Old 09-29-2006, 11:58 PM   #13
Senior Member
Posts like a Camaro

Join Date: Jan 2004
Location: Colorado Springs C.O.
Posts: 851
Thanks: 0
Thanked 0 Times in 0 Posts
duffer26 is on a distinguished road
Default

ya mine is digital so it is either on or not sorry didnt know it was related to other thread or i would have stayed out but my 93 SE had no prob seeing the odo in the dark it lit up well
duffer26 is offline   Reply With Quote
Old 09-30-2006, 01:10 AM   #14
Member
Posts like a V-Tak

Join Date: Sep 2006
Location: Oak Ridge, TN USA
Posts: 33
Thanks: 0
Thanked 0 Times in 0 Posts
DrewB is on a distinguished road
Default

Quote:
Originally Posted by duffer26
ya mine is digital so it is either on or not sorry didnt know it was related to other thread or i would have stayed out but my 93 SE had no prob seeing the odo in the dark it lit up well
Thanks, the info on your 93 SE helps anyway. I am still learning the various options so I will express my ignorance. I knew there were GM digital dashes but I was unaware that the Bonny had them.
DrewB is offline   Reply With Quote
Old 09-30-2006, 02:19 AM   #15
Senior Member
Posts like a Camaro

Join Date: Jan 2004
Location: Colorado Springs C.O.
Posts: 851
Thanks: 0
Thanked 0 Times in 0 Posts
duffer26 is on a distinguished road
Default

Quote:
Originally Posted by DrewB
Quote:
Originally Posted by duffer26
ya mine is digital so it is either on or not sorry didnt know it was related to other thread or i would have stayed out but my 93 SE had no prob seeing the odo in the dark it lit up well
Thanks, the info on your 93 SE helps anyway. I am still learning the various options so I will express my ignorance. I knew there were GM digital dashes but I was unaware that the Bonny had them.

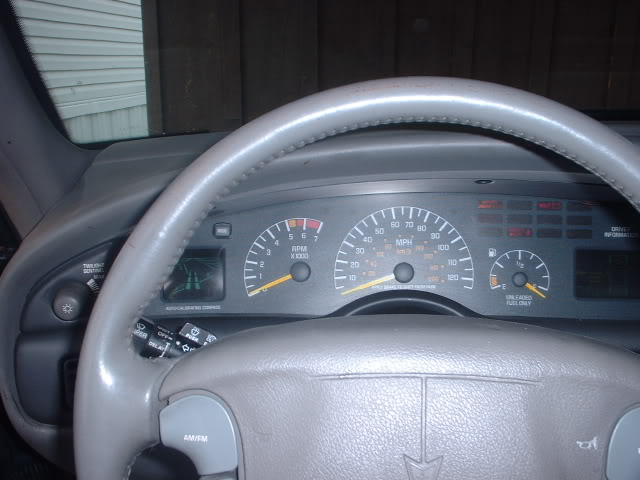

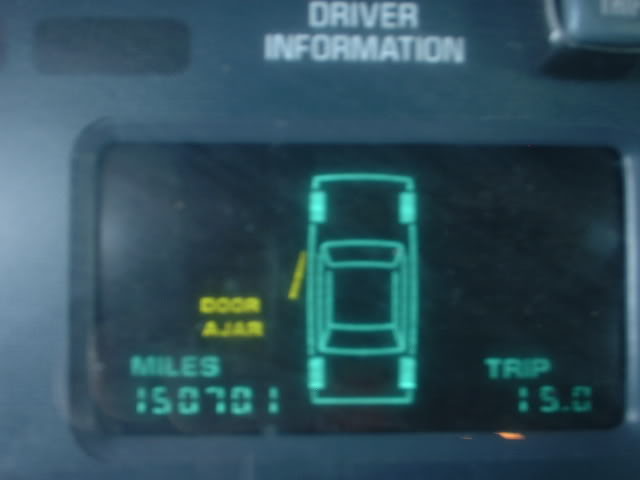

just parts of it are digital and the odo is one of them parts here is a pick the compass is on the left and the info center is on the rite with things like a lamp faluer system and door monitor and trip aswell as odo
Name:  e61838ba.jpg
Views: 1
Size:  47.3 KB
Name:  49dcb700.jpg
Views: 1
Size:  20.4 KB
duffer26 is offline   Reply With Quote
Old 09-30-2006, 11:18 AM   #16
Senior Member
Posts like a Camaro

Join Date: Feb 2005
Location: Gilroy, California
Posts: 922
Thanks: 0
Thanked 0 Times in 0 Posts
Bob Dillon is on a distinguished road
Default

Boosty shot me a new headlight switch and my dash lights are again bright.

Since I have twilight sentinel and thus never use the headlight switch, I think that lets crud build up on the contacts.
Bob Dillon is offline   Reply With Quote
Old 10-03-2006, 11:02 AM   #17
Junior Member
Thread Starter

Join Date: Sep 2006
Posts: 5
Thanks: 0
Thanked 0 Times in 0 Posts
old_newbie is on a distinguished road
Default

Update on dash.
Well it looks like I need to find another dash. I removed it cleaned all contacts and reinstalled it. Checked all of the grounds and started it up - my dash worked!!! - for about 5 min. until it warmed up - ping and all guages (except the tach and speedo) go dead. Took it all out again and cleaned it and looked for bad solder joints. Put it back in, worked again for about 5 min.
This is the pattern it repeats now, when it is cold in the morning it works fine, as soon as it heats up they go dead. Bad component in a circuit card I assume.
old_newbie is offline   Reply With Quote
Old 10-03-2006, 11:47 AM   #18
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

If you reflow the solder on most of the major contacts..I bet you'd get it.
BillBoost37 is offline   Reply With Quote
Old 10-03-2006, 12:01 PM   #19
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

Quote:
Originally Posted by BillBoost37
If you reflow the solder on most of the major contacts..I bet you'd get it.
Exactly....you often can not see the bad joints just by looking at them.
Archon is offline   Reply With Quote
Old 10-03-2006, 12:14 PM   #20
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I should have added ...

Having pulled one of these dashes apart many times. There are many spots to look at and reflow.

I wouldn't waste time trying to get the smaller ones. Aim for the main power coming into the dash and ground first. Especially at the connectors going into the main PCB.
BillBoost37 is offline   Reply With Quote
