Factory alarm tripping for no reason

Thread Tools

Search this Thread

Old Apr 22, 2008 | 02:41 PM
  #11
99SSEI's Avatar
Thread Starter
Senior Member
Posts like a Supercharger

Joined: Apr 2006
Posts: 185
Likes: 0
From: Schaumburg, IL
99SSEI is on a distinguished road
Default

Oh great...finding a bad ground is like a needle in a hay stack.
Don't know where to begin and definately don't want to pay $100/hour for the dealer to find it.
Reply
Old Apr 22, 2008 | 09:55 PM
  #12
99SSEI's Avatar
Thread Starter
Senior Member
Posts like a Supercharger

Joined: Apr 2006
Posts: 185
Likes: 0
From: Schaumburg, IL
99SSEI is on a distinguished road
Default

SOB!! After synching the fob at work, no issues. When I got home, I took the k&n out to clean/re-oil, then when I was all done, I closed all doors/hood and armed alarm. I have 2 fobs (one sits in a drawer) so I took the battery out of the 2nd to see if that is the case. WIthin 10 minutes, the alarm was going off! Grrr! I un-armed and manually locked the doors as Wilren posted. Tomorrow night, I'll have to check the grounds in the tech-info sheet Wilren posted (too late tonight).
Reply
Old Apr 23, 2008 | 09:10 AM
  #13
99SSEI's Avatar
Thread Starter
Senior Member
Posts like a Supercharger

Joined: Apr 2006
Posts: 185
Likes: 0
From: Schaumburg, IL
99SSEI is on a distinguished road
Default

This morning on my ride into work (1 hour), I heard the car chimes going off and on randomly. I looked at the information center and noticed the "hood open" sensor was going wacko (randomly coming on and off as if there were a loose connection). Maybe that'* where the short is? I'll check it out tonight.
Reply
Old Apr 23, 2008 | 12:10 PM
  #14
willwren's Avatar
Junior Member
Posts like a Ricer Type-R

Joined: Aug 2002
Posts: 11
Likes: 13
willwren is on a distinguished road
Default

What do you mean you 'armed' the alarm? It'* a passive system.

I'm thinking we're not talking about a factory alarm here. And chasing down bad grounds isn't hard at all. I gave you the link already. It takes 5 minutes to check.
Reply
Old Apr 23, 2008 | 01:19 PM
  #15
99SSEI's Avatar
Thread Starter
Senior Member
Posts like a Supercharger

Joined: Apr 2006
Posts: 185
Likes: 0
From: Schaumburg, IL
99SSEI is on a distinguished road
Default

Sorry. When I say "armed" I really mean using the factory fob "Lock" button, which locks the doors, triggers the horn and lights flash. Sorry for the confusion.
I'll check the bus connectors tonight and report back findings.
Reply
Old Apr 24, 2008 | 08:53 PM
  #16
99SSEI's Avatar
Thread Starter
Senior Member
Posts like a Supercharger

Joined: Apr 2006
Posts: 185
Likes: 0
From: Schaumburg, IL
99SSEI is on a distinguished road
Default

Both sides are clean:

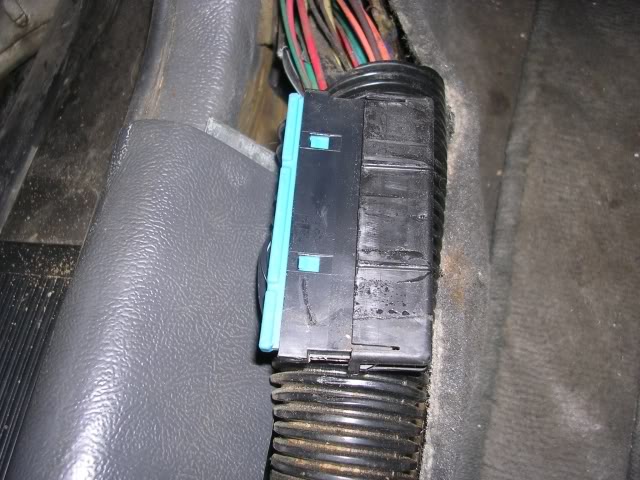

Drivers side:
Name:  DSCN1033.jpg
Views: 2320
Size:  68.6 KB

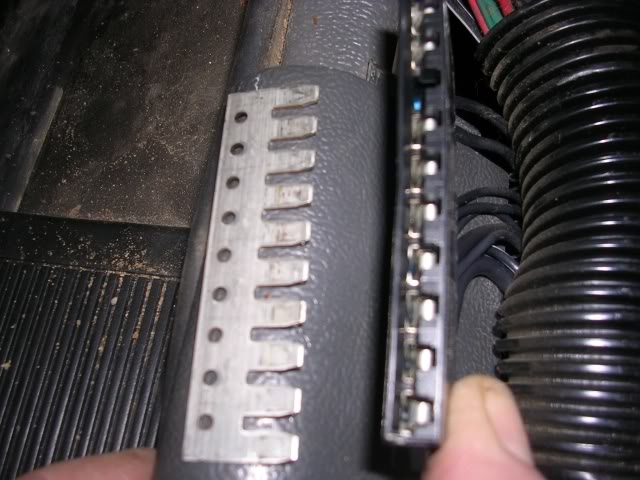

Name:  DSCN1035.jpg
Views: 2314
Size:  55.8 KB

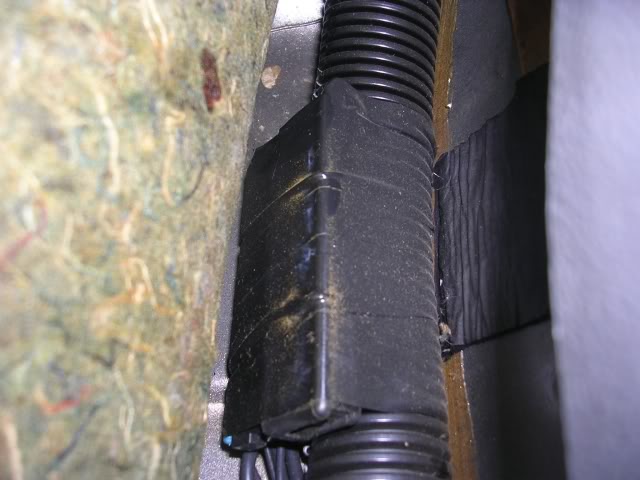

Passenger side:
Name:  DSCN1036.jpg
Views: 2397
Size:  43.9 KB

EDIT: I tried opening the hood, depressing the hood sensor a few times, then closed it. Still getting the random hood open signal. Seems like it'* only on acceleration. Any ideas what to check next?
Reply
Old Apr 26, 2008 | 08:57 PM
  #17
popatim's Avatar
PopaDopaDo
True Car Nut

Joined: Jan 2005
Posts: 4,957
Likes: 4
From: NY
popatim is on a distinguished road
Default

You've got a flaky hood sensor. replace it or by pass it until you can.
Reply
Old Apr 27, 2008 | 03:57 AM
  #18
99SSEI's Avatar
Thread Starter
Senior Member
Posts like a Supercharger

Joined: Apr 2006
Posts: 185
Likes: 0
From: Schaumburg, IL
99SSEI is on a distinguished road
Default

I disconnected the hood sensor and found corosion and a missing pin (probably stuck in the lever). I'm still getting the flickering. I'll look into replacing the sensor, but if disconnecting it doesn't work, is that the problem?
Reply
Old Apr 27, 2008 | 08:41 PM
  #19
popatim's Avatar
PopaDopaDo
True Car Nut

Joined: Jan 2005
Posts: 4,957
Likes: 4
From: NY
popatim is on a distinguished road
Default

make sure your battery connections are tight. I forgot I had a problem with my aftermarket alarm going off for no reason that turned out to be a loose battery cable.
Reply
Old Apr 28, 2008 | 08:52 PM
  #20
99SSEI's Avatar
Thread Starter
Senior Member
Posts like a Supercharger

Joined: Apr 2006
Posts: 185
Likes: 0
From: Schaumburg, IL
99SSEI is on a distinguished road
Default

Checked and tightened battery terminal. Didn't solve it.
I disconnected the hood sensor to see if that worked and it still would go off at random.
The connectors on the female end were corroded and one of the terminals (where the male pin goes inside of) was missing. I couldn't get the hood sensor off without breaking the plastic rivets. (man those things are a pain to get to, let alone take off!!).
I figured I need to replace the connector on the wire end, so I clipped the cables.
Still random hood open messages (bing, bing, bing - Annoying!)

If I connect the two wires (black and red w/black), will that bypass the plastic actuator?
Reply
