Default ECC is not lighting up or working

i just noticed today when i got in my car to leave that the dislpay on my ECC is not on. Is there a fuse that is possibly blown or has the whole unit just ginin out? By the way its a 92 SSE. I could really use your help.
tonys92 is offline   Reply With Quote
Old 01-14-2007, 12:04 PM   #2
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Without digging into the circuit in the FSM, (using the owner'* manual only right now), check fuse 20 to the left and above the brake pedal (squeeze the two metal tabs to rotate it down and remove the cover). Should be a 10 amp fuse, and not blown.

If that one is good, you need to remove the passenger side hushpanel, above your passenger'* feet. There are 3 screws? on the trailing edge, and a nut way up by the firewall. After it'* out, you'll see another fuse/relay panel at the base of the A-pillar. Fuse 1 is a 10amp fuse for your A/C Programmer.

If both of these fuses are good, post back here, and I'll dig the circuit out of my car in the driveway in the bitter frigid freezing cold for you.
willwren is offline   Reply With Quote
Old 01-14-2007, 05:49 PM   #3
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Jan 2007
Location: Florence, Kentucky
Posts: 23
Thanks: 0
Thanked 0 Times in 0 Posts
tonys92 is on a distinguished road
Default i checked the fuses

I checked the fuses and they are both good. I couldnt get the blower motor to work a couple of weeks ago so I ran a toggle switch to it. It was working fine, heat and air both blew cold. Since th display went out on the ECC when I flip the toggle switch it blows out hot air. I tried turning the temp down but it doesnt do anything. Let me know what I should try next. Thanks
tonys92 is offline   Reply With Quote
Old 01-14-2007, 06:56 PM   #4
Senior Member
True Car Nut

Join Date: Jan 2005
Location: Montevideo, MN MWBF '05, '06, '07 WCBF '06 '07 survivor
Posts: 3,882
Thanks: 0
Thanked 0 Times in 0 Posts
sonoma_zr2 is on a distinguished road
Default

sounds like a blower control module (bcm). easy enough to replace, check the jy'* for a cheap one. it is located underneath the maxi fuse panel in the engine compartment, on the firewall.
sonoma_zr2 is offline   Reply With Quote
Old 01-23-2007, 06:21 PM   #5
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Jan 2007
Location: Florence, Kentucky
Posts: 23
Thanks: 0
Thanked 0 Times in 0 Posts
tonys92 is on a distinguished road
Default can u tell me what it looks like

can u tell me what it looks like or possibly have a link to a pic?
tonys92 is offline   Reply With Quote
Old 02-12-2007, 11:12 AM   #6
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Jan 2007
Location: Florence, Kentucky
Posts: 23
Thanks: 0
Thanked 0 Times in 0 Posts
tonys92 is on a distinguished road
Default

Ok i finally figured out what the bcm looked like and got a new one. put it in and still no display on the ECC. Bought a new ECC from junkyard, and still no display. Is there a Maxi fuse or relay somewhere i might be missing? Any suggestions?
tonys92 is offline   Reply With Quote
Old 02-13-2007, 05:43 PM   #7
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Jan 2007
Location: Florence, Kentucky
Posts: 23
Thanks: 0
Thanked 0 Times in 0 Posts
tonys92 is on a distinguished road
Default

Can anybody help me? Im at he point where im gona put one of those portable heaters that plug into the cig lighter in my car. If anyone has any idea what might be wrong please let me know.
tonys92 is offline   Reply With Quote
Old 02-16-2007, 09:55 PM   #8
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Jan 2007
Location: Florence, Kentucky
Posts: 23
Thanks: 0
Thanked 0 Times in 0 Posts
tonys92 is on a distinguished road
Default anybody have any suggestions?

Either noone is reading this or nobody knows what to do next. My ecc stoped lighting up and stopped working all together. I checked the fuses they r good. I replaced the bcm and ecc and still nothing. Anybody know what i should do next? Any suggestions are greatly appreciated.
tonys92 is offline   Reply With Quote
Old 02-16-2007, 10:24 PM   #9
Senior Member
Posts like a Northstar

Join Date: Sep 2005
Location: Dayton, OH
Posts: 600
Thanks: 0
Thanked 0 Times in 0 Posts
imidazol is on a distinguished road
Default

I wonder if anything else quits working? Power door locks quit?

I had a funny problem with a 93 where the ECC lost control and went into defrost default vacuum and turned on the compressor. But blower switch worked on my manual air conditioning. The power door locks also cut out at the same time.

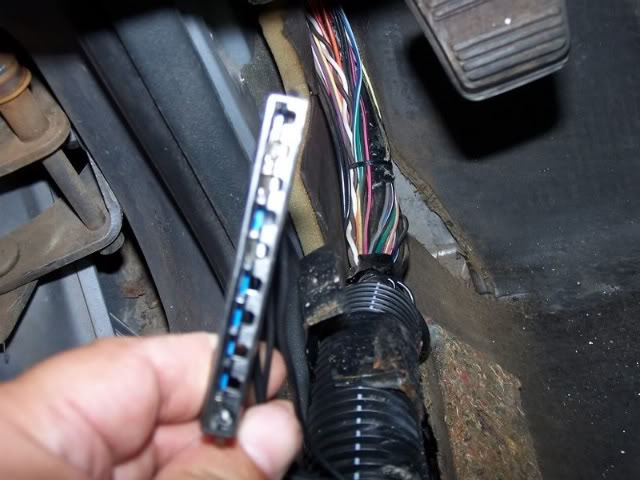

I figured out it probably was a ground problem. If you're in a moist climate or cold and snow where it gets tracked in and the carpet stays wet.... I just went back and see you're in Florence. You just had a heavy snow last week and ice and snow this week. Maybe the moisture got to buss.

Name:  100_1930.jpg
Views: 7
Size:  53.9 KB

Others may have suggestions but I'd try some impact and pushing around to see if a corroded ground buss makes contact.
imidazol is offline   Reply With Quote
Old 02-17-2007, 12:23 AM   #10
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Jan 2007
Location: Florence, Kentucky
Posts: 23
Thanks: 0
Thanked 0 Times in 0 Posts
tonys92 is on a distinguished road
Default

thanks for the reply ill check the grounds in the morning. My door looks havent worked since i got the car i november. maybe thats why. thanks again ill let u know how it turns out.
