Default DIC sez: Everything is wrong

I've recently been having some issues with my Driver Information Centre. I suspect its loose wiring, or worst case scenario, the PCM is fried.

When I start the car, the gages sweep and the DIC fully illuminates, the ODO and TRIP counter read solid 8'*, the warning lights then do not go off, the HUD reads all possible options, Fuel low, Check gages etc, however the speed reads correctly, as do the turn signals.

The DIC then does not reset, all the warning lights stay on and the warning tone constantly dings. Evantually it goes off, but its becoming more regular now, and malfunctioning for longer times.

If its wiring, something is probably loose, where can I find the loose wire for the fix? Do I need to pull the dash? or do I need a new PCM/ECM
Jim W is offline   Reply With Quote
Old 11-03-2005, 12:34 PM   #2
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

I think your PCM is fine... But the DIC module may be dead or going out...

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 11-03-2005, 01:38 PM   #3
Senior Member
Expert Gearhead
Thread Starter

Join Date: Dec 2002
Location: Mississauga, Ontario
Posts: 20,892
Thanks: 0
Thanked 1 Time in 1 Post
Jim W is on a distinguished road
Default

Thanks Don, does that mean new dash panel? Or can I pull the dash and replace a Plug and Play DIC module?

heh, my 89 was NOTHING like this 94 SSEi.
Jim W is offline   Reply With Quote
Old 11-03-2005, 01:55 PM   #4
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

Quote:
Originally Posted by Jim W
Thanks Don, does that mean new dash panel? Or can I pull the dash and replace a Plug and Play DIC module?

heh, my 89 was NOTHING like this 94 SSEi.
Not sure Boss... You may need to check some grounds and wiring as well.. we need the SSE-SSEi guys to chime in..

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 11-03-2005, 02:06 PM   #5
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

I'm wondering at this point if it'* the DIC itself or a remote module. I'll have to check my FSM'* to see what'* what. I think your 94 should be very similar to a 95, but couldn't be much different if at all to the 93, either. I have 93 and 95 FSM'*. I'll do some digging this weekend if I have time in both sets of manuals and see if I can get us started on this.
willwren is offline   Reply With Quote
Old 11-03-2005, 02:38 PM   #6
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Jim..Welcome to the world of 94-95 SSEi'*.

I think all the below fall into the list of things to check before condeming the cluster.
Cluster wire harness connections
Water under driver front carpet.
Ground wire behind the emergency brake pedal area.
BillBoost37 is offline   Reply With Quote
Old 11-03-2005, 03:59 PM   #7
Senior Member
Expert Gearhead
Thread Starter

Join Date: Dec 2002
Location: Mississauga, Ontario
Posts: 20,892
Thanks: 0
Thanked 1 Time in 1 Post
Jim W is on a distinguished road
Default

Thanks for the insights Bill(*)

If you have time to look into the FSM that would be great.

As for the checklist.
1. Where can I find the cluster harness?
2. Water could be possible, however there is no indication of water damage or musty smells.
3. There was some work done to my e-brake system in order to get the car certified. I'll take a look underneath.
Jim W is offline   Reply With Quote
Old 11-03-2005, 06:27 PM   #8
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Quote:
Originally Posted by Jim W
Thanks for the insights Bill(*)

If you have time to look into the FSM that would be great.

As for the checklist.
1. Where can I find the cluster harness?
Attached securely to the back of the cluster.
2. Water could be possible, however there is no indication of water damage or musty smells.
Pull back the floor mat and feel the carpet.
3. There was some work done to my e-brake system in order to get the car certified. I'll take a look underneath.
I think it'* technically the left side of the car behind the mounting for the brake.
BillBoost37 is offline   Reply With Quote
Old 11-05-2005, 02:17 AM   #9
Senior Member
True Car Nut

Join Date: May 2003
Location: Lethbridge, Alberta, _______Canada._______ West Coast Bonneville Fest ___05,06,07 Survivor___
Posts: 8,134
Thanks: 0
Thanked 0 Times in 0 Posts
SSEimatt93 is on a distinguished road
Default

Jim when my DIC was acting up, all i did was remove the cluster, take it apart and simply clean all visible connections, not a single hiccup since.
Wasn't to hard of a job either, suprised me
SSEimatt93 is offline   Reply With Quote
Old 11-05-2005, 12:04 PM   #10
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

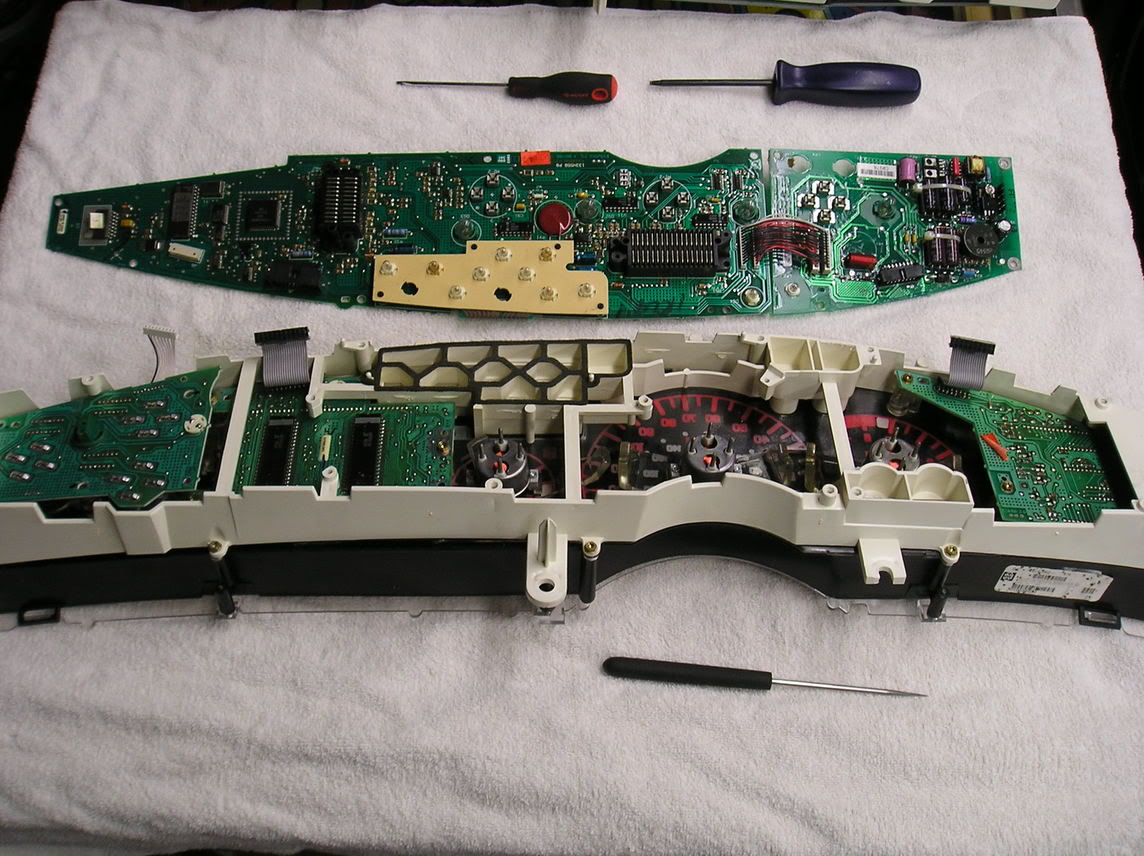

Jim..here'* a pic.
Name:  Gauges1.jpg
Views: 8
Size:  179.2 KB
Tips, Don't drop the column
Don't pull the black screws

It'* easy!!
BillBoost37 is offline   Reply With Quote
