Default Can I make My Cigarette Lighter Switched?

I have a 1999 Bonneville SLE and I recently bought a portable GPS for use in it and other vehicles. The GPS is powered through the cigarette lighter. I like the portability of the GPS (I don't want to permanently install it), and my wife likes the cell-phone "hands-free" capability the GPS provides. My problem is that the cigarette lighter is always powered, so we must always remember to plug/unplug the GPS unit. Is there a way to change the cigarette lighter so that it is not powered when the ignition is off?
Daytona is offline   Reply With Quote
Old 01-21-2007, 02:36 PM   #2
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Twin Falls, Idaho
Posts: 7,545
Thanks: 0
Thanked 1 Time in 1 Post
Hans is on a distinguished road
Default

you could install a relay and find an igntion only circuit to run the remote wire to
Hans is offline   Reply With Quote
Old 01-21-2007, 02:42 PM   #3
Senior Member
True Car Nut

Join Date: Mar 2005
Posts: 2,688
Thanks: 0
Thanked 0 Times in 0 Posts
dillcc is on a distinguished road
Default

I'm by no means an electronics expert, but could you just install a switch directly into one of the wires?

Edit - I forgot your looking to eliminate all manual requirements
dillcc is offline   Reply With Quote
Old 01-21-2007, 02:56 PM   #4
Senior Member
True Car Nut

Join Date: Dec 2003
Location: Corn Fields, IN
Posts: 2,766
Thanks: 0
Thanked 0 Times in 0 Posts
John Deere Boy is on a distinguished road
Default

Yes this is very possible. In fact, you could even use the car'* retained accessory power if you would like, so that the GPS stays on until you open the car door to get out. Like Hans said, You should get a 12V relay from Radio Shack or you local electronics store and use the Hot-in-Run or Retained Accessory Power wire going to the radio to switch the relay. Use an inline splice to tap into the radio wire. This would be maybe a 20-minute mod if you're not good with electronics. Someone with a 99 FSM can tell you which radio wire to splice into.
John Deere Boy is offline   Reply With Quote
Old 01-21-2007, 04:10 PM   #5
Senior Member
Certified Car Nut

dbeast420's Avatar

Join Date: Aug 2004
Location: My reclining computer chair
Posts: 11,269
Thanks: 0
Thanked 0 Times in 0 Posts
dbeast420 is on a distinguished road
Default

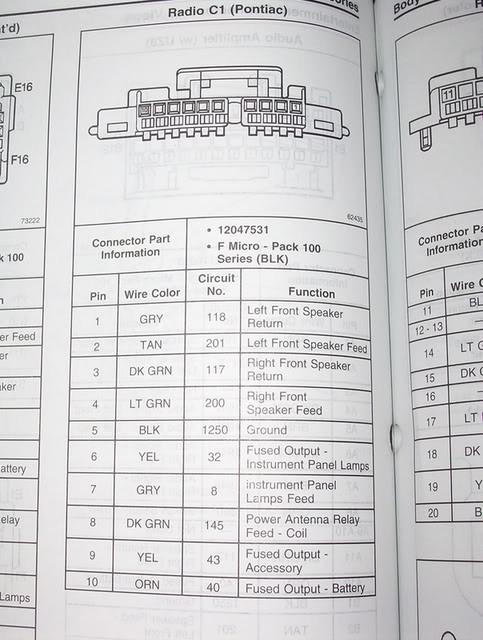

Here'* a pic from my FSM.

Starting from the right,it is the next to the last pin #9. It'* a yellow wire
Name:  100_3623.jpg
Views: 2
Size:  70.3 KB
dbeast420 is offline   Reply With Quote
Old 01-21-2007, 08:43 PM   #6
Junior Member
Thread Starter

Join Date: Jan 2007
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
Daytona is on a distinguished road
Default

Thanks for the prompt replies!!! I will try installing the relay. Doesn't sound too difficult. I'll reply with the results after I finish.
Daytona is offline   Reply With Quote
Old 01-22-2007, 05:23 PM   #7
Junior Member
Thread Starter

Join Date: Jan 2007
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
Daytona is on a distinguished road
Default

Thanks to all who replied to my original post. I installed a relay and now my lighter shuts off after I turn-off the ignition and open the door. This is a great forum!!!
Daytona is offline   Reply With Quote
Old 01-22-2007, 05:25 PM   #8
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

indeed it is... glad you got what you needed!
harofreak00 is offline   Reply With Quote
Old 01-22-2007, 09:55 PM   #9
Senior Member
True Car Nut

Join Date: Mar 2005
Posts: 2,688
Thanks: 0
Thanked 0 Times in 0 Posts
dillcc is on a distinguished road
Default

Wow, that was quick!! Nice job and glad to hear it worked great!
