How to fix a dim Regal cluster odometer DIC
Thread Starter
DINOSAURUS BOOSTUS
Expert Gearhead
Joined: Mar 2005
Posts: 41,391
Likes: 30
From: Enfield, CT
How to fix a dim Regal cluster odometer DIC
10 150 ohm 1/4 watt resistors (Radio Shack)

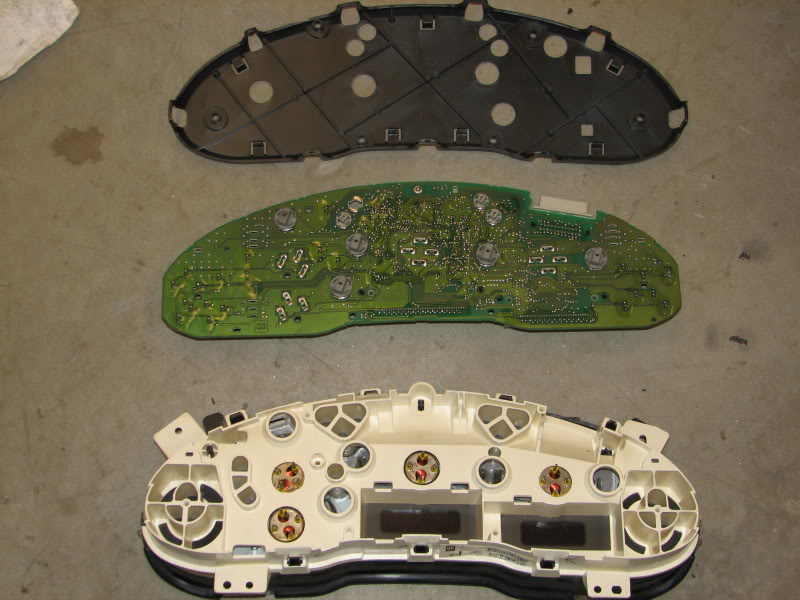

Once the cluster is out, unclip the black plastic on the back. Pull the circuit board off the front of the cluster and look at the burnt barrel resistors.

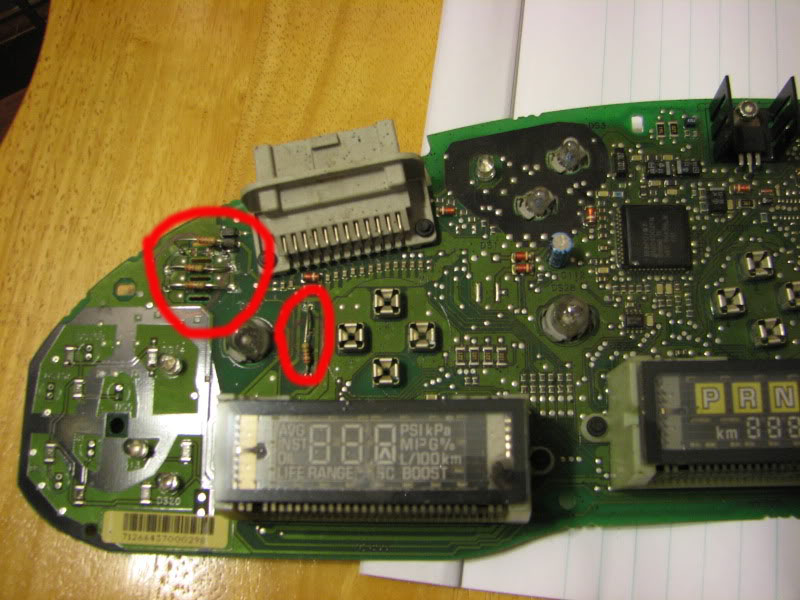

There are a total of 10 resistors to be changed. The pictures show the resistors missing. Places where they belong are circled. Four here for the ODO
Four here

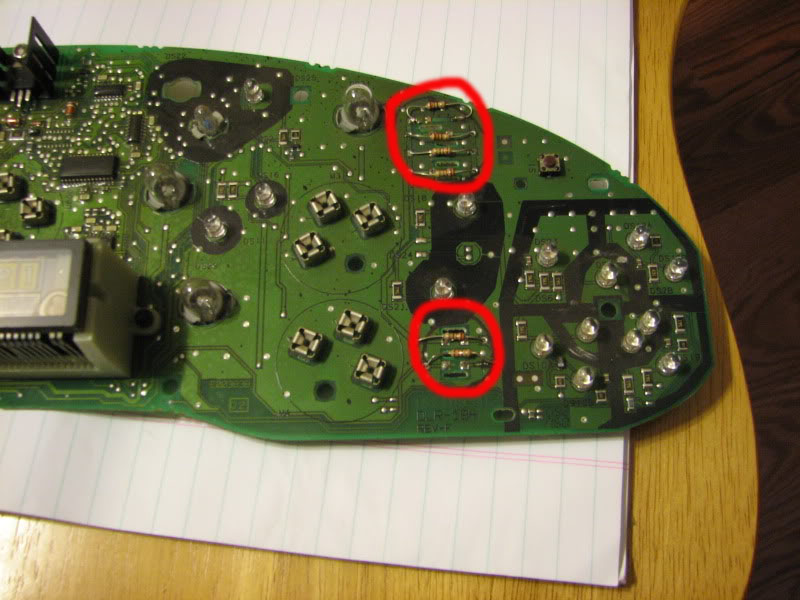

And two here, only pic I have is after they were replaced
Solder them up. (Yeah Frank..it is)
Here'* the end result
Once the cluster is out, unclip the black plastic on the back. Pull the circuit board off the front of the cluster and look at the burnt barrel resistors.
There are a total of 10 resistors to be changed. The pictures show the resistors missing. Places where they belong are circled. Four here for the ODO
Four here
And two here, only pic I have is after they were replaced
Solder them up. (Yeah Frank..it is)
Here'* the end result
