Default Valve Cover Detailing

As I prepare for my Fall/Spring Mod, which includes some engine detailing; I decided to get the valve covers done.

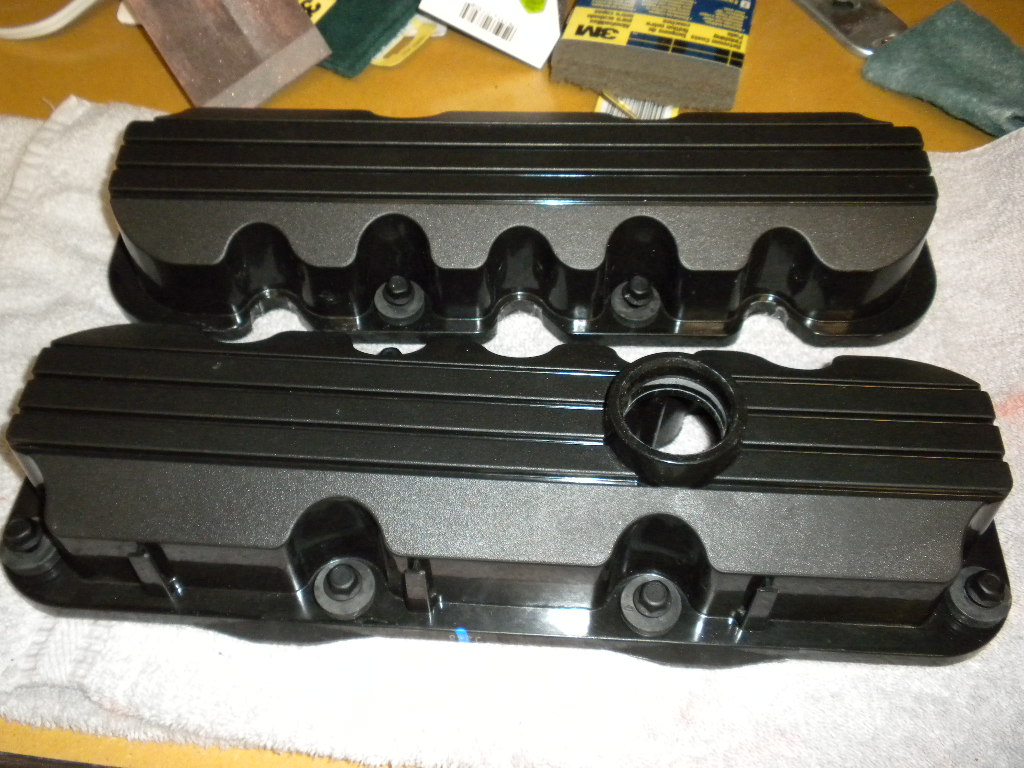

I ordered some new valves covers. They came all black:

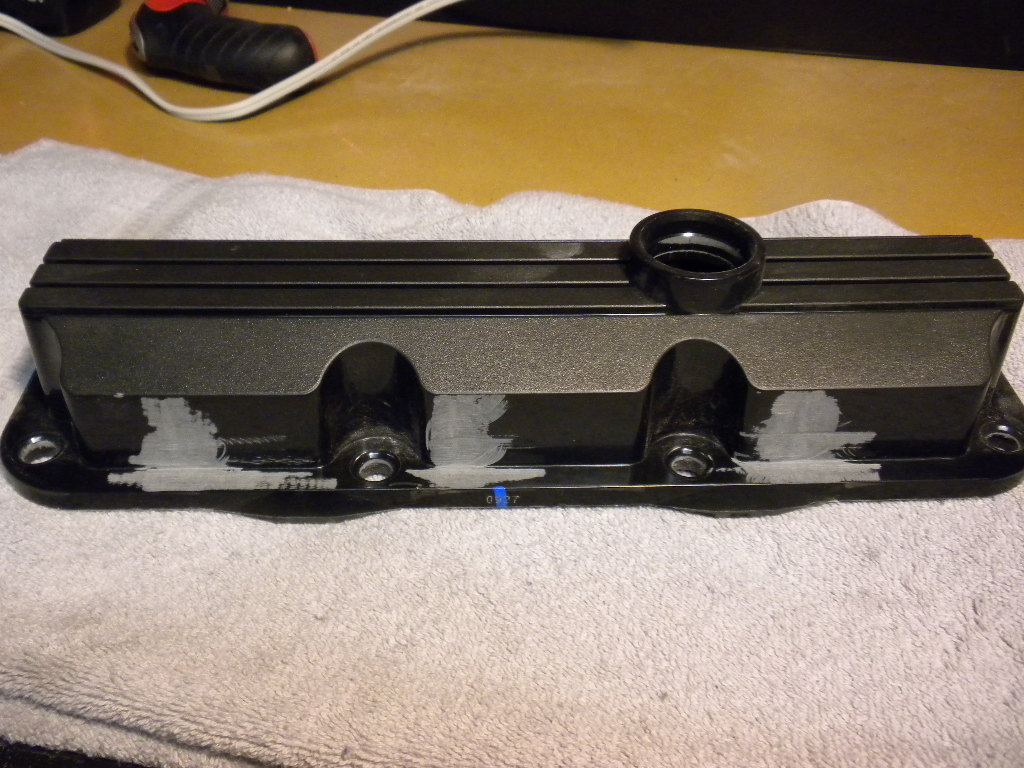

I cut the wire loom tabs off with a Dremel Tool:

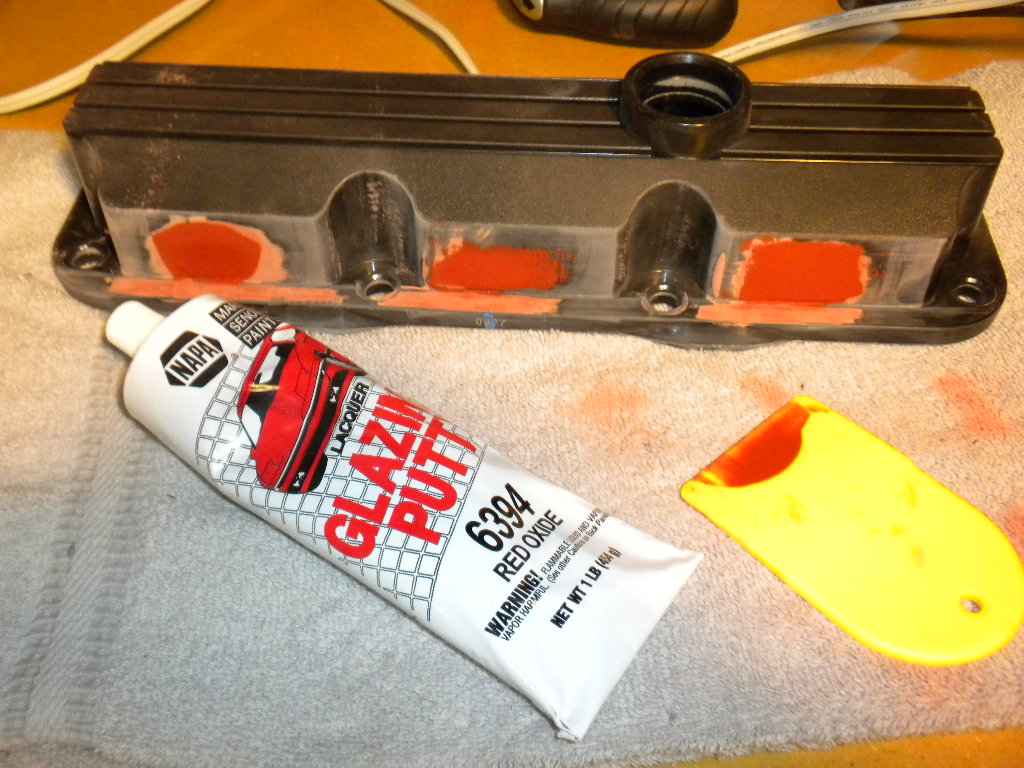

I used some glazing putty to smooth out where the wire loom tas were removed:

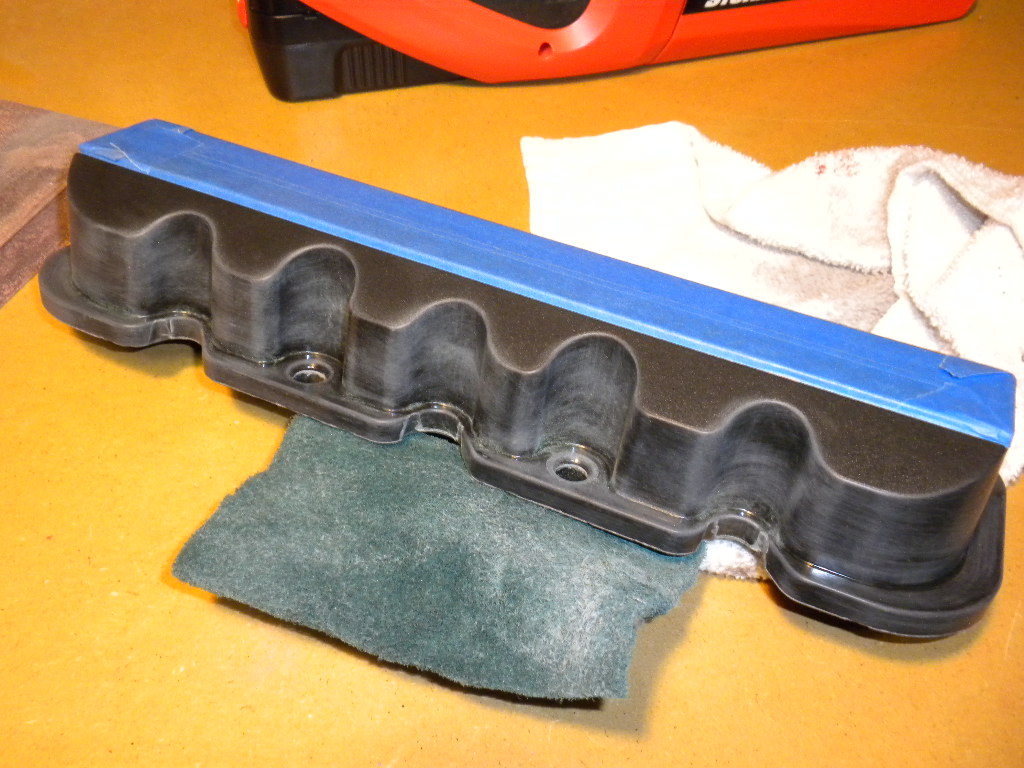

I masked off for the first coar and ruffed the finish up with a Scotch Brite pad:

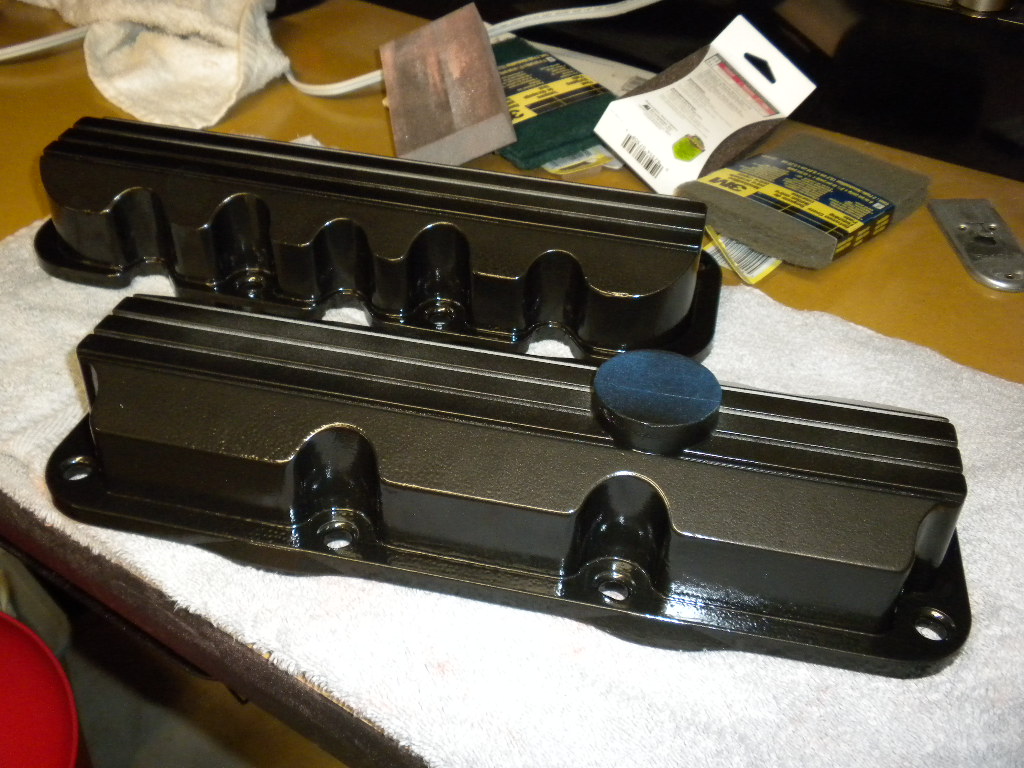

Bottom coat of Hammered Black gloss is down. I allowed 72 hours drying time:

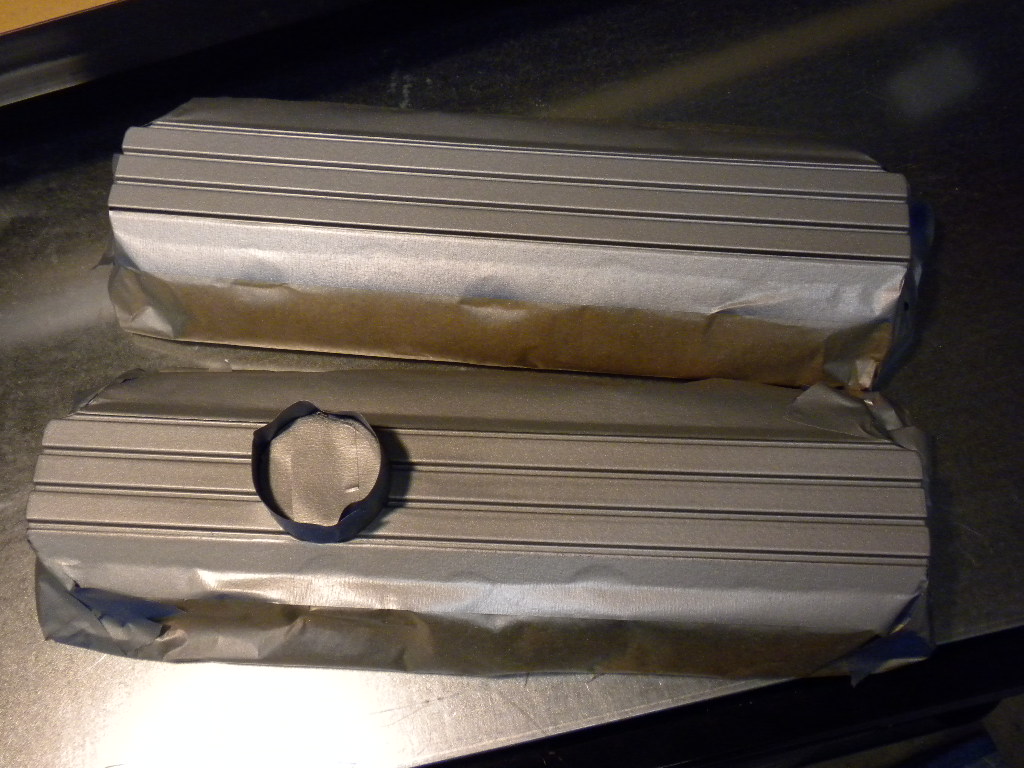

Masked off and cleaned with MEK where I will be applying Silver:


Silver color applied. I waited 24 hours for this to dry.

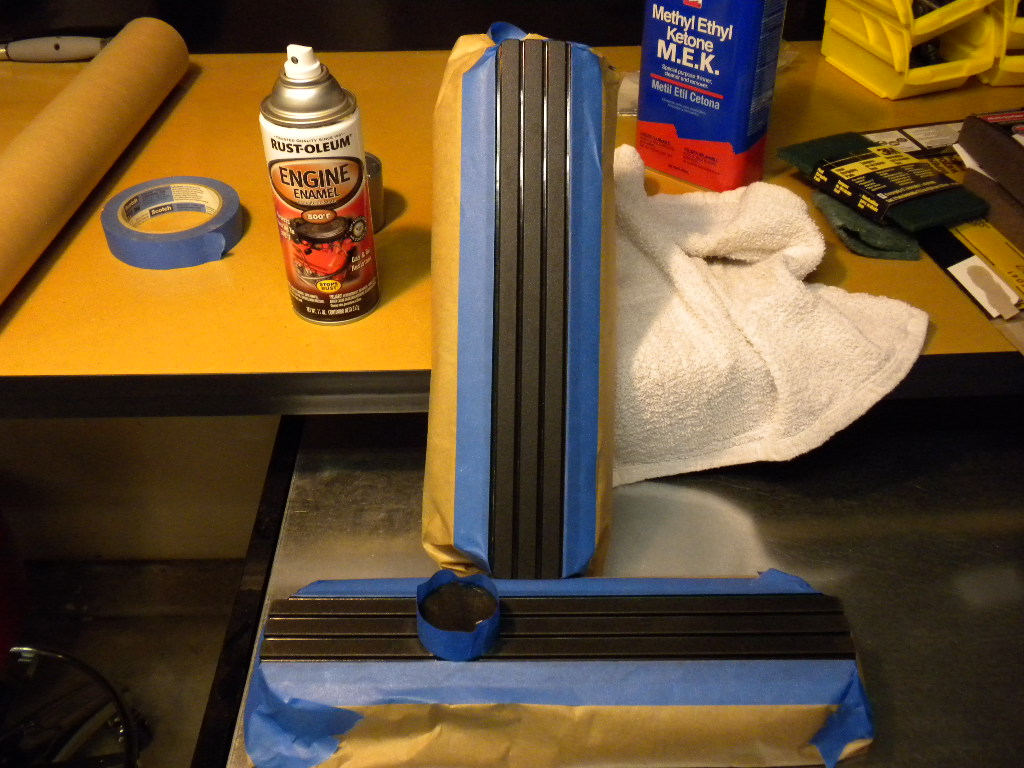

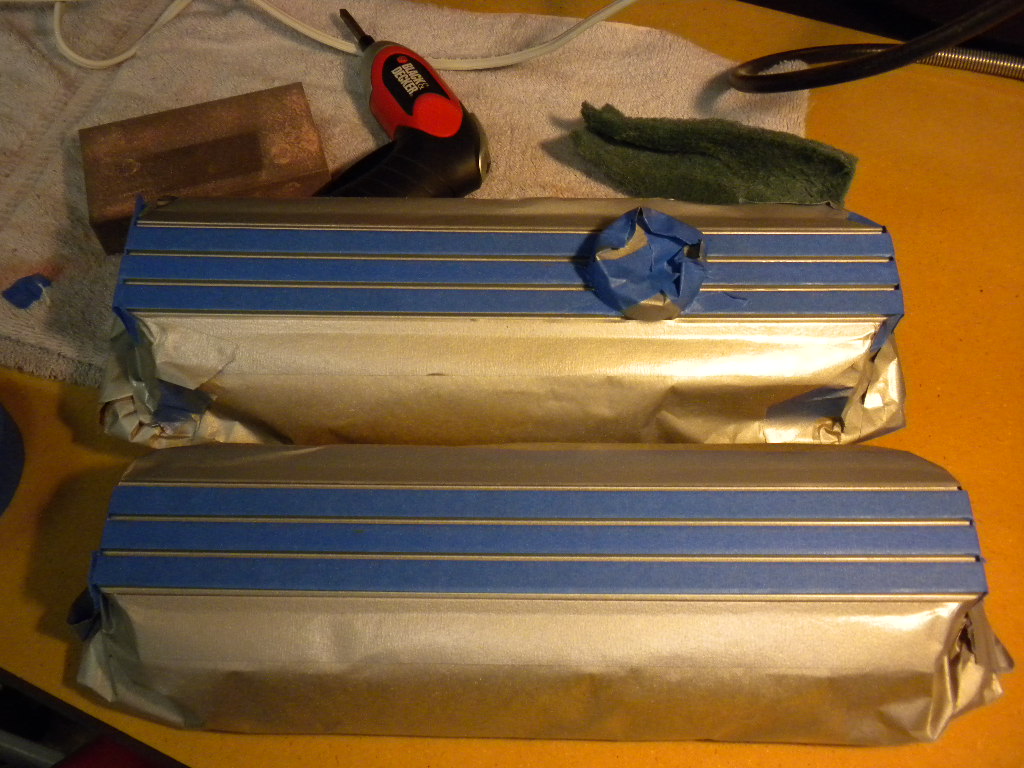

Masked up for the Red that will fill in the groved.

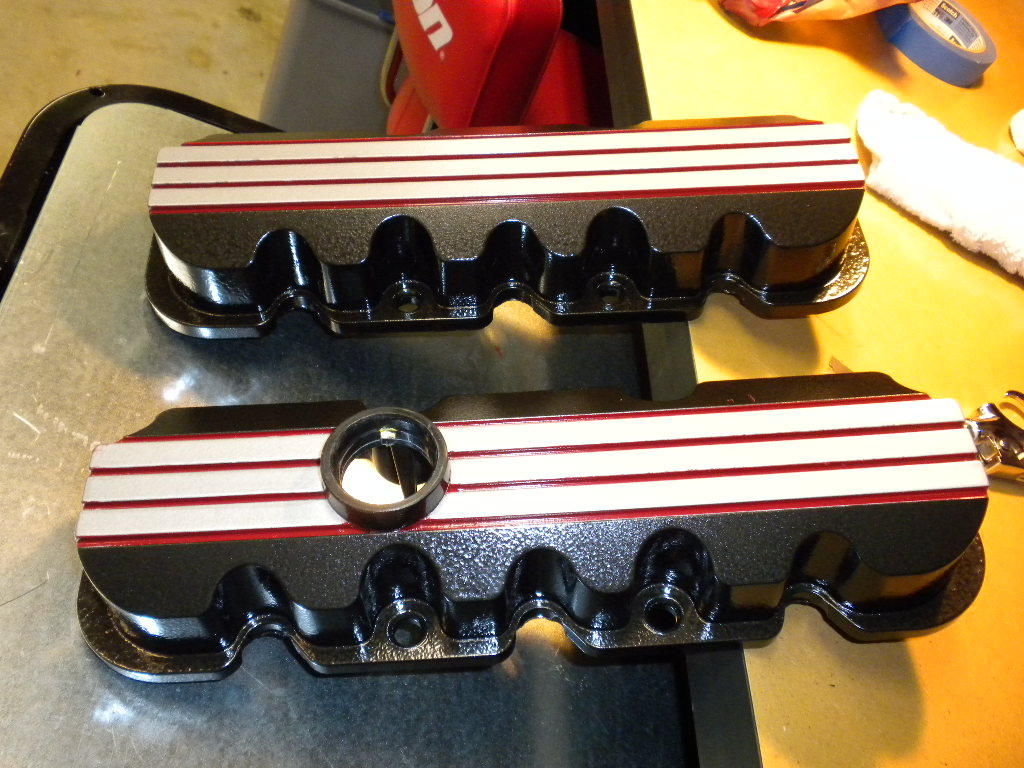

Finished covers!


I will be using the Hammered Black Gloss, Red and Chrome throughout the engine bay.
Purplehazeir is offline   Reply With Quote
Old 11-28-2009, 08:21 PM   #2
Senior Member
Posts like a Corvette

crunkfrunk's Avatar

Join Date: Jun 2008
Location: Cleveland, OH
Posts: 1,389
Thanks: 0
Thanked 0 Times in 0 Posts
crunkfrunk is on a distinguished road
Default

Nice job Kevin, I want to paint my valve covers and just about everything else on the top of the engine: */C, TB, fuel rails, injectors
probably will use a gloss red and black, i really like the look of the hammered black

how much were the valve covers?
crunkfrunk is offline   Reply With Quote
Old 11-28-2009, 08:28 PM   #3
Senior Member
True Car Nut

Black Pearl's Avatar

Join Date: Apr 2009
Location: STC, MN
Posts: 3,301
Thanks: 0
Thanked 1 Time in 1 Post
Black Pearl is on a distinguished road
Default

Those are nice Kevin. I was going to do something similar when I do my LIMs. Now I have to rethink my ideas and step up my game
Black Pearl is offline   Reply With Quote
Old 11-28-2009, 09:31 PM   #4
Senior Member
True Car Nut

Join Date: Dec 2002
Location: Sauk Centre, MN
Posts: 5,458
Thanks: 0
Thanked 0 Times in 0 Posts
OLBlueEyesBonne is on a distinguished road
Default

Looks great!! Only downside is you did that to a pair of black covers (these are high demand and hard to find).
OLBlueEyesBonne is offline   Reply With Quote
Old 11-28-2009, 09:42 PM   #5
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Nicely done. I'll be doing up a set as well in chrome.
Danthurs is offline   Reply With Quote
Old 11-28-2009, 09:46 PM   #6
Senior Member
Posts like a Turbo

sseiyaaround's Avatar

Join Date: May 2009
Location: lansing, MI
Posts: 440
Thanks: 0
Thanked 0 Times in 0 Posts
sseiyaaround is on a distinguished road
Default

very nice job man, looks sweet!
sseiyaaround is offline   Reply With Quote
Old 11-28-2009, 11:29 PM   #7
Senior Member
True Car Nut
Thread Starter

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

Quote:
Originally Posted by crunkfrunk View Post
Nice job Kevin, I want to paint my valve covers and just about everything else on the top of the engine: */C, TB, fuel rails, injectors
probably will use a gloss red and black, i really like the look of the hammered black

how much were the valve covers?
Thanks Frank! For the pair they were $126.08. Brand new and in the box from parts.com.
Purplehazeir is offline   Reply With Quote
Old 11-28-2009, 11:31 PM   #8
Senior Member
True Car Nut
Thread Starter

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

Quote:
Originally Posted by OLBlueEyesBonne View Post
Looks great!! Only downside is you did that to a pair of black covers (these are high demand and hard to find).
Not hard to find at all. Went to parts.com and ordered them new and in the box. They came as is for $126.08!
Purplehazeir is offline   Reply With Quote
Old 11-29-2009, 01:24 AM   #9
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

AWESOME! And,...... RED! ya
GXP Venom is offline   Reply With Quote
Old 11-29-2009, 12:56 PM   #10
Member
Posts like a V-Tak

Join Date: Nov 2009
Location: Largo, FL
Posts: 31
Thanks: 0
Thanked 0 Times in 0 Posts
05_GXP is on a distinguished road
Default

Great job!!!!
