Painting my break calipers - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


Detailing & Appearance Discuss washing, waxing and detailing information as well as interior/exterior cosmetic modifications. This includes neons, body, cosmetic wheels, etc. Even under the hood detailing.

Reply



Thread Tools Search this Thread
Old 02-29-2008, 12:48 PM   #1
Senior Member
Posts like a Turbo
Thread Starter

03SSEISUPERCHARGED's Avatar

Join Date: Jan 2008
Location: Sheboygan-Right Next to Road America
Posts: 437
Thanked 3 Times in 2 Posts
03SSEISUPERCHARGED is on a distinguished road
Default Painting my break calipers

Well i got a g2 red break coloring kit. It says its good enough for 4 calipers but idk not a lot of paint. Never the less any suggestions or hints here for me???
03SSEISUPERCHARGED is offline   Reply With Quote
Old 02-29-2008, 01:33 PM   #2
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

get some brake clean and clean everything REALLY good, or the paint wont stick. After that if you have a lot of time, put a few coats on it, as the Duplicolor kit is rather thin.

With the wheels you have i also recommend painting your rotors, so they done look rusty

here is what i did with my 03 last year
Name:  PontiacRedCalipers002.jpg
Views: 0
Size:  61.4 KB

Name:  PontiacRedCalipers004.jpg
Views: 0
Size:  70.7 KB

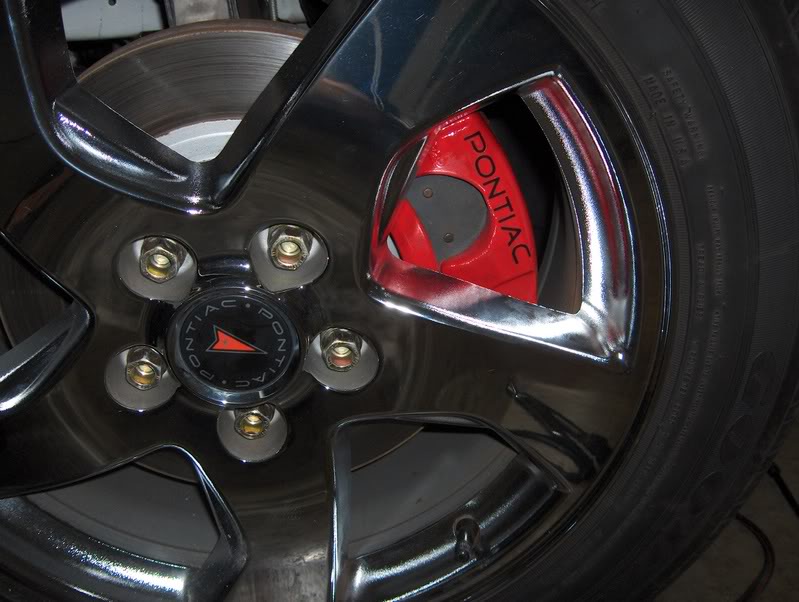

Name:  PontiacRedCalipers006.jpg
Views: 0
Size:  78.6 KB
1993 SLE is offline   Reply With Quote
Old 02-29-2008, 10:03 PM   #3
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Maryland, USA
Posts: 3,089
Thanks: 0
Thanked 0 Times in 0 Posts
95SLE is on a distinguished road
Default

You need to get all four wheels off of the ground to paint the calipers. I used the G2 system and there was enogh paint to put 3 coats on all four wheels. Painted the three coats over a period of 3 hours. Let dry for 24 hours and put the wheels back on. My calipers still look good 3 and a half years later.
95SLE is offline   Reply With Quote
Old 02-29-2008, 11:21 PM   #4
Senior Member
Posts like a Northstar

Join Date: Dec 2005
Location: jersey
Posts: 740
Thanks: 0
Thanked 0 Times in 0 Posts
EWC88 is on a distinguished road
Default

Were did you get your kit at? I'm going to want to do this this summer when I decided to change my pads and rotors.
EWC88 is offline   Reply With Quote
Old 02-29-2008, 11:36 PM   #5
Member
Posts like a V-Tak

Join Date: May 2006
Location: Twin Cities, MN
Posts: 88
Thanks: 0
Thanked 0 Times in 0 Posts
Pontiholic is on a distinguished road
Default

I also painted my rotors silver while I was painting my calipers. Only I had new ones to work with so I painted the vent fins too. Next time I will just have them nickle plated.
I used a foam brush so I didn't have to worry about any bristles comming out of the brush and sticking to the caliper. Have a couple of wire coat hangers handy as they make a great hanger for the calipers while waiting for the paint to dry. Just cut one wire next to the hook and the other about 15 inches from the hook. Hook the coil spring and run the wire through the bolt hole. Also, have a couple of small wire brushes at hand for scrubbing with the brake cleaner. The results are great. You will be pleased.
Pontiholic is offline   Reply With Quote
Old 03-04-2008, 01:45 AM   #6
Senior Member
Posts like a Turbo
Thread Starter

03SSEISUPERCHARGED's Avatar

Join Date: Jan 2008
Location: Sheboygan-Right Next to Road America
Posts: 437
Thanked 3 Times in 2 Posts
03SSEISUPERCHARGED is on a distinguished road
Default

Just go to ebay and type in brake caliper paint!
03SSEISUPERCHARGED is offline   Reply With Quote
Old 03-04-2008, 01:46 AM   #7
Senior Member
Posts like a Turbo
Thread Starter

03SSEISUPERCHARGED's Avatar

Join Date: Jan 2008
Location: Sheboygan-Right Next to Road America
Posts: 437
Thanked 3 Times in 2 Posts
03SSEISUPERCHARGED is on a distinguished road
Default

Quote:
Originally Posted by Pontiholic
I also painted my rotors silver while I was painting my calipers. Only I had new ones to work with so I painted the vent fins too. Next time I will just have them nickle plated.
I used a foam brush so I didn't have to worry about any bristles comming out of the brush and sticking to the caliper. Have a couple of wire coat hangers handy as they make a great hanger for the calipers while waiting for the paint to dry. Just cut one wire next to the hook and the other about 15 inches from the hook. Hook the coil spring and run the wire through the bolt hole. Also, have a couple of small wire brushes at hand for scrubbing with the brake cleaner. The results are great. You will be pleased.
I don't have to take them off with the g2 kit!!!
03SSEISUPERCHARGED is offline   Reply With Quote
Old 03-04-2008, 01:48 AM   #8
Senior Member
Posts like a Turbo
Thread Starter

03SSEISUPERCHARGED's Avatar

Join Date: Jan 2008
Location: Sheboygan-Right Next to Road America
Posts: 437
Thanked 3 Times in 2 Posts
03SSEISUPERCHARGED is on a distinguished road
Default

Quote:
Originally Posted by 95SLE
You need to get all four wheels off of the ground to paint the calipers. I used the G2 system and there was enough paint to put 3 coats on all four wheels. Painted the three coats over a period of 3 hours. Let dry for 24 hours and put the wheels back on. My calipers still look good 3 and a half years later.
I see there is a ceritan part that you and the other person in this thread (sorry forgot your sn while writing this) that you didn't paint. What is it and why shoudln't you paint it. Sorry if its a stupid question but i just don't want to screw anything up.
03SSEISUPERCHARGED is offline   Reply With Quote
Old 03-04-2008, 01:54 AM   #9
Senior Member
Posts like a Camaro

Join Date: Jun 2007
Location: Chambersburg, Pennsylvania
Posts: 882
Thanks: 0
Thanked 0 Times in 0 Posts
putertopia is on a distinguished road
Default

I think the part you're seeing is the backing plate on the brake pad. Technically, I suppose you could paint it. But that would get dirty the quickest, and that REALLY heats up.
putertopia is offline   Reply With Quote
Old 03-04-2008, 01:55 AM   #10
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

its the actual brake pad. if you want to make it easier, take the caliper off the rotor, remove the pad and then use a clothes hanger to prop it up while you paint it.

it only has to look good enough for you.
harofreak00 is offline   Reply With Quote
