Default Painting engine cover

What type of paint should i use for painting my engine cover?
bonny99 is offline   Reply With Quote
Old 09-22-2008, 05:54 PM   #2
Village Idiot
Posts like a Turbo

Join Date: May 2007
Posts: 280
Thanks: 0
Thanked 0 Times in 0 Posts
iluvmybonnie is on a distinguished road
Default

ok just because your asking this i'm going to assume you don't know exactly what you are doing here. that being said this is what you want to do:

clean very well
some use soap and water or use brake clean
do not touch IT with your bare hands after it'* are clean.
then use some adhesion promoter
then a few prime coats.
all high temp paints should be used and should work fine, just pick your own color scheme
use a final(alot more then one coat) clear coat for a gloss and protective coat.

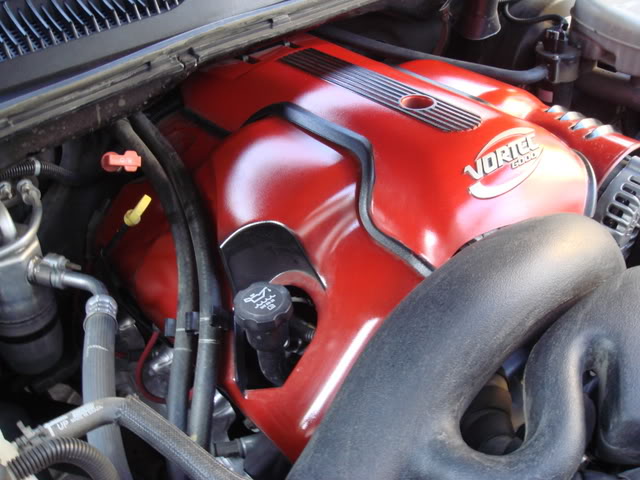

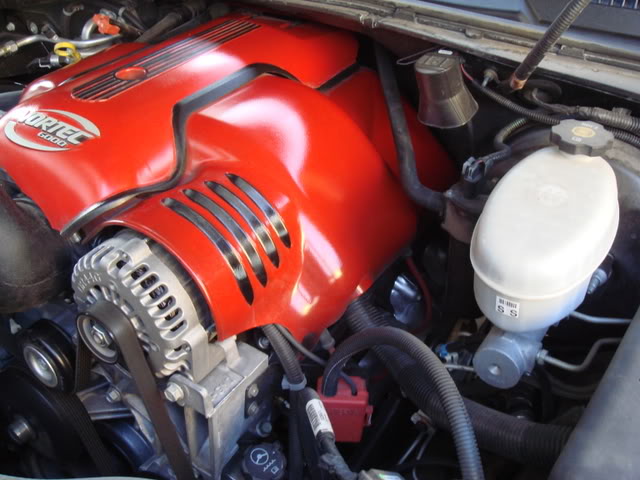

if you do a good job it can come out like this
Name:  DSC00075.jpg
Views: 10
Size:  60.8 KB
Name:  DSC00073.jpg
Views: 8
Size:  62.4 KB

i personally really like this paint from duplicolor and have used it all over my ride including the calipers:



if you do this then you'll want to paint your valve covers too obviously so everything matches and looks nice here'* a link for j00: How to Paint a Valve Cover on a Car | eHow.com <--i do recommend using a few good coats of a high temp clear coat before you reinstall for obvious reasons.


oh and if this is your 1st time follow the directions on the can to a T and do a bunch of coats of paint and clear. the more clear the deeper the shine loooks and helps protect it ALOT more.

g'luck!


edit: the smart thing to do if goto a bodyshop and have them spray it for you so it matches your outside paint btw. and while you're doing that just throw a bunch of other pieces you want painted as well in. it'* really not very expensive.

Last edited by iluvmybonnie; 09-22-2008 at 06:04 PM.
iluvmybonnie is offline   Reply With Quote
Old 09-22-2008, 10:08 PM   #3
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jan 2008
Location: rockford, illinois
Posts: 281
Thanks: 0
Thanked 0 Times in 0 Posts
bonny99 is on a distinguished road
Default

What kind of primer should i use?
bonny99 is offline   Reply With Quote
Old 09-23-2008, 09:54 AM   #4
Village Idiot
Posts like a Turbo

Join Date: May 2007
Posts: 280
Thanks: 0
Thanked 0 Times in 0 Posts
iluvmybonnie is on a distinguished road
Default

duplicolor makes high temp primer as well. make sure you get high temp clear also. the one in the pic is regular clear which would probably be fine but you might as well use the high temp clear just to be sure.
iluvmybonnie is offline   Reply With Quote
Old 09-23-2008, 11:43 AM   #5
Senior Member
Posts like a Corvette

crunkfrunk's Avatar

Join Date: Jun 2008
Location: Cleveland, OH
Posts: 1,389
Thanks: 0
Thanked 0 Times in 0 Posts
crunkfrunk is on a distinguished road
Default

i know the engine cover makes everything look all pretty, but i was told all your gonna do is trap heat under it, best just to take it off or cut off the center and put some mesh in there, you could paint if you want, i might get around to doing that myself
crunkfrunk is offline   Reply With Quote
Old 09-23-2008, 12:59 PM   #6
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

agreed remove the engine cover and move on with life.
1993 SLE is offline   Reply With Quote
Old 09-23-2008, 02:11 PM   #7
Village Idiot
Posts like a Turbo

Join Date: May 2007
Posts: 280
Thanks: 0
Thanked 0 Times in 0 Posts
iluvmybonnie is on a distinguished road
Default

it doesn't trap that much heat fwiw.

and you could always just do cutouts and put mesh in there which would keep it cool and give you looks as well.

i'd paint it.
