Default My SLP upper grill installation

Some of you have already seen my grill but this is how I installed it

When you first get the SLP grill it'* all black, not painted, just the color of the plastic they used to mold it is black. So the first thing I did was paint for outer border body color and the chevy bowtie they include is red so that got the bodycolor treatment too.

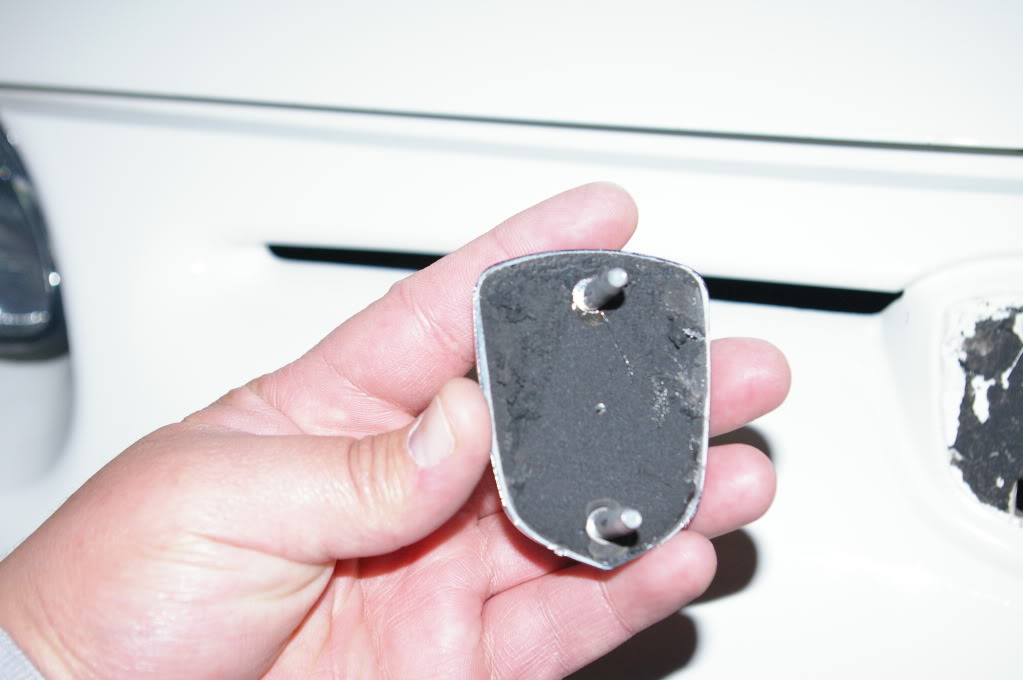

The grill just gets attached to the front bumper via 3m double sided tape so with my car being white and the center of the grill being black, I thought it would look tacky if I didn't blacken the area of the bumper that would shine through. I didn't want to paint it though cause that'* pretty permanent so I figured laying down some vinyl would be the way to go. So first thing I did was remove the Knight badge on the front bumper and clean up the leftover adhesive. I used a heat gun and a bondo spreader to get the badge off.

Name:  IMGP3098.jpg
Views: 27
Size:  57.1 KB
Name:  IMGP3097.jpg
Views: 24
Size:  33.4 KB

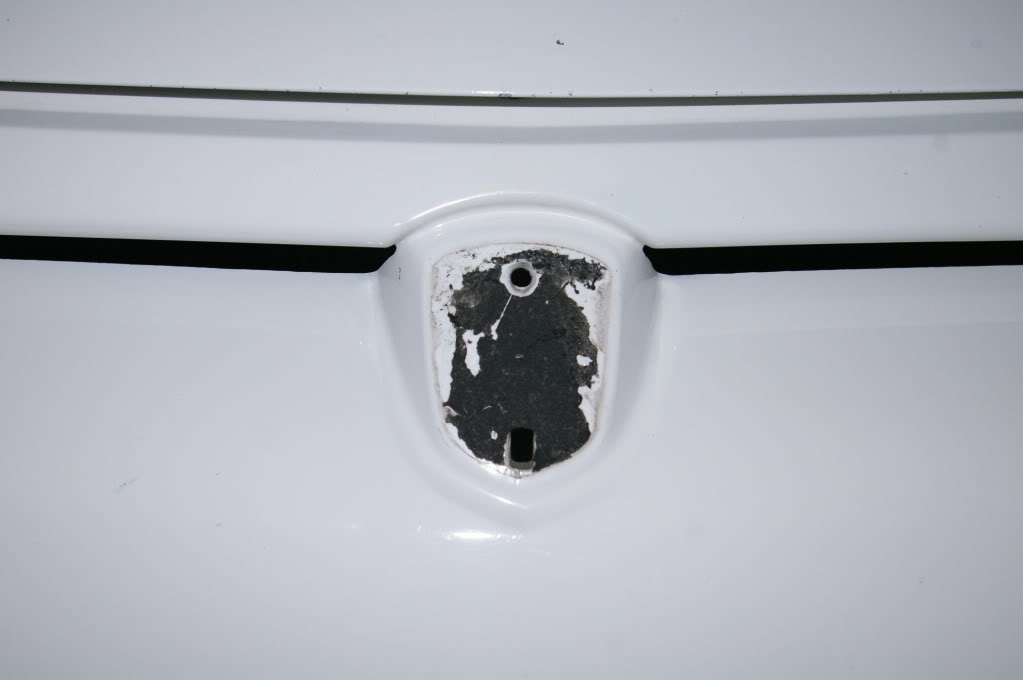

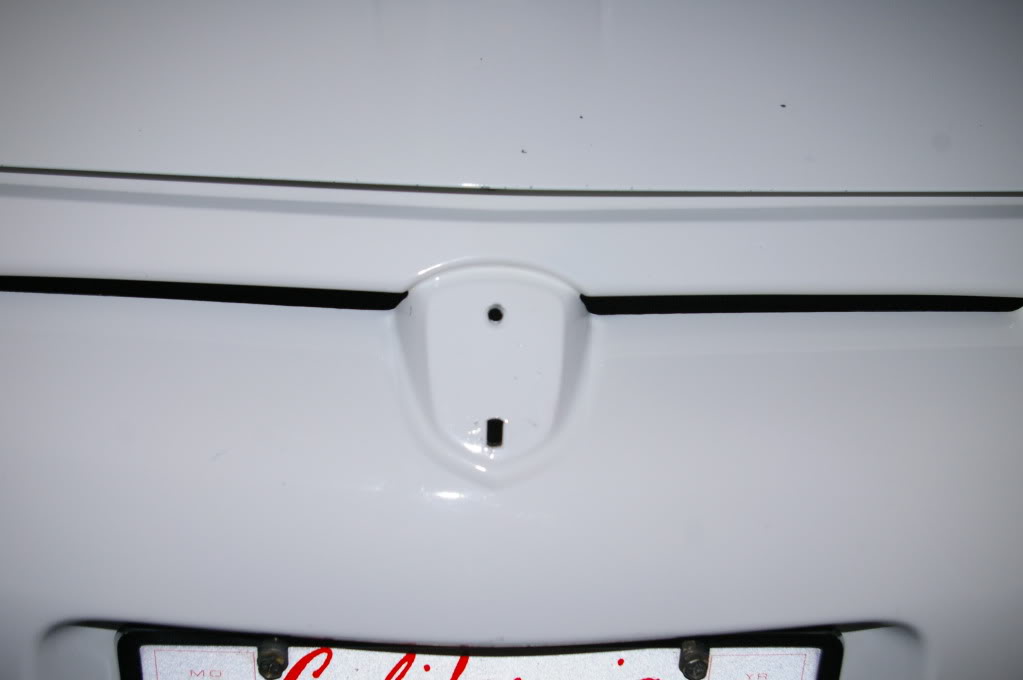

Cleaning the leftover adhesive started off as a royal pain in the a**. I first soaked it in goo gone and let it sit for a while....that got the top layer of foamy stuff taken off pretty easy but the adhesive was being stubborn. Then I brought in the heat gun to help, and some more goo gone, this time using a rag soaked in goo gone to rub it away....still not working too good. So finally I decided to try rubbing away the sticky stuff with my finger, worked like a charm!

Name:  IMGP3100.jpg
Views: 24
Size:  32.9 KB

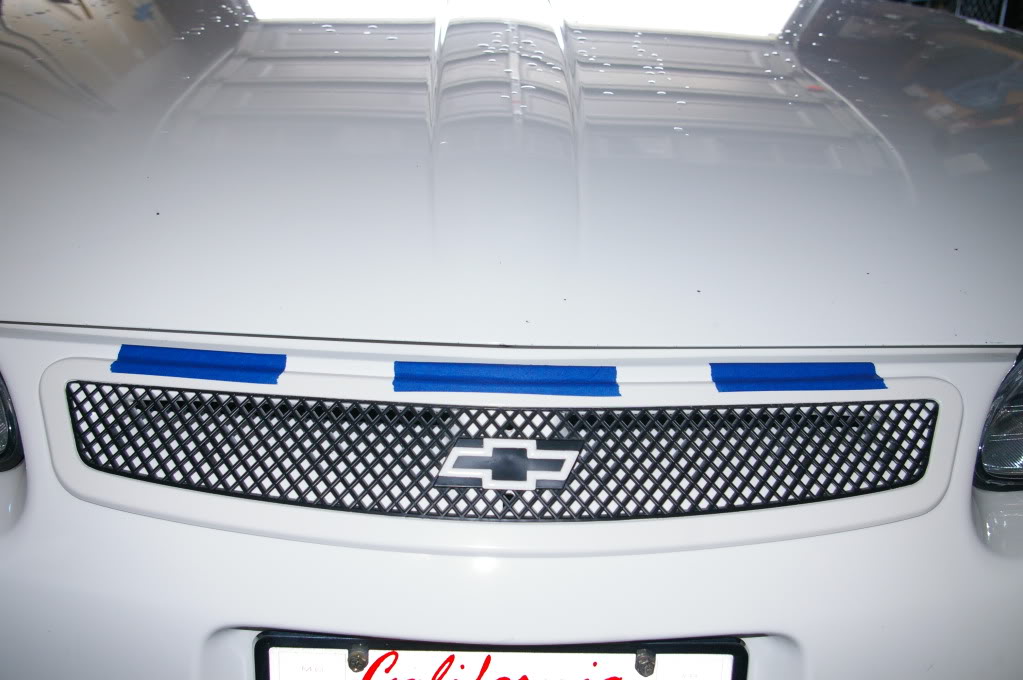

Then I found the spot I wanted the grill to be at and taped it in place so I could see the area that needed the vinyl applied

Name:  IMGP3101.jpg
Views: 18
Size:  92.2 KB

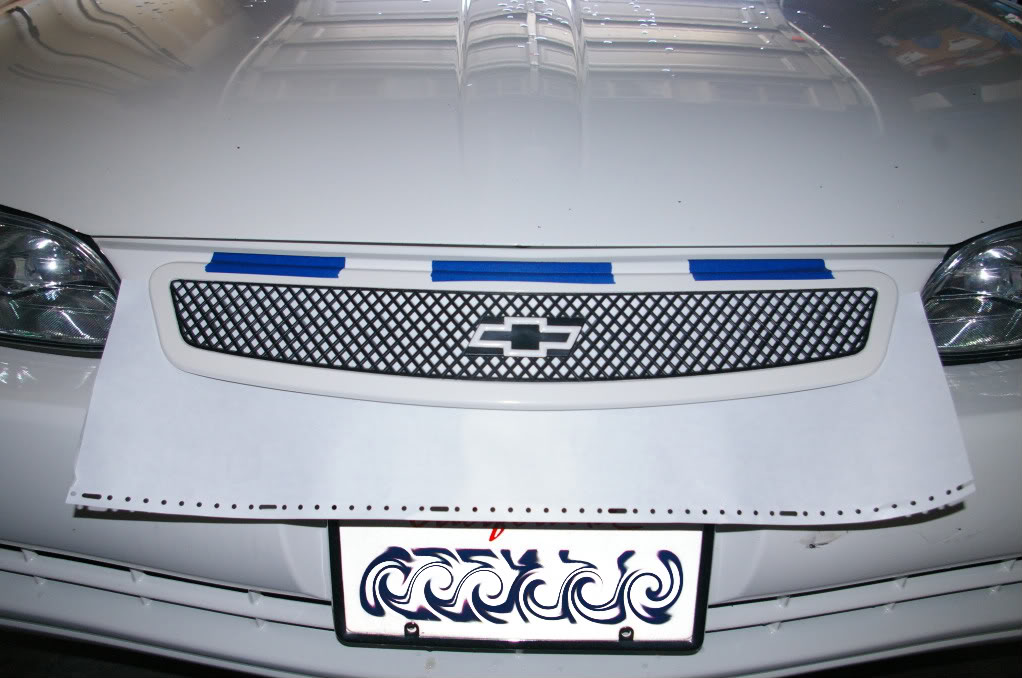

I went to Signs Now and picked up a couple pieces of the vinyl they use to do wraps on cars, placed that behind the grill and traced the outline of the area I needed to cover

Name:  IMGP3103.jpg
Views: 22
Size:  113.7 KB

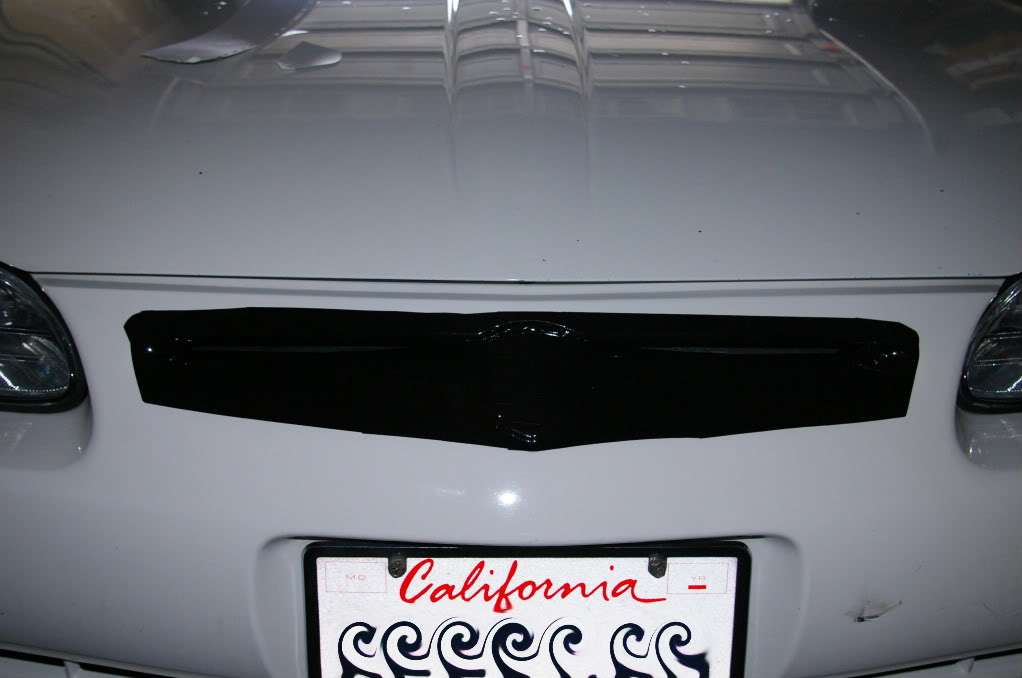

After laying down that piece, I had gaps and crevices all over the place so I filled them in with the leftover vinyl.....this was definitely a humbling experience. I figured how hard could it be to lay down vinyl, heh, alot harder than I expected it to be. I could have done a half *** job but that'* not me, I tried to make it look as nice and clean as possible.

Name:  IMGP3105.jpg
Views: 21
Size:  69.9 KB

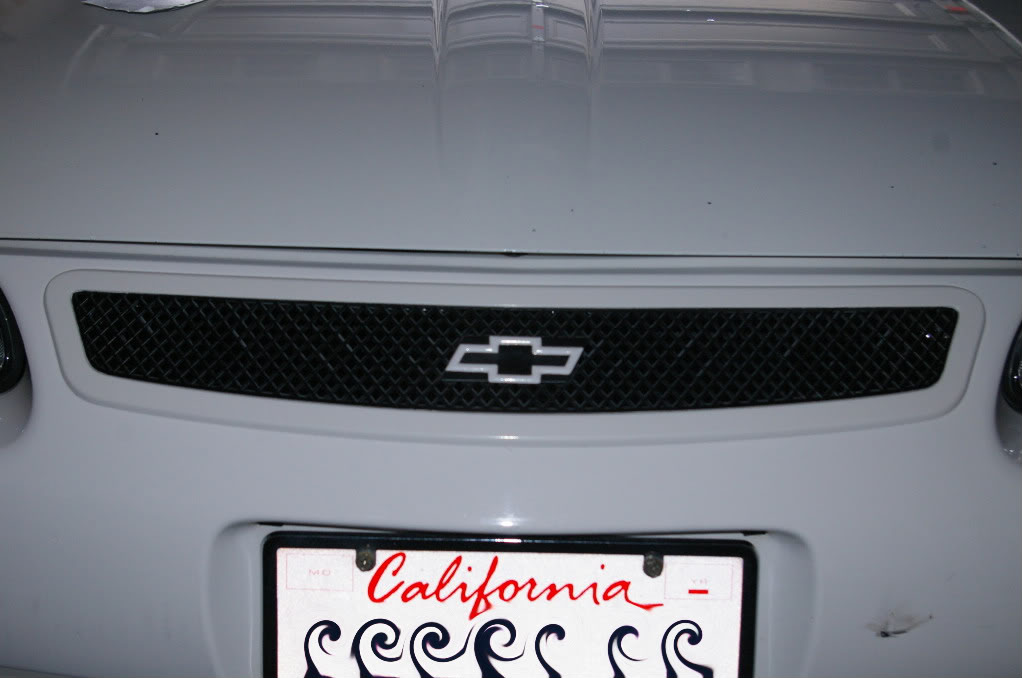

Then I gave the outer area of the vinyl a final wipedown with rubbing alcohol, applied the double sided tape to the outer edge of the grill and put it in place

Name:  IMGP3107.jpg
Views: 21
Size:  74.0 KB

When I got the vinyl they included the scraper/squeegee thingy they use to press it on and get all the air bubbles out and gave me some tips/instructions on how to get it done, very helpful folks at Signs Now. And they only charged me like $8 for 2 pieces of vinyl the size as pictured above. A different sign shop wanted to charge me $20 minimum
04MonteLS is offline   Reply With Quote
Old 04-03-2011, 04:02 PM   #2
Senior Member
Posts like a Turbo

roboticjunky's Avatar

Join Date: Aug 2009
Location: Indiana
Posts: 487
Thanks: 0
Thanked 0 Times in 0 Posts
roboticjunky is on a distinguished road
Default

Quote:
Originally Posted by 04MonteLS View Post
Then I found the spot I wanted the grill to be at and taped it in place so I could see the area that needed the vinyl applied


I actually like the way the grill looked in this pic. IMO
roboticjunky is offline   Reply With Quote
Old 04-03-2011, 04:14 PM   #3
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Looks great, but your license plates look all wierd. Must be from the 60s.
Danthurs is offline   Reply With Quote
Old 04-03-2011, 04:22 PM   #4
Senior Member
Posts like a Turbo
Thread Starter

04MonteLS's Avatar

Join Date: Jul 2010
Location: Sacramento, CA.
Posts: 326
Thanks: 0
Thanked 0 Times in 0 Posts
04MonteLS is on a distinguished road
Default

Quote:
Originally Posted by roboticjunky View Post
I actually like the way the grill looked in this pic. IMO
Cool, now when you get a Monte and do the SLP grill you'll know what to do

Quote:
Originally Posted by Danthurs View Post
Looks great, but your license plates look all wierd. Must be from the 60s.
LOL. Do you know how many red light tickets I've gotten out of because of that?
04MonteLS is offline   Reply With Quote
Old 04-03-2011, 05:04 PM   #5
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I can see where that might come in handy.
Danthurs is offline   Reply With Quote
