Default My rendition of the window molding fix (25 Pics)

first i purchased Matte Black Vinyl off of ebay. you could also use shiny black.

Name:  DSCN0065.jpg
Views: 0
Size:  52.8 KB
I taped my paint along the window so as to not scratch my paint.
Name:  DSCN0009.jpg
Views: 1
Size:  40.4 KB
Name:  DSCN0010.jpg
Views: 2
Size:  42.6 KB
then carefully pry in an upward motion loose the molding. moving along a bit at a time.
Name:  DSCN0012.jpg
Views: 1
Size:  51.5 KB
Name:  DSCN0013.jpg
Views: 1
Size:  52.6 KB
then sanded the molding as to not feel the deteriorated section.
Name:  DSCN0014.jpg
Views: 1
Size:  58.1 KB
then cut a piece of vinyl wider and longer than the molding.
Name:  DSCN0015.jpg
Views: 3
Size:  62.4 KB

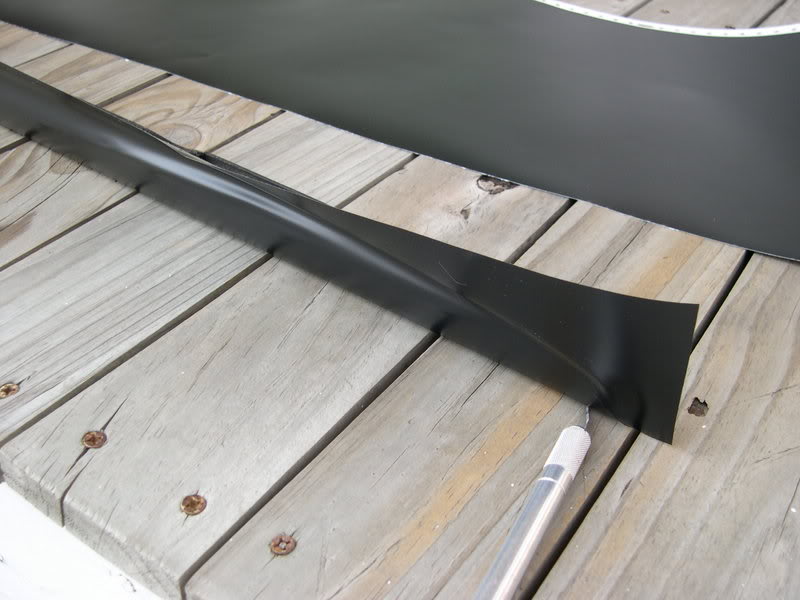

and placing it on.
Name:  DSCN0018.jpg
Views: 2
Size:  60.7 KB
then trim away excess vinyl with a new exacto blade.
Name:  DSCN0020.jpg
Views: 1
Size:  50.6 KB
you can use a finger nail to tuck in any part that may be sticking out.
Then replace the molding by aligning up the clips and push down.

Name:  DSCN0021.jpg
Views: 1
Size:  41.6 KB
Name:  DSCN0022.jpg
Views: 1
Size:  38.2 KB
Name:  DSCN0023.jpg
Views: 1
Size:  57.9 KB

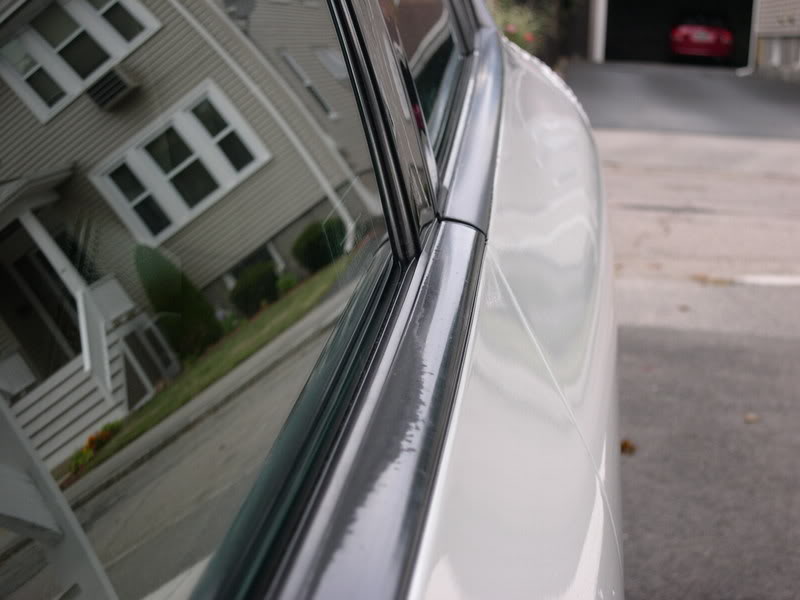

you can see here the before (front window) and after (rear window)
Name:  DSCN0026.jpg
Views: 2
Size:  50.0 KB

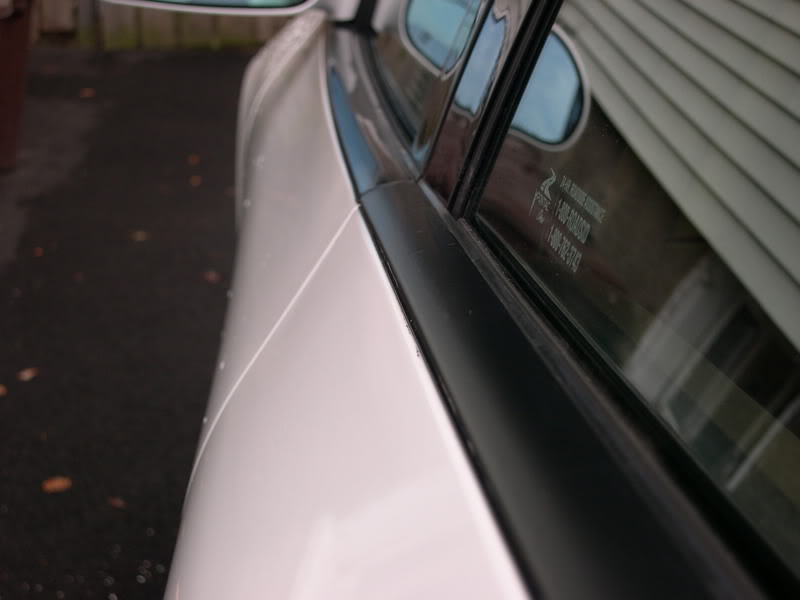

Name:  DSCN0027.jpg
Views: 4
Size:  36.0 KB

now on to the fronts....A little tricky in my case due to my vent shades along the windows.
Name:  DSCN0029.jpg
Views: 3
Size:  48.1 KB

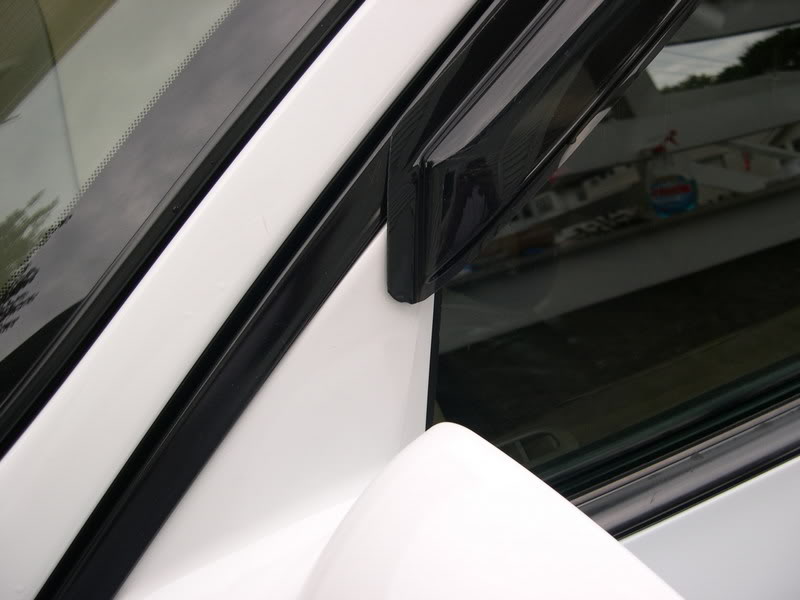

Name:  DSCN0028.jpg
Views: 1
Size:  46.4 KB
as you need to remove the mirror to get the whole molding off.
Mirror removal.

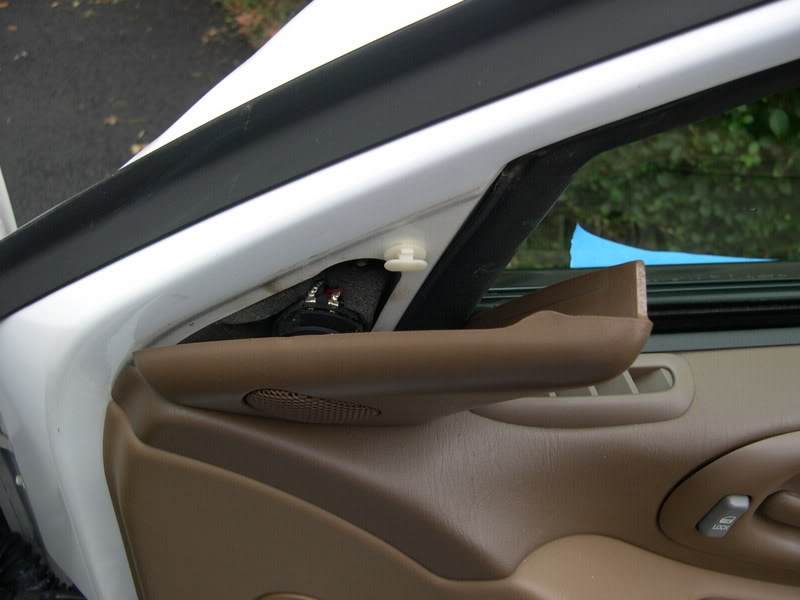

gently pry off the tweeter housing and pull off in an upward fashion.
Name:  DSCN0037.jpg
Views: 1
Size:  53.8 KB
Name:  DSCN0038.jpg
Views: 2
Size:  44.0 KB

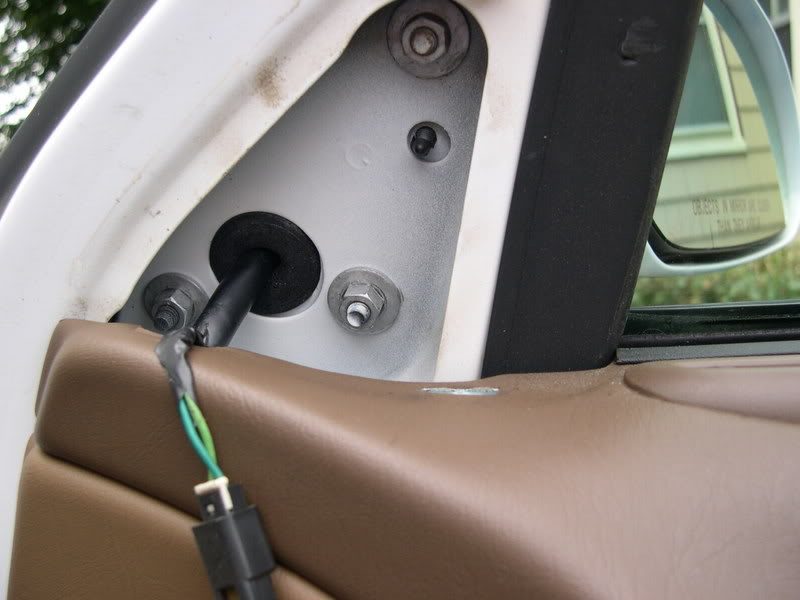

this corner nut is a bitch to get at.
Name:  DSCN0042.jpg
Views: 1
Size:  48.0 KB
because of my vent visors I could not get the mirror off. So I thought I would try to lift up on the mirror and pull the molding out.
that didn't work. and now its starting to rain
so I put the mirror back on and will try again another time.

started to put everything away and the rain stopped :P

OK I'm going to try something else... how about putting the vinyl on while is is ON the car?

lets try.
cut the vinyl to size.and place on.

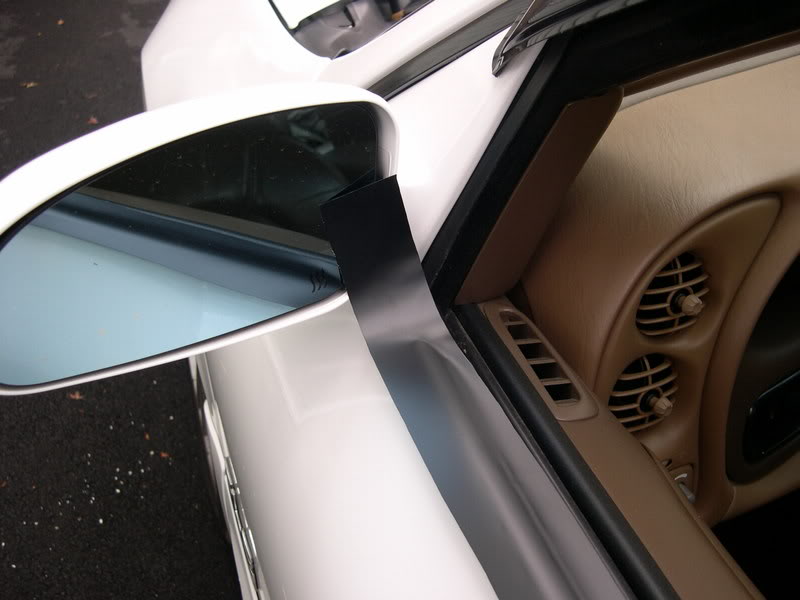

you can see here where it will not be put on under the mirrors :P
Name:  DSCN0058-1.jpg
Views: 1
Size:  50.4 KB
trim off excess with knife.
Name:  DSCN0046.jpg
Views: 1
Size:  36.7 KB
Not bad really...
Name:  DSCN0060.jpg
Views: 2
Size:  36.1 KB
Name:  DSCN0051.jpg
Views: 1
Size:  38.5 KB
Name:  DSCN0052.jpg
Views: 3
Size:  28.2 KB

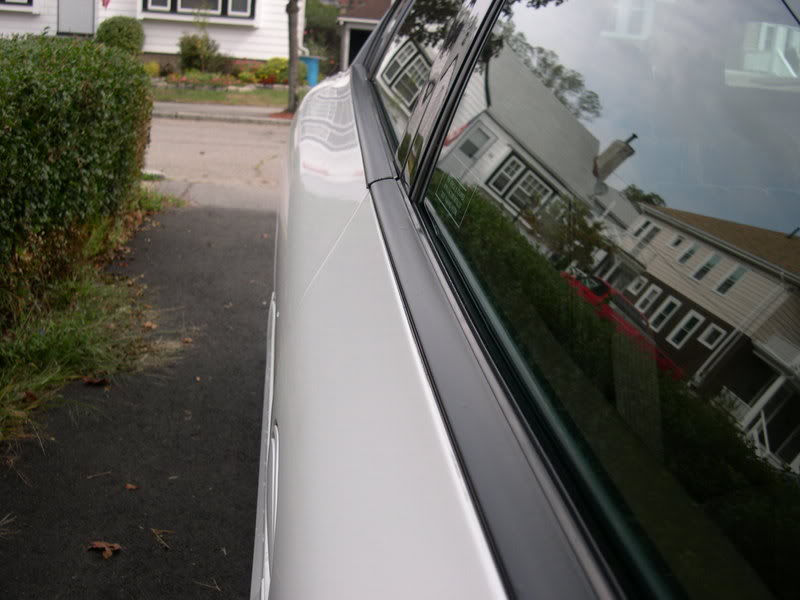

Name:  DSCN0053.jpg
Views: 1
Size:  61.4 KB

so the rear windows were sanded and the front not sanded. I will give it some time to see how well both stick and let you guys know.

FYI it was much easier to work with ON the car than OFF
you just need to be careful with the exacto knife as well have new blades.
Gumball is offline   Reply With Quote
Old 09-28-2007, 05:46 PM   #2
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Maryland, USA
Posts: 3,089
Thanks: 0
Thanked 0 Times in 0 Posts
95SLE is on a distinguished road
Default

Jim:
That looks great and does not look all that hard. Good Job!
95SLE is offline   Reply With Quote
Old 09-28-2007, 08:23 PM   #3
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

did Kitty help at all??

looks good....

save some of that stuff when i need it in a few years
1993 SLE is offline   Reply With Quote
Old 10-02-2007, 05:09 PM   #4
Member
Posts like a V-Tak

Join Date: Dec 2006
Location: Michigan - Flint, Lansing, Grand Rapids
Posts: 30
Thanks: 0
Thanked 0 Times in 0 Posts
PinkBirdyLX is on a distinguished road
Default

I just wonder if this would work well on my car because the molding is completely cracked and showing rust underneath
PinkBirdyLX is offline   Reply With Quote
Old 10-02-2007, 05:55 PM   #5
Senior Member
Posts like a Turbo

Join Date: Aug 2007
Location: Lebanon, oregon
Posts: 297
Thanks: 0
Thanked 0 Times in 0 Posts
03BONNY is on a distinguished road
Default

does it last?? with rain and sun?
03BONNY is offline   Reply With Quote
Old 10-12-2007, 05:38 PM   #6
Senior Member
Posts like a Northstar

Join Date: Dec 2005
Location: jersey
Posts: 740
Thanks: 0
Thanked 0 Times in 0 Posts
EWC88 is on a distinguished road
Default

Love it! I'm going be ordering mine tonight! One question though, how the HE|| did you put back the cover on that holds the tweeter?? I poped mine off today and it took forever to put back on, and I had to pop that little clearish white clip out and put it on the case then bang it in..Is that how you did it?
EWC88 is offline   Reply With Quote
Old 10-12-2007, 05:53 PM   #7
Senior Member
Certified Car Nut
Thread Starter

Join Date: Apr 2004
Location: Quincy, Ma
Posts: 15,341
Thanks: 0
Thanked 0 Times in 0 Posts
Gumball is on a distinguished road
Default

Quote:
Originally Posted by EWC88
One question though, how the HE|| did you put back the cover on that holds the tweeter?? I poped mine off today and it took forever to put back on, and I had to pop that little clearish white clip out and put it on the case then bang it in..Is that how you did it?

Yes that is what I had to do as well .


Quote:
Originally Posted by 03BONNY
does it last?? with rain and sun?
well it hasnt been a month yet but so far so good.
Gumball is offline   Reply With Quote
Old 10-20-2007, 11:14 PM   #8
Senior Member
Certified GM nut

Join Date: Jun 2004
Posts: 1,933
Thanks: 0
Thanked 0 Times in 0 Posts
95seand78z28 is on a distinguished road
Default

So for the fronts, did you snake it under the mirror or just cut it off when you get to the mirror?
95seand78z28 is offline   Reply With Quote
